Manufacturer no.:
24N385

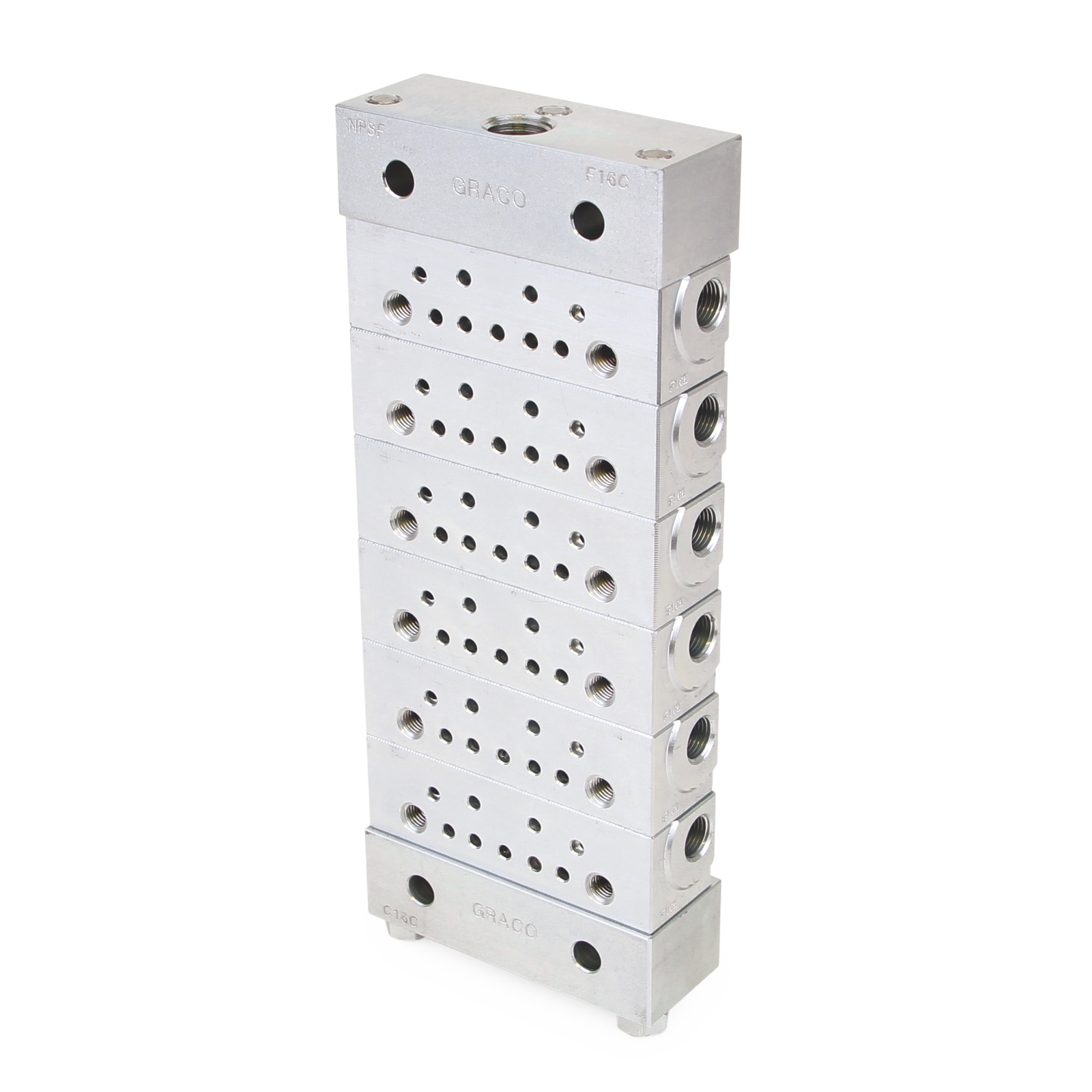

Trabon® MSP Stainless Steel Single-Line Manifold - 6-piece base plate, NPSF
€786.52*
% €838.95* (6.25% saved)Prices include VAT plus shipping costs
€660.94*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
The Trabon® MSP series sets industry standards for quality, reliability and ease of use. It was the original modular progressive distributor valve and is still the best! Now you can get the same reliable valve in stainless steel.
For machine tools, textile machines, glassware and beverage industry, mobile cranes and utility vehicles.
- As an option, outlets can be equipped with indicator pins to facilitate troubleshooting.
- Can be equipped with a proximity switch for electrical function control of the system.
- Check valves ensure accurate lubricant delivery at all times.
- The Quick-Change segments can be removed from the base unit without disconnecting the lubrication lines. This minimises labour costs and increases machine uptime.
- Produced in our own manufacturing facility – this guarantees quality and reliability. Each segment is individually honed and precision-engineered for a precise lubricant supply every time.
| Application: | Road vehicles, off-road vehicles, machines in manufacturing plants |
|---|---|
| Compatible material: | oil, fat |
| Cycle display: | No |
| Diffuser size (cm): | 3,175 |
| Distributor valve series: | MSP |
| Gender of the inlet thread: | Internal thread |
| Gender of the outlet thread: | Internal thread |
| Inlet size (inch): | 1/4 |
| Inlet thread type: | NPSF |
| Material: | stainless steel |
| Maximum NLGI grade: | No. 2 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Maximum operating temperature (°C): | 176 |
| Model: | Trabon |
| Number of outlets: | 12 |
| Outlet size (inch): | 1/8 |
| Outlet size (mm): | 3,175 |
| Outlet thread type: | NPSF |
| Permissible operating pressure (bar): | 241 |
| Series: | MSP |
| Type: | distributor |
More information
- Product number: 1030894
- Manufacturer: Graco
- EAN: 00633955184619
- Weight: 2.446 kg
- Length: 80 mm
- Width: 30 mm
- Height: 30 mm
Technical details
Operating specifications
| UPC product | 633955184619 |
|---|---|
| Division | LED |
| Price Block | 125 |
| Country of origin | US |
| Unit | EA |
| Height | 3 CM |
| Length | 8 cm |
| Width | 3 cm |
| Volume | 0 m³ |
| Shipping weight | 2 .45 KG |
Technical
| Maximum working pressure (psi) | 3 5 00 |
|---|---|
| Outlet Size (mm) | 3. 175 |
| Inlet size (in) | 1/4 |
| Outlet size (cm) | 0. 3175 |
| Number of outlets | 12 |
| Maximum working pressure (bar) | 2 41 |
| Maximum operating temperature (°F) | 350 |
| Inlet Thread Gender | Female |
| Outlet thread gender | Female |
| Outlet size (in) | 1/8 |
| Maximum Working Pressure (kPa) | 2 4 100 |
| Maximum NLGI Grade | #2 |
| Maximum operating temperature (°C) | 1 76 |
| Divider Valve Series | MSP |
| Model | Trabon |
| Series | MSP |
| Discharge per piston stroke (in³) | N/A |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 312497ZAB - Trabon Divider Valves, Instructions. English (English)
- 312497ZAB - Trabon Divider Valves, Instructions. English (日本語)
Verkaufsliteratur
