Product images may vary
Manufacturer no.: 17H468

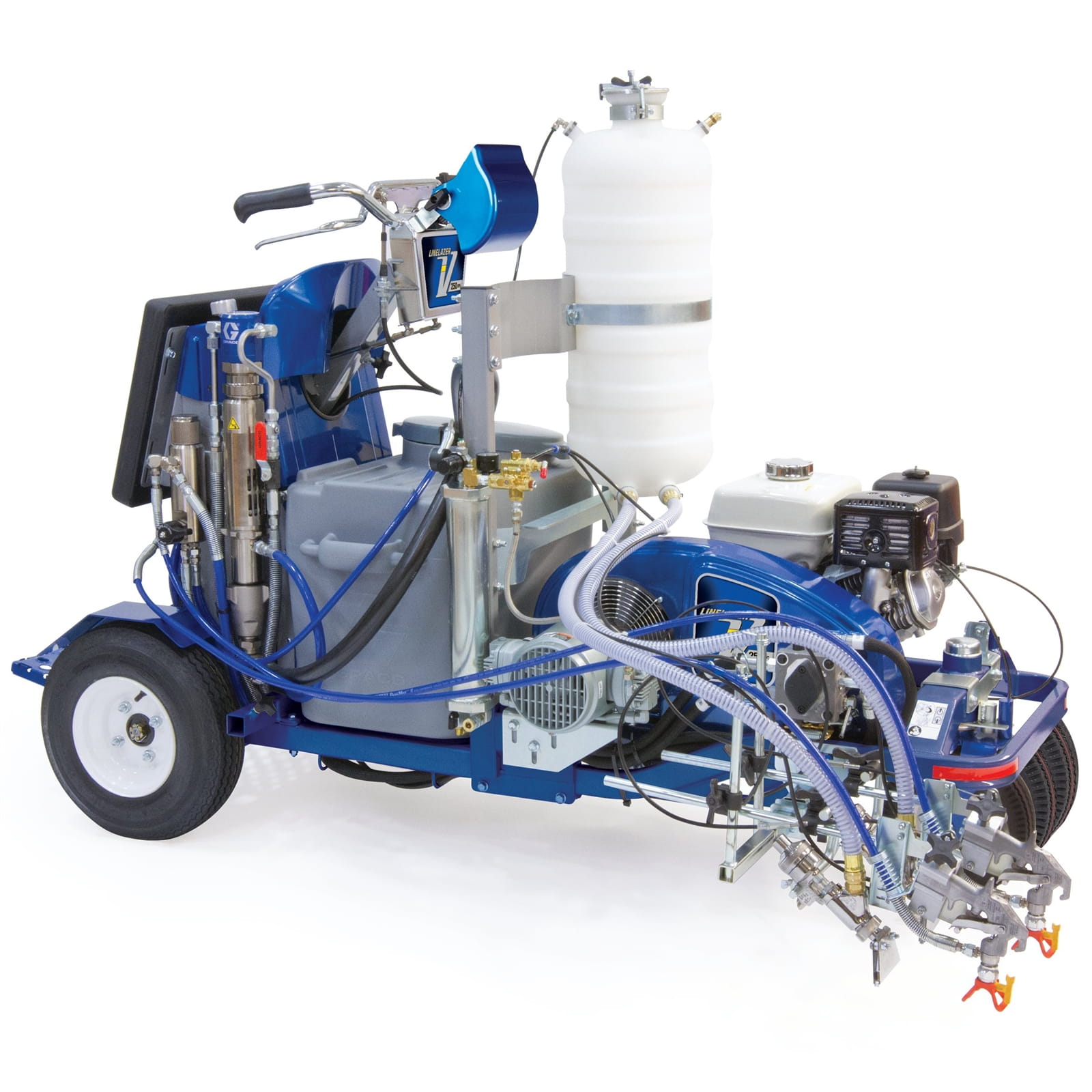

The LineLazer V 250SPS HP Reflective series, a petrol-powered hydraulic airless marking device with self-propulsion, 1 automatic spray gun, 1 container

€49,295.75*

Prices include VAT plus shipping costs

€41,425.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange
Free shipping within Germany
Also interesting
Product information

The LineLazer V 250SPS HP Reflective Series with exclusive automatic paint guns and hydraulic drive is a self-propelled, reflective bead system designed for large, rugged line marking jobs such as car parks and roadworks.

The HP Reflective Series extends the functionality of the HP Automatic Series with superior bead application capabilities that include automatic line making, including broken lines, and real-time job performance data for verification requirements.

  • Pressurised glass bead dispensing system
    • Integrated encapsulated compressor prevents dust and dirt ingress
    • Appropriate bead flow and colour penetration are ensured
    • Large-volume bead container with a capacity of up to 54 kg
    • The bead gun is automatically activated at the same time as the paint gun
    • Bead gun with application delay function
    • Adjustable nozzle for regulating the bead application width
  • Automatic paint gun system
    • Button operation for reduced operator fatigue and accurate (interrupted) lines
    • Manual, semi-automatic and fully automatic gun/operation mode
  • LiveLook display with SmartControl
    • Track, measure and control every aspect of your job
    • Real-time information for perfect lines
  • Paint container with 95 litre capacity
    • Longer marking jobs thanks to larger material containers
  • Honda® GX390 engine
    • Reliable and easy to start
    • Favoured by users: outstanding performance and proven reliability
    • Oil level warning switches off the engine to prevent damage if the oil level drops too low
  • Electric starter
    • The electric clutch system disengages the engine for a quick start
  • EasyMark gun setting system
    • Uncomplicated marking guide system
    • Easy gun adjustment: on/off, forwards/backwards
    • Perfect gun set-up - every time
  • Front or rear gun holder
    • Up to six guns can be mounted at the front and rear
    • The front gun mount can be used for marking work up to the kerb, the rear gun mount to improve straightness and uniformity of long lines.
  • Self-centring front wheel
    • One less control surface makes operation easier
    • Foam-filled, three-wheel design for stability
  • Additional features
    • Endurance Chromex pump
    • Powerful hydraulic motor
    • High performance cooling system
    • Easy adjustment of the handlebar
    • Easy Out pump filter
    • Flex Plus gun
Compatible material: Colors for road markings
Compatible surfaces: road, lawn
Container volume capacity (L): 95
Fuel tank capacity (L): 5.3
Gun activation: Automatically
Includes: Gun, hose, switch tip, easy out filter
Maximum delivery rate (L/min): 9.5
Maximum nozzle size (cm): 1,397
Maximum nozzle size (inch): 55
Maximum nozzle size (mm): 1.3970
Maximum operating pressure (kPa): 2270
Maximum operating pressure (psi): 3300
Maximum operating speed (km/h): 16.1
Maximum operating speed (mph): 10
Maximum sound pressure level (dB(A)): 89.1
Maximum speed (rpm): 3600
Model: LineLazer V
Motor model: GX390
Number of colours: Monochrome
Number of containers: 1
Number of guns: 1
Number of pumps: 1
Permissible operating pressure (bar): 227
Product series: HP Reflective
Pump type: Endurance
Rated power (kW): 9.69
Series: 250SPS
Supply voltage: Petrol powered, hydraulic
Total height (cm): 128.3
Total height (mm): 1282.7
Total length (cm): 186.7
Total length (mm): 1866.9
Total width (cm): 83.8
Total width (mm): 838
Type: Self-propelled line marking device
Weight (kg): 352
More information
  • Product number: 1037654
  • Manufacturer: Graco
  • EAN: 00755652320142
  • Weight: 410 kg
  • Length: 2000 mm
  • Width: 1200 mm
  • Height: 1620 mm

Technical details

Operating specifications
UPC product 755652320142
Division CED
Price Block 1 96
Country of origin US
Unit EA
Height 162 CM
Length 200 cm
Width 120 cm
Volume 3 ,888 m³
Shipping weight 410 KG
Technical
Engine brand Honda
Engine model GX390
Fuel tank capacity (gal) 1. 4
Fuel Tank Capacity (L) 5. 3
Hopper volume capacity (gal) 25
Hopper volume capacity (L) 95
Includes Gun, hose, SwitchTip, Easy Out filter
Maximum flow rate (L/min) 9. 5
Maximum operating speed (km/h) 16. 1
Maximum operating speed (mph) 10
Maximum sound pressure level (dB(A)) 89. 1
Maximum speed (RPM) 3600
Maximum tip size (cm) 0. 1397
Maximum tip size (in) 0. 055
Maximum tip size (mm) 1. 3970
Maximum working pressure (bar) 2 27
Maximum working pressure (kPa) 2 270
Maximum working pressure (psi) 3 3 00
Model LineLazer V
Number of Colours One Colour
Number of Guns 1
Number of hoppers 1
Number of Pumps 1
Overall height (cm) 128. 3
Overall Height (in) 50. 5
Overall height (mm) 1282. 7
Overall Length (cm) 186. 7
Overall Length (in) 73. 5
Overall Length (mm) 1866. 9
Overall width (cm) 83. 8
Overall width (in) 33
Overall width (mm) 838
Power Rating (HP) 13
Power rating (kW) 9. 69
Series 250SPS
Weight (kg) 352
Bead tank size (lb) 120
Product Series HP Reflective
