Manufacturer no.:
17H447

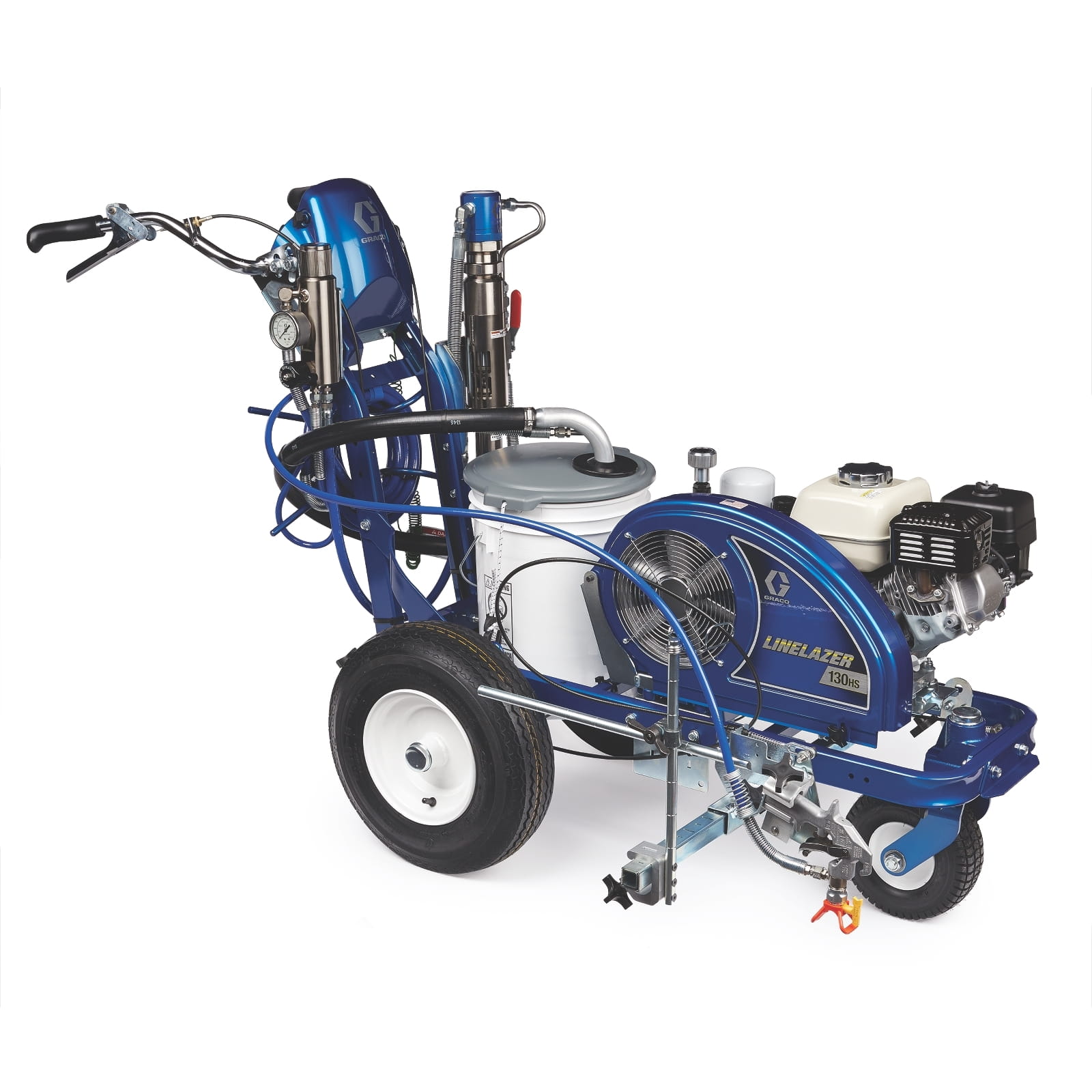

The LineLazer V 130HS HP Standard Series, a petrol-powered hydraulic airless line marker, 1 manual gun
€22,435.07*
Ready for shipping in 5-8 days
Also interesting
Product information
The LineLazer 130HS is the preferred hydraulic airless line marker that delivers consistent marking performance day after day with proven performance.
- EasyMark gun adjustment system
- Uncomplicated marking guidance system
- Easy gun changeover: on/off, forwards/backwards
- Perfect gun set-up - every time
- EZ Align wheel system
- Simple front wheel alignment ensures a straight line with the device
- Intuitive design, no special tools required
- DualComfort handlebar system
- Suitable for all users and easy to adjust
- Solid four-bolt design
- QuickSelect gun selection aid
- Independent control of two guns with just one chrome gun lever
- Honda® GX120 engine
- Reliable and easy to start
- Favoured by users: outstanding performance and proven reliability
- Oil level warning shuts off the engine to prevent damage if the oil level drops too low
- Endurance Chromex pump
- Durable pumps deliver precise flow for a variety of marking materials
- The industry's best pump performance with field-proven design.
- Handle the most demanding materials with a rod treated for longer durability - 4x harder than ordinary chrome
- Powerful hydraulic motor
- Uninterruptible hydraulic motors, exclusive to Graco, provide continuous power
- High performance cooling system
- Less downtime
- Innovative design allows the pump to run cooler and more efficiently
- Easier and more thorough material changes
- Cooling fins in the reservoir dissipate more heat
- No special hydraulic fluid required
- Easy Out pump filter
- Easy pump maintenance and fewer blockages
- Less dirt and fewer clogged nozzles thanks to inside-out design
- Storage compartment
- New storage area for nozzles, guards and various items
| Item type: | Markierungsgerät |
|---|
More information
- Product number: 1032074
- Manufacturer: Graco
- EAN: 00755652319948
- Weight: 171.457 kg
- Length: 1900 mm
- Width: 1000 mm
- Height: 1300 mm
Technical details
Operating specifications
| UPC product | 755652319948 |
|---|---|
| Division | CED |
| Price Block | 018 |
| Country of Origin | US |
| Unit | EA |
| Height | 130 CM |
| Length | 190 CM |
| Width | 100 CM |
| Volume | 2 .47 m³ |
| Shipping weight | 171.46 KG |
Technical
| Engine brand | Honda |
|---|---|
| Engine model | GX120 |
| Fuel tank capacity (gal) | 0. 66 |
| Fuel Tank Capacity (L) | 2. 5 |
| Includes | Tips, guard, gun, hose, pump filter, TSL |
| Maximum flow rate (L/min) | 4. 9 |
| Maximum sound pressure level (dB(A)) | 96 |
| Maximum tip size (cm) | 0. 0940 |
| Maximum tip size (in) | 0. 037 |
| Maximum tip size (mm) | 0. 9398 |
| Maximum working pressure (bar) | 2 27 |
| Maximum working pressure (kPa) | 2 270 |
| Maximum working pressure (psi) | 3 3 00 |
| Model | LineLazer |
| Number of Colours | One Colour |
| Number of Guns | 1 |
| Number of Hoppers | 1 |
| Number of Pumps | 1 |
| Overall height (cm) | 113. 03 |
| Overall Height (in) | 44. 5 |
| Overall height (mm) | 1130. 3 |
| Overall Length (cm) | 173. 36 |
| Overall Length (in) | 68. 25 |
| Overall Length (mm) | 1733. 55 |
| Overall width (cm) | 87 |
| Overall width (in) | 34. 25 |
| Overall width (mm) | 870 |
| Power Rating (HP) | 4 |
| Power rating (kW) | 2. 98 |
| Series | 130HS |
| Weight (kg) | 119 |
| Product series | Standard |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (Deutsch)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (한국어)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (日本語)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (Nederlands)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (English)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (Română)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (Polski)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (Türkçe)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (ελληνικά)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (Norsk)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (Italiano)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (Svenska)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (русский)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (中文)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (Français)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (Español)
- 3A3801C, Handbuch, LineLazer™ 130HS Airless-Linienmarkiergeräte, Betriebe (Português)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (Deutsch)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (한국어)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (日本語)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (Nederlands)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (English)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (Română)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (Polski)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (Türkçe)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (ελληνικά)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (Norsk)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (Italiano)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (Svenska)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (русский)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (中文)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (Français)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (Español)
- 3A3772C, LineLazer™ V 130HS Airless-Linienmarkiergeräte, Parts (Português)
Verkaufsliteratur
- 300720DE Fahrbahnmarkierungslösungen (Deutsch)
- 300720DE Fahrbahnmarkierungslösungen (русский)
- 300720DE Fahrbahnmarkierungslösungen (English (UK))
- 300720DE Fahrbahnmarkierungslösungen (Español)
- 300720DE Fahrbahnmarkierungslösungen (Français)
- 300720DE Fahrbahnmarkierungslösungen (Magyar)
- 300720DE Fahrbahnmarkierungslösungen (Italiano)
- 300720DE Fahrbahnmarkierungslösungen (Nederlands)
- 300720DE Fahrbahnmarkierungslösungen (Polski)
