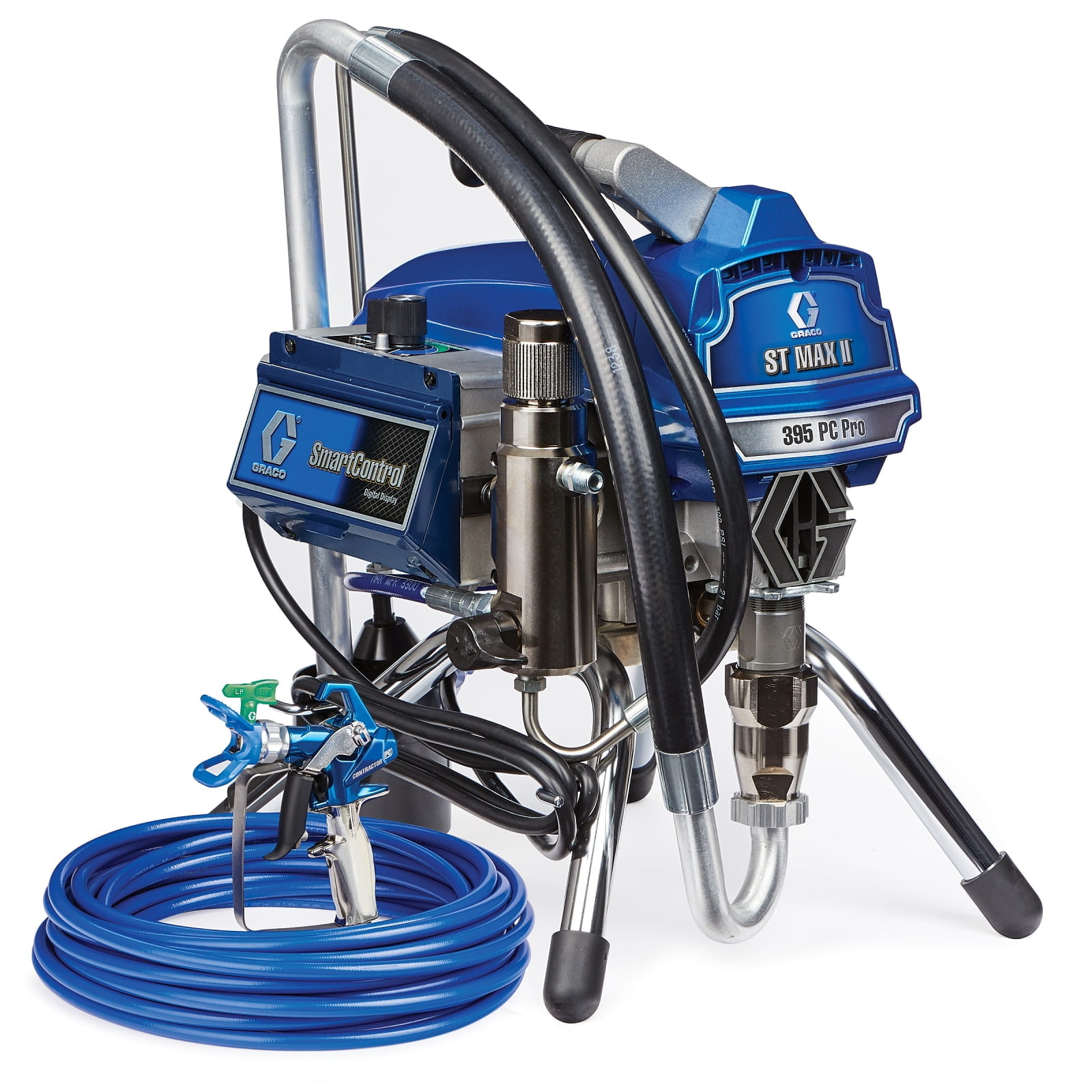

ST Max II 395 PC Pro Electric airless sprayer, stand, 230V, EU
€4,541.64*
% €5,343.10* (15% saved)Ready for shipping in 5-8 Werktage
The ST Max II 395 PC Pro airless sprayer is the ideal entry-level sprayer for professionals looking for a small electric sprayer with outstanding performance and function. The MaxPower brushless motor delivers higher torque and SmartControl 3.0 adjusts the motor speed to your spraying requirements.
Improved productivity Unrivalled reliability. Graco's mid-size electric airless sprayers help you get more work done in a day with increased flow and higher production output.
- Durable "Endurance Chromex" piston pump
- Lasts 2 times longer than the next leading brand
- Durable "V-Max Blue" packings, Chromex piston rod and hardened stainless steel cylinder
- Faster cleaning with the QuikAccess inlet valve
SmartControl with digital display
- Consistent pressure output with every job
- Continuous performance monitoring and adjustment of the engine speed to the spraying requirements
- Measurement of litres/gallons, operating hours and sprayer pressure
- Support messages and diagnostic support
- MaxPower motor and Advantage Drive
- Proven performance for all painting applications
- Brushless design with high torque
- The most durable drive
- Hardened steel gears ensure extremely smooth running
- One-piece ProConnect pump replacement system
- No more costly downtime
- Pump changes in minutes - no tools, bolts or parts to lose
- FastFlush cleaning system with high flow rate
- More spraying and less cleaning
- 4 times faster cleaning with half the amount of water
- "Easy Out pump filter
- Easy maintenance and less clogging
- Exclusive inside-out filter process for a high-quality finish
Easy to transport
- Weighs only 15.4 kg
Suction hose with swivel joint
- Reaches any paint bucket effortlessly
"Contractor PC spray gun
- Comfort and control all day long
- The lightest gun in its class
- Up to 50 % less trigger pull
- Length-adjustable "E-Z Fit" trigger
- Conversion of the complete gun in seconds with the ProConnect cartridge
- "Contractor PC spray gun
- Comfort and control all day long
- The lightest gun in its class
- Up to 50 % less trigger pull
- Length-adjustable "E-Z Fit" trigger
- Conversion of the complete gun in seconds with the ProConnect cartridge
| Compatible replacement pump: | 17C489 |
|---|---|
| Convertible: | Not convertible |
| Filter mesh size: | 60 |
| Frame configuration: | Hi boy |
| Frequency (Hz): | 50 |
| Hose diameter (inch): | 1/4 |
| Hose inlet diameter (cm): | 635 |
| Hose inlet diameter (inch): | 1/4 |
| Hose inlet diameter (mm): | 6.35 |
| Inner diameter of material hose (inch): | 1/4 |
| Material outlet size (mm): | 6.35 |
| Material outlet thread type: | NPSM |
| Maximum delivery rate (L/min): | 2 |
| Maximum hose length (m): | 30 |
| Maximum nozzle size (inch): | 27 |
| Maximum nozzle size 1 gun (inch): | 27 |
| Maximum operating pressure (kPa): | 2270 |
| Maximum operating pressure (kg/cm²): | 22.7 |
| Maximum operating pressure (psi): | 3300 |
| Maximum sound pressure level (dB(A)): | 90 |
| Minimum generator output (W): | 3500 |
| Minimum generator output (kW): | 0 |
| Model: | ST Max II |
| Motor size (kW): | 0.74 |
| Motor type: | Brushless, DC |
| Number of guns: | 1 |
| Outlet colour screen: | 60 mesh stainless steel sieve |
| Permissible operating overpressure (psi): | 3300 |
| Permissible operating pressure (bar): | 227 |
| Phases: | 1 |
| Pressure control type: | SmartControl |
| Pump mounting type: | ProConnect |
| Pump rod type: | Chromex |
| Pump sleeve material: | Hardened stainless steel |
| Pump type: | Endurance |
| Rated power (kW): | 0.74 |
| Region Plug type: | EU region (plug type C, E & F) |
| Series: | 395 PC Pro |
| Size of the material outlet opening (inches): | 1/4 |
| Spray gun type: | Contractor PC Pro pistol |
| Spraying technology: | Airless |
| Supply voltage: | Electric |
| Total height (cm): | 47 |
| Total height (mm): | 4,699,000 |
| Total length (cm): | 40.6 |
| Total length (mm): | 406.4 |
| Total width (cm): | 35.6 |
| Total width (mm): | 3,556,000 |
| Type: | Airless sprayer |
| Voltage (V): | 230 |
| Weight (kg): | 14 |
| Wetted material: | Acetal, leather, UHMWPE, aluminum, carbide |
- Product number: 1030100
- Manufacturer: Graco
- EAN: 00755652818762
- Weight: 24.04 kg
- Length: 450 mm
- Width: 430 mm
- Height: 500 mm
