Manufacturer no.: 19D107

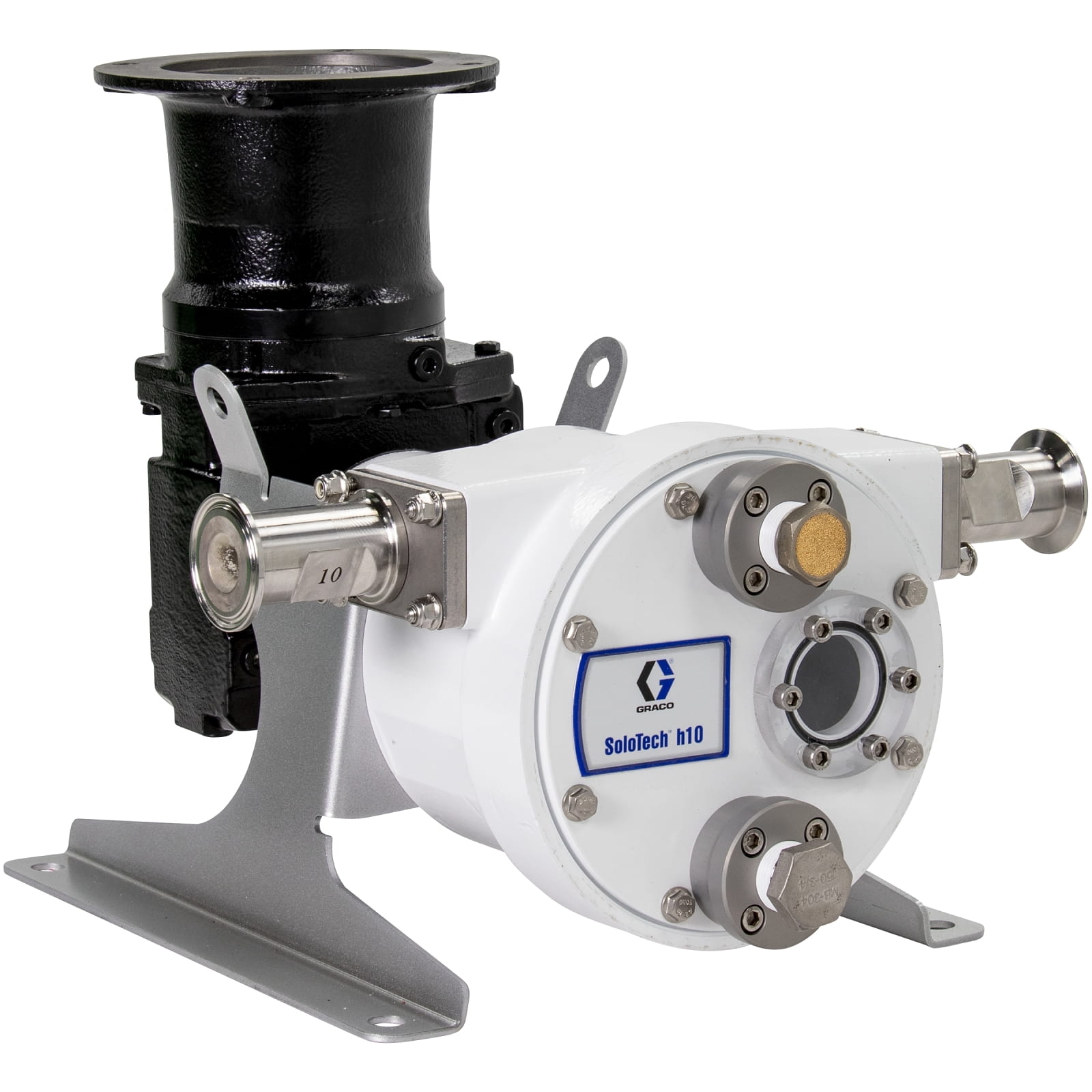

SoloTech h10 peristaltic pump, medium-speed transmission, no motor, NEMA, FDA-nitrile hose, stainless steel sanitary fitting

€4,752.66*

% €5,760.79* (17.5% saved)

Prices include VAT plus shipping costs

€3,993.83*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Since only the hose comes into contact with the pumped liquid and there are no check valves in the line, SoloTech peristaltic pumps from Graco are ideal for materials that other pumps cannot handle.

For measuring and dispensing flavours, colours, solids, abrasives and suspensions for food, beverage and personal care products.

Single Roll Design
- The single roller compresses a special sleeve over a full 360° rotation. This reduces compression, temperature and friction, and extends the service life of the sleeve.
Hose design
- SoloTech customers regularly experience fewer failures and much less maintenance than with other pump technologies.
Hose connection assembly
- Easy to attach and remove – no special tools required
- 316 stainless steel sanitary clamp construction for easy cleaning
Removable cover
- Powder-coated aluminium cover with large viewing window for easy access and viewing of internal parts
- Optional leak detector kit attaches to cover
Pump construction
- Powder coated aluminium casing to reduce the weight of the pump
- Improved mounting flexibility with adjustable feet
Pumps are reversible and can be used to empty lines or clear clogs

Item type:	Schlauchpumpe
Type of material:	Edelstahl, Nitril

More information

Product number: 1037968
Manufacturer: Graco
EAN: 00769946213690

Technical details

Specifications

Operating specifications

UPC product	769946213690
Division	PRO
Price Block	1 91
Country of origin	US
Unit	EA
Height	0 CM
Length	0 CM
Width	0 CM
Volume	0 M3
Shipping weight	0 KG
HTS code (EU)	8413810090
HTS code (GB)	8413810090

Technical

Gear ratio	0
Hose diameter (cm)	1
Hose diameter (in)	0. 39
Hose diameter (mm)	10
Inlet size (cm)	2. 5
Inlet size (in)	1
Inlet size (mm)	25. 4
Maximum flow rate (GPH)	0
Maximum flow rate (L/h)	0
Maximum flow rate (L/min)	0
Maximum fluid pressure (bar)	8. 6
Maximum fluid pressure (kPa)	861. 8
Maximum fluid pressure (psi)	125
Minimum flow rate (GPM)	0
Model	SoloTech
Outlet Size (cm)	2. 5
Outlet size (in)	1
Outlet size (mm)	25. 4
Overall height (cm)	17. 78
Overall height (in)	7
Overall height (mm)	177. 8
Overall Length (cm)	41. 1
Overall Length (in)	16. 2
Overall Length (mm)	4 11
Overall width (cm)	33
Overall width (in)	13
Overall width (mm)	330
Power Rating (HP)	0
Power rating (kW)	0
Series	h10
Voltage (V DC)	0
Housing material	Powder-coated aluminium
Lubricant material	FDA Glycerine
Maximum pump speed (RPM)	0
Minimum pump speed (RPM)	0
Maximum operating temperature (°C)	40
Maximum operating temperature (°F)	104
Minimum temperature (°F)	14
Minimum temperature (°C)	-10
