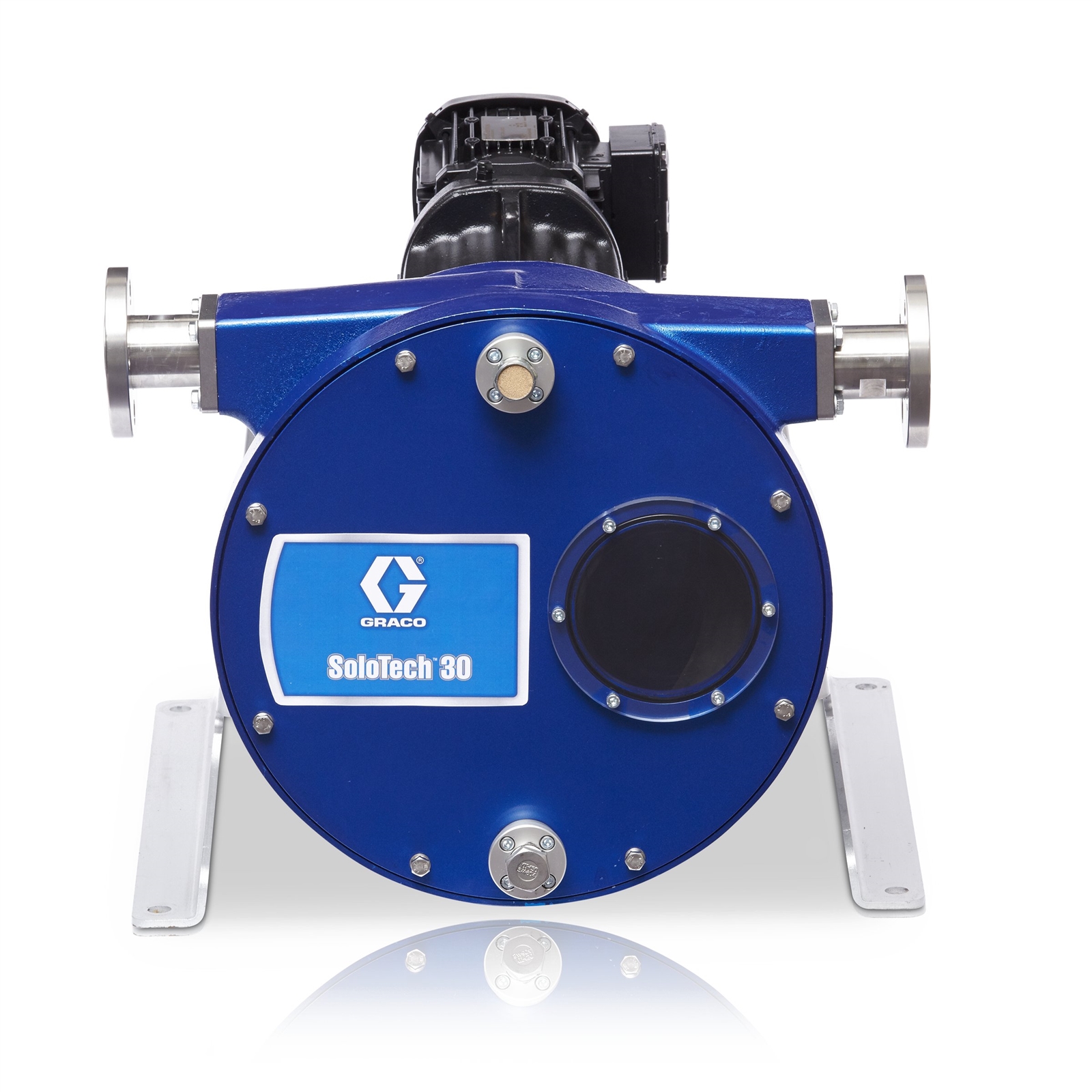

SoloTech™ 30 Hypalon high-speed peristaltic pump with CSM hose, PDVF connection piece and AC motor
Sale price:
€8,930.99
% Regular price: €10,825.43 (17.5% saved)€7,505.03*
Price excl. VAT
Ready for shipping in 5-8 days
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number:
1039157
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Our payment methods:
Custom image 1
Question about this product?
We are here for you. Mon-Fri, 9am - 4pm
Also interesting
Product information
The Gracos SoloTech 30 Series peristaltic pump design utilises a single reel that compresses an advanced hose through a complete 360° rotation. This innovative design results in longer hose life when pumping corrosive, abrasive or sensitive materials for measurement or transfer.
Pump construction
- Reduced pump weight due to cast aluminium housing
- Improved mounting flexibility with adjustable feet
Electric motor
- Choose between AC and brushless DC models
- Multiple gearboxes available to meet your exact flow rate requirements
- Motors available for hazardous areas
Brushless DC motor
- Batch dosing mode
- Greater flow range thanks to larger changeover ratio
- Maintenance reminders
Single roller design
- Single roller design improves hose life by reducing the number of compressions, temperature and friction
- Constant compression and flow thanks to metal roller with bearings
Removable cover
- Aluminium covers with larger viewing window facilitate access and visibility of internal parts
- The optional leak detector is mounted on the cover
Hose connection assembly
- Easy to install or remove - no special tools required
- Available with PVDF and SST connection options
- Floating flange for easy installation
- More flow per revolution than conventional designs
- Cost effective to maintain - no valves, seals or rings
- Pumps are reversible and can be used to drain lines or clear blockages
- Longer hose life - only one compression line per revolution
| Item type: | Schlauchpumpe |
|---|---|
| Type of material: | Hypalon |
More information
- Product number: 1039157
- Manufacturer: Graco
- EAN: 00755652327455
- Weight: 154.221 kg
Technical details
Operating specifications
| UPC product | 755652327455 |
|---|---|
| Division | PRO |
| Price Block | 1 91 |
| Country of origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 154.22 KG |
| HTS code (GB) | 8413608090 |
| HTS code (EU) | 8413608090 |
Technical
| Flow rate (GPM) | 16 |
|---|---|
| Gear Ratio | 19.5: 1 |
| Hose diameter (cm) | 3 |
| Hose diameter (in) | 1. 2 |
| Hose diameter (mm) | 30 |
| Inlet size (cm) | 3.2 |
| Inlet size (in) | 1-1/4 |
| Inlet size (mm) | 32 |
| Maximum flow rate (L/min) | 59. 8 |
| Maximum fluid pressure (bar) | 9 |
| Maximum fluid pressure (kPa) | 900 |
| Maximum fluid pressure (psi) | 125 |
| Maximum storage temperature (°C) | 40 |
| Maximum storage temperature (°F) | 1 04 |
| Minimum flow rate (GPM) | 2, 675 |
| Minimum storage temperature (°C) | -10 |
| Minimum storage temperature (°F) | 14 |
| Model | SoloTech |
| Outlet size (cm) | 12. 5 |
| Outlet size (in) | 4. 92 |
| Outlet size (mm) | 125 |
| Overall height (cm) | 77 |
| Overall height (in) | 30. 3 |
| Overall height (mm) | 770 |
| Overall Length (cm) | 67 |
| Overall length (in) | 26. 5 |
| Overall Length (mm) | 673 |
| Overall width (cm) | 59 |
| Overall width (in) | 23. 3 |
| Overall width (mm) | 5 92 |
| Power Rating (HP) | 3 |
| Power rating (kW) | 2.24 |
| Power rating (W) | 2 237 |
| Pump speed (RPM) | 1 5 -91 |
| Series | i30 |
| Volume per cycle (gal) | 1. 8 |
| Volume per cycle (L) | 7 |
| Housing material | Powder-coated aluminium |
