Manufacturer no.: 19Z036

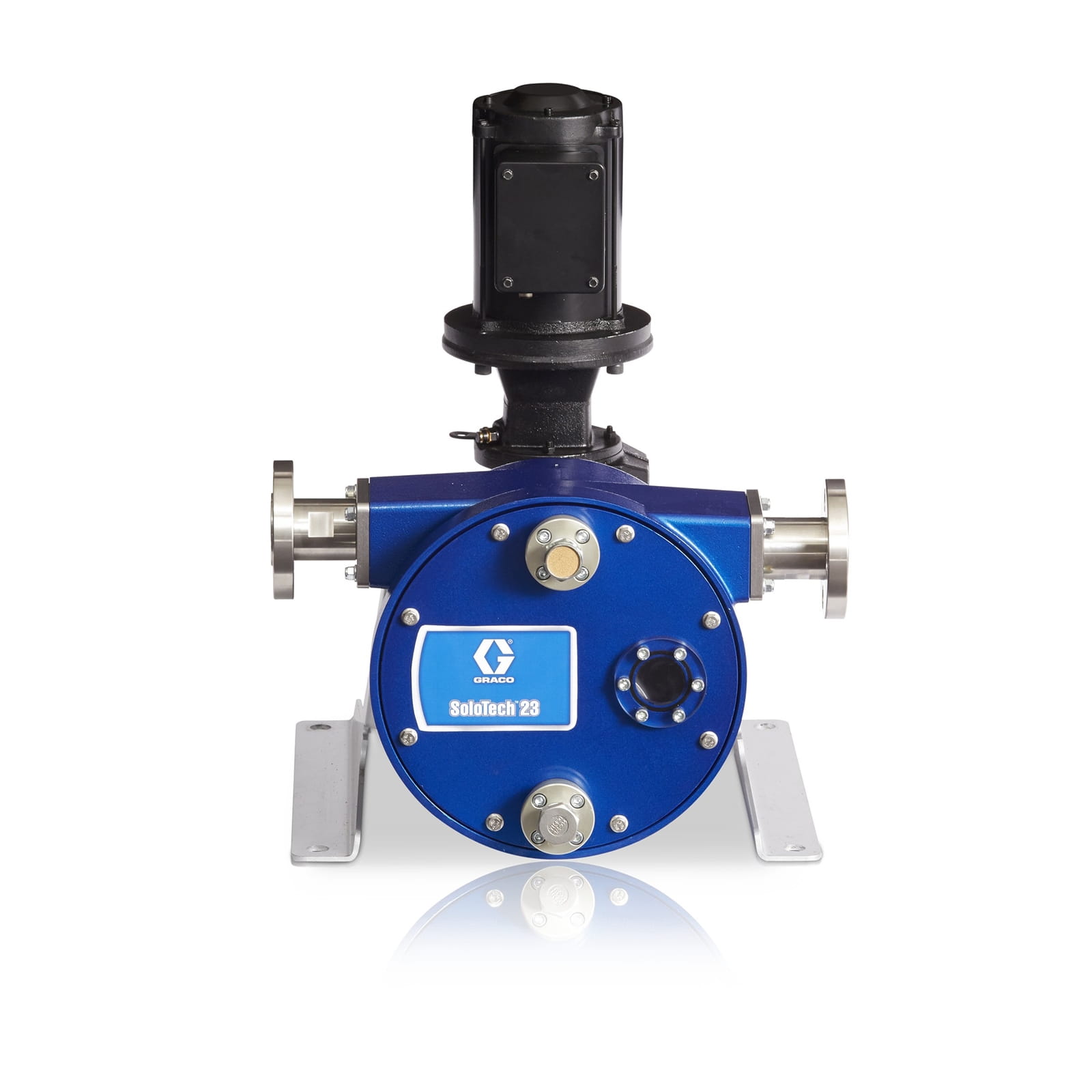

SoloTech™ 23 EPDM peristaltic pump with EPDM hose, 316 stainless steel connector & BLDC motor

€8,878.95*

% €10,762.36* (17.5% saved)

Prices include VAT plus shipping costs

€7,461.30*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Gracos SoloTech 23 Series peristaltic pump design utilises a single reel that compresses an advanced hose through a complete 360° rotation. This innovative design results in longer hose life when pumping corrosive, abrasive or sensitive materials for measurement or transfer.

Peristaltic peristaltic pumps for industrial measurement and transfer

More flow per revolution than conventional designs
Cost-effective to maintain - no valves, seals or rings
Pumps are reversible and can be used to drain lines or clear blockages
Longer hose life - only one compression line per revolution

Artikel Art:	Schlauchpumpe
Material Art:	EPDM, Edelstahl

More information

Product number: 1032791
Manufacturer: Graco
EAN: 00755652324843
Weight: 68.038 kg
Length: 510 mm
Width: 830 mm
Height: 990 mm

Technical details

Specifications

Operating specifications

UPC product	755652324843
Division	PRO
Price Block	1 91
Country of origin	US
Unit	EA
Height	99 CM
Length	51 CM
Width	83 cm
Volume	. 419 m³
Shipping weight	68.04 KG
HTS code (GB)	8413608090
HTS code (EU)	8413608090

Technical

Flow rate (GPM)	4, 725
Gear ratio	37.66: 1
Hose diameter (cm)	2. 3
Hose diameter (in)	0. 91
Hose diameter (mm)	2 3
Inlet size (cm)	2. 5
Inlet size (in)	1
Inlet size (mm)	25
Maximum flow rate (L/min)	17
Maximum fluid pressure (bar)	9
Maximum fluid pressure (kPa)	900
Maximum fluid pressure (psi)	125
Maximum storage temperature (°C)	40
Maximum storage temperature (°F)	104
Minimum flow rate (GPM)	0. 12
Minimum storage temperature (°C)	-10
Minimum storage temperature (°F)	14
Model	SoloTech
Outlet size (cm)	10. 8
Outlet size (in)	4. 25
Outlet size (mm)	108
Overall height (cm)	58
Overall height (in)	22. 8
Overall height (mm)	579
Overall Length (cm)	50
Overall Length (in)	19. 8
Overall Length (mm)	503
Overall width (cm)	4 4
Overall width (in)	17. 2
Overall width (mm)	437
Power Rating (HP)	800
Power Rating (kW)	5 97
Power rating (W)	596560
Pump speed (RPM)	2-95
Series	i23
Volume per cycle (gal)	0. 054
Volume per cycle (L)	0.204
Housing material	Powder coated aluminium
