Manufacturer no.:
19X022

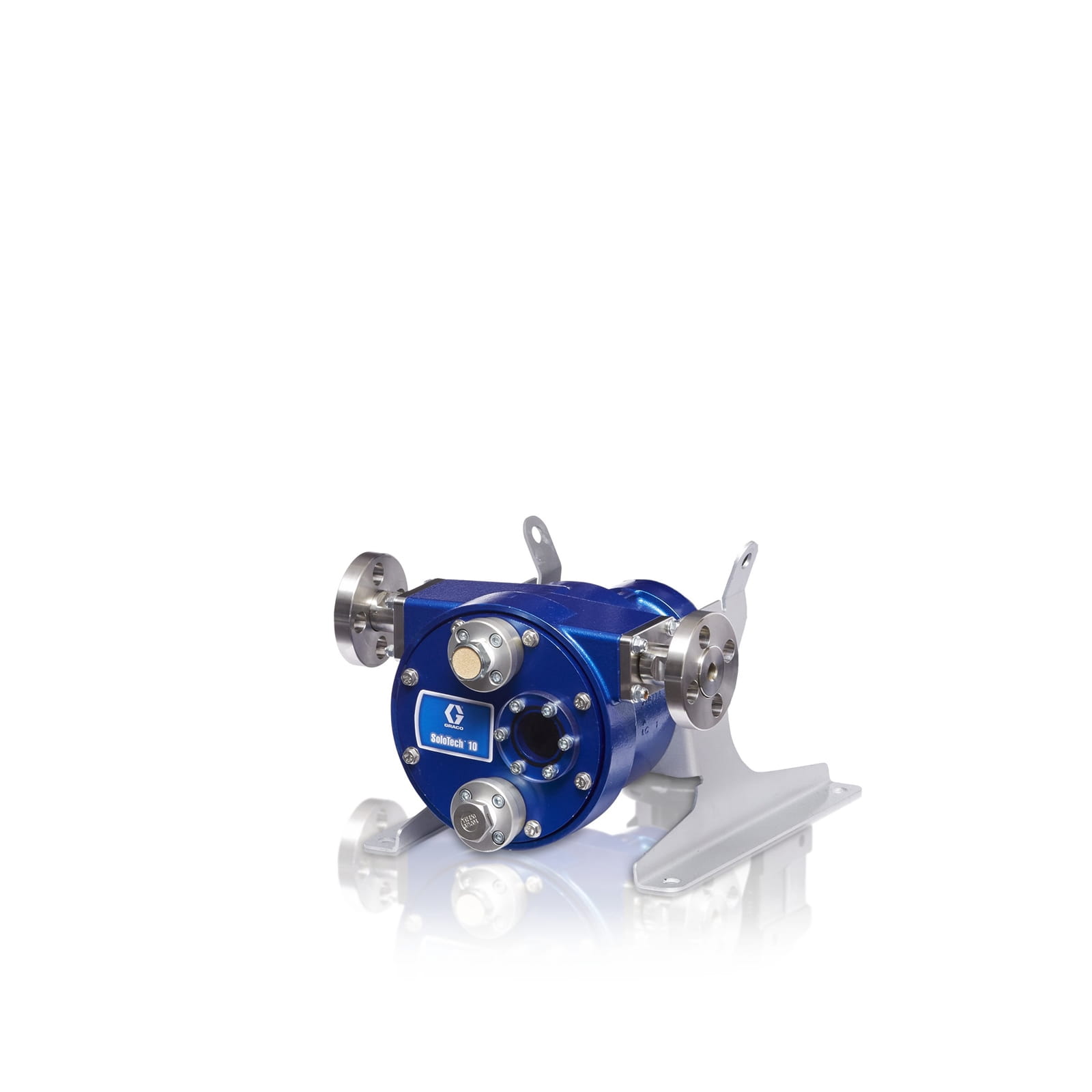

SoloTech™ 10 EPDM peristaltic pump with high speed with EPDM tubing, 316 stainless steel fitting and IEC connector
€4,424.57*
% €4,719.54* (6.25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Graco SoloTech 10-series peristaltic pump design uses a single roller that compresses an advanced tube through a complete 360° rotation. This innovative design results in a longer tube life when pumping corrosive, abrasive or sensitive materials for measuring or transferring.
Peristaltic Hose Pumps for Industrial Measurement and Transfer
- More flow per revolution than conventional designs
- Cost effective to maintain – no valves, seals or rings
- Pumps are reversible and can be used to empty lines or clear clogs
- Longer hose life – only one compression per revolution
| Application: | industry |
|---|---|
| Diffuser size (cm): | 9 |
| Hose diameter (cm): | 1 |
| Hose diameter (inch): | 0.4 |
| Hose diameter (mm): | 10 |
| Hose material: | EPDM |
| Hose nozzle material: | stainless steel |
| Housing material: | Powder-coated aluminum |
| Inlet size (cm): | 0.95 |
| Inlet size (inch): | 3/8 |
| Inlet size (mm): | 9.5 |
| Inlet thread type: | flange |
| Maximum delivery rate (L/min): | 2.5 |
| Maximum material pressure (bar): | 9 |
| Maximum material pressure (kPa): | 900 |
| Maximum material pressure (psi): | 125 |
| Maximum permissible storage temperature (°C): | 40 |
| Minimum storage temperature (°C): | -10 |
| Model: | SoloTech |
| Motor type: | High speed, IEC gear only |
| Outlet size (inch): | 3.54 |
| Outlet size (mm): | 90 |
| Pump speed (rpm): | 15-92 |
| Series: | i10 |
| Standards met:: | ATEX, CE |
| Total height (cm): | 46 |
| Total height (mm): | 462 |
| Total length (cm): | 41 |
| Total length (mm): | 411 |
| Total width (cm): | 33 |
| Total width (mm): | 330 |
| Transmission ratio: | 19.13:1 |
| Type: | Electric peristaltic pump |
| Volume per cycle (L): | 26 |
More information
- Product number: 1038728
- Manufacturer: Graco
- EAN: 00755652325079
- Weight: 34.473 kg
- Length: 630 mm
- Width: 500 mm
- Height: 510 mm
Technical details
Operating specifications
| UPC product | 755652325079 |
|---|---|
| Division | PRO |
| Price Block | 1 91 |
| Country of origin | US |
| Unit | EA |
| Height | 51 CM |
| Length | 63 cm |
| Width | 50 cm |
| Volume | . 161 m³ |
| Shipping weight | 34.47 KG |
| HTS code (GB) | 8413608090 |
| HTS code (EU) | 8413608090 |
Technical
| Flow rate (GPM) | 0. 646 |
|---|---|
| Gear ratio | 19.13: 1 |
| Hose diameter (cm) | 1 |
| Hose diameter (in) | 0. 4 |
| Hose diameter (mm) | 10 |
| Inlet size (cm) | 0. 95 |
| Inlet size (in) | 3/8 |
| Inlet size (mm) | 9. 5 |
| Maximum flow rate (L/min) | 2. 5 |
| Maximum fluid pressure (bar) | 9 |
| Maximum fluid pressure (kPa) | 900 |
| Maximum fluid pressure (psi) | 125 |
| Maximum storage temperature (°C) | 40 |
| Maximum storage temperature (°F) | 1 04 |
| Minimum flow rate (GPM) | 0. 108 |
| Minimum storage temperature (°C) | -10 |
| Minimum storage temperature (°F) | 14 |
| Model | SoloTech |
| Outlet Size (cm) | 9 |
| Outlet size (in) | 3. 54 |
| Outlet size (mm) | 90 |
| Overall height (cm) | 46 |
| Overall height (in) | 18. 2 |
| Overall height (mm) | 4 62 |
| Overall Length (cm) | 41 |
| Overall Length (in) | 16. 2 |
| Overall Length (mm) | 4 11 |
| Overall width (cm) | 33 |
| Overall width (in) | 13 |
| Overall width (mm) | 330 |
| Pump Speed (RPM) | 1 5 -92 |
| Series | i10 |
| Volume per cycle (gal) | 7 |
| Volume per cycle (L) | 0. 026 |
| Housing material | Powder-coated aluminium |
