Manufacturer no.: 19Z031

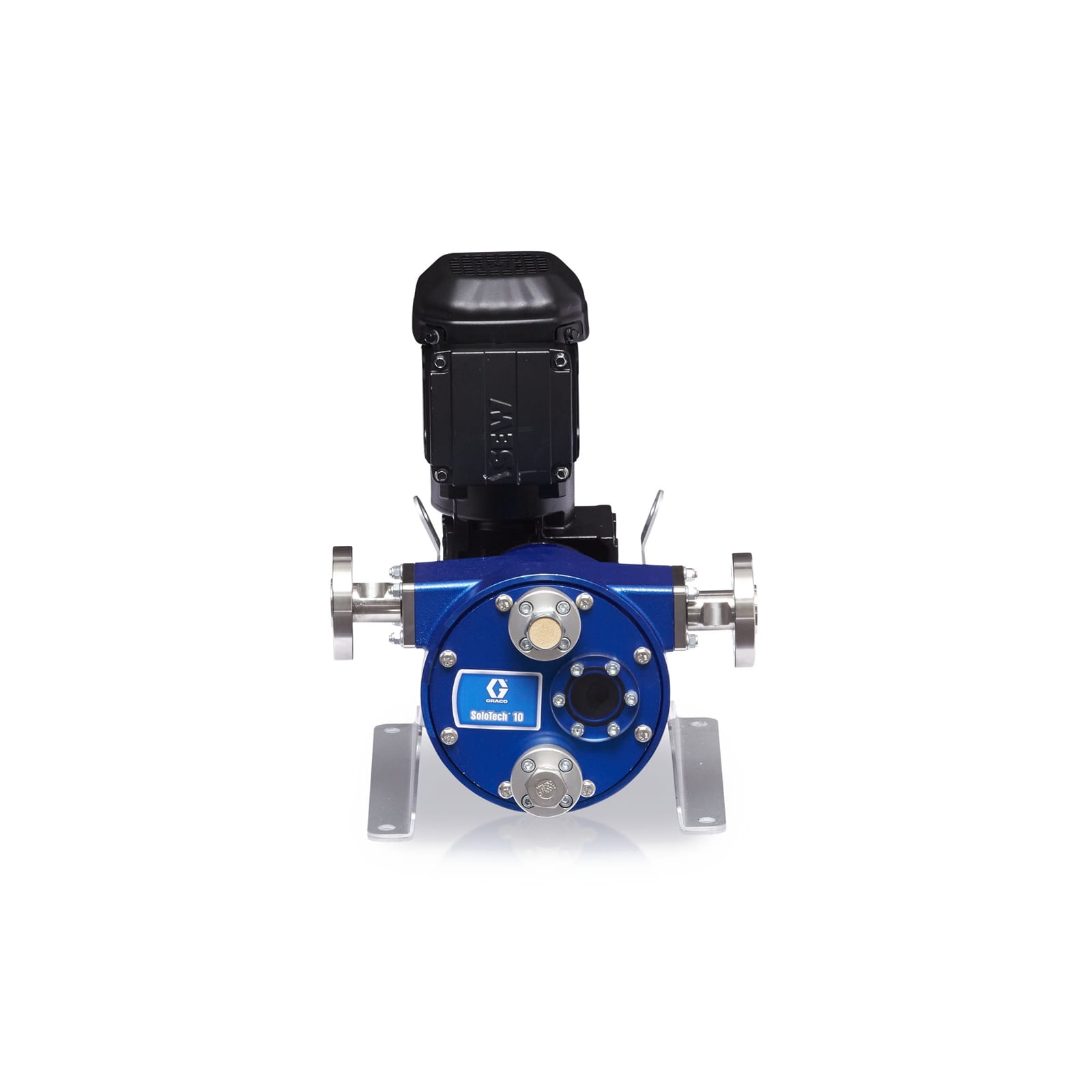

SoloTech™ 10 EPDM peristaltic pump with EPDM tubing, PVDF fittings and AC motor

€4,407.08*

% €5,341.91* (17.5% saved)

Prices include VAT plus shipping costs

€3,703.43*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Graco SoloTech 10-Series peristaltic pump design uses a single roller to compress an advanced tube through a complete 360° turn. This innovative design results in a longer tube life when pumping corrosive, abrasive or sensitive materials for measuring or transferring.

Peristaltic Hose Pumps for Industrial Measurement and Transfer

More flow per revolution than conventional designs
Cost effective to maintain – no valves, seals or rings
Pumps are reversible and can be used to empty lines or clear clogs
Longer hose life – only one compression per revolution

Item type:	Schlauchpumpe
Type of material:	EPDM

More information

Product number: 1031482
Manufacturer: Graco
EAN: 00755652324799
Weight: 39.008 kg

Technical details

Specifications

Operating specifications

UPC product	755652324799
Division	PRO
Price Block	1 91
Country of origin	US
Unit	EA
Height	0 CM
Length	0 CM
Width	0 CM
Volume	0 M3
Shipping weight	39.01 KG
HTS code (EU)	8413810090
HTS code (GB)	8413810090

Technical

Flow rate (GPM)	0. 646
Gear ratio	19.5: 1
Hose diameter (cm)	1
Hose diameter (in)	0. 4
Hose diameter (mm)	10
Inlet size (cm)	0. 95
Inlet size (in)	3/8
Inlet size (mm)	9. 5
Maximum flow rate (L/min)	2. 5
Maximum fluid pressure (bar)	9
Maximum fluid pressure (kPa)	900
Maximum fluid pressure (psi)	125
Maximum storage temperature (°C)	40
Maximum storage temperature (°F)	104
Minimum flow rate (GPM)	0. 108
Minimum storage temperature (°C)	-10
Minimum storage temperature (°F)	14
Model	SoloTech
Outlet Size (cm)	9
Outlet size (in)	3. 54
Outlet size (mm)	90
Overall height (cm)	46
Overall height (in)	18. 2
Overall height (mm)	4 62
Overall Length (cm)	41
Overall Length (in)	16. 2
Overall Length (mm)	4 11
Overall width (cm)	33
Overall width (in)	13
Overall width (mm)	330
Pump Speed (RPM)	1 5 -92
Series	i10
Volume per cycle (gal)	7
Volume per cycle (L)	0. 026
Housing material	Powder-coated aluminium
