Manufacturer no.:
25M417

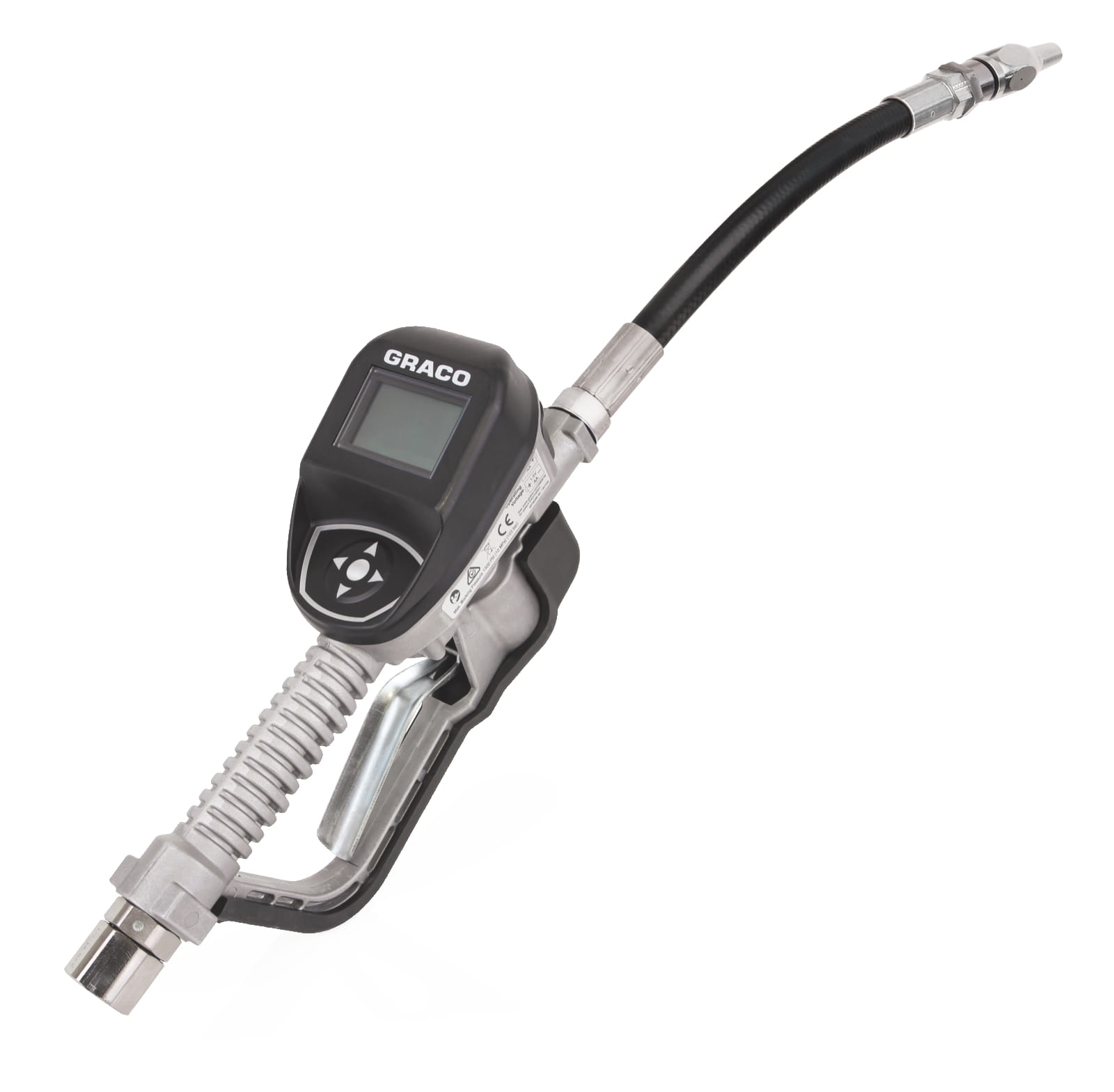

SDM18 series electronic manual oil/antifreeze meter - flexible outlet - 3/4" inlet
€1,083.85*
% €1,204.28* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco's premium SD meters have been designed from the ground up to provide the best user experience. These robust meters are characterised by high flow, improved ergonomics and a large, high-contrast LCD screen that makes it easy to view dosing quantities in all lighting conditions.
Large, intuitive display - high-contrast display for low and bright light conditions
Long life valve - the cartridge's spool valve has been specifically designed to reduce wear and costly downtime.
Ergonomic - four-finger trigger and user-friendly keypad reduce operator fatigue
Reliable - time-tested Graco technology
Durable - thick cast aluminium housing allows this counter to withstand rough, heavy-duty applications
Long battery life - uses easily replaceable 4 AA batteries
| Artikel Art: | Zähler |
|---|
More information
- Product number: 1038455
- Manufacturer: Graco
- EAN: 00755652692201
- Weight: 2.902 kg
- Length: 405 mm
- Width: 177 mm
- Height: 137 mm
Technical details
Operating specifications
| UPC product | 755652692201 |
|---|---|
| Division | LED |
| Price Block | 1 52 |
| Country of origin | US |
| Unit | EA |
| Height | 13.7 CM |
| Length | 40.5 CM |
| Width | 17.7 cm |
| Volume | 0. 01 m³ |
| Shipping weight | 2 .9 KG |
| HTS code (EU) | 8 4 81809990 |
| HTS code (GB) | 8 4 81809990 |
Technical
| Dispense Type | Man ual |
|---|---|
| Display Type | Electronic |
| Extension Type | Flex ible |
| Fluid inlet thread gender | Female |
| Fluid outlet thread gender | Female |
| Includes | Nozzle, Flexible Extension |
| Inlet Size (cm) | 1. 905 |
| Inlet size (in) | 3/4 |
| Inlet size (mm) | 19. 05 |
| Maximum flow rate (L/min) | 68 |
| Maximum operating temperature (°C) | 70 |
| Maximum operating temperature (°F) | 158 |
| Maximum recorded dispense | 9999 |
| Maximum storage temperature (°F) | 158 |
| Maximum storage temperature (°C) | 70 |
| Maximum working pressure (psi) | 1 5 00 |
| Maximum working pressure (kPa) | 1 0 340 |
| Maximum working pressure (bar) | 103. 4 |
| Meter Accuracy (%) | ±0. 5 |
| Overall Height (cm) | 14. 6 |
| Overall height (in) | 5. 75 |
| Overall height (mm) | 1 46 |
| Overall Length (cm) | 33 |
| Overall length (in) | 13 |
| Overall Length (mm) | 330 |
| Overall width (cm) | 9. 5 |
| Overall width (in) | 3. 75 |
| Overall width (mm) | 95 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5. 3 |
| Metering gun weight (kg) | 2. 4 |
| Minimum flow rate (GPM) | 0. 25 |
| Minimum flow rate (L/min) | 0. 9 |
| Warranty | 5 years structural components, 3 years electronics, 1 year wear parts |
| Trigger protection type | Guard |
| Trigger lock | Non - locking |
| Minimum operating temperature (°F) | 4 |
| Minimum operating temperature (°C) | -16 |
| Valve Type | M eter ed |
| Maximum Working Pressure (MPa) | 10. 3 |
| Model | SDM18 |
