Manufacturer no.:
SPU.A01AAA1AA0C21

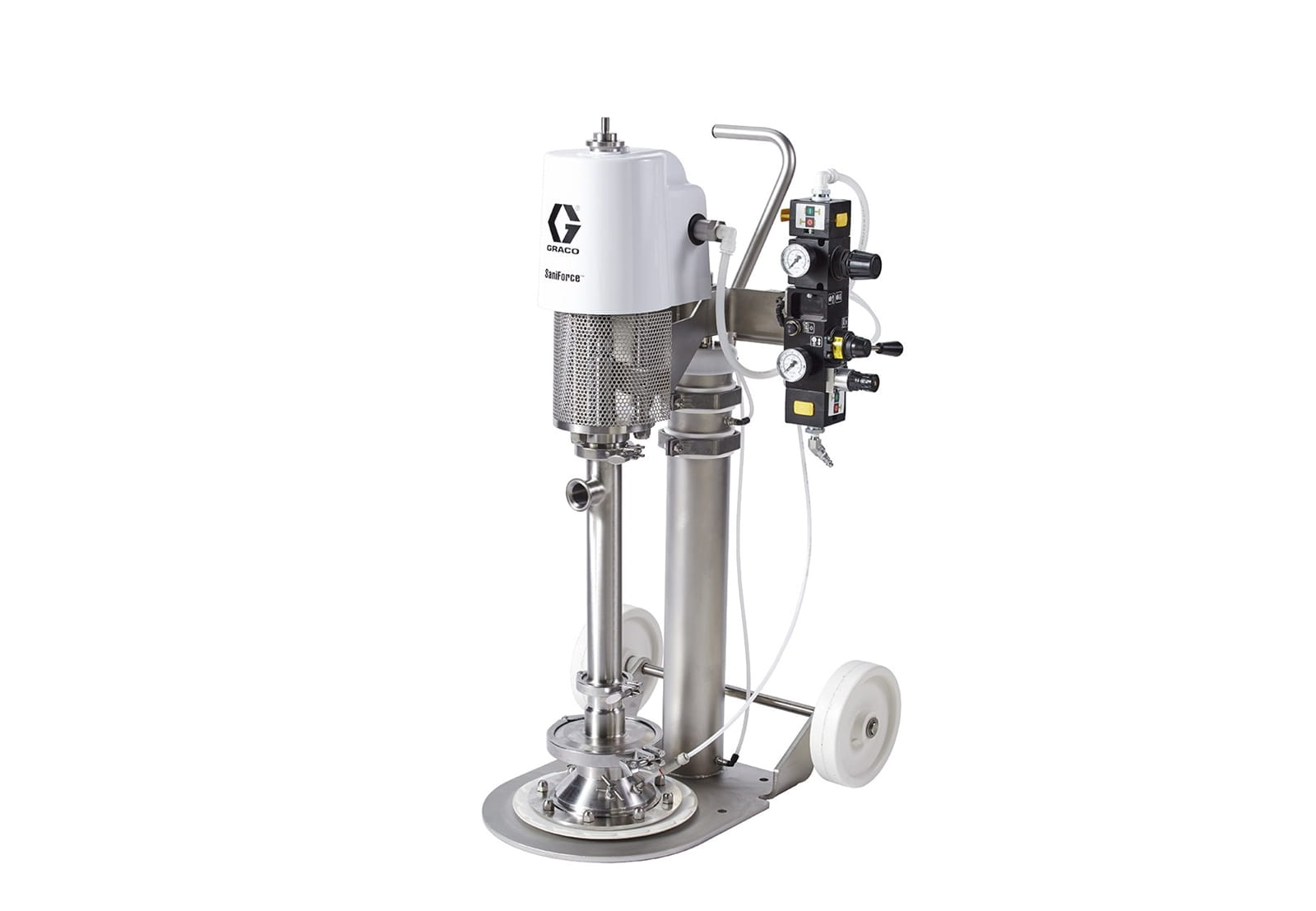

SaniForce bucket unit, stainless steel frame, 6:1 PP, PTFE wiper seal, exposed controls
Price on request
Ready for shipping in 5-8 days
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number:
1036776
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Our payment methods:
Custom image 1
Question about this product?
We are here for you. Mon-Fri, 9am - 4pm
Also interesting
Product information
SaniForce pail emptying systems are designed to handle the thickest and toughest food, personal care products and active pharmaceutical ingredients. With a discharge rate of up to 99%, SaniForce systems reduce product waste while providing a solution for conveying products up to 1,000,000 cps using hygienically designed high pressure piston pumps. Ram systems increase food safety by forming a tight system with the container and improve worker ergonomics by preventing injuries from manual scooping and dumping of containers and ingredients. The overall system can accommodate bucket sizes of 19 and 26 litres (5 and 7 gallons).
Hygienic high-pressure container emptying for ingredients or products up to 1,000,000 cps
- Reduce material waste with up to 99% material discharge
- Improve worker ergonomics by eliminating hazards associated with scooping and emptying options
- Improve food safety by creating a sealed system in the container/inflatable seal design - eliminating food contamination from airborne or worker contamination
- Self-priming and dry running pumps, ideal for container unloading applications
| Item type: | Behälter |
|---|---|
| Type of material: | Edelstahl, PTFE |
More information
- Product number: 1036776
- Manufacturer: Graco
- EAN: 00755652776598
Technical details
Operating specifications
| UPC product | 755652776598 |
|---|---|
| Division | PRO |
| Price Block | 1 89 |
| Country of Origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 0 KG |
| HTS code (EU) | 8413810090 |
| HTS code (GB) | 8413810090 |
Technical
| Compatible drum height (cm) | 50. 8 |
|---|---|
| Compatible drum height (in) | 20 |
| Compatible drum height (mm) | 508 |
| Compatible drum inside diameter (cm) | 25.4-28. 5 |
| Compatible drum inside diameter (in) | 10-11. 2 |
| Compatible drum inside diameter (mm) | 254 -285 |
| Control panel type | Exposed |
| Includes | Mobile |
| Maximum air inlet pressure (bar) | 6. 89 |
| Maximum air inlet pressure (kg/cm²) | 7. 03 |
| Maximum air inlet pressure (kPa) | 690 |
| Maximum air inlet pressure (psi) | 100 |
| Maximum flow rate (L/min) | 15. 1 |
| Maximum fluid pressure (bar) | 28. 7 |
| Maximum fluid pressure (kPa) | 2 900 |
| Maximum fluid pressure (psi) | 410 |
| Maximum height (cm) | 160 |
| Maximum height (ft) | 5. 2 |
| Maximum height (in) | 62. 8 |
| Maximum height (m) | 1. 6 |
| Maximum height (mm) | 1 5 95 |
| Maximum operating temperature (°C) | 32 |
| Maximum operating temperature (°F) | 90 |
| Maximum working pressure (bar) | 28. 7 |
| Maximum working pressure (kPa) | 2 900 |
| Maximum working pressure (psi) | 410 |
| Minimum height (cm) | 107 |
| Minimum height (ft) | 3. 5 |
| Minimum height (in) | 42. 3 |
| Minimum height (m) | 1. 07 |
| Minimum height (mm) | 1 0 74 |
| Model | SaniForce 2. 0 |
| Overall Depth (cm) | 63 |
| Overall depth (in) | 24. 8 |
| Overall depth (mm) | 630 |
| Overall width (cm) | 56 |
| Overall width (in) | 2 2 |
| Overall width (mm) | 559 |
| Ram material | Stainless steel |
| Series | Pail Unloader |
| Weight (kg) | 72. 6 |
| Ambient/Warm Melt/Hot Melt | 90 |
| Container type | Pail |
| Maximum working pressure (MPa) | 2. 9 |
| Material container volume (gal) | 5-7 |
| Plate | Static Wiper Plate, Pail (11.4 in. seal for use with 11.8 in. pails ) |
| Seal Type | St atic |
| System controller type | Exposed Pneumatic |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A5400C, SaniForce™Pail Unloader System, Operation, English (English)
- 3A5400C, SaniForce™Pail Unloader System, Operation, English (Français)
- 3A5400C, SaniForce™Pail Unloader System, Operation, English (Español)
- 3A5400C, SaniForce™Pail Unloader System, Operation, English (Italiano)
- 3A5400C, SaniForce™Pail Unloader System, Operation, English (Nederlands)
- 3A5400C, SaniForce™Pail Unloader System, Operation, English (日本語)
- 3A5400C, SaniForce™Pail Unloader System, Operation, English (中文)
- 3A5400C, SaniForce™Pail Unloader System, Operation, English (한국어)
- 3A5401D, SaniForce™Pail Unloader System, Parts, English (English)
- 3A5401D, SaniForce™Pail Unloader System, Parts, English (Français)
- 3A5401D, SaniForce™Pail Unloader System, Parts, English (Español)
- 3A5401D, SaniForce™Pail Unloader System, Parts, English (Italiano)
- 3A5401D, SaniForce™Pail Unloader System, Parts, English (Nederlands)
- 3A5401D, SaniForce™Pail Unloader System, Parts, English (日本語)
- 3A5401D, SaniForce™Pail Unloader System, Parts, English (中文)
- 3A5401D, SaniForce™Pail Unloader System, Parts, English (한국어)
- 3A7133D, SaniForce Luftregler, Anweisungen/Teile (Deutsch)
- 3A7133D, SaniForce Luftregler, Anweisungen/Teile (Français)
- 3A7133D, SaniForce Luftregler, Anweisungen/Teile (Español)
- 3A7133D, SaniForce Luftregler, Anweisungen/Teile (Italiano)
- 3A7133D, SaniForce Luftregler, Anweisungen/Teile (English)
- 3A7133D, SaniForce Luftregler, Anweisungen/Teile (Nederlands)
- 3A7133D, SaniForce Luftregler, Anweisungen/Teile (日本語)
- 3A7133D, SaniForce Luftregler, Anweisungen/Teile (中文)
- 3A7133D, SaniForce Luftregler, Anweisungen/Teile (한국어)
Verkaufsliteratur
- 300779DE-A-SaniForce® Eimerentleerungsgerät (Deutsch)
- 300779DE-A-SaniForce® Eimerentleerungsgerät (English (UK))
- 300779DE-A-SaniForce® Eimerentleerungsgerät (Français)
Zertifizierungen
