Manufacturer no.: FD5111

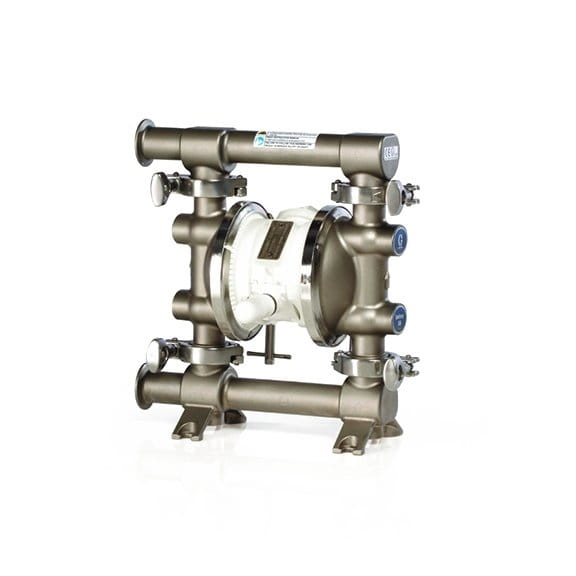

SaniForce 515 S/S Air-operated double diaphragm pump with flange connection, S/S seats, PTFE O-rings, balls and 2-part PTFE diaphragms

€3,517.16*

% €3,907.96* (10% saved)

Prices include VAT plus shipping costs

€2,955.60*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Worldwide Shipping

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco's SaniForce 515 hygienic air-operated double diaphragm pump offers a solution for customers requiring a pump with lower flow rates, quick disassembly for easy cleaning and low running costs - ideal for the food processing and personal care markets. Common applications include pumping flavours, purees, sauces and other low to medium viscosity materials.

1/2'' air-operated double diaphragm pump with flow rates of up to 56.7 l/min - ideal for applications in the food sector

SaniForce 515 double diaphragm pump
- 25.4 mm (1'') Tri-Clamp connection
- All materials in contact with the liquid are FDA-approved and fulfil the requirements of Section 21 of the US Code of Federal Regulations (CFR)
- Material pressure up to 0.7 MPa (7 bar, 100 psi)
- Flow rates of 56.7 l/min
- Applications include emptying large volumes of liquid concentrates from receiving containers or repackaging materials from the original container into smaller containers - up to 10,000 cps
- Suitable for transferring the following materials: flavours, purees, sauces and other low to medium viscosity materials.
SaniForce 515 drum suction tube set
- Excellent for fast unloading of 208 litre drums (55 gallons) of low to medium viscosity materials
The SaniForce 515 drum kit (Graco part no. 262828) is supplied as standard:
- 316 SST drum length suction tube
- 316 SST mounting bracket
- 316 SST bunghole adapter
- 316 SST Tri-Clamp Clamps (2)
- FDA compliant seals
PTFE/EPDM overmoulded diaphragms
- Moulded diaphragm plate with PTFE on the material side and EPDM on the air side on Graco's PTFE/EPDM diaphragms - so there is no room for bacteria
- Improved wear and service life of the membrane without an exposed membrane plate on the material side
- Longer diaphragm life in abrasive applications where PTFE is still required
- Available for the SaniForce 515, 1040, 1590, 2150 and SaniForce HS 1590 and 3150

Air inlet size (inches):	1/4
Air inlet thread type:	NPT
Application:	Hygienic applications
Ball material:	PTFE
Compatible material:	Cooking oil, food and personal care
Connection type:	Tri-Clamp
Distributor O-ring material:	PTFE
Distributor configuration:	End opening
For use with:	Food and personal care
Gender of the air inlet thread:	Internal thread
Material:	stainless steel
Material in the liquid housing:	316L stainless steel
Material of the centre housing:	Polypropylene
Material outlet size (cm):	2.54
Material outlet size (mm):	25.4
Maximum air pressure (MPa):	0.7
Maximum air pressure (bar):	6.9
Maximum air pressure (kPa):	690
Maximum air pressure (psi):	100
Maximum delivery rate (L/min):	60.6
Maximum material pressure (MPa):	0.7
Maximum material pressure (bar):	6.9
Maximum material pressure (kPa):	690
Maximum material pressure (psi):	100
Maximum number of cycles (DH/min):	182
Maximum operating temperature (°C):	104
Maximum solids size (cm):	2,383
Maximum solids size (mm):	2.4
Membrane, compatible material:	PTFE
Membrane material:	PTFE
Model:	SaniForce
Seat material:	316L stainless steel
Series:	515
Size of the exhaust air opening (inches):	3/8
Size of the material inlet opening (cm):	2.54
Size of the material inlet opening (inches):	1/2
Size of the material inlet opening (mm):	25.4
Size of the material outlet opening (inches):	1/2
Standards met::	ATEX, CE, FDA compliant materials
Supply voltage:	Pneumatic
Thread of the exhaust air opening (inside/outside):	Internal thread
Thread of the exhaust air opening (type):	NPT
Type:	Pneumatic diaphragm pump
Wetted material:	316 stainless steel, PTFE

More information

Product number: 1034297
Manufacturer: Graco
EAN: 00633955623286
Weight: 9 kg
Length: 330 mm
Width: 170 mm
Height: 360 mm

Technical details

Specifications

Operating specifications

UPC product	6 3 3955623286
Division	PRO
Price Block	2 43
Country of origin	US
Unit	EA
Height	36 CM
Length	33 CM
Width	17 cm
Volume	0. 02 m³
Shipping weight	10.92 KG
HTS code (GB)	8413508090
HTS code (EU)	8413508090

Technical

Air exhaust port size (in)	3/
Air exhaust port thread gender	Female
Air inlet size (in)	1/4
Air inlet thread gender	Female
For Use With	Food and personal care
Maximum Air Consumption (SCFM)	2 8
Maximum air pressure (bar)	6. 9
Maximum air pressure (kPa)	690
Maximum air pressure (psi)	100
Maximum cycle rate (CPM)	1 82
Maximum flow rate (L/min)	61
Maximum fluid pressure (bar)	6. 9
Maximum fluid pressure (kPa)	690
Maximum fluid pressure (psi)	100
Maximum solid size (cm)	0. 24
Maximum solid size (in)	0. 093
Maximum solid size (mm)	2. 4
Model	SaniForce
Overall Height (in)	12. 7
Series	515 FG
Maximum fluid pressure (MPa)	0. 7
Maximum air pressure (MPa)	0. 7
Maximum fluid operating temperature (°C)	104
Minimum fluid operating temperature (°C)	- 40
Maximum fluid operating temperature (°F)	220
Minimum fluid operating temperature (°F)	-40
Surface finish	125 Ra
compressor_required	Yes
Fluid passage size (in)	1/2
Fluid passage size (mm)	12. 7
Tri-Clamp Connection Size	1-inch
fluid_passage_size_cm	1. 27
Configuration code	515FG-PP01AS13SSPTPTPT21
