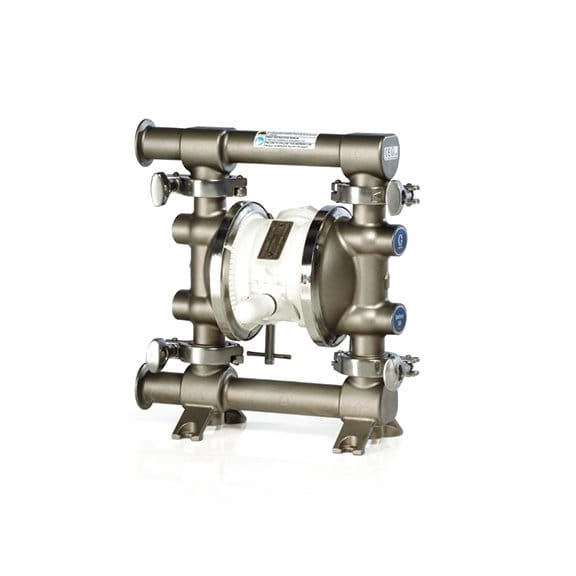

SaniForce 515 air-operated double diaphragm pump with flange connection, S/S seats, PTFE O-rings, Santoprene balls and diaphragms
€2,713.85*
% €3,192.77* (15% saved)Ready for shipping in 5-8 Werktage
Graco's SaniForce 515 hygienic air-operated double diaphragm pump offers a solution for customers requiring a pump with lower flow rates, quick disassembly for easy cleaning and low running costs - ideal for the food processing and personal care markets. Common applications include pumping flavours, purees, sauces and other low to medium viscosity materials.
1/2'' air-operated double diaphragm pump with flow rates of up to 56.7 l/min - ideal for applications in the food sector
SaniForce 515 double diaphragm pump
- 25.4 mm (1'') Tri-Clamp connection
- All wetted materials are FDA-approved and fulfil the requirements of Section 21 of the US Code of Federal Regulations (CFR)
- Material pressure up to 0.7 MPa (7 bar, 100 psi)
- Flow rates of 56.7 litres/min
- Applications include emptying large volumes of liquid concentrates from receiving containers or repackaging materials from the original container into smaller containers - up to 10,000 cps
- Suitable for conveying the following materials: flavours, purees, sauces and other low to medium viscosity materials.
SaniForce 515 drum suction tube set
- Excellent for fast unloading of 208 litre drums (55 gallons) of low to medium viscosity materials
The SaniForce 515 drum kit (Graco part no. 262828) is supplied as standard:
- 316 SST drum length suction tube
- 316 SST mounting bracket
- 316 SST bunghole adapter
- 316 SST Tri-Clamp Clamps (2)
- FDA-compliant seals
Moulded PTFE / EPDM diaphragm
- Moulded diaphragm plate with PTFE on the material side and EPDM on the air side on Graco's PTFE/EPDM diaphragms - so there is no room for bacteria
- Improved wear and service life of the membrane without an exposed membrane plate on the material side
- Longer diaphragm life in abrasive applications where PTFE is still required
- Available for the SaniForce 515, 1040, 1590, 2150 and SaniForce HS 1590 and 3150
| Air inlet size (inches): | 1/4 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | Hygienic applications |
| Ball material: | Santoprene |
| Compatible material: | Cooking oil, food and personal care |
| Connection type: | Tri-Clamp |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | End opening |
| For use with: | Food and personal care |
| Gender of the air inlet thread: | Internal thread |
| Material: | stainless steel |
| Material in the liquid housing: | 316L stainless steel |
| Material of the centre housing: | Polypropylene |
| Material outlet size (cm): | 2.54 |
| Material outlet size (mm): | 25.4 |
| Maximum air pressure (MPa): | 0.7 |
| Maximum air pressure (bar): | 6.9 |
| Maximum air pressure (kPa): | 690 |
| Maximum air pressure (psi): | 100 |
| Maximum delivery rate (L/min): | 60.6 |
| Maximum material pressure (MPa): | 0.7 |
| Maximum material pressure (bar): | 6.9 |
| Maximum material pressure (kPa): | 690 |
| Maximum material pressure (psi): | 100 |
| Maximum number of cycles (DH/min): | 182 |
| Maximum solids size (cm): | 2,383 |
| Maximum solids size (mm): | 2.4 |
| Membrane, compatible material: | Santoprene |
| Membrane material: | Santoprene |
| Model: | SaniForce |
| Seat material: | 316L stainless steel |
| Series: | 515 |
| Size of the exhaust air opening (inches): | 3/8 |
| Size of the material inlet opening (cm): | 2.54 |
| Size of the material inlet opening (inches): | 1/2 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 1/2 |
| Standards met:: | ATEX, CE, FDA compliant materials |
| Supply voltage: | Pneumatic |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Transmission ratio of the pump: | 1:1 |
| Type: | Pneumatic diaphragm pump |
- Product number: 1037623
- Manufacturer: Graco
- EAN: 00633955623330
- Weight: 11.778 kg
- Length: 320 mm
- Width: 170 mm
- Height: 360 mm
