Manufacturer no.:
FD2111

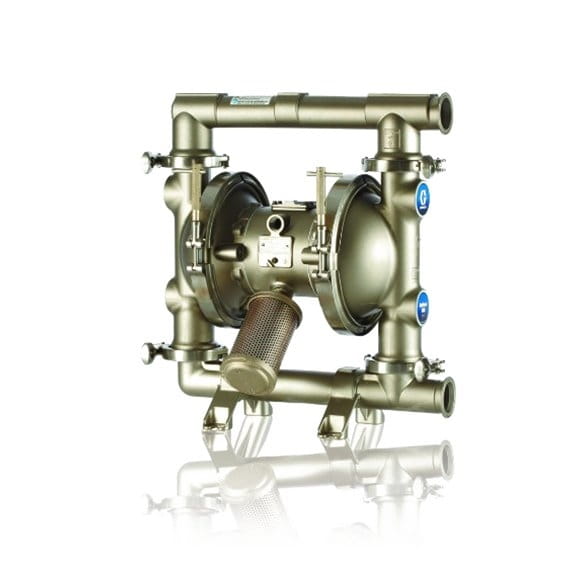

SaniForce 1590 S/S Air-operated double diaphragm pump with clamp connection for hygienic applications, stainless steel centre housing and seats, PTFE O-rings, balls and diaphragms
€9,910.10*
% €10,570.77* (6.25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco's SaniForce 1590 air operated double diaphragm pumps feature the best, most durable, lubricant-free air valves in the industry. Excellent for applications where high flow rates and portability are required. Graco's reliable diaphragm pumps offer a wide range of food grade elastomers such as Santoprene, PTFE and moulded EPDM/PTFE.
38 mm (1-1/2") air-operated double diaphragm pump with flow rates of up to 341 l/min - ideal for food applications
SaniForce 1590 double diaphragm pump
- 51 mm (2'') Tri-Clamp connection
- 341 l/min in a compact, portable size
- Material pressure up to 0.84 MPa (8.4 bar, 120 psi)
- All fluid contact materials are FDA approved and meet the requirements of Section 21 of the US Code of Federal Regulations (CFR)
- High-volume discharge of liquid concentrates from receiving containers or repackaging of materials from the original container into smaller containers - up to 15,000 cps
- Suitable for pumping products such as: concentrated fruit juices, sauces, pastes, starch, wine, cooking oil, jams and jellies
Patented lubricant-free air valve
- Three-way control valve for non-stick operation
- 316 series stainless steel rod for long life and corrosion resistance
- The 1040, 1590 and 2150 SaniForce pumps use common centre sections
- 100% extremely easy to maintain air valve
PTFE/EPDM encapsulated diaphragms
- Available for the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
- Improved wear and service life of the diaphragm without an exposed diaphragm plate on the material side
- Longer diaphragm service life in abrasive applications where PTFE is still required
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | Hygienic applications |
| Ball material: | PTFE |
| Compatible material: | Cooking oil, food and personal care |
| Connection type: | Tri-Clamp |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | End opening |
| For use with: | Food and personal care |
| Gender of the air inlet thread: | Internal thread |
| Material: | stainless steel |
| Material in the liquid housing: | 316L stainless steel |
| Material of the centre housing: | stainless steel |
| Material outlet size (cm): | 05.08 |
| Material outlet size (mm): | 50.8 |
| Maximum air pressure (MPa): | 0.8 |
| Maximum air pressure (bar): | 8 |
| Maximum air pressure (kPa): | 800 |
| Maximum air pressure (psi): | 120 |
| Maximum delivery rate (L/min): | 341 |
| Maximum material pressure (MPa): | 0.8 |
| Maximum material pressure (bar): | 8 |
| Maximum material pressure (kPa): | 800 |
| Maximum material pressure (psi): | 120 |
| Maximum number of cycles (DH/min): | 200 |
| Maximum operating temperature (°C): | 104 |
| Maximum solids size (cm): | 4,763 |
| Maximum solids size (mm): | 4,763 |
| Membrane, compatible material: | PTFE |
| Membrane material: | PTFE |
| Model: | SaniForce |
| Seat material: | 316L stainless steel |
| Series: | 1590 |
| Size of the exhaust air opening (inches): | 3/4 |
| Size of the material inlet opening (cm): | 05.08 |
| Size of the material inlet opening (inches): | 1-1/2 |
| Size of the material inlet opening (mm): | 50.8 |
| Size of the material outlet opening (inches): | 1-1/2 |
| Standards met:: | ATEX, CE, FDA compliant materials |
| Supply voltage: | Pneumatic |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Transmission ratio of the pump: | 1:1 |
| Type: | Pneumatic diaphragm pump |
| Wetted material: | 316 stainless steel, PTFE |
More information
- Product number: 1039090
- Manufacturer: Graco
- EAN: 00633955194779
- Weight: 35 kg
- Length: 600 mm
- Width: 450 mm
- Height: 700 mm
Technical details
Operating specifications
| UPC product | 633955194779 |
|---|---|
| Division | PRO |
| Price Block | 2 43 |
| Country of origin | US |
| Unit | EA |
| Height | 70 CM |
| Length | 60 CM |
| Width | 45 CM |
| Volume | . 189 m³ |
| Shipping weight | 35 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/4 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| For Use With | Food and personal care |
| Maximum Air Consumption (SCFM) | 130 |
| Maximum air pressure (bar) | 8 |
| Maximum air pressure (kPa) | 800 |
| Maximum air pressure (psi) | 120 |
| Maximum cycle rate (CPM) | 2 00 |
| Maximum flow rate (L/min) | 379 |
| Maximum fluid pressure (bar) | 8 |
| Maximum fluid pressure (kPa) | 800 |
| Maximum fluid pressure (psi) | 120 |
| Maximum solid size (cm) | 0. 48 |
| Maximum solid size (in) | 0. 1875 |
| Maximum solid size (mm) | 4. 8 |
| Model | SaniForce |
| Overall height (in) | 20. 5 |
| Series | 1590 FG |
| Maximum fluid pressure (MPa) | 0. 8 |
| Maximum air pressure (MPa) | 0. 8 |
| Maximum fluid operating temperature (°C) | 82 |
| Minimum fluid operating temperature (°C) | - 40 |
| Maximum fluid operating temperature (°F) | 180 |
| Minimum fluid operating temperature (°F) | - 40 |
| Surface finish | 125 Ra |
| compressor_required | Yes |
| Fluid passage size (in) | 1. 5 |
| Fluid Passage Size (mm) | 38 |
| Tri-clamp connection size | 2 -inch |
| fluid_passage_size_cm | 3. 8 |
| Configuration code | 1590FG-PS01AS13SSPTPTPT21 |
