Manufacturer no.:
FD7232

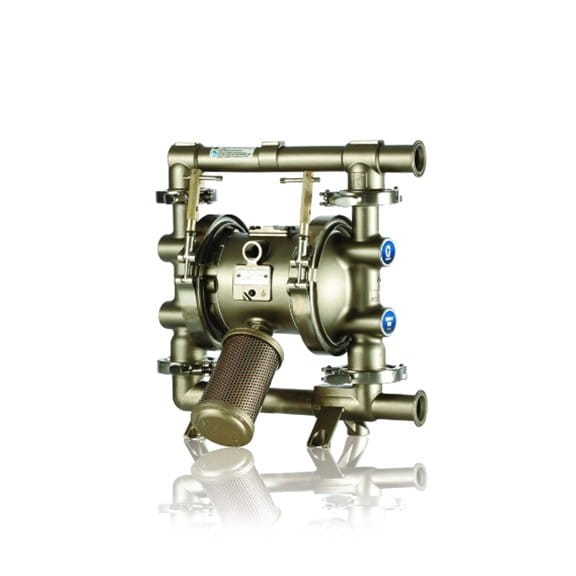

SaniForce 1040 S/S Air-operated double diaphragm pump with DIN connection, 316 S/S seats, EPDM O-rings, polychloroprene with S/S core and Santoprene membrane
€5,500.03*
% €5,866.70* (6.25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco SaniForce 1040 hygienic air-operated double diaphragm pumps feature the industry's best, most durable, lubricant-free air valves. Excellent for applications where high flow rates and transportability are required. Graco's reliable diaphragm pumps offer a wide range of food-grade elastomers, including Santoprene, PTFE and moulded EPDM/PTFE.
- 38 mm (1.5'') Tri-Clamp connection
- All wetted materials are FDA-approved and meet the requirements of Title 21 of the US Code of Federal Regulations (CFR)
- Pressure rating up to 0.84 MPa (8.4 bar, 120 psi)
- Flow rates of 151 l/min
- High volume transfer of liquid concentrates from bulk containers or re-packaging of materials from the original container into smaller containers - up to 10,000 cps
- Suitable for pumping products such as: concentrated fruit juices, sauces, pastes, starch, wine, cooking oil, jam and jellies
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | Hygienic applications |
| Ball material: | Polychloroprene with additional weight |
| Compatible material: | Cooking oil, food and personal care |
| Connection type: | DIN |
| Distributor O-ring material: | EPDM |
| Distributor configuration: | End opening |
| For use with: | Food and personal care |
| Gender of the air inlet thread: | Internal thread |
| Material: | stainless steel |
| Material in the liquid housing: | 316L stainless steel |
| Material outlet size (cm): | 3.81 |
| Material outlet size (mm): | 38.1 |
| Maximum air pressure (MPa): | 0.8 |
| Maximum air pressure (bar): | 8 |
| Maximum air pressure (kPa): | 800 |
| Maximum air pressure (psi): | 120 |
| Maximum delivery rate (L/min): | 151 |
| Maximum material pressure (MPa): | 0.8 |
| Maximum material pressure (bar): | 8 |
| Maximum material pressure (kPa): | 800 |
| Maximum material pressure (psi): | 120 |
| Maximum number of cycles (DH/min): | 256 |
| Maximum solids size (cm): | 3,175 |
| Maximum solids size (mm): | 3,175 |
| Membrane, compatible material: | Santoprene |
| Membrane material: | Santoprene |
| Model: | SaniForce |
| Seat material: | 316L stainless steel |
| Series: | 1040 |
| Size of the exhaust air opening (inches): | 3/4 |
| Size of the material inlet opening (cm): | 3.81 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 38.1 |
| Size of the material outlet opening (inches): | 1 |
| Standards met:: | ATEX, CE, FDA compliant materials |
| Supply voltage: | Pneumatic |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Transmission ratio of the pump: | 1:1 |
| Type: | Pneumatic diaphragm pump |
More information
- Product number: 1033269
- Manufacturer: Graco
- EAN: 00633955677890
- Weight: 26.308 kg
- Length: 400 mm
- Width: 200 mm
- Height: 400 mm
Technical details
Operating specifications
| UPC product | 633955677890 |
|---|---|
| Division | PRO |
| Price Block | 2 43 |
| Country of origin | US |
| Unit | EA |
| Height | 40 CM |
| Length | 40 cm |
| Width | 20 cm |
| Volume | . 032 m³ |
| Shipping weight | 26.31 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/4 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| For Use With | Food and personal care |
| Maximum Air Consumption (SCFM) | 50 |
| Maximum air pressure (bar) | 8 |
| Maximum air pressure (kPa) | 800 |
| Maximum air pressure (psi) | 120 |
| Maximum cycle rate (CPM) | 2 56 |
| Maximum flow rate (L/min) | 155 |
| Maximum fluid pressure (bar) | 8 |
| Maximum fluid pressure (kPa) | 800 |
| Maximum fluid pressure (psi) | 120 |
| Maximum solid size (cm) | 0. 32 |
| Maximum solid size (in) | 0. 125 |
| Maximum solid size (mm) | 3.2 |
| Model | SaniForce |
| Overall Height (in) | 16. 1 |
| Series | 1040 FG |
| Maximum fluid pressure (MPa) | 0. 8 |
| Maximum air pressure (MPa) | 0. 8 |
| Maximum fluid operating temperature (°C) | 80 |
| Minimum fluid operating temperature (°C) | -10 |
| Maximum fluid operating temperature (°F) | 1 76 |
| Minimum fluid operating temperature (°F) | 14 |
| Surface finish | 125 Ra |
| compressor_required | Yes |
| Fluid passage size (in) | 1 |
| Fluid passage size (mm) | 25. 4 |
| fluid_passage_size_cm | 2. 54 |
| configuration_code | 1040FG-PS01AS14SSCWSPEP21 |
