Manufacturer no.:
24R985

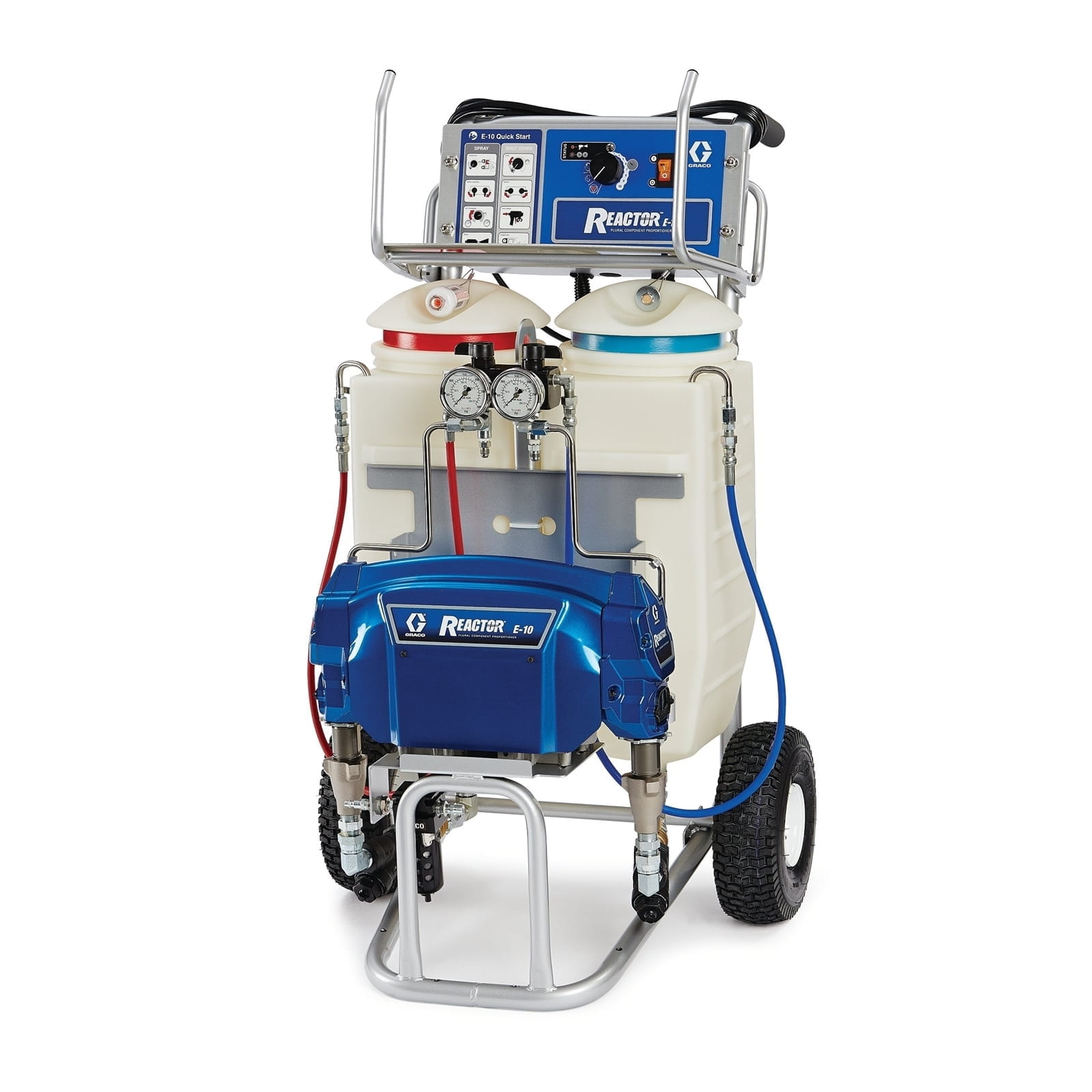

Reactor E-10 complete dosing unit, 2K manual gun, 240 V, 1PH
€13,880.16*
Prices include VAT plus shipping costs
€11,664.00*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
The unheated Reactor E-10 is equipped with integrated tanks that allow for easy and accurate mixing of higher viscosity multi-component materials at higher outputs. The advanced features of the Reactor E-10 offer you increased uptime and reliability, longer equipment life and reduced maintenance.
For medium to large joint fillers without heating.
- Weighs only 68 kg (150 lb)
- Materials are gravity fed from integrated tanks
- Handles higher viscosity materials.
- Maximum throughput - 1.9 l/min
- Easy start & stop with one-button operation
- Connects to a standard electrical wall unit
- Easy to move, even in confined areas
Robust, mobile design
- Easy to manoeuvre thanks to large wheels
- Weighs only 68 kg (150 pounds)
- Reliable flow supply from integrated containers
Powerful operation
- Electric motor improves performance and reduces operating costs
- Maximum flow rate of 1.9 l/min
- Easy connection to a power outlet
Reduced maintenance
- Shorter maintenance times thanks to the maintenance-friendly material section
| Air inlet size (inches): | 1/4 |
|---|---|
| Air inlet thread type: | Quick coupling pin |
| Air outlet size (inches): | 1/4 |
| Air outlet thread type: | NPSM |
| Application: | Spray foam |
| Applicator type: | Hand- |
| Compatible material: | Multicomponent materials |
| Component type: | Two-component |
| Frequency (Hz): | 50/60 |
| Gun type: | 2K manual |
| Hose length (m): | 10.7 |
| Hose type: | Including hose |

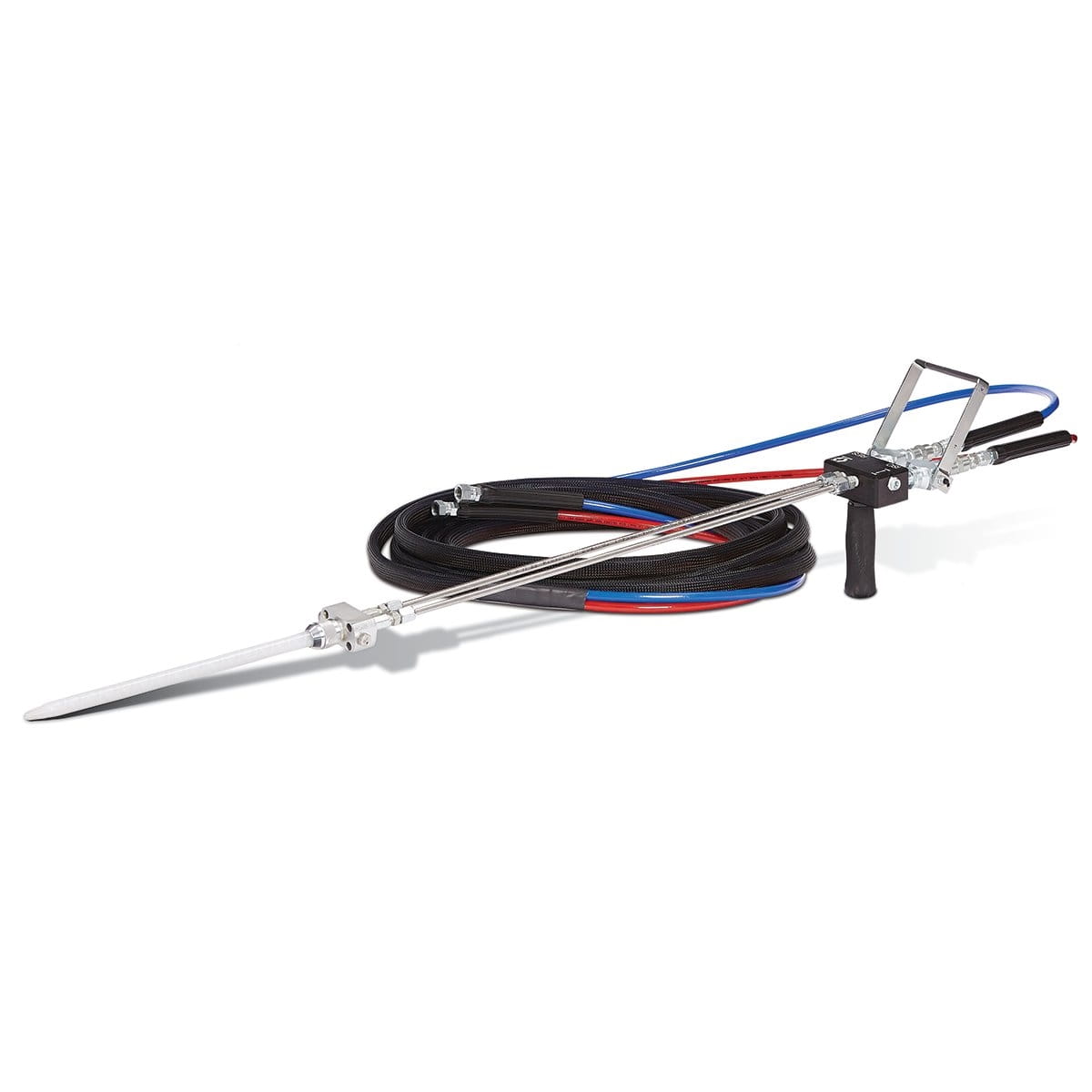

| Includes: | Dosing device, 2K hand dosing gun, unheated hose |
| Material application.: | Polyurethane foam |
| Maximum conveying capacity (kg/min): | 5.44 |
| Maximum material temperature (°C): | 71 |
| Maximum mixing ratio: | 1:1 |
| Model: | reactor |
| Noise pressure level, (dB(A)): | 84.5 |
| Phases: | 1 |
| Print type: | Low pressure |
| Product type: | multi-component |
| Rated power (W): | 1800s |
| Rated power (kW): | 1.8 |
| Series: | E-10 |
| Sink type: | solvent |
| Size of the air inlet (cm): | 635 |
| Size of the air inlet (mm): | 6.35 |
| Size of the air outlet (cm): | 635 |
| Size of the air outlet (mm): | 6.35 |
| Supply voltage: | Electric |
| Tank capacity (L): | 26.5 |
| Total depth (cm): | 76.2 |
| Total depth (mm): | 762 |
| Total height (cm): | 111.8 |
| Total height (mm): | 1118 |
| Total width (cm): | 67.3 |
| Total width (mm): | 673 |
| Type: | Complete dosing device |
| Voltage (V): | 240 |
| Wetted material: | Aluminum, brass, carbide, mild steel, chrome, PTFE, stainless steel, UHMWPE |
More information
- Product number: 1033445
- Manufacturer: Graco
- EAN: 00633955223547
- Weight: 122.99 kg
Technical details
Operating specifications
| UPC product | 6 3 3955223547 |
|---|---|
| Division | CED |
| Price Block | 026 |
| Country of Origin | US |
| Unit | EA |
Technical
| Air inlet size (cm) | 0. 635 |
|---|---|
| Air inlet size (in) | 1/4 |
| Air inlet size (mm) | 6. 35 |
| Air outlet size (cm) | 0. 635 |
| Air outlet size (in) | 1/4 |
| Air outlet thread type | NPSM |
| Amperage (A) | 8 |
| Component Type | Two Component |
| Frequency (Hz) | 50/60 |
| Includes | Proportioner, 2K Manual Dispense Gun, Unheated Hose |
| Material Application | Polyurethane foam |
| Maximum flow rate (kg/min) | 5. 44 |
| Maximum flow rate (lb/min) | 12 |
| Maximum fluid temperature (°C) | 71 |
| Maximum fluid temperature (°F) | 160 |
| Maximum mix ratio | 1: 1 |
| Overall Depth (cm) | 76. 2 |
| Overall depth (in) | 30 |
| Overall Depth (mm) | 762 |
| Overall height (cm) | 111. 8 |
| Overall height (in) | 4 4 |
| Overall height (mm) | 1118 |
| Overall Width (cm) | 67. 3 |
| Overall width (in) | 26. 5 |
| Overall width (mm) | 673 |
| Power Rating (HP) | 2. 41 |
| Power rating (kW) | 1. 8 |
| Power rating (W) | 1 8 00 |
| Product Type | Plural Component |
| Sound Pressure Level (dB(A)) | 84. 5 |
| Air Outlet Size (mm) | 6. 35 |
| Model | Reactor |
| Series | E-10 |
| Pants Package | Includes trous ers |
