Manufacturer no.:
272011

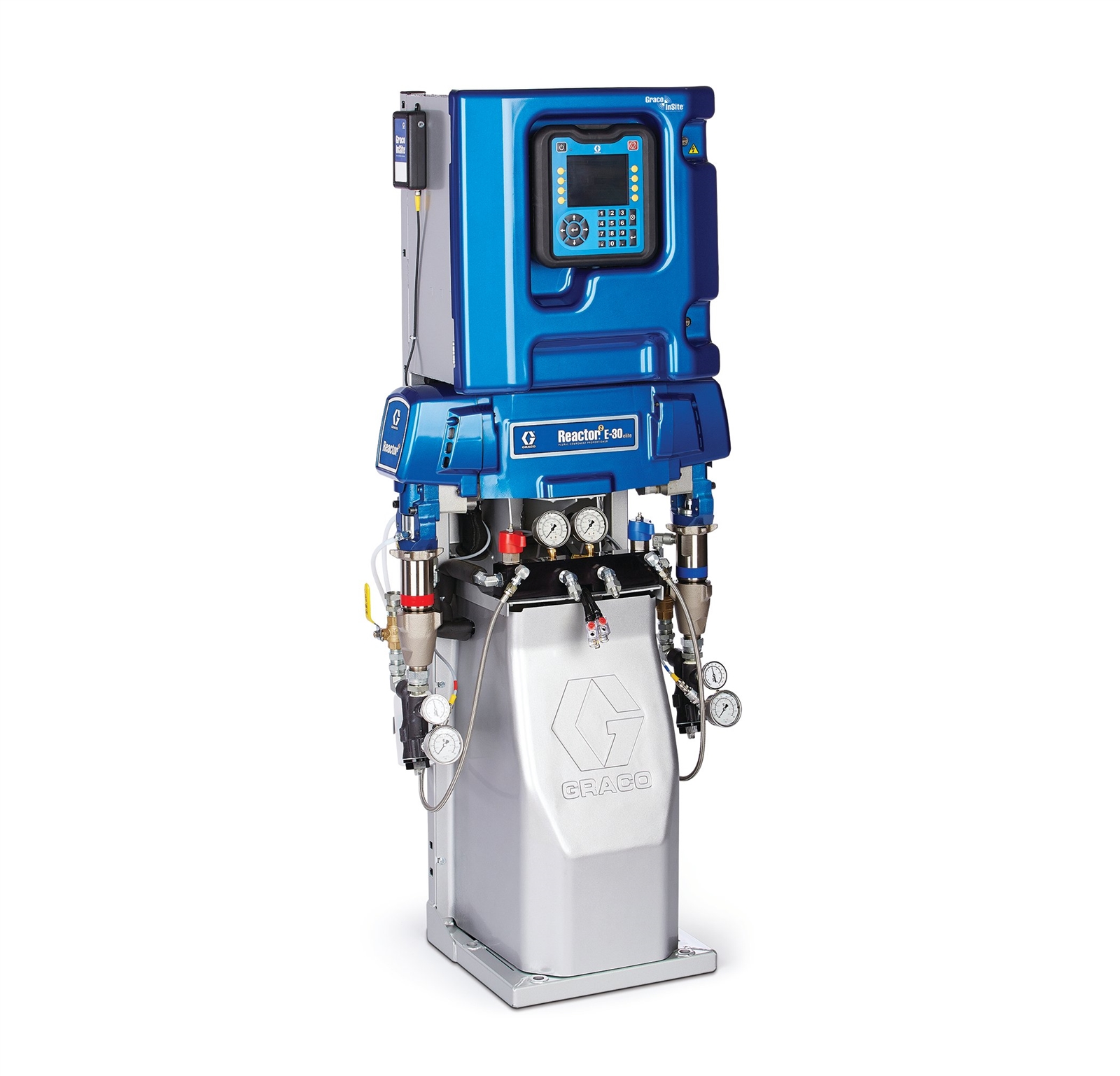

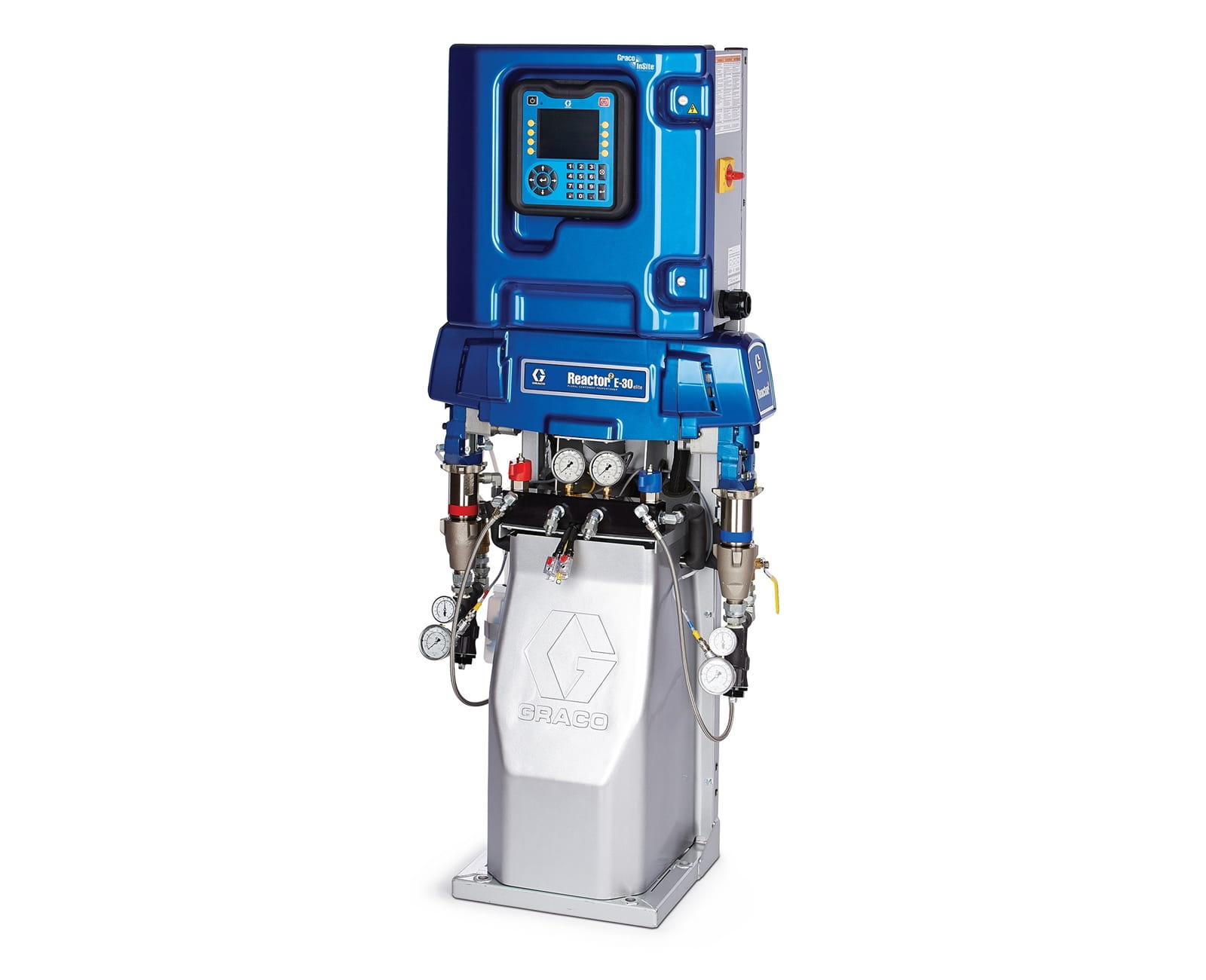

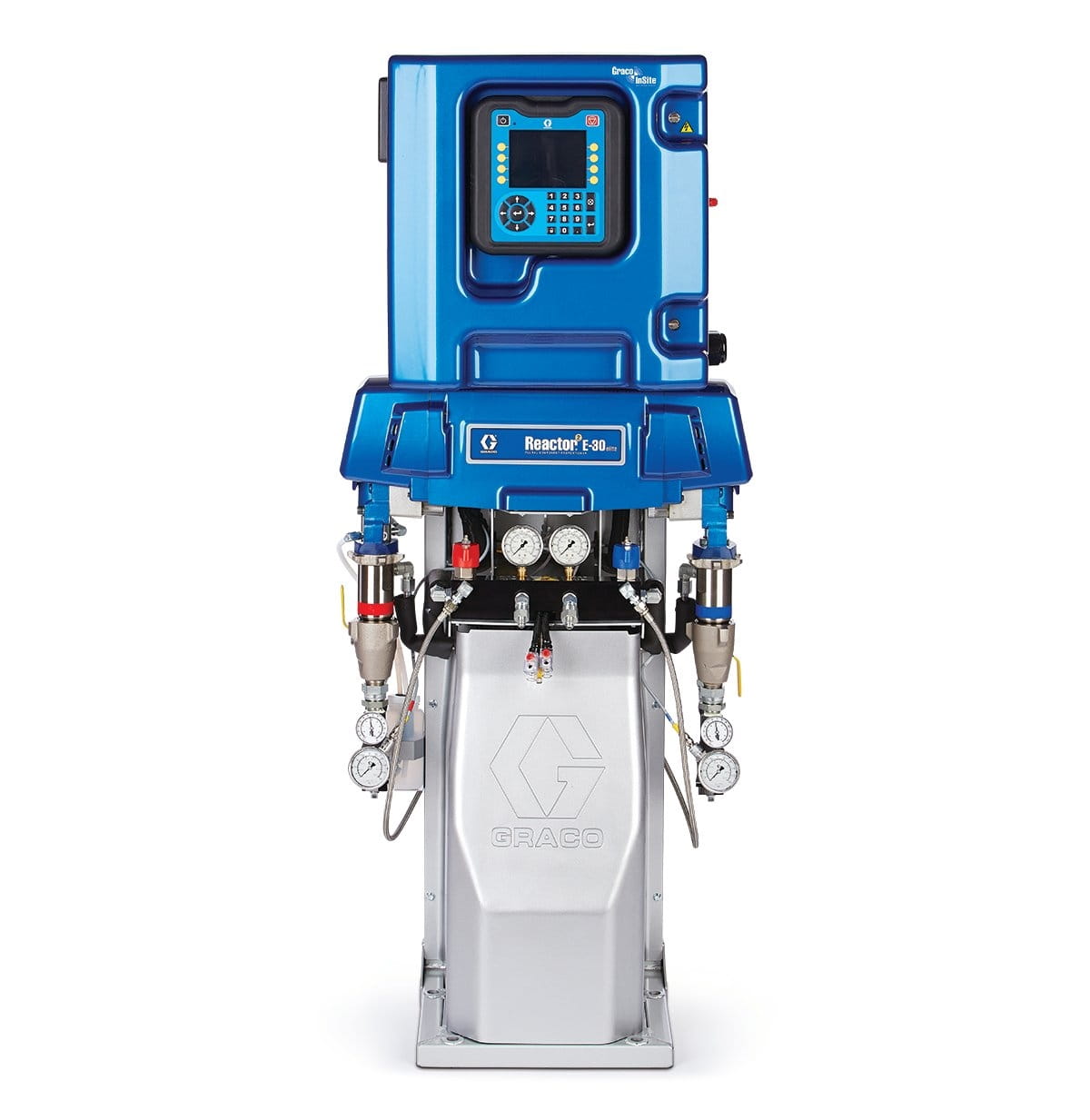

Reactor 2 E-30 dosing unit, 15 kW
€39,737.15*
% €46,421.90* (14.4% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Every single feature of the Reactor 2 has been strategically designed to support your business operations with innovations that help you ensure a smooth workflow. Improved software and hardware for better spraying performance. And new technologies for a better end result.
Next generation technology for spray foam and polyurea insulation
Advantages of the Reactor 2 E-30:
- Compact size - more space in the spraying system
- Ergonomic design - easier maintenance
- Advanced control modules
- Better spraying performance compared to conventional electric Reactor systems
- Fast and smooth troubleshooting with QR codes
Graco InSite gives you:
- Better control - monitor your spray foam or polyurea operations from anywhere
- Better documentation - automatically capture job log data and spray parameters - so you can confirm that the job was sprayed to specification
- Better fleet and team management
- Better cost containment and forecasting
- Graco InSite is standard on all Reactor 2 Elite models
Advanced control technology
- Tracks, monitors and stores project data
- Data can be saved and downloaded to a USB drive
- Storage of up to 24 chemical recipes
- Drum level indicator
Graco InSite technology for remote data transfer
- Transmits real-time job activity that you can view on your smartphone, tablet or computer
- Standard on Elite models
Quick and easy troubleshooting thanks to QR code links
- Ensures less downtime
- Easily accessible, conveniently placed electronics
Advanced control modules
- Handles power fluctuations
Overvoltage protection
- Protects your electronics from excessive power peaks
- Consistent and constant spraying performance - similar to hydraulic systems
3 year warranty
- Includes user display module, control modules and electric motor
- One of the best in the industry
| Artikel Art: | Dosiergerät, Reactor |
|---|---|
| Leistung: | 15 kW |
More information
- Product number: 1038756
- Manufacturer: Graco
- EAN: 00633955638068
- Weight: 192.072 kg
- Length: 790 mm
- Width: 970 mm
- Height: 1290 mm
Technical details
Operating specifications
| UPC product | 633955638068 |
|---|---|
| Division | CED |
| Price Block | 026 |
| Country of origin | US |
| Unit | EA |
| Height | 129 CM |
| Length | 79 CM |
| Width | 97 cm |
| Volume | . 989 m³ |
| Shipping weight | 192.07 KG |
| HTS code (EU) | 8 4 13504090 |
| HTS code (GB) | 8 4 13504090 |
Technical
| Amperage (A) | 35 @ 350 to 415 V ac (3-phase WYE), 62 @ 200 to 240 V ac (3-phase Delta), 100 @ 200 to 240 V ac (1-phase ) |
|---|---|
| Component type | Two Component |
| Frequency (Hz) | 50/60 |
| Material Application | Polyurethane foam |
| Maximum flow rate (kg/min) | 13. 5 |
| Maximum flow rate (lb/min) | 30 |
| Maximum fluid temperature (°C) | 88 |
| Maximum fluid temperature (°F) | 1 90 |
| Maximum Hose Length (ft) | 310 |
| Maximum hose length (m) | 94. 5 |
| Maximum Mix Ratio | 1: 1 |
| Maximum working pressure (bar) | 138 |
| Maximum working pressure (kPa) | 1 3 800 |
| Maximum working pressure (MPa) | 13. 8 |
| Maximum working pressure (psi) | 2 0 00 |
| Overall Depth (cm) | 38. 1 |
| Overall Depth (in) | 15 |
| Overall Depth (mm) | 381 |
| Overall height (cm) | 160 |
| Overall height (in) | 63 |
| Overall height (mm) | 1 6 00 |
| Overall width (cm) | 66. 8 |
| Overall width (in) | 26. 3 |
| Overall width (mm) | 668 |
| Power Rating (HP) | 20. 52 |
| Power rating (kW) | 15 |
| Power rating (W) | 15 3 00 |
| Product Type | Plural Component |
| Resin inlet size (cm) | 1. 905 |
| Resin inlet size (in) | 3/4 |
| Resin inlet size (mm) | 19. 05 |
| Resin inlet thread gender | Female |
| Resin inlet thread type | NPSM |
| Sound pressure level (dB(A)) | 87. 3 |
| Weight (kg) | 1 61 |
| Model | Reactor 2 |
| Series | E-30 |
| Product Series | Non-Elite |
| Pants Package | No Hose |
