Manufacturer no.:
LTX111
RAC X SwitchTip, 111
| Number | Unit price |
|---|---|
| Until 3 |
€53.55*
€107.10*
(50% saved)
|
| Away 4 |
€50.87*
€107.10*
(52.5% saved)
|
Ready for shipping in 5-8 days
Also interesting
Product information

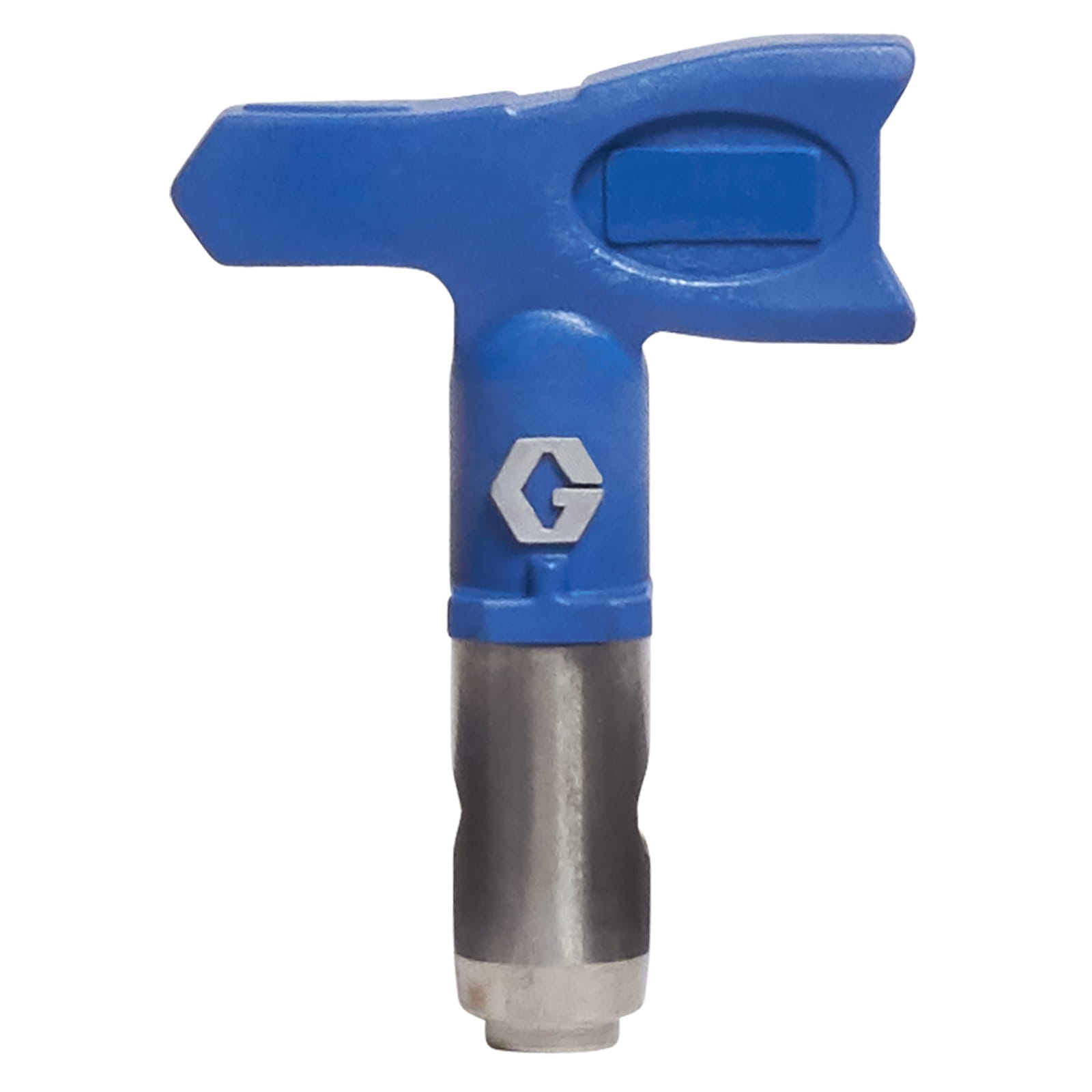

The Reverse-A-Clean (RAC) 111 RAC X SwitchTip is designed for narrower areas and thin materials. The 111 SwitchTip has a 0.011" opening and produces a spray pattern of 2 to 4". Simply flip the SwitchTip over to easily clear clogs.
For domestic, commercial and industrial applications
- Best tip on the market
- The most durable spray pattern
- High quality finish with even spray pattern
- Easily recognisable nozzle size
- The large raised nozzle size numbers are always legible - even when covered in paint
- Superior nozzle design
- The locking tab ensures that the nozzle remains securely in the nozzle guard.
- The nozzle locks in the spray position or in the reverse position.
- The OneSeal nozzle seal can be fitted without tools
- A solvent seal is available for use with extremely hot solvents
| Compatible material: | Lacquer to mastic, latex paint |
|---|---|
| For use with: | RAC X HandTite nozzle guard |
| Maximum delivery rate (L/min): | 0.45 |
| Maximum operating pressure (kPa): | 28000 |
| Maximum operating pressure (psi): | 4050 |
| Maximum spray width (cm): | 5 |
| Maximum spray width (inches): | 2 |
| Maximum spray width (mm): | 102 |
| Minimum spray width (mm): | 51 |
| Model: | RAC X |
| Nozzle type: | Airless |
| Permissible operating pressure (bar): | 280 |
| Series: | LTX Switch Tip |
| Size of the material opening (inches): | 0.011 |
| Spray pattern: | Impeller |
| Spray pattern size (mm): | 50.8 to 101.6 |
| Type: | spray nozzle |
More information
- Product number: 1038395
- Manufacturer: Graco
- EAN: 00633955267251
- Weight: 0.021 kg
- Length: 135 mm
- Width: 70 mm
- Height: 20 mm
Technical details
Operating specifications
| UPC product | 633955267251 |
|---|---|
| Division | CED |
| Price Block | 1 02 |
| Country of origin | US |
| Unit | EA |
| Height | 2 CM |
| Length | 13.5 cm |
| Width | 7 cm |
| Volume | 0 m³ |
| Shipping weight | . 02 KG |
Technical
| Orifice diameter (in) | 0. 011 |
|---|---|
| Maximum working pressure (kPa) | 2 8 000 |
| Maximum working pressure (psi) | 4 050 |
| Maximum working pressure (bar) | 2 80 |
| For use with | RAC X HandTite Tip Guard |
| Maximum Fan Width (in) | 2 |
| Maximum fan width (mm) | 1 02 |
| Tip Type | Air less |
| Pattern size (in) | 2 to 4 |
| Maximum fan width (cm) | 5 |
| Maximum flow rate (L/min) | 0. 45 |
| Minimum fan width (in) | 2 |
| Minimum fan width (mm) | 51 |
| Pattern size (mm) | 50.8 to 101. 6 |
| Model | RAC X |
| Series | LTX SwitchTip |
