Manufacturer no.: AD010N

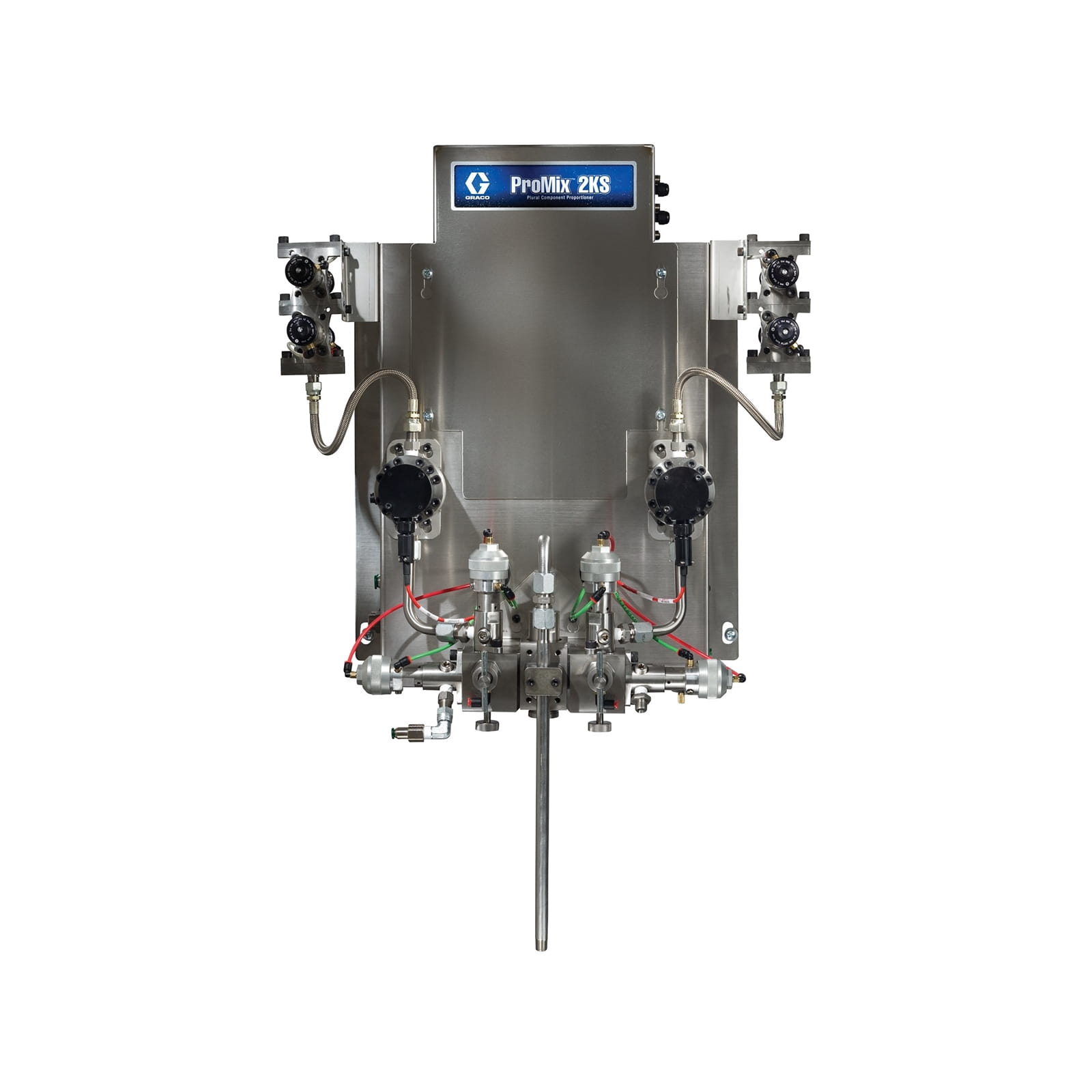

ProMix 2KS automatic wall console system, EasyKey with LCD display, 2 colour valves, single catalytic converter

Price on request

Prices include VAT plus shipping costs

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

Request price

Product question

EU B2B: net prices with valid VAT ID

Also interesting

Product information

User-friendly electronic dosing system for a wide range of solvent- and water-based or acid-catalysed materials: The ProMix 2KS system enables extremely precise adjustment of the mixing ratio - for superior results in manual or automatic operation. Efficient monitoring and reporting functions with efficient colour change for less material waste.

Optional flow control is neatly integrated without the need to install a measuring device in the mixing material line. The pressure and flow control loops ensure rapid changes with superior control behaviour.
The material distributor reduces the material volume, facilitates material passage and thus ensures a cleaner rinsing result
Intrinsically safe mixing panels allow installation in hazardous areas
High mixing ratio accuracy for excellent finish quality
The state-of-the-art web interface ensures comprehensive system management and reporting

Item type:	Automatisches Dosiergerät ProMix PD2K
Number of catalytic converters:	1
Number of colours:	2

More information

Product number: 1031731
Manufacturer: Graco
EAN: 00633955395589
Weight: 67.585 kg

Technical details

Specifications

Operating specifications

UPC product	633955395589
Division	IPD
Price Block	039
Country of Origin	US
Unit	EA
Height	0 CM
Length	0 CM
Width	0 CM
Volume	0 M3
Shipping weight	67.59 KG
HTS code (EU)	8479820000
HTS code (GB)	8479820000

Technical

Air inlet size (cm)	0. 9525
Air inlet size (in)	3/8
Air inlet size (mm)	9. 525
Air inlet thread gender	Female
Amperage (A)	2
Component Type	Two Component
Fluid inlet size (cm)	0. 635
Fluid inlet size (in)	1/4
Fluid inlet size (mm)	6. 35
Fluid inlet thread gender	Female
Fluid outlet thread gender	Female
Frequency (Hz)	50/60
Material Type	Two Component
Maximum Mix Ratio	50: 1
Maximum Number of Colours	Up to 3
Maximum working pressure (bar)	275. 8
Maximum working pressure (kPa)	2 7 580
Maximum working pressure (MPa)	27. 6
Maximum working pressure (psi)	4 0 00
Minimum Mix Ratio	0.1: 1
Mix Accuracy (%)	1
Number of catalysts	1
Number of colour valves	2 valves
Number of colours	2
Number of resin colours	2
Proportioner type	Automatic Wall
Sound pressure level (dB(A))	70
Model	ProMix
Series	2KS
