Manufacturer no.: 24F089

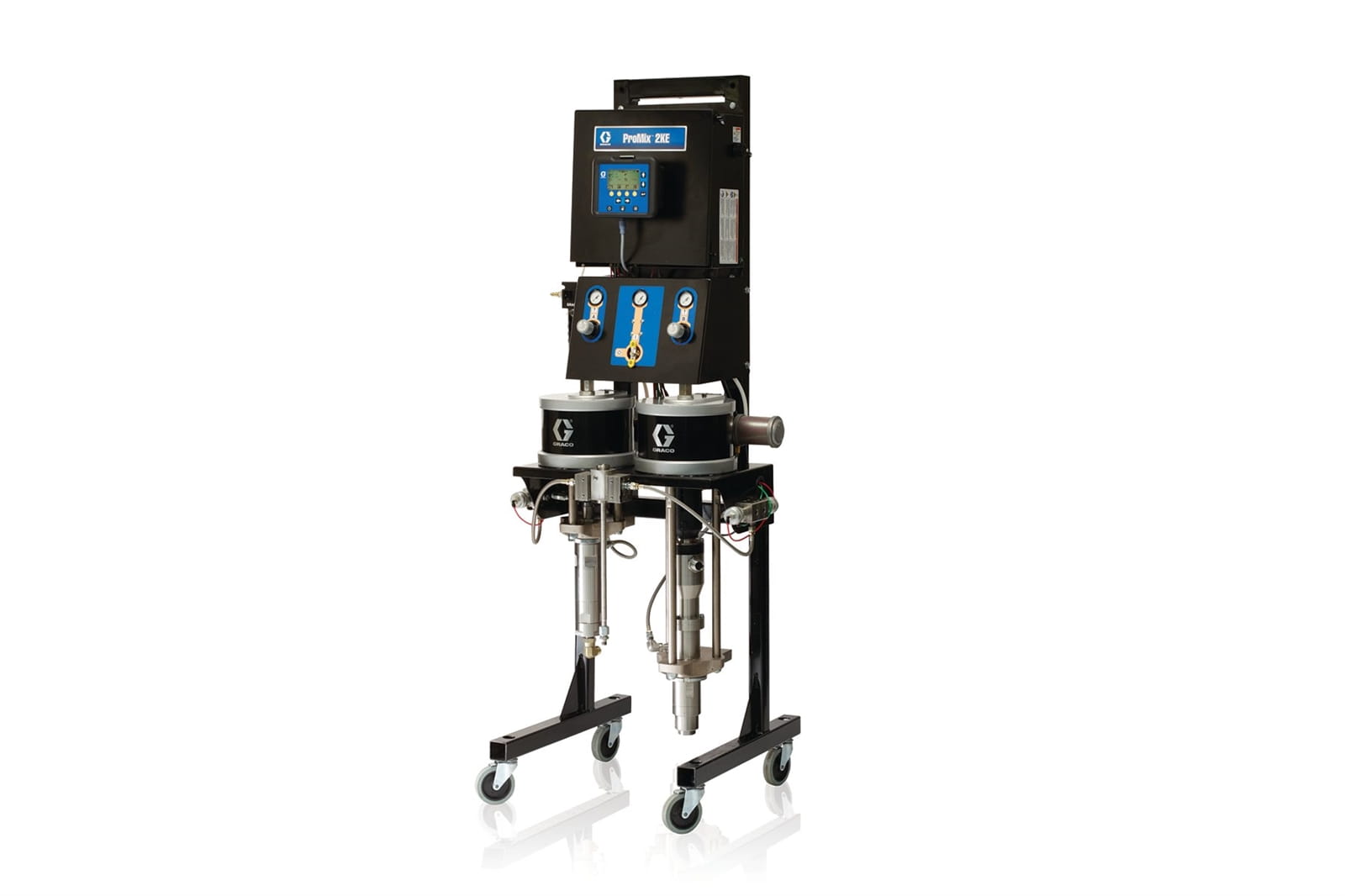

ProMix 2KE dosing unit, electric, air-assisted Merkur pumps 23:1, on-screen reporting system, for non-hazardous areas

€24,758.63*

% €35,882.07* (31% saved)

Prices include VAT plus shipping costs

€20,805.57*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The ProMix-2KE dosing unit is suitable as an entry-level model: its user-friendly and compact multi-component system enables needs-based mixing for all spraying technologies.

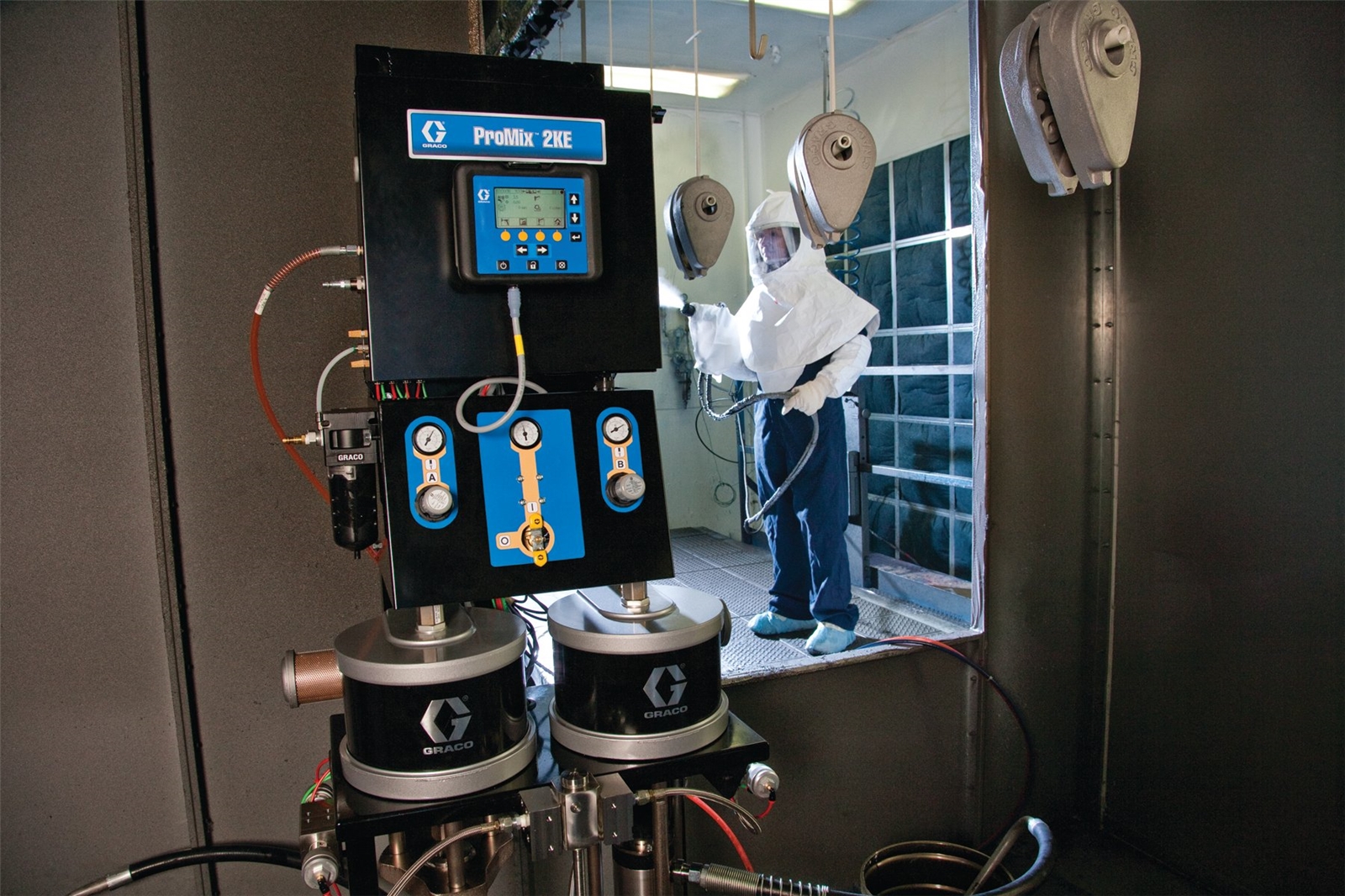

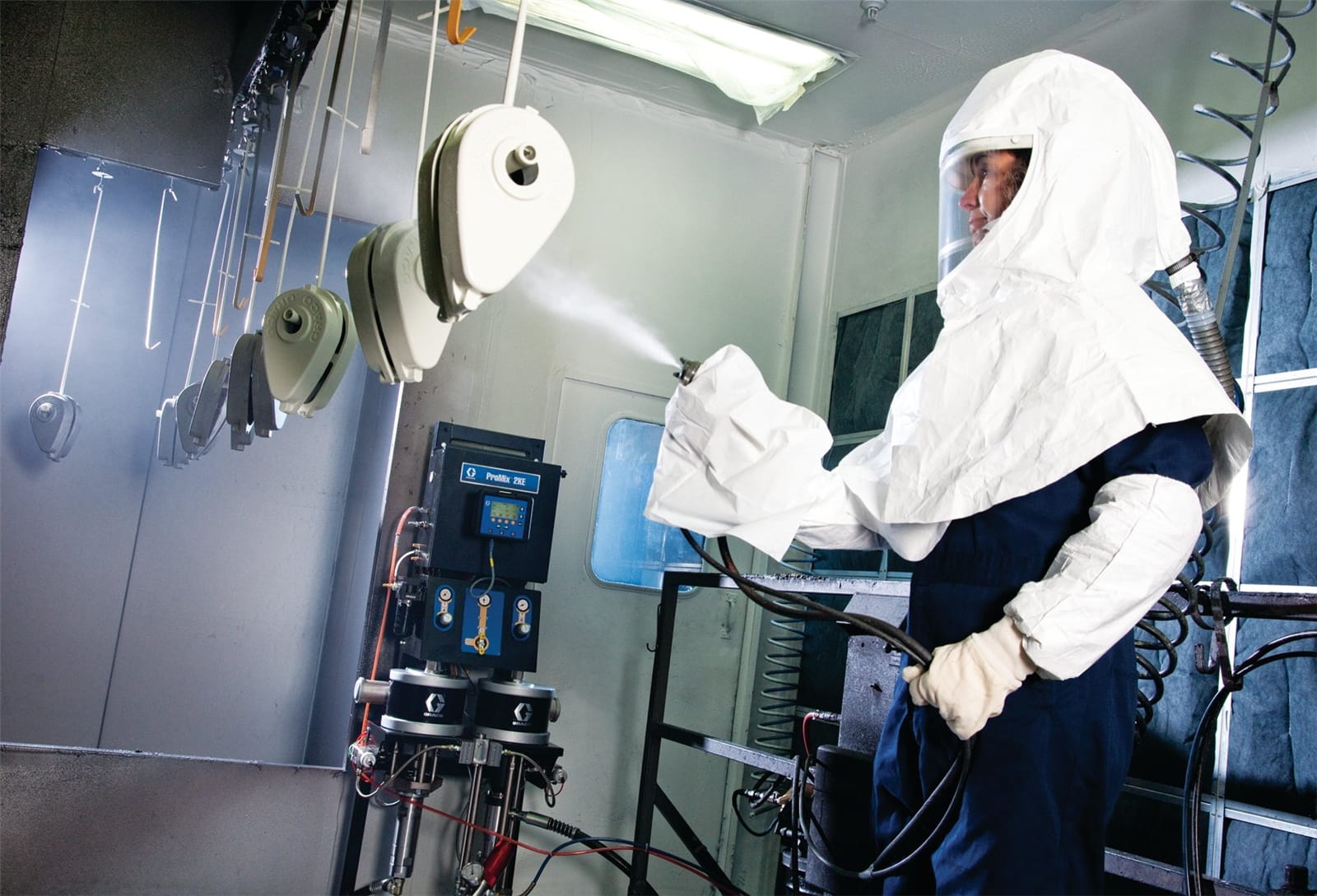

Designed for multi-colour two-component systems and applications in spray booths.
You can choose between pump- or meter-based multi-component systems with mixing ratios of up to 30:1
The mixing ratio is automatically kept within the specified tolerance limits, up to ±1 % for the volumetric meter version and ± 2 % for the pump version.
Incorrectly mixed material is prevented from being applied to the product - thus avoiding costly reworking.

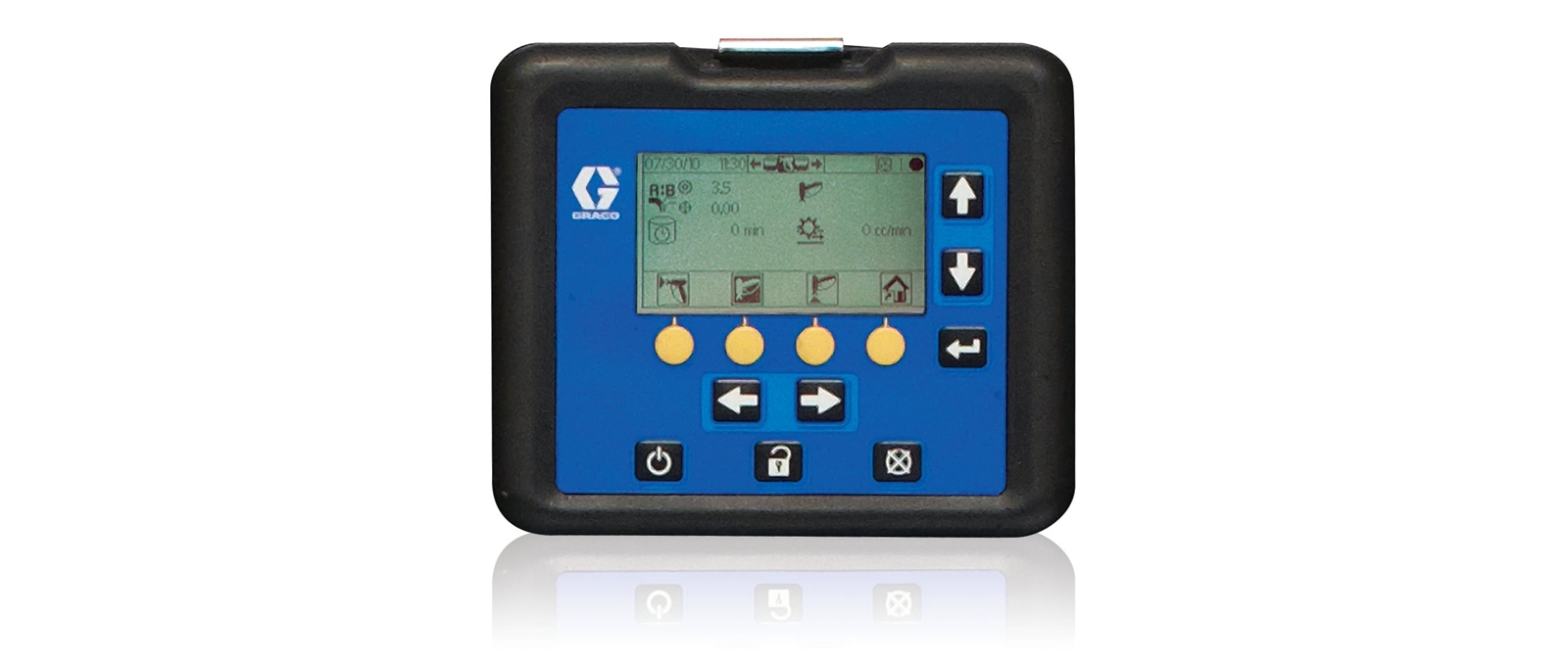

The user-friendly LCD display enables monitoring of material consumption, mixing ratio, programme maintenance, control functions and much more

Air inlet size (inches):	3/8
Air inlet thread type:	NPT
Applicator type:	Manual air-assisted
Component type:	Two-component
Dosage type:	Manual Electronic
Frequency (Hz):	50/60
Gender of the air inlet thread:	Internal thread
Gun activation:	Hand-

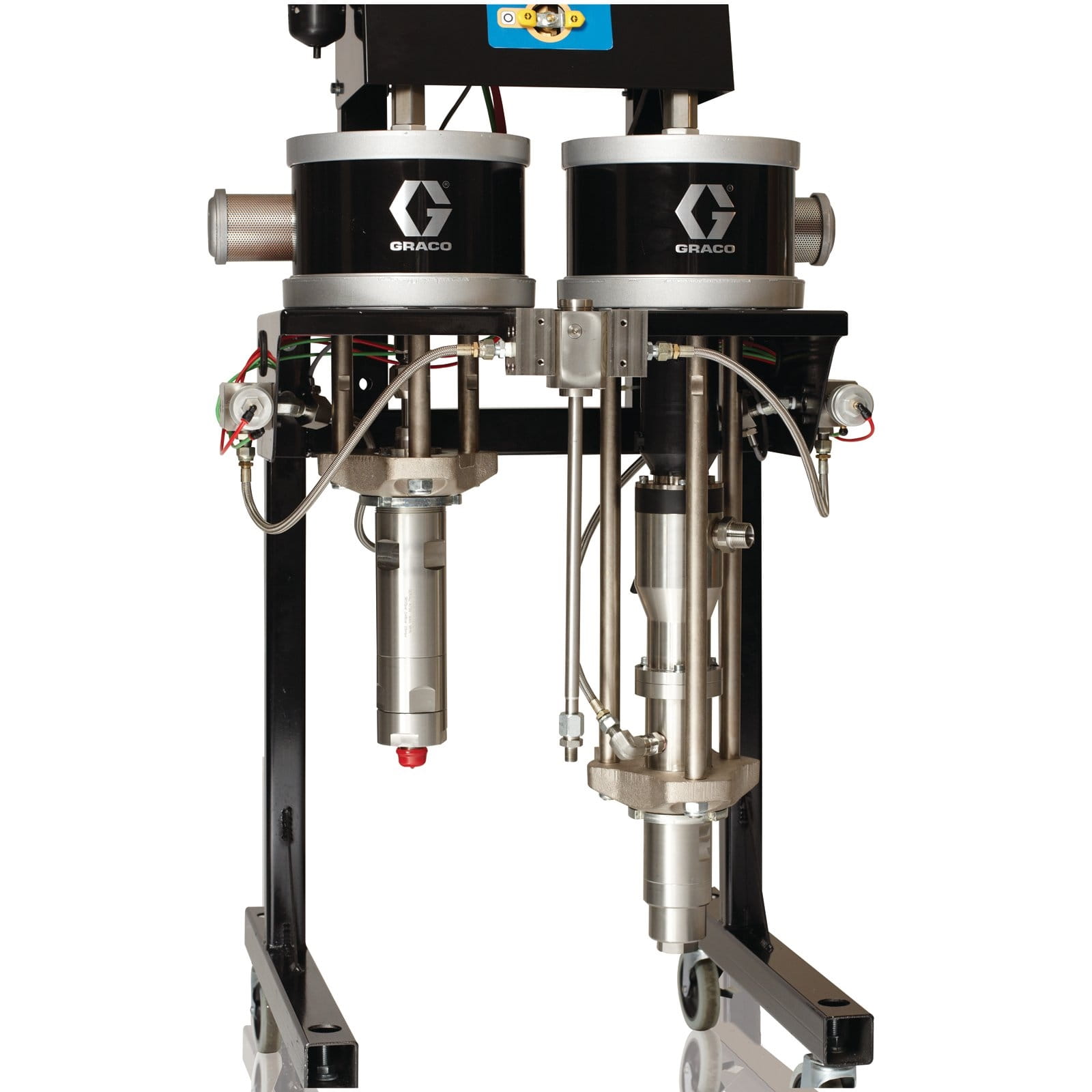

Includes:	Air Motor, A Lower Pump, B Lower Pump, A Link Rod, B Link Rod, Lower Pump Adapter, TSL Reservoir
Material type:	Two-component
Maximum air supply pressure (bar):	6.9
Maximum air supply pressure (kPa):	690
Maximum inlet air pressure (psi):	100
Maximum material viscosity (cP):	5000
Maximum mixing ratio:	30:1
Maximum number of colours:	Up to 3
Maximum operating pressure (MPa):	15.8
Maximum operating pressure (kPa):	15800
Maximum operating pressure (psi):	2300
Measurement type:	pump
Minimum material viscosity (cP):	20
Minimum mixing ratio:	0.1:1
Mixing accuracy (%):	1
Model:	ProMix
Noise pressure level, (dB(A)):	70
Number of colours:	1
Number of colour valves:	n.a.
Number of hardeners:	1
Number of resin colours:	1
Permissible operating pressure (bar):	158
Pump type:	Air-assisted
Series:	2KE
Sink type:	solvent
Size of the air inlet (cm):	9,525
Size of the air inlet (mm):	9,525
Sound level, (dB(A)):	85
Supply voltage:	Electric
Transmission ratio of the pump:	23:1
Type:	Dosing system
Wetted material:	Perfluoroelastomer, PTFE, stainless steel, tungsten carbide

More information

Product number: 1035318
Manufacturer: Graco
EAN: 00633955596245
Weight: 134.088 kg
Length: 1740 mm
Width: 940 mm
Height: 730 mm

Technical details

Specifications

Operating specifications

UPC product	6 3 3955596245
Division	IPD
Price Block	002
Country of Origin	US
Unit	EA
Height	73 CM
Length	174 CM
Width	94 cm
Volume	1 ,194 m³
Shipping weight	134.09 KG

Technical

Air inlet size (cm)	0. 9525
Air inlet size (in)	3/8
Air inlet size (mm)	9. 525
Air inlet thread gender	Female
Amperage (A)	2
Component Type	Two Component
Frequency (Hz)	50/60
Includes	Air motor, A-lower, B-lower, A-tie rod, B-tie rod, lower adapter, TSL reservoir
Material Type	Two Component
Maximum air inlet pressure (bar)	6. 9
Maximum air inlet pressure (kPa)	690
Maximum air inlet pressure (psi)	100
Maximum fluid viscosity (cP)	5 0 00
Maximum Mix Ratio	30: 1
Maximum number of colours	Up to 3
Maximum working pressure (bar)	158
Maximum working pressure (kPa)	1 5 800
Maximum working pressure (MPa)	15. 8
Maximum working pressure (psi)	23 00
Minimum fluid viscosity (cP)	20
Minimum Mix Ratio	0.1: 1
Mix Accuracy (%)	1
Number of catalysts	1
Number of colour valves	N/A
Number of colours	1
Number of Resin Colours	1
Sound pressure level (dB(A))	70
Model	ProMix
Series	2KE
