Manufacturer no.: 226942

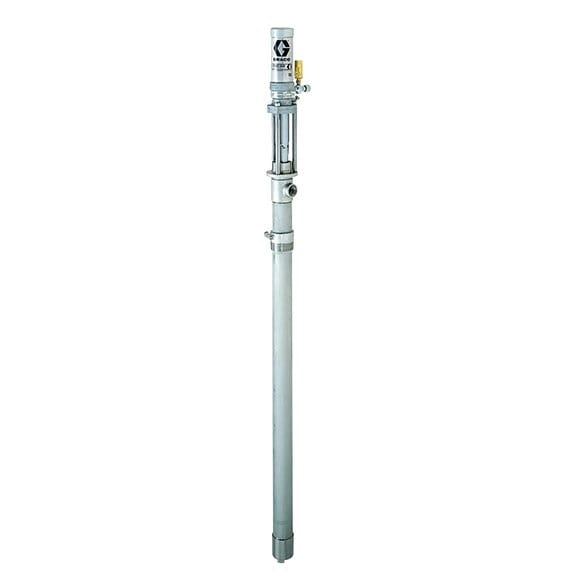

Pneumatic Fast-Flo piston drum pump made of stainless steel, ratio 1:1 and PE packing

€3,322.33*

% €3,543.82* (6.25% saved)

Prices include VAT plus shipping costs

€2,791.87*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Worldwide Shipping

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Fast Flo 1:1 pumps are designed for inlet air pressures up to 1.2 MPa (180 psi, 12 bar) and provide smooth, reliable flow. Long or short drum models or short models for drum transfer or wall-mounted suction feed are available. Ideal for low-viscosity materials with flat testing capabilities.

Maximum flow of up to 19 L/min and maximum fluid working pressure of up to 12 bar (180 psi). Ideal for low-viscosity fluids.

Air-driven for high reliability and low cost
Delivers up to 19 L/min
Available in stainless steel or carbon steel
UL options available when installed in accordance with NFPA

Air inlet size (inches):	1/4
Air inlet thread type:	NPT
Application:	industry
Compatible drum height (inch):	34.6
Compatible material:	Antifreeze, asphalt, windshield washer fluid, engine oil, used oil, hydraulic fluid, oil, ink
Energy type:	Pneumatic
Gender of the air inlet thread:	Internal thread
Gender of the material outlet thread:	Internal thread
Material:	stainless steel
Material outlet size (mm):	19.05
Material outlet thread type:	NPT
Maximum air supply pressure (bar):	12.41
Maximum air supply pressure (kPa):	1241
Maximum continuous double stroke rate (DH/min):	100
Maximum delivery rate (L/min):	15.1
Maximum inlet air pressure (psi):	180
Maximum intermittent double stroke rate (CPM):	4
Maximum operating pressure (MPa):	1.2
Maximum operating pressure (kPa):	1240
Maximum operating pressure (psi):	180
Package options:	None
Permissible operating pressure (bar):	12.4
Portable:	Not portable
Sealing material:	Polyethylene
Size of the air inlet (mm):	6.35
Size of the material outlet opening (inches):	3/4
Transmission ratio of the pump:	1:1
Type:	Piston transfer pump

More information

Product number: 1035579
Manufacturer: Graco
EAN: 00633955046580
Weight: 8.4 kg
Length: 1420 mm
Width: 100 mm
Height: 90 mm

Technical details

Specifications

Operating specifications

UPC product	633955046580
Division	PRO
Price Block	1 79
Country of Origin	CN
Unit	EA
Height	10 CM
Length	142 cm
Width	10 cm
Volume	. 014 m³
Shipping weight	9 KG

Technical

Air inlet size (in)	1/4
Air inlet size (mm)	6. 35
Air inlet thread gender	Female
Fluid outlet size (mm)	19. 05
Fluid outlet thread gender	Female
Maximum air inlet pressure (bar)	12. 41
Maximum air inlet pressure (kPa)	1 2 41
Maximum air inlet pressure (psi)	180
Maximum continuous cycle rate (CPM)	100
Maximum flow rate (L/min)	15. 1
Maximum intermittent cycle rate (CPM)	4
Maximum working pressure (bar)	12. 4
Maximum working pressure (kPa)	1 2 40
Maximum working pressure (psi)	180
Minimum flow rate (GPM)	180
Portable	Non-portable
Maximum working pressure (MPa)	1. 2
Compatible drum height (in)	34. 6
