Manufacturer no.:
288117

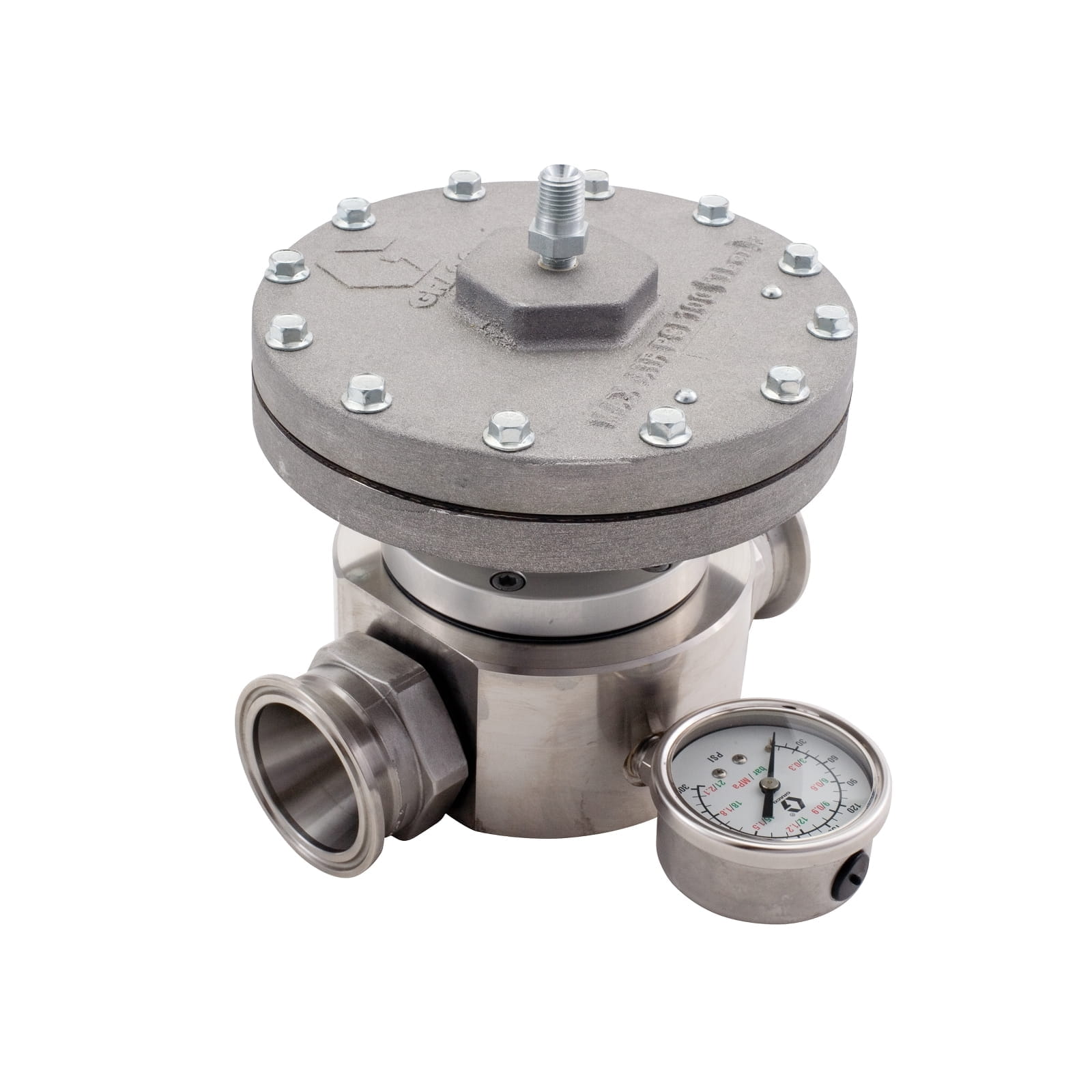

Pneumatic, corrosion-resistant material back-pressure regulator, 20 gal/min, maximum pressure: 300 psi, 1-1/4 NPT inlet/outlet, with pressure gauge
€1,832.27*
% €2,181.27* (16% saved)Ready for shipping in 5-8 days
Also interesting
Product information
- The hybrid PTFE and elastomer diaphragm resists wear and maintains its high reactivity
- Stainless steel wetted materials are suitable for catalyser and water-based materials
- Hardened stainless steel for low wear and long service life
- Large opening allows for high volume flow rates
- Compressed air operation for automated remote control, eliminating user intervention
- Sleep mode to reduce power consumption by the pump when not in operation
| Compatible material: | Catalyst, water based |
|---|---|
| Diffuser size (cm): | 3,175 |
| Includes: | Display device |
| Inlet size (cm): | 3,175 |
| Inlet size (inch): | 1-1/4 |
| Inlet size (mm): | 31.75 |
| Inlet thread type: | NPT |
| Maximum air supply pressure (bar): | 6.9 |
| Maximum air supply pressure (kPa): | 690 |
| Maximum air supply pressure (kg/cm²): | 07.03 |
| Maximum delivery rate (L/min): | 75.7 |
| Maximum inlet air pressure (psi): | 100 |
| Maximum operating pressure (kPa): | 2100 |
| Maximum operating pressure (psi): | 300 |
| Maximum regulated pressure (bar): | 17.2 |
| Maximum regulated pressure (kPa): | 1720 |
| Maximum regulated pressure (psi): | 250 |
| Maximum viscosity (cP): | 1000 |
| Minimum regulated pressure (MPa): | 17 |
| Minimum regulated pressure (bar): | 1.7 |
| Minimum regulated pressure (kPa): | 170 |
| Minimum regulated pressure (psi): | 25 |
| Outlet size (inch): | 1-1/4 |
| Outlet size (mm): | 31.75 |
| Outlet thread type: | NPT |
| Permissible operating pressure (bar): | 21 |
| Pressure gauge opening: | NPT |
| Size of the pressure gauge opening (cm): | 635 |
| Size of the pressure gauge opening (inches): | 1/4 |
| Size of the pressure gauge opening (mm): | 6.35 |
| Type: | Back pressure regulator |
| Wetted material: | Stainless steel, acetal, nylon fabric base with impregnated Buna-N, material side PTFE coated |
More information
- Product number: 1036382
- Manufacturer: Graco
- EAN: 00633955205727
- Weight: 5.525 kg
- Length: 340 mm
- Width: 300 mm
- Height: 300 mm
Technical details
Operating specifications
| UPC product | 6 3 3955205727 |
|---|---|
| Division | IPD |
| Price Block | 093 |
| Country of Origin | US |
| Unit | EA |
| Height | 30 CM |
| Length | 34 CM |
| Width | 30 cm |
| Volume | . 031 m³ |
| Shipping weight | 5 .53 KG |
| HTS code (EU) | 8 4 81809990 |
| HTS code (GB) | 8 4 81809990 |
Technical
| Gauge Port Size (cm) | 0. 635 |
|---|---|
| Gauge port size (in) | 1/4 |
| Port size (mm) | 6. 35 |
| Gauge port type | NPT |
| Includes | Gauge |
| Inlet Size (cm) | 3. 175 |
| Inlet size (in) | 1-1/4 |
| Inlet Size (mm) | 31. 75 |
| Maximum air inlet pressure (bar) | 6. 9 |
| Maximum air inlet pressure (kg/cm²) | 7. 03 |
| Maximum air inlet pressure (kPa) | 690 |
| Maximum air inlet pressure (psi) | 100 |
| Maximum flow rate (L/min) | 75. 7 |
| Maximum Regulated Pressure (bar) | 17. 2 |
| Maximum regulated pressure (kPa) | 1720 |
| Maximum regulated pressure (psi) | 2 50 |
| Maximum viscosity (cP) | 1 0 00 |
| Maximum working pressure (bar) | 2 1 |
| Maximum working pressure (kPa) | 2 100 |
| Maximum working pressure (psi) | 300 |
| Minimum Regulated Pressure (bar) | 1. 7 |
| Minimum Regulated Pressure (kPa) | 170 |
| Minimum regulated pressure (psi) | 25 |
| Outlet Size (cm) | 3. 175 |
| Outlet size (in) | 1-1/4 |
| Outlet size (mm) | 31. 75 |
| Minimum regulated pressure (MPa) | 0. 017 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 312091F, Pneumatischer Gegendruckregler, Anleitung-Teile (Deutsch)
- 312091F, Pneumatischer Gegendruckregler, Anleitung-Teile (Français)
- 312091F, Pneumatischer Gegendruckregler, Anleitung-Teile (English)
CAD Drawings
Verkaufsliteratur
- 345020DE Finishing Accessories Catalog (Deutsch)
- 345020DE Finishing Accessories Catalog (Español)
- 345020DE Finishing Accessories Catalog (Français)
- 345020DE Finishing Accessories Catalog (Polski)
- 345020DE Finishing Accessories Catalog (Italiano)
- 345020DE Finishing Accessories Catalog (русский)
- 345020DE Finishing Accessories Catalog (Čeština)
- 345020DE Finishing Accessories Catalog (English (UK))
