Manufacturer no.:
221075

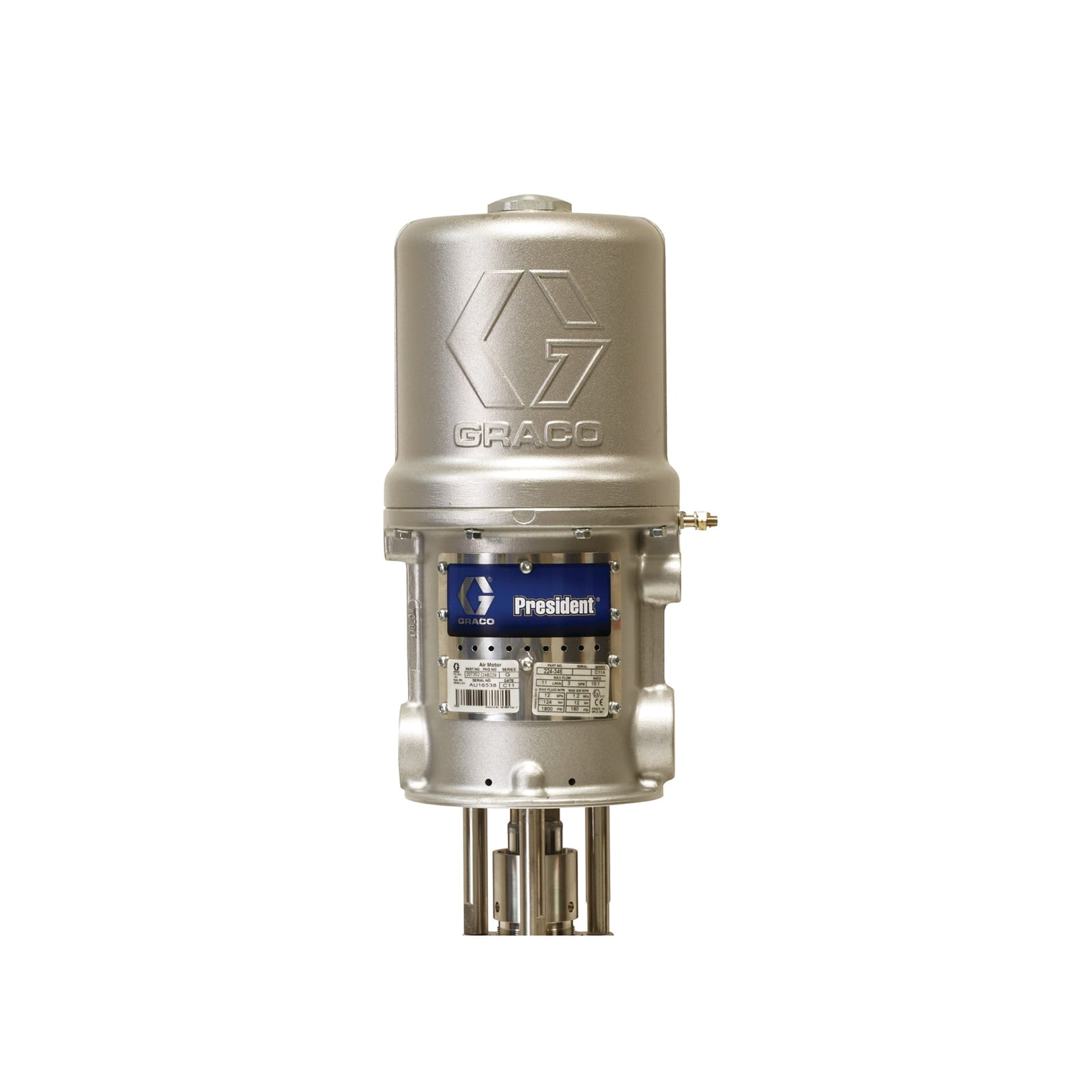

Pneumatic 30:1-2 ball piston pump President, carbon steel, barrel length
€6,753.62*
% €8,312.15* (18.75% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Pneumatic 2-ball piston pump for a wide range of applications
- Low-maintenance operation and a long service life thanks to reliable President air motor technology
- Positive displacement, 2-ball plunger provides uniform and easy-to-control fluid delivery
- Stainless steel and carbon steel models are available to handle a wide range of fluids (including catalysed materials)
| Air inlet size (inches): | 0.5 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | supply |
| Compatible material: | Water Based, Solvent Based, High Solids, Xirallic, CARC, Metal, Top Coats, Stains, Lacquer |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Includes: | Container length |
| Material: | Normal steel |
| Material outlet size (cm): | 9,525 |
| Material outlet size (mm): | 9,525 |
| Material outlet thread type: | NPT |
| Material section type: | 2-ball |
| Maximum air supply pressure (bar): | 8.27 |
| Maximum air supply pressure (kPa): | 827 |
| Maximum continuous double stroke rate (DH/min): | 60 |
| Maximum delivery rate (L/min): | 3.79 |
| Maximum inlet air pressure (psi): | 120 |
| Maximum operating pressure (MPa): | 2.5 |
| Maximum operating pressure (kPa): | 2500 |
| Maximum operating pressure (psi): | 360 |
| Maximum operating temperature (°C): | 82 |
| Model: | President |
| Permissible operating pressure (bar): | 25 |
| Portable: | Not portable |
| Sealing material: | PTFE, leather |
| Series: | 2-Ball |
| Size of the air inlet (cm): | 9,525 |
| Size of the air inlet (mm): | 9,525 |
| Size of the material outlet opening (inches): | 3/8 |
| Transmission ratio of the pump: | 30:1 |
| Type: | Pneumatic piston pump |
| Wetted material: | Normal steel |
More information
- Product number: 1038318
- Manufacturer: Graco
- EAN: 00633955066649
- Weight: 18.76 kg
- Length: 1330 mm
- Width: 250 mm
- Height: 290 mm
Technical details
Operating specifications
| UPC product | 633955066649 |
|---|---|
| Division | IPD |
| Price Block | 0 77 |
| Country of Origin | US |
| Unit | EA |
| Height | 29 CM |
| Length | 133 cm |
| Width | 25 cm |
| Volume | 0. 096 m³ |
| Shipping weight | 18.76 KG |
Technical
| Air inlet size (in) | 0. 5 |
|---|---|
| Air inlet size (mm) | 9. 525 |
| Air inlet thread gender | Female |
| Fluid outlet size (mm) | 9. 525 |
| Fluid outlet thread gender | Female |
| Includes | Drum Length |
| Maximum air inlet pressure (bar) | 8. 27 |
| Maximum air inlet pressure (kPa) | 827 |
| Maximum air inlet pressure (psi) | 120 |
| Maximum continuous cycle rate (CPM) | 60 |
| Maximum flow rate (L/min) | 3. 79 |
| Maximum operating temperature (°C) | 82 |
| Maximum operating temperature (°F) | 180 |
| Maximum working pressure (bar) | 25 |
| Maximum working pressure (kPa) | 2 500 |
| Maximum working pressure (psi) | 360 |
| Model | President |
| Portable | Non-portable |
| Series | 2-Ball |
| Maximum working pressure (MPa) | 2. 5 |
