Manufacturer no.: 17E842

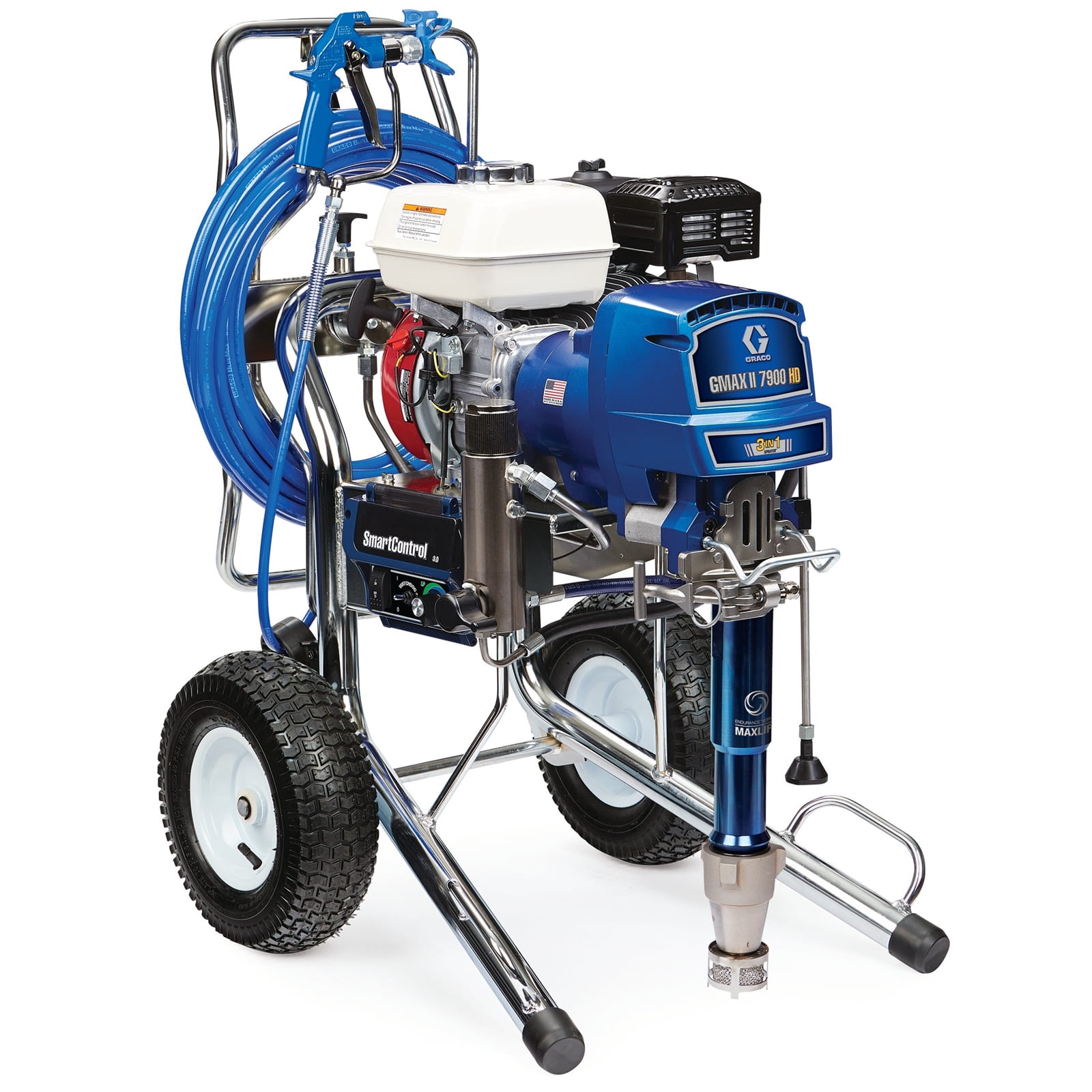

Petrol-powered airless sprayer from the GMAX II 7900 HD ProContractor series

€11,447.43*

% €18,098.71* (36.75% saved)

Prices include VAT plus shipping costs

€9,619.69*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange
Shape Created with Sketch. Free shipping within Germany
Also interesting
Product information

With 35% more power than the GMAX II 5900 HD, the GMAX II 7900 HD is Graco's largest fuel-powered sprayer. These units can easily handle a wide range of nozzle sizes, multi-gun operation, longer hose lengths and thicker coatings. The HD models offer direct suction for excellent performance with plaster materials and heavy-duty coatings.

Work smarter, get more jobs done The Graco GMAX II HD ProContractor Series gasoline-powered airless paint sprayers are designed for speed and performance, so you can get to the next job site faster and increase your profits.

  • Endurance Vortex MaxLife piston pump
    • Outstanding pump life
    • Groundbreaking Vortex torsion bar technology
    • New QuikPak cartridge system allows you to replace the pump in minutes.
    • Lasts 6x longer after each replacement thanks to innovative MaxLife technology
    • Oversized passages for high-speed flow to rotate the plunger for even wear Packing replacement in minutes with the new QuikPak cartridge repair system
  • ProConnect 2 pump replacement system
    • Pump replacement in 1 minute or less - no tools, pins or parts to lose
    • No more costly downtime
  • SmartControl 3.0
    • Constant spray jet and pressure control
    • Ideal for applications with low overspray and lowest dead zone at any pressure
  • Advantage precision drive
    • The drive with the longest service life
    • Improved job site conditions with extremely quiet operation
    • Lifetime warranty
  • ProConnect 2 pump replacement system
    • No more costly downtime
    • Pump replacement within minutes
    • No tools, pins or parts to lose
  • QuikReel hose management system
    • Simple hose management
    • Unwind and rewind up to 90 metres (300 feet) of hose in seconds.
    • No twisting, kinking or coiling
    • Use only as much hose length as needed - the rest stays on the reel
  • LED display
    • The easy-to-read display provides a quick overview of:
      • Pressure display
      • Application/lifetime/gallon counter
      • Self-diagnosis
  • Honda® GX engine
    • Reliable, powerful and easy to start
    • Oil level warning switches off the engine to prevent damage if the oil level drops too low
  • Pressure-resistant inlet strainer
    • Durable filtration
    • Withstands harsh conditions to maintain flow through the filter
  • Additional features:
    • Durable chassis with robust construction
    • Robust suction valve
    • Easy Out pump filter
    • WatchDog pump protection system
Compatible material: Stains, oils, varnishes, primers, fillers, acrylic paints, interior emulsion paints, exterior emulsion paints, latex, fillers, anti-corrosion paints, fireproofing paints, foam forming materials
Compatible replacement pump: 17H835
Convertible: Not convertible
Features: Endurance Vortex MaxLife Pump, SmartControl 3.0, QuikReel, Honda Motor, Advantage Drive, ProConnect 2, Easy Out Filter, Pressure Resistant Inlet Strainer, Heavy Duty Priming Valve, WatchDog, LED Display, Contractor PC Gun
Filter mesh size: 60
Frame configuration: Hi boy
Hose inlet diameter (cm): 635
Hose inlet diameter (inch): 1/4
Hose inlet diameter (mm): 6.35
Hose reel type: QuikReel
Inlet colour screen: 8 mesh stainless steel strainer
Inner diameter of material hose (inch): 1/4
Material inlet thread type: UN-2A
Material outlet size (mm): 9,525
Material outlet thread type: NPSM
Maximum delivery rate (L/min): 8.33
Maximum hose length (m): 60
Maximum nozzle size (inch): 48
Maximum nozzle size 1 gun (inch): 48
Maximum nozzle size 2 guns (inch): 35
Maximum nozzle size 3 guns (inch): 27
Maximum nozzle size 4 guns (inch): 23
Maximum operating pressure (MPa): 22.8
Maximum operating pressure (kPa): 22700
Maximum operating pressure (kg/cm²): 22.7
Maximum operating pressure (psi): 3300
Maximum sound pressure level (dB(A)): 96
Model: GMAX II HD
Nominal power (cm³): 200
Number of guns: 1
Outlet colour screen: 60 mesh stainless steel sieve
Permissible operating overpressure (psi): 3300
Permissible operating pressure (bar): 227
Pressure control type: SmartControl 3.0
Product series: ProContractor
Pump mounting type: ProConnect 2
Pump rod type: MaxLife
Pump sleeve material: MaxLife
Pump type: Endurance Vortex
Rated power (W): 4847
Rated power (kW): 4.85
Series: 7900
Size of the material inlet opening (inches): 1-5/16
Size of the material inlet opening (mm): 33.34
Size of the material outlet opening (inches): 3/8
Spray gun type: HD plastering gun, blue
Spraying technology: Airless
Supply voltage: petrol
Total height (cm): 96.5
Total height (mm): 965
Total length (cm): 84.6
Total length (mm): 846
Total width (cm): 62.0
Total width (mm): 620
Type: Airless sprayer
Weight (kg): 76
Wetted material: Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc Plated Carbon Steel, Nickel Plated Carbon Steel
More information
  • Product number: 1032984
  • Manufacturer: Graco
  • EAN: 00755652817161
  • Weight: 95.254 kg
  • Length: 940 mm
  • Width: 690 mm
  • Height: 1020 mm

Technical details

Operating specifications
UPC product 755652817161
Division CED
Price Block 2 06
Country of Origin US
Unit EA
Height 102 CM
Length 94 CM
Width 69 cm
Volume . 662 m³
Shipping weight 95.25 kg
HTS code (GB) 8424200000
HTS code (EU) 8424200000
Technical
Compatible replacement pump 1 7 H835
Convertible Non - convertible
Engine Brand Honda
Engine size (HP) 6. 5
Fluid inlet size (in) 1 -5/16
Fluid inlet size (mm) 33. 34
Fluid outlet size (mm) 9. 525
Frame Configuration Hi-Boy
Hose inlet diameter (cm) 0. 635
Hose inlet diameter (in) 1/4
Hose inlet diameter (mm) 6. 35
Hose reel type QuikReel
Includes Heavy-duty blue texture gun, RAC X LTX 427 spray tip, RAC X LTX 531 spray tip, RAC X guard, 3/8 in x 50 ft BlueMax II airless hose, 1/4 in x 3 ft BlueMax II airless whip hose
Maximum flow rate (L/min) 8. 33
Maximum Hose Length (ft) 2 00
Maximum Hose Length (m) 60
Maximum sound pressure level (dB(A)) 96
Maximum tip size (in) 0. 048
Maximum tip size gun 1 (in) 0. 048
Maximum working pressure (psi) 3 3 00
Maximum working pressure (kPa) 2 2 700
Power Rating (HP) 6. 5
Power rating (kW) 4. 85
Power rating (W) 4 8 47
Maximum working pressure (MPa) 22. 8
Pressure control type SmartControl 3. 0
Overall Width (mm) 620
Model GMAX II HD
Maximum working pressure (bar) 2 27
Overall Height (cm) 96. 5
Overall height (in) 38
Weight (kg) 76
Overall height (mm) 965
Overall length (cm) 84. 6
Overall width (in) 24. 4
Overall Length (in) 33. 3
Series 7 9 00
Overall Length (mm) 8 46
Overall width (cm) 62
Maximum working pressure (kg/cm²) 22. 7
Fluid Hose Inside Diameter (in) 1/4
Outlet Paint Filter 60 mesh stainless steel screen
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife
Number of Guns 1
Filter Mesh Size 60
Maximum Tip Size Gun 2 (in) 0. 035
Recommended annual usage Up to 1,000 gallons per week
Maximum tip size gun 3 (in) 0. 027
Maximum tip size gun 4 (in) 0. 023
Power Rating (cc) 2 00
Product Series ProContractor
