Manufacturer no.:
17E837

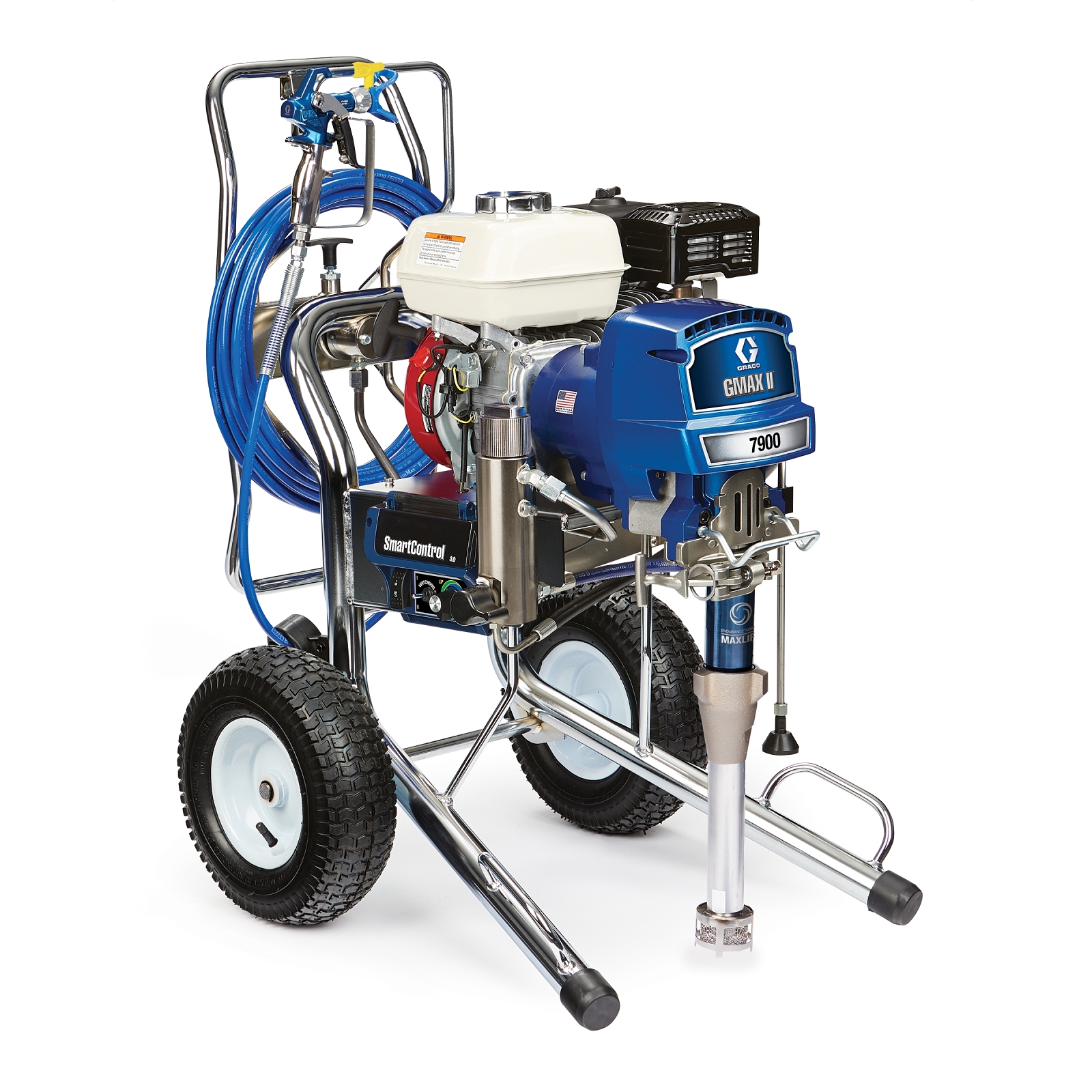

Petrol-driven airless sprayer from the GMAX II 7900 ProContractor series
€12,561.94*
% €16,749.25* (25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
With 35% more power than the GMAX II 5900, the GMAX II 7900 is Graco's largest fuel-powered sprayer. These units can easily handle a wide range of nozzle sizes, multi-gun operation, longer hose lengths, and thicker coatings.
Work smarter, get more done. Graco's GMAX ProContractor series is built for speed and performance, so you can get to your next job faster and increase your profits.
- Endurance Vortex MaxLife piston pump
- Superior pump durability
- Breakthrough Vortex rod technology
- Replace the pump in minutes with the new QuikPak cartridge system.
- Lasts 6 times longer after every replacement thanks to innovative MaxLife technology
- Oversized passages for high-velocity flow to turn the piston for even wear Replace the packing in minutes with the new QuikPak cartridge repair system
- ProConnect 2 pump replacement system
- Pump replacement in 1 minute or less – no tools, pins or parts to lose
- No more costly downtime
- QuikReel hose management system
- Easy hose management
- Unwind and rewind up to 90 metres (300 feet) of hose in seconds.
- No twisting, kinking or coiling
- Use only as much hose length as necessary – the rest stays on the drum
- Pressure-tight inlet strainer
- Durable filtration
- Withstands harsh impacts to maintain flow through the filter
- SmartControl 3.0
- Constant spray pattern and pressure control
- Tackles the widest range of coatings with the most consistent spray pattern
- Lowest dead band at any pressure
- WatchDog pump protection system
- Automatically prevents pump damage when material supply is low
- Advantage Precision Drive
- The longest-lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime warranty
- Honda® engine.
- Reliable, powerful and easy to start
- Low oil level warning shuts down the engine to prevent damage if the oil level drops too low
- User favourite
- Contractor PC spray gun
- High spraying comfort and control – all day long
- Lightest spray gun in its class
- Up to 50% lower trigger force
- E-Z Fit Adjustable trigger length.
- Complete gun conversion in seconds with ProConnect cartridge
- For more information: graco.com/ContractorPC
- Additional Specs:
- Easy Out pump filters
- Robust suction valve
- LED display
- Durable chassis in robust construction
| Compatible material: | Stains, oils, varnishes, primers, fillers, acrylic paints, interior emulsion paints, exterior emulsion paints, latex, anti-corrosion paints |
|---|---|
| Compatible replacement pump: | 17H825 |
| Convertible: | Not convertible |
| Features: | Endurance Vortex MaxLife Pump, SmartControl 3.0, QuikReel, Honda Motor, Advantage Drive, ProConnect 2, Easy Out Filter, Pressure Resistant Inlet Strainer, Heavy Duty Priming Valve, WatchDog, LED Display, Contractor PC Gun |
| Filter mesh size: | 60 |
| Frame configuration: | Hi boy |
| Hose inlet diameter (cm): | 635 |
| Hose inlet diameter (inch): | 1/4 |
| Hose inlet diameter (mm): | 6.35 |
| Hose reel type: | QuikReel |
| Includes: | All devices are delivered complete and ready to spray: |
| Inlet colour screen: | 8 mesh stainless steel strainer |
| Inner diameter of material hose (inch): | 1/4 |
| Material inlet thread type: | UN-2A |
| Material outlet size (mm): | 9,525 |
| Material outlet thread type: | NPSM |
| Maximum delivery rate (L/min): | 8.33 |
| Maximum hose length (m): | 60 |
| Maximum nozzle size (inch): | 48 |
| Maximum nozzle size 1 gun (inch): | 48 |
| Maximum nozzle size 2 guns (inch): | 35 |
| Maximum nozzle size 3 guns (inch): | 27 |
| Maximum nozzle size 4 guns (inch): | 23 |
| Maximum operating pressure (MPa): | 22.8 |
| Maximum operating pressure (kPa): | 22700 |
| Maximum operating pressure (kg/cm²): | 22.7 |
| Maximum operating pressure (psi): | 3300 |
| Maximum sound pressure level (dB(A)): | 96 |
| Model: | GMAX II |
| Nominal power (cm³): | 200 |
| Number of guns: | 1 |
| Outlet colour screen: | 60 mesh stainless steel sieve |
| Permissible operating overpressure (psi): | 3300 |
| Permissible operating pressure (bar): | 227 |
| Pressure control type: | SmartControl 3.0 |
| Product series: | ProContractor |
| Pump mounting type: | ProConnect 2 |
| Pump rod type: | MaxLife |
| Pump sleeve material: | MaxLife |
| Pump type: | Endurance Vortex |
| Rated power (W): | 4847 |
| Rated power (kW): | 4.85 |
| Series: | 7900 |
| Size of the material inlet opening (inches): | 1-5/16 |
| Size of the material inlet opening (mm): | 33.34 |
| Size of the material outlet opening (inches): | 3/8 |
| Spray gun type: | Contractor PC Pro pistol |
| Spraying technology: | Airless |
| Supply voltage: | petrol |
| Total height (cm): | 96.5 |
| Total height (mm): | 965 |
| Total length (cm): | 84.6 |
| Total length (mm): | 846 |
| Total width (cm): | 62.0 |
| Total width (mm): | 620 |
| Type: | Airless sprayer |
| Weight (kg): | 76 |
| Wetted material: | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc Plated Carbon Steel, Nickel Plated Carbon Steel |
More information
- Product number: 1036005
- Manufacturer: Graco
- EAN: 00755652817116
- Weight: 92.079 kg
- Length: 900 mm
- Width: 700 mm
- Height: 1000 mm
Technical details
Operating specifications
| UPC product | 755652817116 |
|---|---|
| Division | CED |
| Price Block | 2 06 |
| Country of origin | US |
| Unit | EA |
| Height | 100 CM |
| Length | 90 CM |
| Width | 70 CM |
| Volume | . 63 m³ |
| Shipping weight | 92.08 KG |
Technical
| Compatible replacement pump | 1 7 H825 |
|---|---|
| Convertible | Non - convertible |
| Engine Brand | Honda |
| Engine size (HP) | 6. 5 |
| Fluid inlet size (in) | 1 -5/16 |
| Fluid inlet size (mm) | 33. 34 |
| Fluid outlet size (mm) | 9. 525 |
| Frame Configuration | Hi-Boy |
| Hose inlet diameter (cm) | 0. 635 |
| Hose inlet diameter (in) | 1/4 |
| Hose inlet diameter (mm) | 6. 35 |
| Hose reel type | QuikReel |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 3/8 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 ml ) |
| Maximum flow rate (L/min) | 8. 33 |
| Maximum Hose Length (ft) | 2 00 |
| Maximum Hose Length (m) | 60 |
| Maximum sound pressure level (dB(A)) | 96 |
| Maximum tip size (in) | 0. 048 |
| Maximum tip size gun 1 (in) | 0. 048 |
| Maximum working pressure (psi) | 3 3 00 |
| Maximum working pressure (kPa) | 2 2 700 |
| Power Rating (HP) | 6. 5 |
| Power Rating (kW) | 4. 85 |
| Power rating (W) | 4 8 47 |
| Maximum working pressure (MPa) | 22. 8 |
| Pressure control type | SmartControl 3. 0 |
| Overall Width (mm) | 620 |
| Model | GMAX II |
| Maximum working pressure (bar) | 2 27 |
| Overall Height (cm) | 96. 5 |
| Overall height (in) | 38 |
| Weight (kg) | 76 |
| Overall height (mm) | 965 |
| Overall length (cm) | 84. 6 |
| Overall width (in) | 24. 4 |
| Overall Length (in) | 33. 3 |
| Series | 7 9 00 |
| Overall Length (mm) | 8 46 |
| Overall width (cm) | 62 |
| Maximum working pressure (kg/cm²) | 22. 7 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Outlet Paint Filter | 60 mesh stainless steel screen |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Number of Guns | 1 |
| Filter mesh size | 60 |
| Maximum Tip Size Gun 2 (in) | 0. 035 |
| Recommended annual usage | Up to 1,000 gallons per week |
| Maximum tip size gun 3 (in) | 0. 027 |
| Maximum tip size gun 4 (in) | 0. 023 |
| Power Rating (cc) | 2 00 |
| Product Series | ProContractor |
