Manufacturer no.: 25A992

Only check valve with straight thread and multiple passages for mixing pile material

€8,429.96*

Prices include VAT plus shipping costs

€7,084.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Worldwide Shipping

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The multi-pass stack contains several mixing elements to optimise the mixing of the material. Three configurations of the mixing stack are available to meet the specific needs of your system.

Reduce downtime and increase production with mixing stacks.

Supports up to 30 mixing elements
Configure the system to operate with as few mixing elements as required: 6, 12, 18, 24 or 30

Maximum air duct length (m):	915
Model:	LSR
Number of pieces:	30
Outer diameter of the air duct (cm):	0.8
Outer diameter of the air duct (inches):	5/16
Outer diameter of the air duct (mm):	8
Type:	Barrel Mix Stack Set

More information

Product number: 1037622
Manufacturer: Graco
EAN: 00755652620822
Weight: 0.371 kg

Technical details

Specifications

Operating specifications

UPC product	755652620822
Division	IPD
Price Block	2 24
Country of Origin	US
Unit of measurement	EA
Height	0 CM
Length	0 CM
Width	0 CM
Volume	0 M3
Shipping weight	. 37 KG

Technical

Air line tube length (ft)	3
Air line tube length (m)	0. 915
Air line tube outside diameter (cm)	0. 8
Air line tube outside diameter (in)	5/16
Air line tube outside diameter (mm)	8
For use with	Fluid Automation F4 Series

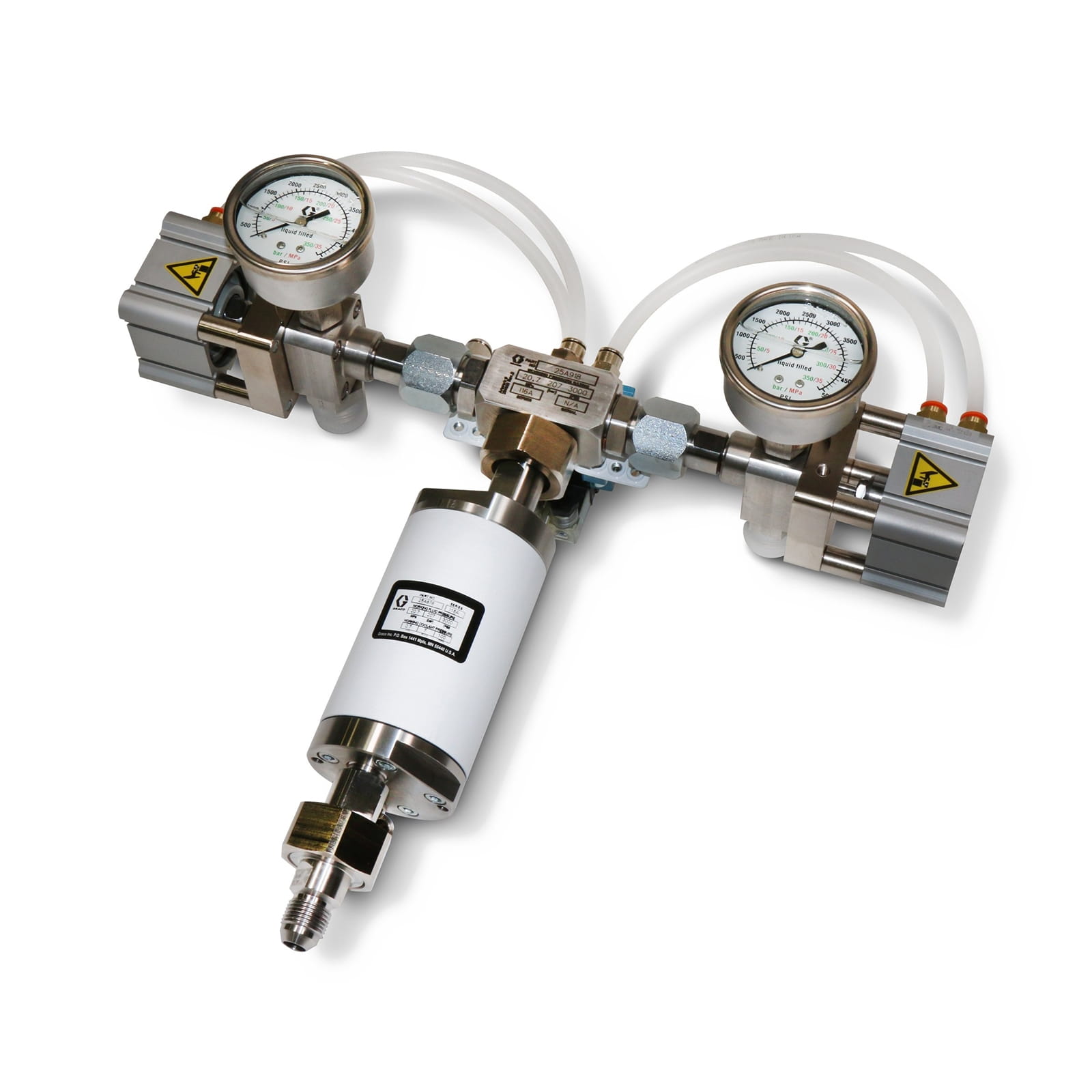

Includes	Manifold, mixer and regulator, manifold on/off valves, solenoid block with two solenoids
Number of Pieces	30
Model	LSR
