Manufacturer no.:
220107

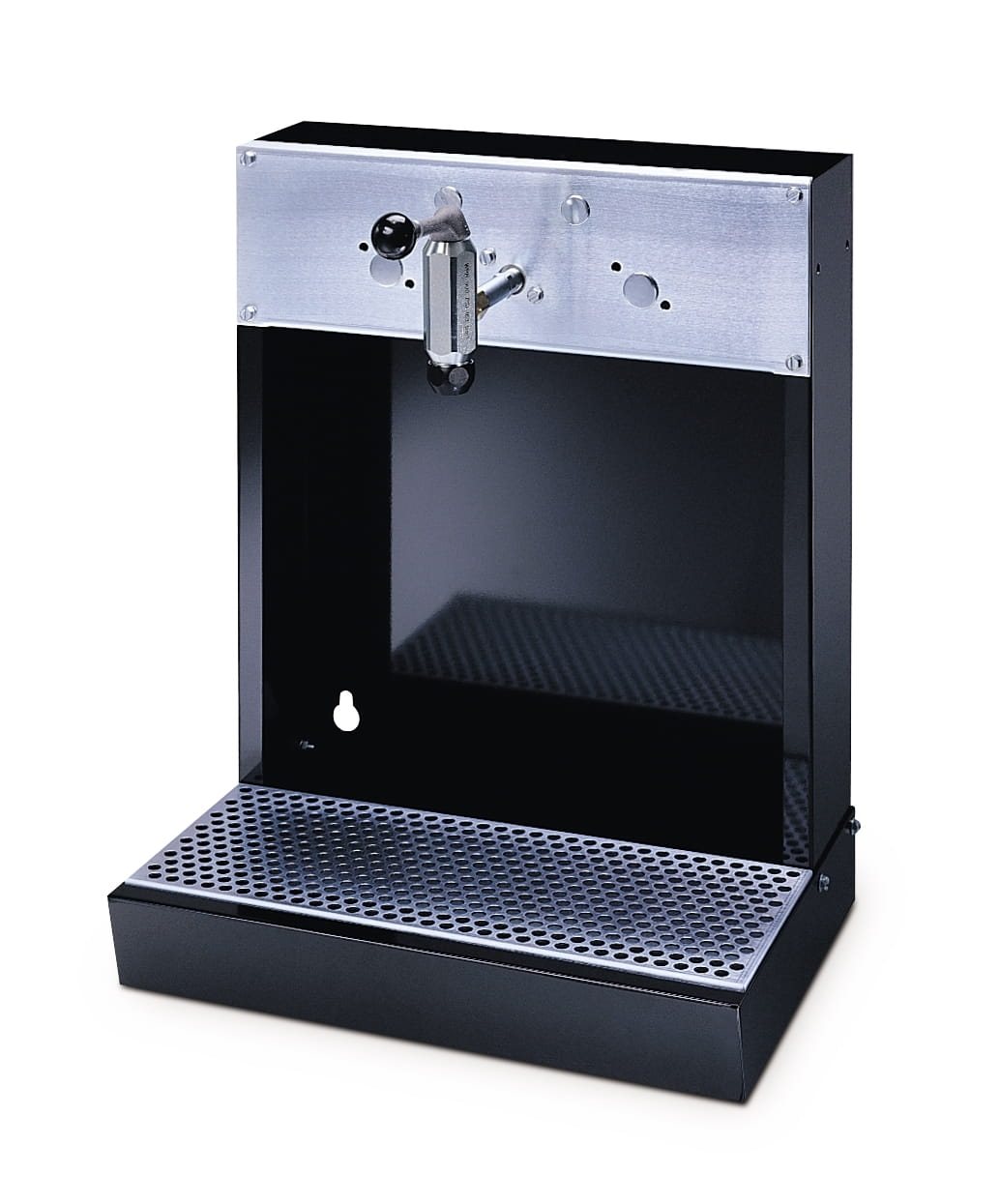

Oil dosing bar - up to 3 taps and optional dosing devices
€1,485.48*
% €1,650.53* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Modular design for up to 2 dispensing taps or 3 dosing devices, for direct installation during installation or for retrofitting at a later date.
- Robust metal housing with stove-enamelled finish.
- Body with tap and drip tray with coated grid plate in the working area and connection for drain.
| Material inlet thread type: | NPT |
|---|---|
| Maximum operating pressure (MPa): | 6.2 |
| Maximum operating pressure (kPa): | 6200 |
| Maximum operating pressure (psi): | 900 |
| Number of distribution stations: | 3 |
| Permissible operating pressure (bar): | 62 |
| Size of the drain hose (cm): | 1,905 |
| Size of the drain hose (inch): | 0.75 |
| Size of the drain hose (mm): | 19.05 |
| Size of the material inlet opening (cm): | 1.27 |
| Size of the material inlet opening (inches): | 0.5 |
| Size of the material inlet opening (mm): | 12.7 |
| Thread type of the drain hose: | NPT |
| Total height (cm): | 57.40 |
| Total height (mm): | 574.04 |
| Total length (cm): | 34 |
| Total length (mm): | 337 |
| Total width (cm): | 46.48 |
| Total width (mm): | 464.82 |
| Type: | dispenser station |
| Weight (kg): | 15.75 |
More information
- Product number: 1037789
- Manufacturer: Graco
- EAN: 00633955199880
- Weight: 14.496 kg
- Length: 579 mm
- Width: 488 mm
- Height: 152 mm
Technical details
Operating specifications
| UPC product | 633955199880 |
|---|---|
| Division | LED |
| Price Block | 1 79 |
| Country of origin | US |
| Unit | EA |
| Height | 15.2 CM |
| Length | 57.9 CM |
| Width | 48.8 CM |
| Volume | 0 . 043 m³ |
| Shipping weight | 14.5 KG |
Technical
| Drain hose size (mm) | 19. 05 |
|---|---|
| Drain Hose Size (in) | 0. 75 |
| Drain Hose Size (cm) | 1. 905 |
| Drain Hose Thread Type | NPT |
| Fluid inlet size (cm) | 1. 27 |
| Fluid inlet size (in) | 0. 5 |
| Fluid inlet size (mm) | 12. 7 |
| Maximum working pressure (bar) | 62 |
| Maximum working pressure (kPa) | 6200 |
| Maximum working pressure (psi) | 900 |
| Number of dispensing stations | 3 |
| Overall Height (cm) | 57. 40 |
| Overall height (in) | 22. 6 |
| Overall height (mm) | 574. 04 |
| Overall Length (cm) | 34 |
| Overall length (in) | 13. 25 |
| Overall Length (mm) | 337 |
| Overall width (cm) | 46. 48 |
| Overall width (in) | 18. 3 |
| Overall width (mm) | 464. 82 |
| Weight (kg) | 15. 75 |
| Maximum working pressure (MPa) | 6. 2 |
