Manufacturer no.: 902147

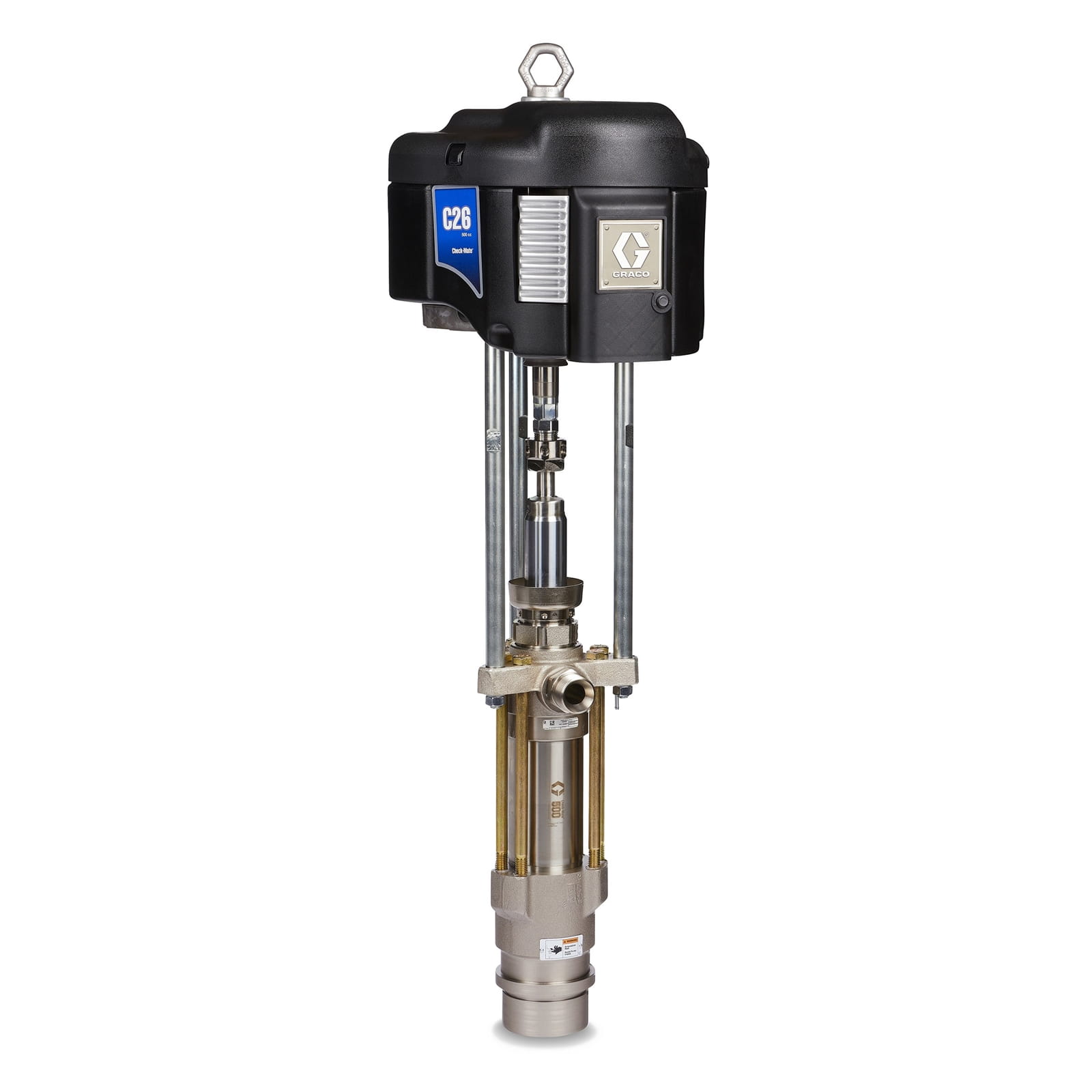

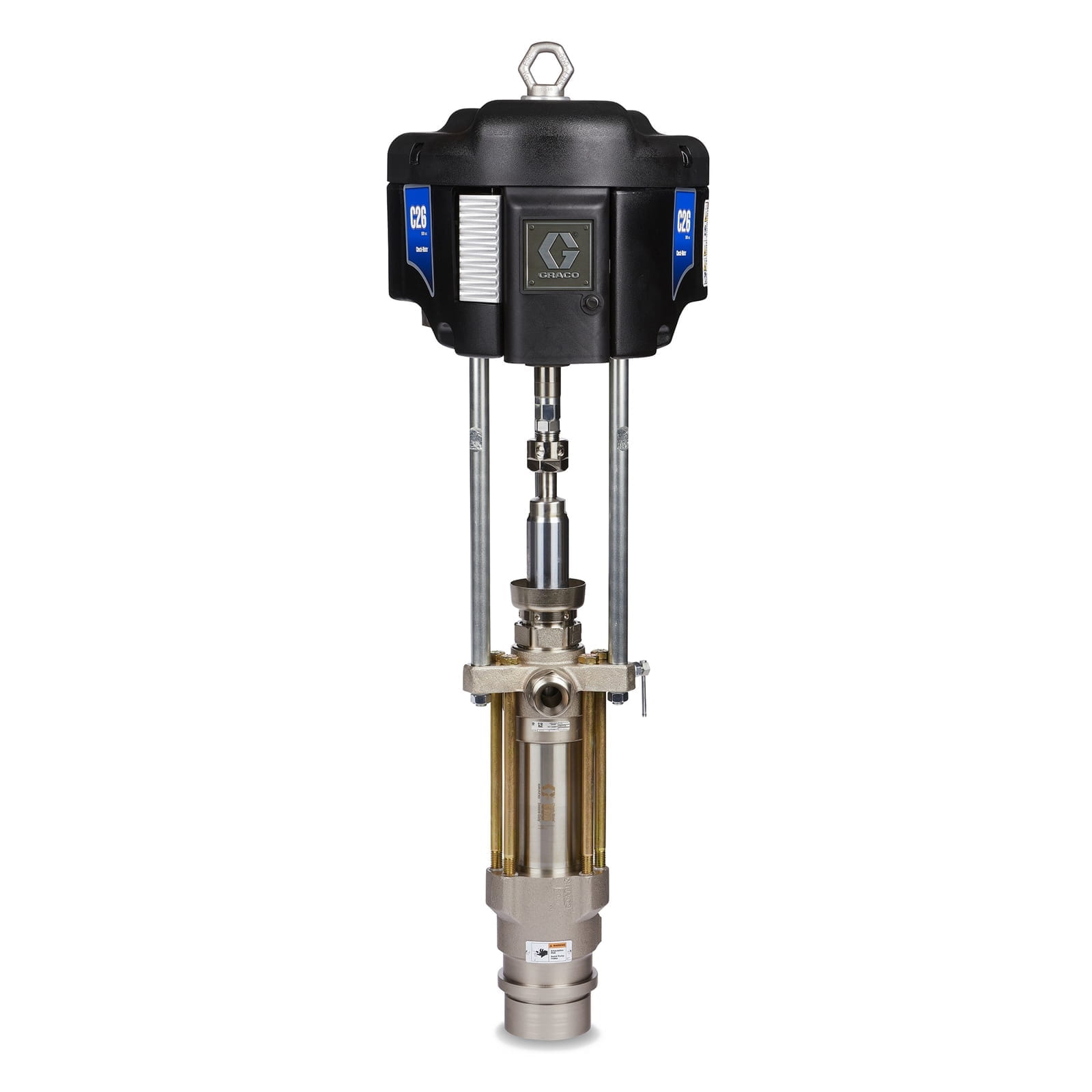

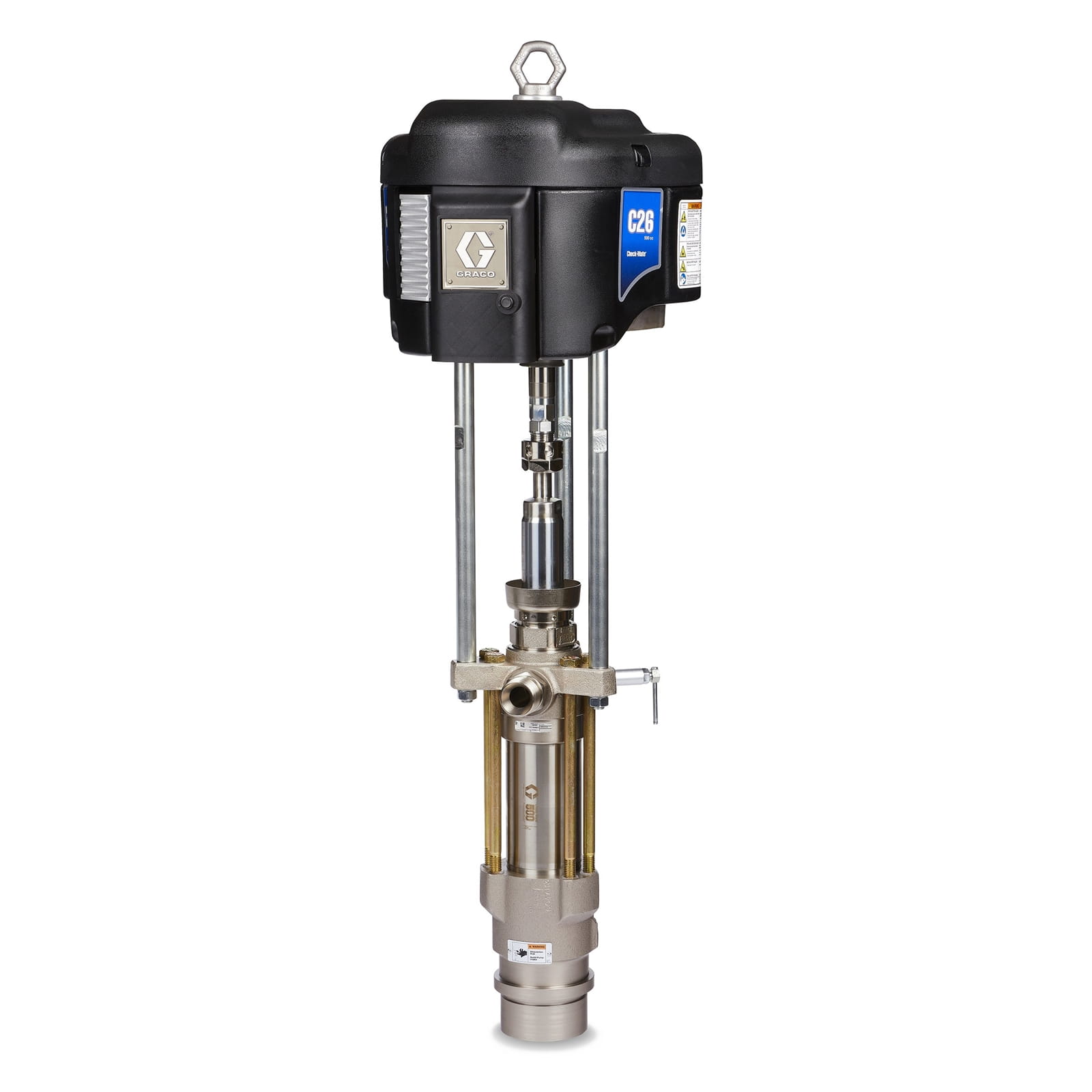

Monark pump made of stainless steel, ratio 5:1

€3,675.09*

% €4,523.19* (18.75% saved)

Prices include VAT plus shipping costs

€3,088.31*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

Also interesting

Product information

The Monark pumps have been developed for high output applications and, with their reliable Monark air motor, provide a consistent and easy to control delivery.

2-ball positive displacement pistons Typical materials pumped include solvent and water-based materials, high solids materials, multi-component coatings, resins, stains, lacquers, varnishes, cleaning fluids, acid catalysed materials and high solids coatings.

The design with positive displacement and 2-ball piston offers a uniform and easy-to-regulate delivery
Material return support for circulation back to the pump
Ultra-high molecular weight polyethylene (UHMWPE) packing for extended pump life with abrasive materials

Air inlet size (inches):	1/2
Air inlet thread type:	NPT
Application:	Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling
Energy type:	Pneumatic
Gender of the air inlet thread:	Internal thread
Gender of the material outlet thread:	Internal thread
Material:	stainless steel
Material outlet thread type:	NPT
Maximum air supply pressure (bar):	8.2
Maximum air supply pressure (kPa):	827
Maximum delivery rate (L/min):	9.5
Maximum inlet air pressure (psi):	120
Maximum operating pressure (MPa):	4.1
Maximum operating pressure (kPa):	4100
Maximum operating pressure (psi):	600
Model:	Monark
Permissible operating pressure (bar):	41
Portable:	Not portable
Sealing material:	PTFE
Size of the material outlet opening (inches):	1/2
Transmission ratio of the pump:	5:1
Type:	Pneumatic piston pump
Wetted material:	Stainless steel, chrome plating, PTFE, UHMWPE
