Manufacturer no.:
246915

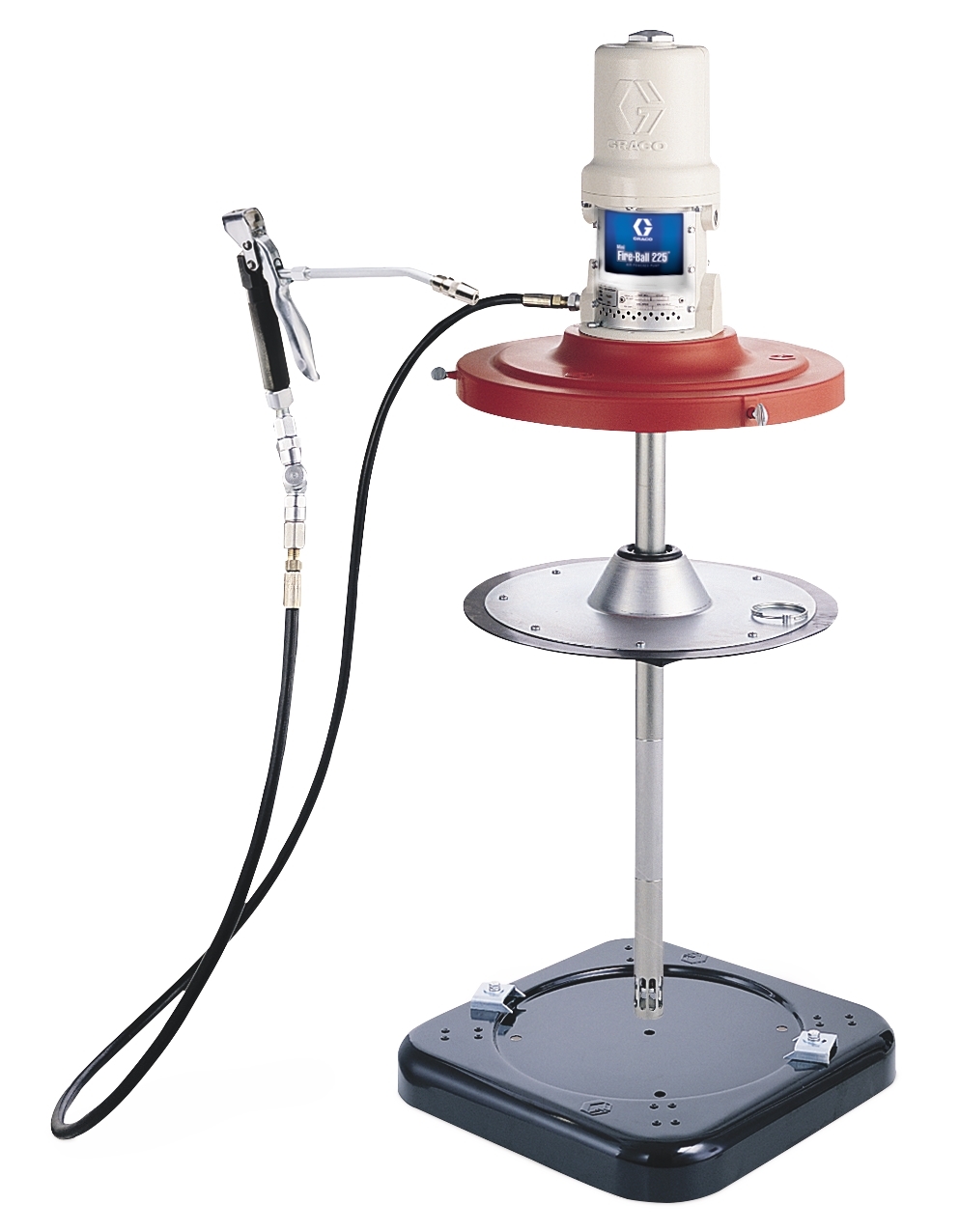

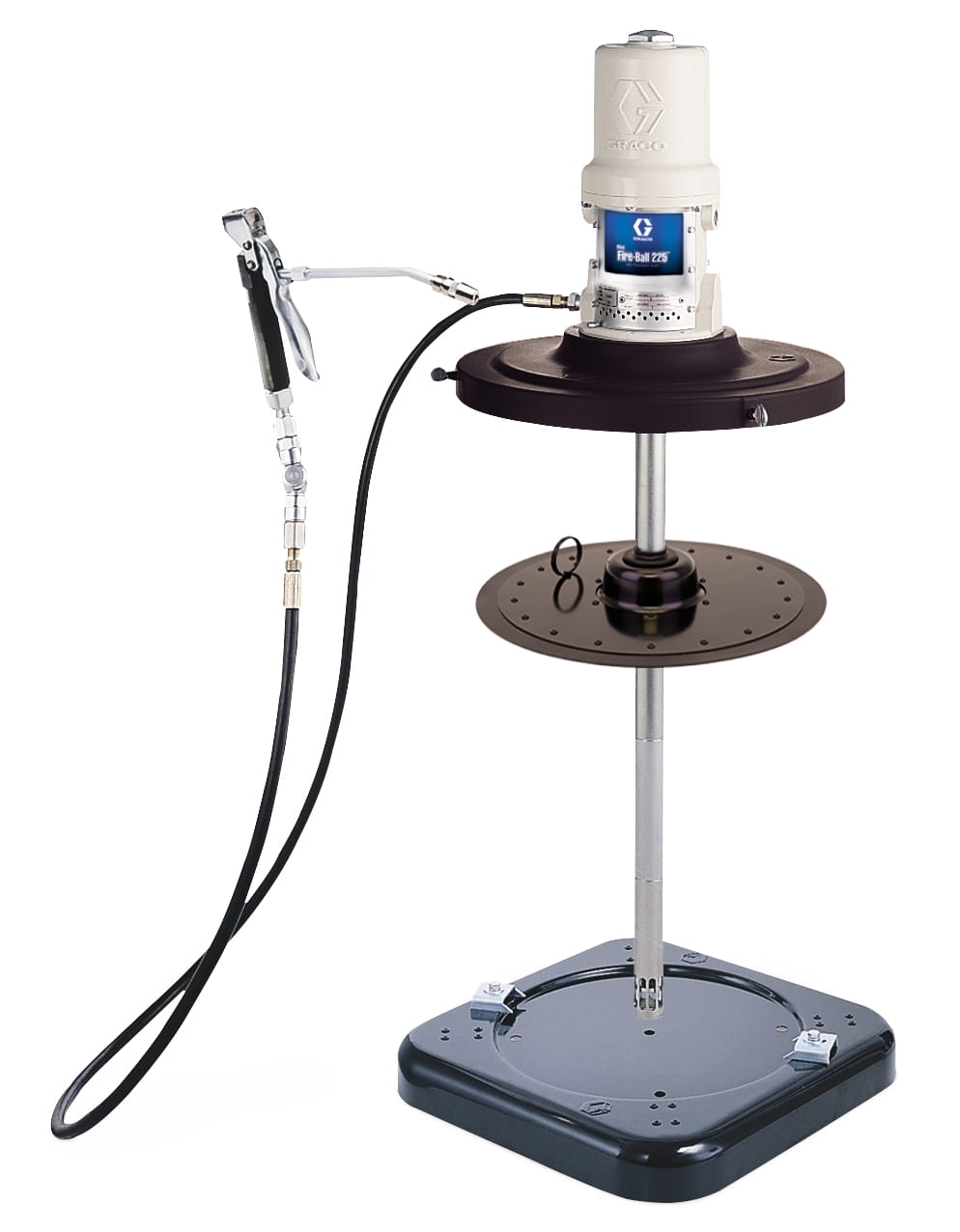

Mini Fire-Ball® grease pump 225, 50:1, 54 kg (120 lb) - portable complete system with roller base
€3,251.08*
Ready for shipping in 5-8 Werktage
Also interesting
Product information
You can't afford downtime, especially if your workshop is small and your labour force is dependent on equipment performance. The Mini Fire-Ball 225 features a design with fewer moving parts, which means less wear and tear, less downtime and more profit for your business.
The Mini Fireball 225 50:1 is perfect for medium pressure, low volume grease applications.
- Robust - Unrivalled robust air motor housing made from extremely strong cast aluminium
- Fewer repairs - Fewer moving parts in the air motor assembly means less downtime and therefore lower repair costs
- Longer seal life - Inline pump design with aligned air motor pistons and material pistons maximises seal life
- Less downtime - Graco's unique manufacturing process ensures virtually wear-resistant piston rods
- Excellent sealing - Plastic disc valves seal positively even in environments with polluted "dirty" air and ensure a long service life with low maintenance requirements
- Less icing - The large air inlet guarantees efficient utilisation of compressed air for continuous pump operation without icing
- Corrosion-resistant - Corrosion resistance and long service life of important components thanks to salt bath nitriding, nickel plating, chrome plating and the use of stainless steel and aluminium
| Air inlet size (inches): | 375 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Compatible material: | Fat |
| Energy type: | Pneumatic |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |

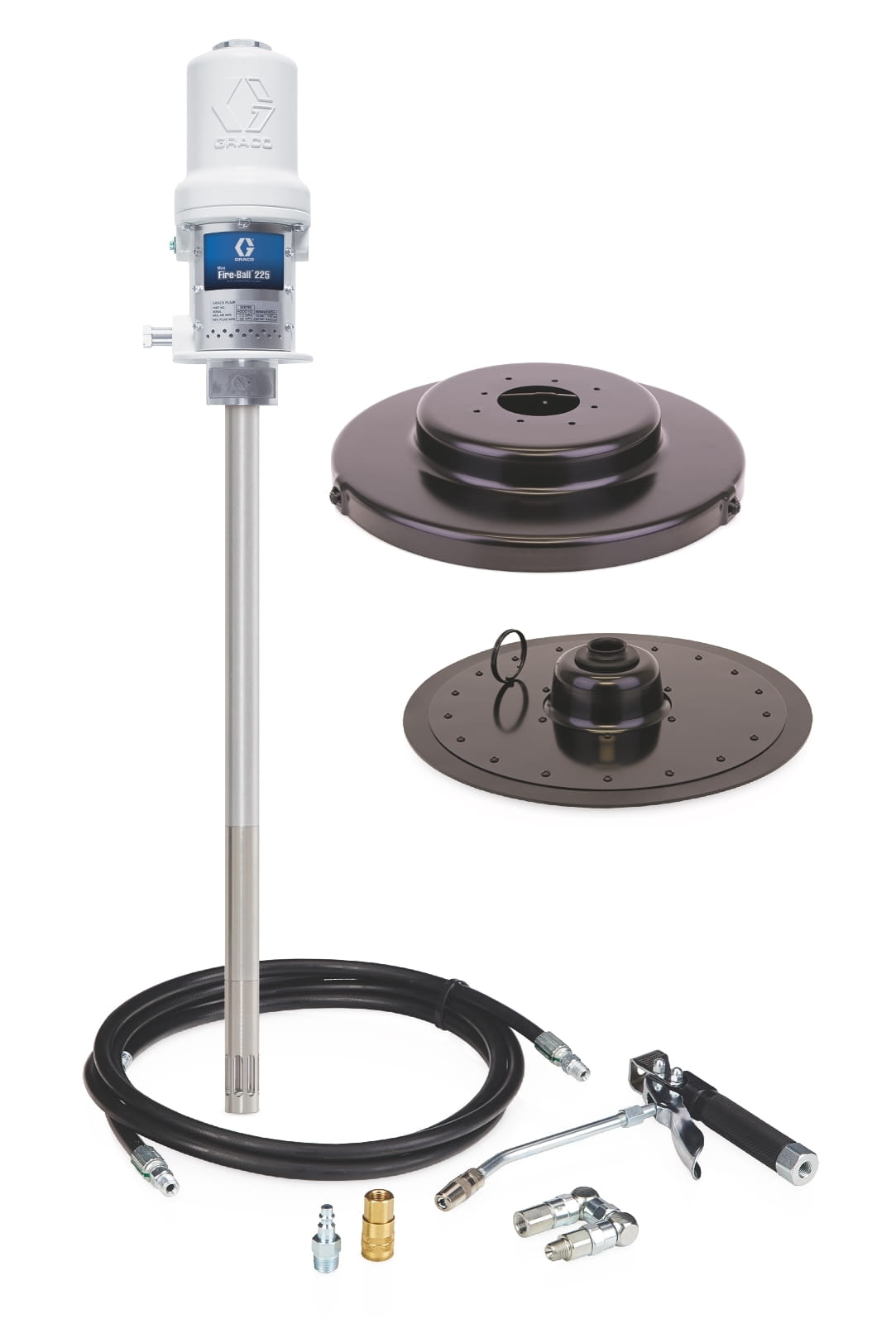

| Includes: | Mini Fireball 50:1 225 Pump, Dosing Kit, Cover, Follow Plate, Holster, Portable Base, Washer |
| Material inlet type: | Slotted |
| Material outlet size (cm): | 635 |
| Material outlet size (mm): | 6.35 |
| Material outlet thread type: | NPT |
| Maximum operating air pressure: | 140 |
| Maximum operating pressure (MPa): | 35 |
| Maximum operating pressure (kPa): | 34500 |
| Maximum operating pressure (psi): | 5000 |
| Model: | Mini Fire Ball |
| Motor type: | Pneumatic |
| Mounting position: | Barrel assembly |
| Permissible operating pressure (bar): | 345 |
| Series: | 225 |
| Size of the material outlet opening (inches): | 1/4 |
| Transmission ratio of the pump: | 50:1 |
| Type: | Piston pump system |
| Wetted material: | Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin |
More information
- Product number: 1039304
- Manufacturer: Graco
- EAN: 00633955117662
- Weight: 23.373 kg
