Manufacturer no.:
246914

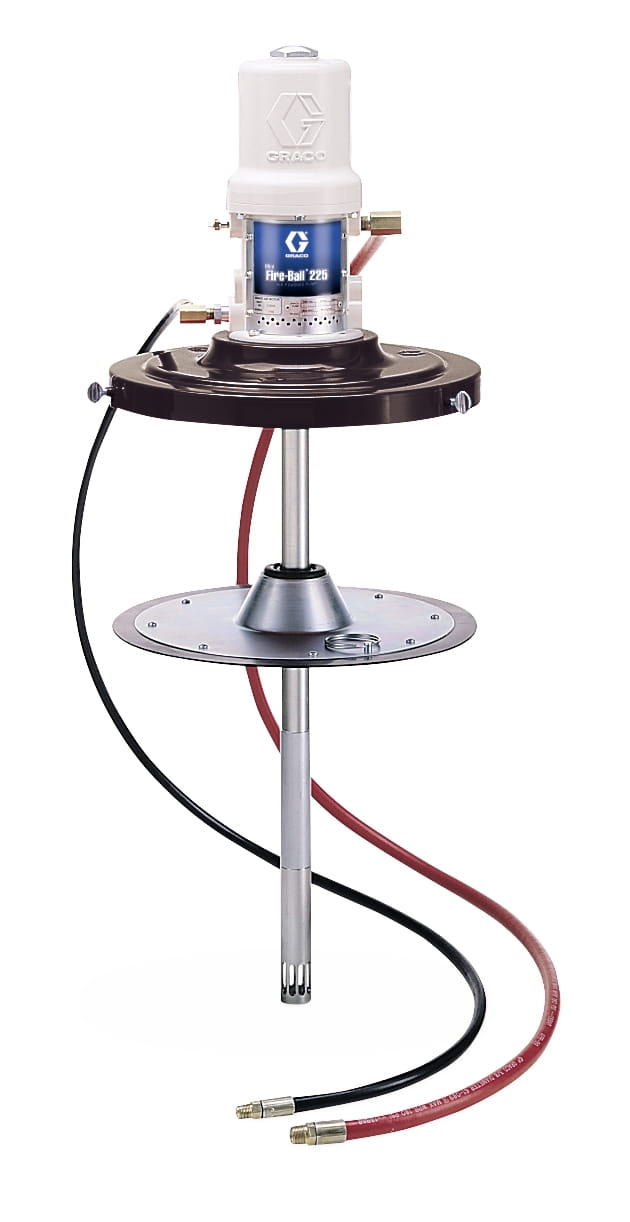

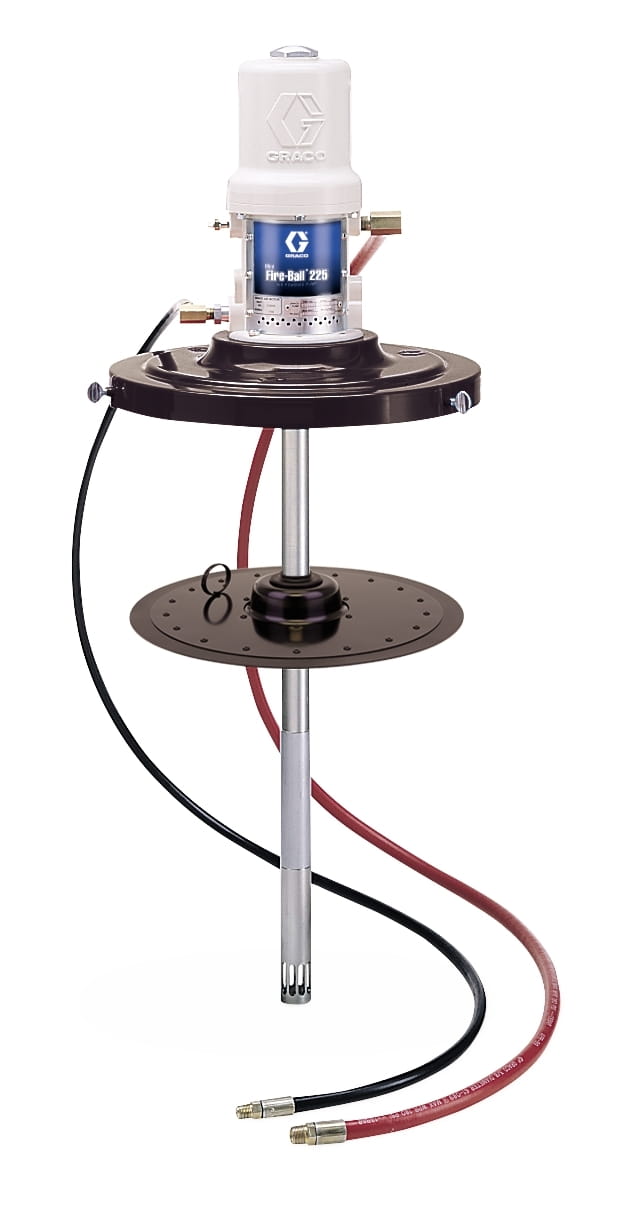

Mini Fire-Ball® 225 50:1 54 kg (120 lb) Grease Pump - Stationary Complete Feed Unit
€2,258.62*
Ready for shipping in 5-8 days
Also interesting
Product information
You can't afford downtime, especially when your shop is small and your workforce depends on equipment performance. The Mini Fire-Ball 225 features a design with fewer moving parts, which means less wear and tear, less downtime and more profit for your business.
The Mini-Fireball 225 50:1 is perfect for medium-pressure, low-volume grease applications.
- Rugged Castings – Unsurpassed strength air motor housing made from extremely strong cast aluminium
- Fewer repairs – Fewer moving parts in the air motor assembly means less downtime and lower repair costs
- Longer seal life – In-line pump design with aligned air motor and fluid pistons maximises seal life
- Less downtime – Graco's unique manufacturing process ensures that piston rods are virtually wear-resistant
- Excellent sealing – plastic poppet valves provide a tight seal even in environments with contaminated "dirty" air, and ensure a long service life with little maintenance
- Reduced icing – large air inlet ensures efficient use of compressed air for continuous pump operation without icing
- Corrosion resistant – corrosion resistance and long service life of important components through salt bath nitriding, nickel plating, chrome plating and the use of stainless steel and aluminium
| Artikel Art: | Fettpumpe, Komplettsystem |
|---|---|
| Verhältnis: | 50:1 |
More information
- Product number: 1037754
- Manufacturer: Graco
- EAN: 00633955117655
- Weight: 15.543 kg
Technical details
Operating specifications
| UPC product | 633955117655 |
|---|---|
| Division | LED |
| Price Block | 2 4 0 |
| Country of origin | US |
| Unit | EA |
Technical
| Fluid outlet size (cm) | 0. 635 |
|---|---|
| Fluid outlet size (mm) | 6. 35 |
| Fluid outlet thread gender | Female |

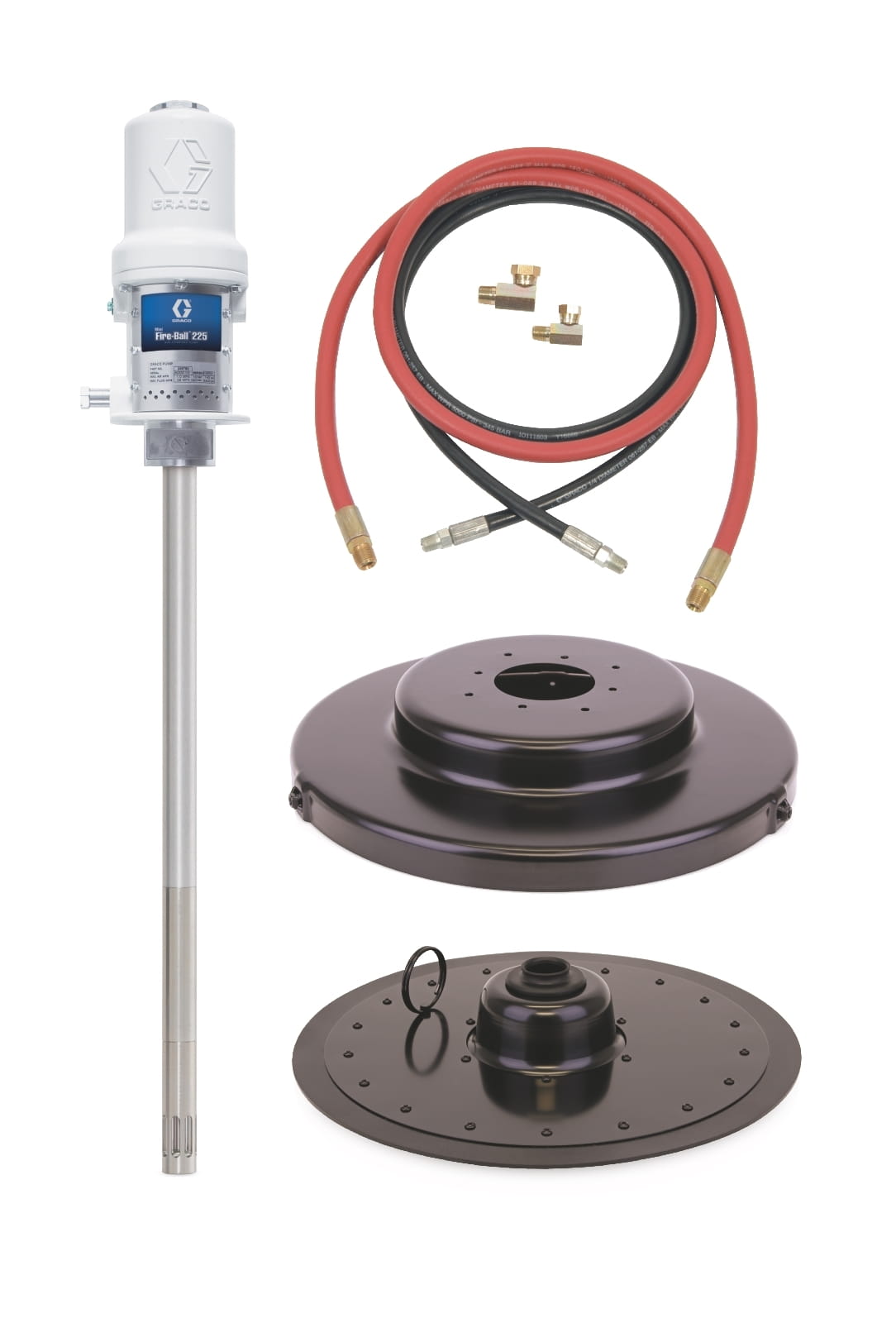

| Includes | Mini Fireball 50:1 225 pump, hose and fitting kit, cover, follow plate, shim |
| Maximum working pressure (bar) | 3 45 |
| Maximum working pressure (kPa) | 3 4 500 |
| Maximum working pressure (psi) | 5 0 00 |
| Series | 225 |
| Air inlet size (in) | 0. 375 |
| Air inlet thread gender | Female |
| Fluid inlet type | Slotted |
| Pump Weight (lb) | 15 |
| Maximum Working Pressure (MPa) | 35 |
| Maximum Air Working Pressure | 1 4 0 |
| Model | Mini Fire-Ball |
| Container size (lb) | 120 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 309967G, Mini Fire-Ball 225, 50:1 Grease Pump Packages, Instructions-Parts, English (Deutsch)
- 309967G, Mini Fire-Ball 225, 50:1 Grease Pump Packages, Instructions-Parts, English (Nederlands)
- 309967G, Mini Fire-Ball 225, 50:1 Grease Pump Packages, Instructions-Parts, English (Español)
- 309967G, Mini Fire-Ball 225, 50:1 Grease Pump Packages, Instructions-Parts, English (Français)
- 309967G, Mini Fire-Ball 225, 50:1 Grease Pump Packages, Instructions-Parts, English (Italiano)
- 309967G, Mini Fire-Ball 225, 50:1 Grease Pump Packages, Instructions-Parts, English (English)
- 307880E, Fire-Ball und President Schmiermittelpumpen, BETRIEBSANLEITUNG (Deutsch)
- 307880E, Fire-Ball und President Schmiermittelpumpen, BETRIEBSANLEITUNG (Nederlands)
- 307880E, Fire-Ball und President Schmiermittelpumpen, BETRIEBSANLEITUNG (Español)
- 307880E, Fire-Ball und President Schmiermittelpumpen, BETRIEBSANLEITUNG (Français)
- 307880E, Fire-Ball und President Schmiermittelpumpen, BETRIEBSANLEITUNG (Italiano)
- 307880E, Fire-Ball und President Schmiermittelpumpen, BETRIEBSANLEITUNG (English)
- 309966L, Manual, 50:1 Mini Fire-Ball 225 Grease Pump, Instructions-Parts, English (Deutsch)
- 309966L, Manual, 50:1 Mini Fire-Ball 225 Grease Pump, Instructions-Parts, English (Nederlands)
- 309966L, Manual, 50:1 Mini Fire-Ball 225 Grease Pump, Instructions-Parts, English (Español)
- 309966L, Manual, 50:1 Mini Fire-Ball 225 Grease Pump, Instructions-Parts, English (Français)
- 309966L, Manual, 50:1 Mini Fire-Ball 225 Grease Pump, Instructions-Parts, English (Italiano)
- 309966L, Manual, 50:1 Mini Fire-Ball 225 Grease Pump, Instructions-Parts, English (English)
