Manufacturer no.: G05B13

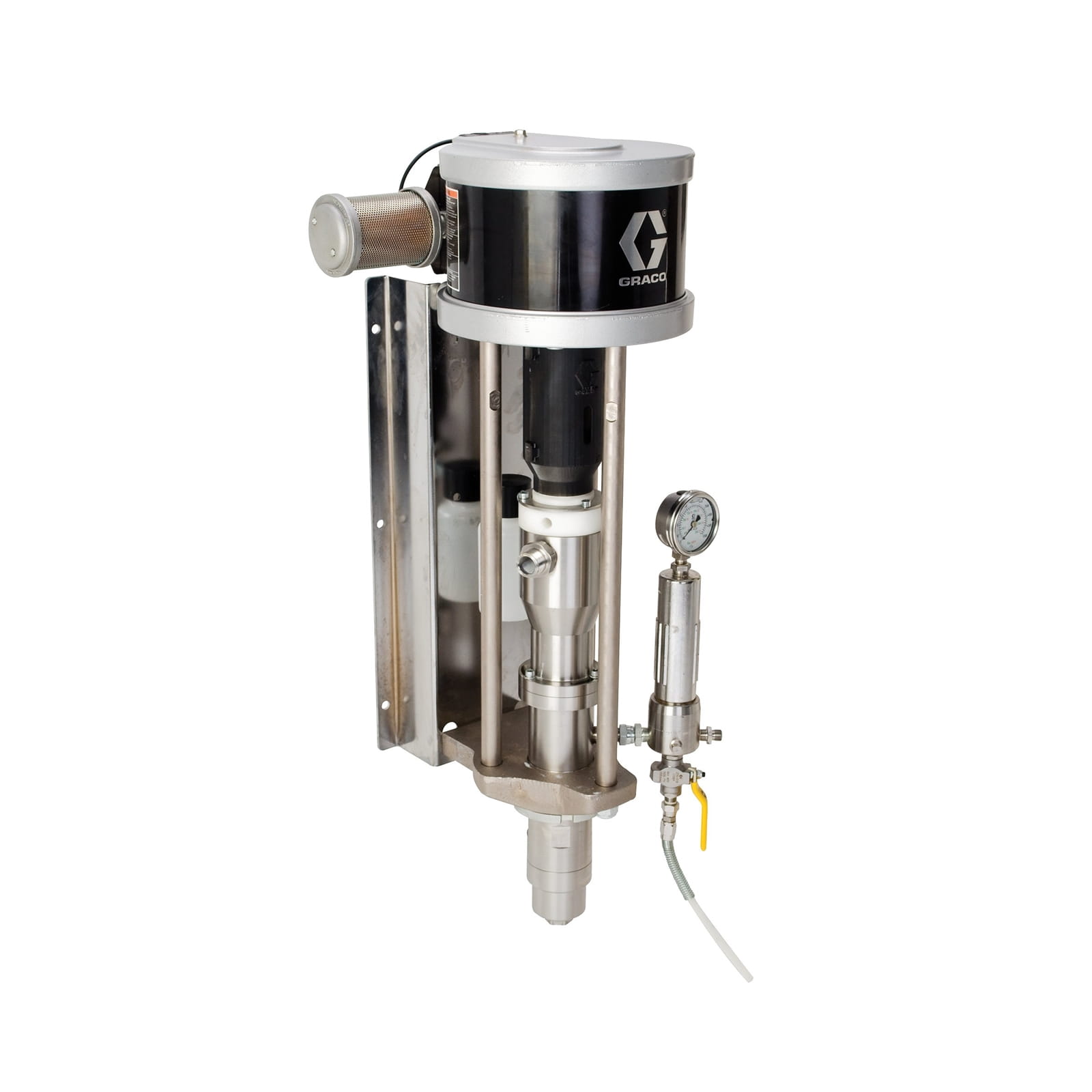

Merkur bellows model, complete pump unit with 5:1 ratio and U-seal, wall mounting

€6,630.35*

% €8,610.84* (23% saved)

Prices include VAT plus shipping costs

€5,571.72*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco's Merkur bellows piston pumps are characterised by their low maintenance requirements, as the seals do not come into contact with the outside air. Due to their design, these pumps do not require a conventional throat seal; this ensures particularly high reliability with moisture-sensitive materials.

Air motor with state-of-the-art technology
Low air consumption for improved efficiency
The simple design of the air motor with just a few components shortens repair times
Optimised design for easy flushing, enables quick colour changes and reduces material loss
Pump is made from 300 grade stainless steel for superior durability
Fewer parts and hot-swappable bellows seals for ease of maintenance, lower total cost of ownership and less downtime

Item type:	Komplettsystem
Method of assembly:	Wandmontage
Ratio:	5:1

More information

Product number: 1034244
Manufacturer: Graco
EAN: 00633955079014
Weight: 36 kg
Length: 1000 mm
Width: 600 mm
Height: 500 mm

Technical details

Specifications

Operating specifications

UPC product	6 3 3955079014
Division	IPD
Price Block	0 77
Country of Origin	US
Unit	EA
Height	50 CM
Length	100 CM
Width	60 cm
Volume	. 3 m3
Shipping weight	36 KG

Technical

Fluid inlet size (cm)	2. 5400
Fluid inlet size (in)	1
Fluid inlet size (mm)	25. 4000
Fluid inlet thread gender	Male
Fluid outlet size (cm)	1. 905
Fluid outlet size (mm)	19. 05
Fluid outlet thread gender	Male
Includes	Pump Only Air Controls, U-Cup
Maximum operating temperature (°F)	120
Maximum Working Pressure (bar)	34
Maximum Working Pressure (kPa)	3 4 00
Maximum working pressure (psi)	500
Number of Pieces	1
Series	Bell ows
Maximum flow rate (gpm @ 60 cpm)	2. 4
Gun model	No applicator
Mount Type	Wall Mount
Product Type	Bare Package
Maximum Working Pressure (MPa)	3. 4
Gun Technology	Bare Package
Model	M erkur
