Manufacturer no.: G35B35

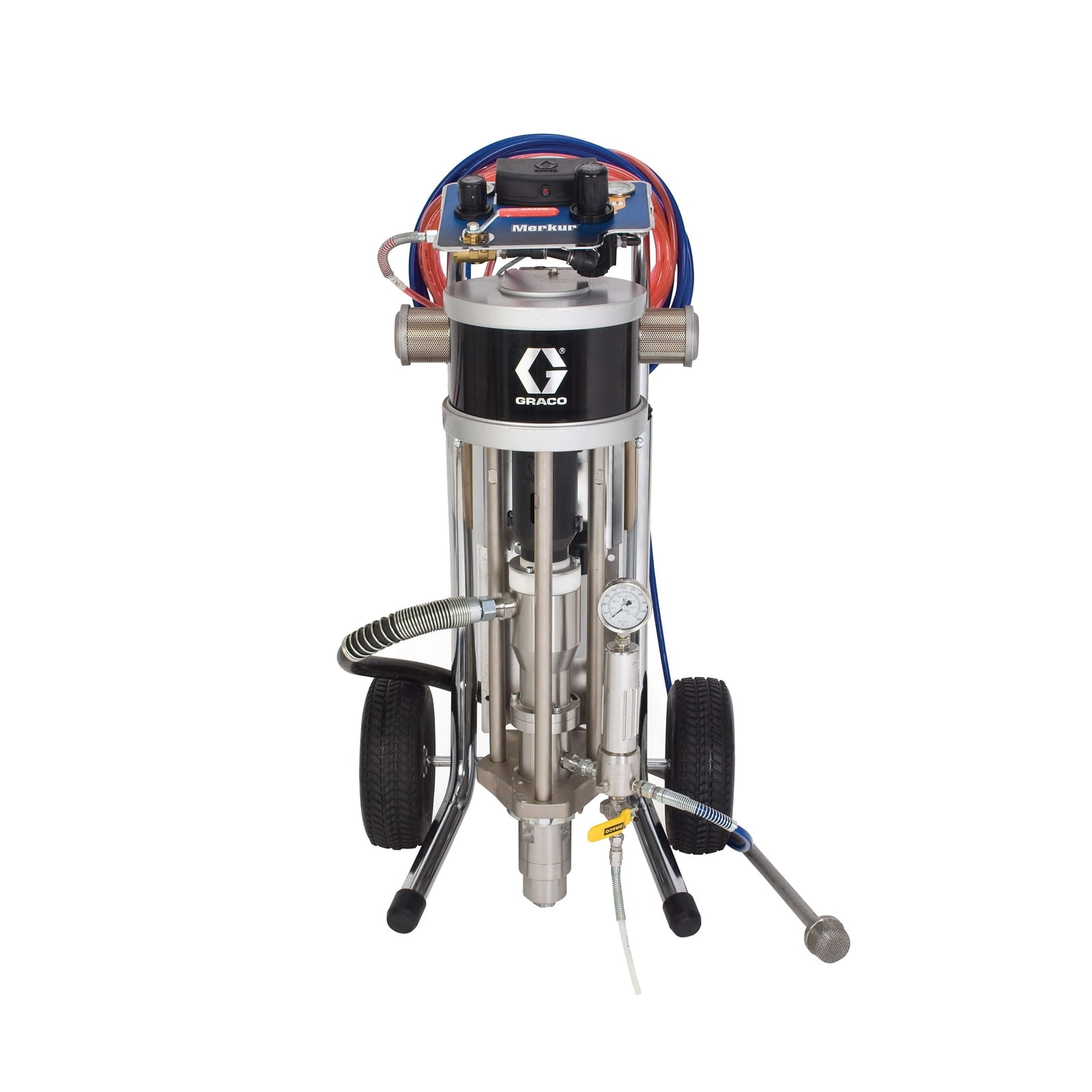

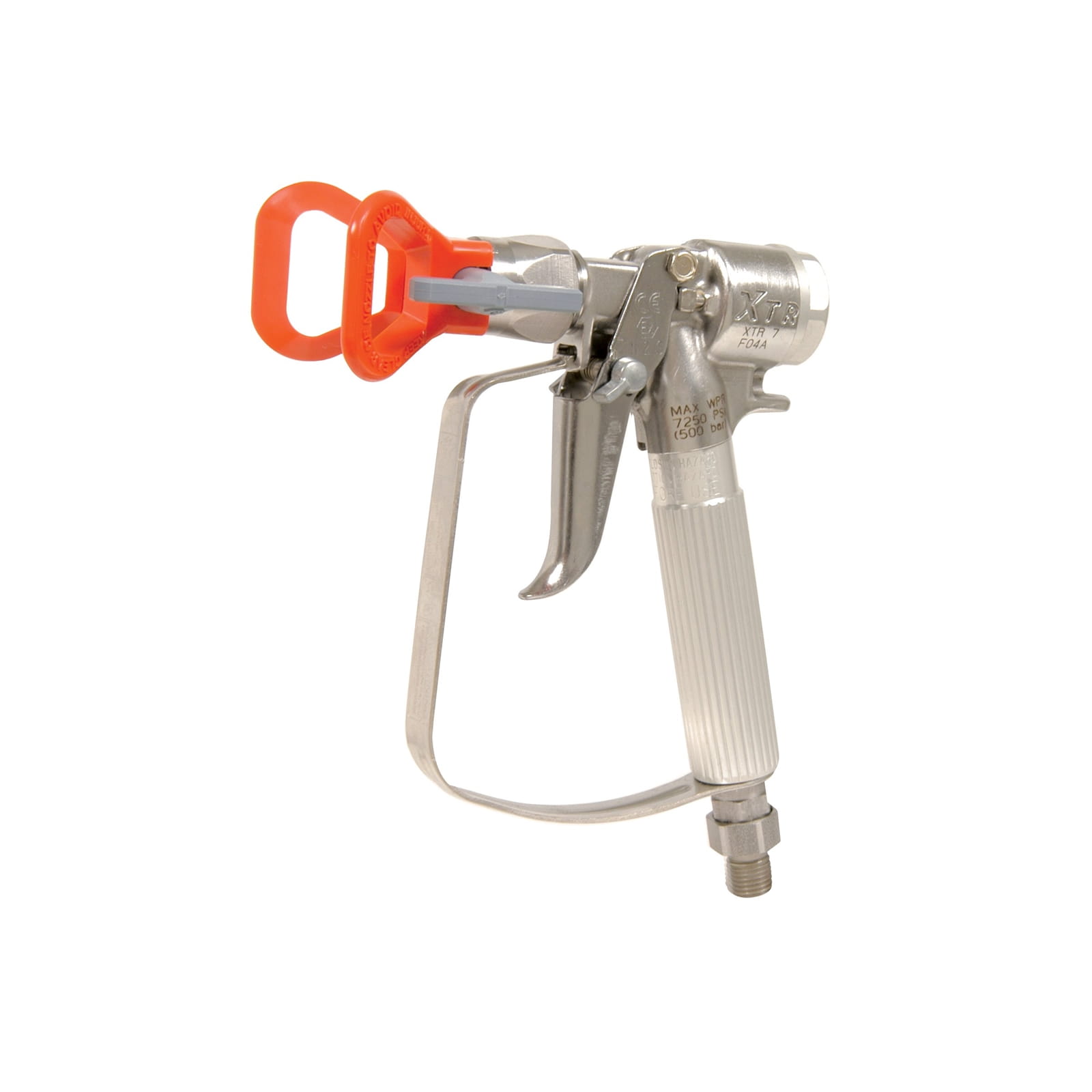

Merkur™ bellows model, complete airless unit with 35:1 ratio and V-seal, chassis assembly, XTR™ spray gun

€8,812.55*

% €11,750.06* (25% saved)

Prices include VAT plus shipping costs

€7,405.50*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

Also interesting

Product information

The gentle pumping process of the Merkur bellows pump and the minimised sealing surfaces ensure optimum processing of shear-sensitive materials such as UV coatings and water-based materials.

Merkur air motor technology
- Air motor with state-of-the-art technology
- Low air consumption for even greater efficiency
- The uncomplicated design of the air motor with just a few components shortens repair times
Leak-free lower pump
- Optimised design for easy flushing enables quick colour changes and reduces material loss
- The pump is made of 300-grade stainless steel and impresses with its outstanding durability
- Fewer parts and hot-swappable bellows seals for ease of maintenance, lower total cost of ownership and less downtime
Less pulsation for optimal results
- Merkur devices have smooth, fast stroke changes, enabling better, consistent surface quality and fatigue-free operation
Air valve
- Enables a smooth and fast stroke change
Quickly removable coupling
- For easy removal of the lower pump from the air motor
Quickly removable coupling
- For easy removal of the displacement pump from the air motor
Improved bellows seal
- No lubrication of the throat packing, no leaks
Overflow chamber (optional)
- In the event of a leaking bellows, the leaking materials are collected in the D-shaped sealing and overflow chamber inside the pump
Throat and piston seals
- Spring-loaded for longer seal life - no adjustments required
- Available with V-seals for abrasive materials or U-seals for UV-curable materials

Application:	supply
Compatible material:	Water Based, Solvent Based, High Solids, Xirallic, CARC, Metal, Top Coats, Stains, Lacquer, UV Coating
Convertible:	Not convertible
Frame configuration:	chassis
Includes:	Pump and air control, XTR gun, fluid hose, suction hose and pipe, drain valve, fluid filter
Material inlet thread type:	NPT
Material outlet size (cm):	375
Material outlet size (mm):	3.75
Material outlet thread type:	NPT
Maximum delivery rate (L/min):	6.0
Maximum hose length (m):	7.5
Maximum operating pressure (MPa):	24.1
Maximum operating pressure (kPa):	24100
Maximum operating pressure (psi):	3500
Model:	Mercury
Motor type:	Pneumatic
Number of guns:	1
Outlet colour screen:	60 mesh stainless steel sieve
Permissible operating pressure (bar):	241
Pump type:	Pistons
Series:	Bellows
Size of the material inlet opening (cm):	1,905
Size of the material inlet opening (inches):	3/4
Size of the material inlet opening (mm):	19.05
Size of the material outlet opening (inches):	3/8
Supply voltage:	Air
Type:	Airless sprayer
Weight (kg):	54
Wetted material:	PEEK, PTFE, stainless steel, tungsten carbide, UHMWPE
