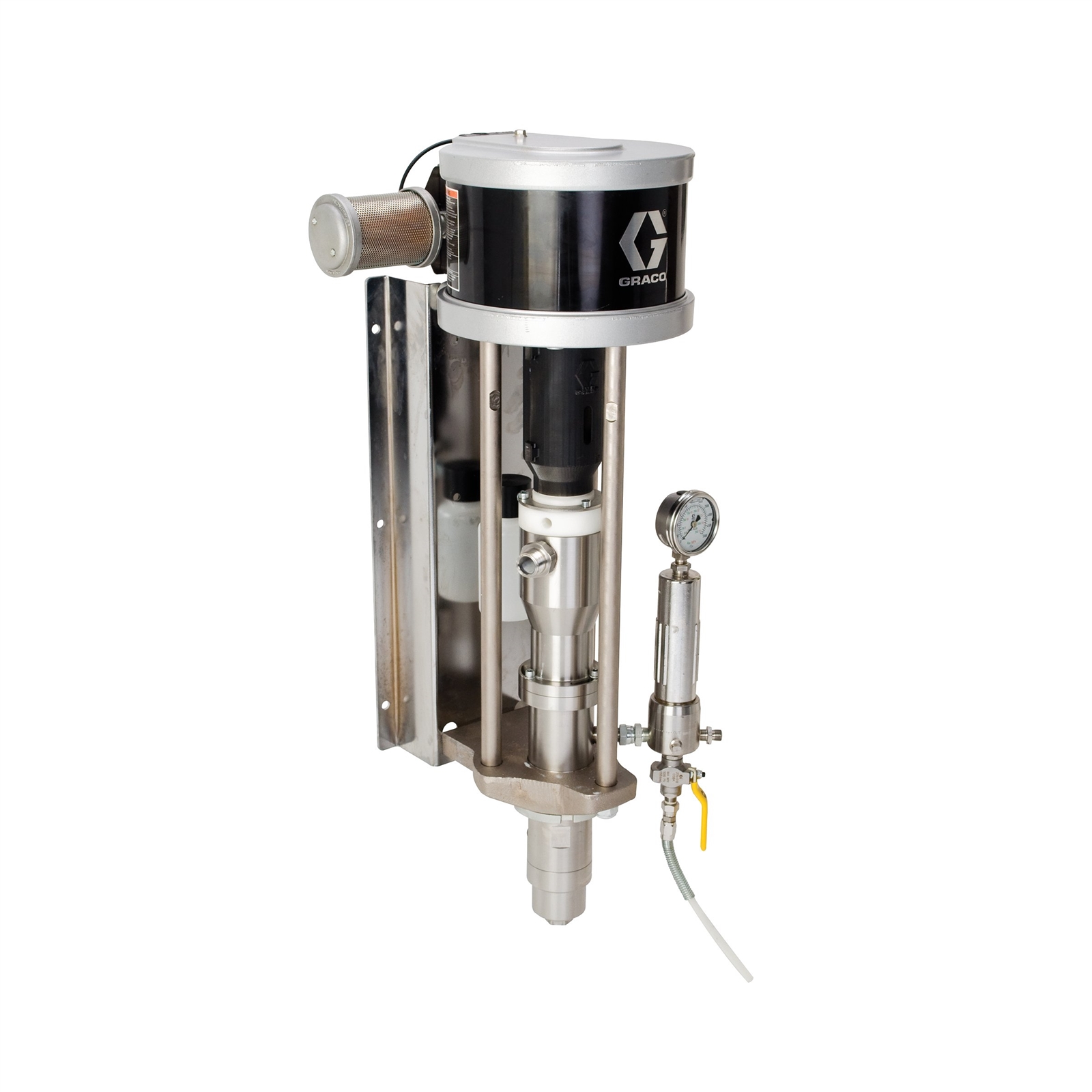

Merkur™ bellows model, air-assisted complete airless unit with 23:1 ratio and U-seal, wall-mounted, G40 spray gun

€6,927.23*

% €9,621.15* (28% saved)

Prices include VAT plus shipping costs

€5,821.20*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange
Shape Created with Sketch. Free shipping within Germany
Product question
Also interesting
Product information

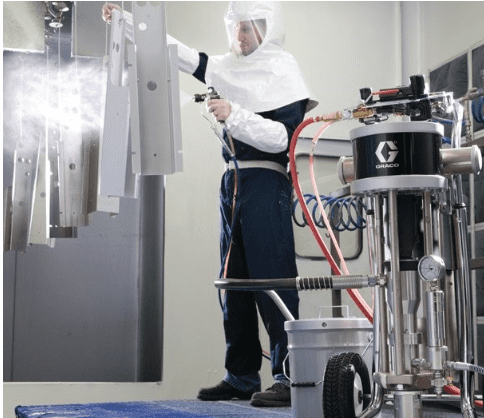

Graco Merkur 23:1 – Air-Assisted Airless Complete Unit with Bellows Pump

The Graco Merkur 23:1 Airless complete unit is an industrial, air-assisted coating system featuring advanced bellows pump technology. It has been specifically developed for demanding applications where reliable material delivery, high pressure stability and reduced maintenance are essential.

The innovative bellows design replaces conventional throat packings, minimizing the risk of leakage and material contamination. This makes the system particularly suitable for UV-curable, water-based or sensitive coating materials.

  • 23:1 ratio – powerful pressure amplification
  • Bellows pump – no conventional throat packing required
  • U-cup seal – ideal for UV and moisture-sensitive materials
  • Stainless steel components – high chemical resistance
  • Reduced maintenance effort – fast cleaning & long service life

Details & Information

Product Features
  • Air-assisted Airless complete unit with wall mounting
  • 23:1 pressure ratio for industrial applications
  • Bellows technology to prevent material contact with air
  • U-cup seal for specialized material requirements
  • Efficient air motor with stable operation

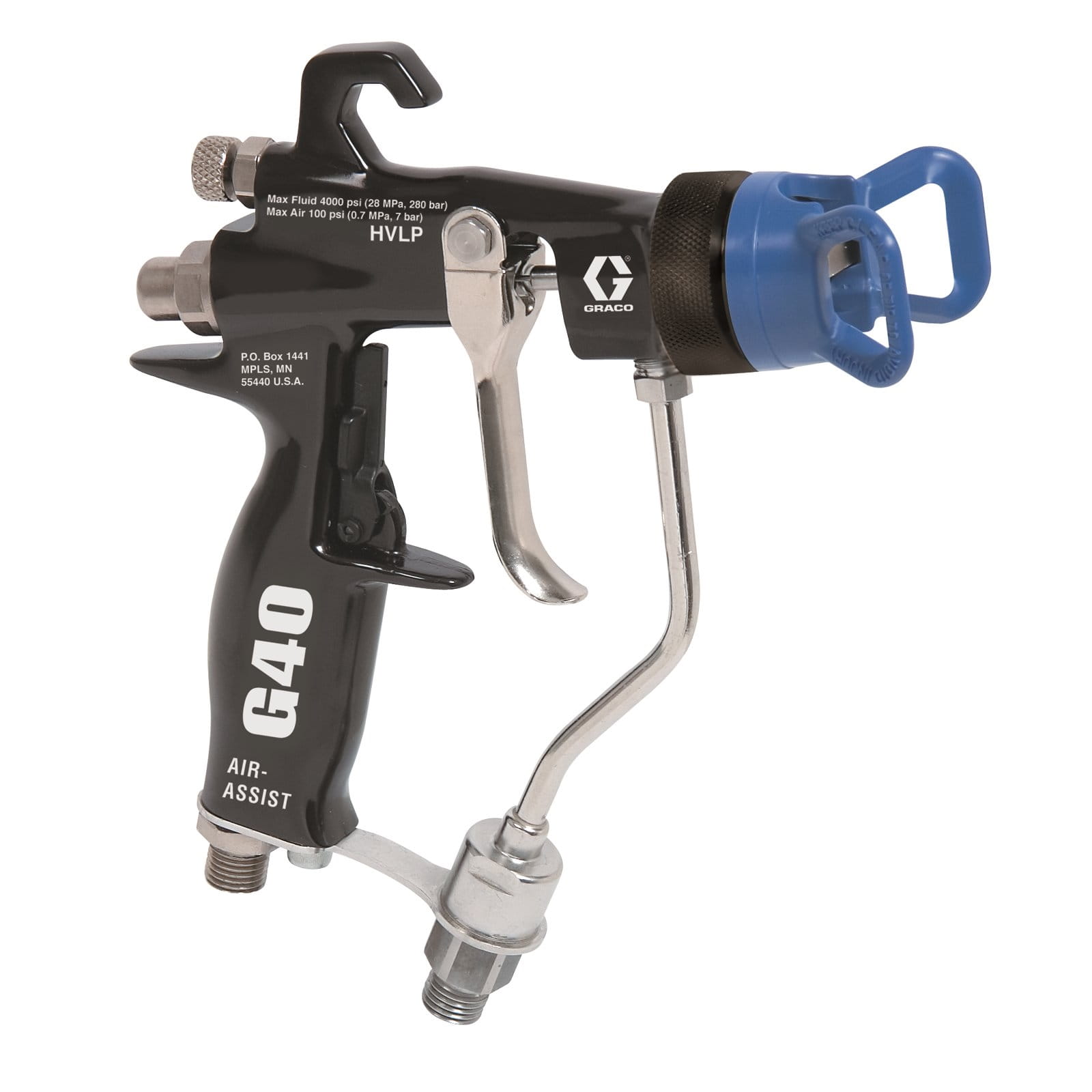

  • Includes G40 spray gun for precise application
  • Suitable for continuous production processes
Practical benefit: High process reliability and consistent material delivery – ideal for industrial coating systems using sensitive or reactive materials.
Variant Overview – Seal & Pump Versions

The Merkur bellows series is available in different pressure ratios as well as with U-cup or V-packings – tailored to material type and chemical requirements.

Version Application Area
23:1 with U-cup seal For UV and moisture-sensitive materials
23:1 with V-packing For standard and abrasive coating media
Note: The choice of seal should be based on material viscosity, chemical resistance and process requirements.
Setup & Commissioning (Checklist)
  • Check air supply and operating pressure
  • Secure wall mounting properly
  • Pre-filter the material
  • Select the appropriate seal according to material
  • Perform flushing and cleaning regularly
Tip: Regular maintenance of the air motor and bellows increases service life and minimizes downtime.
Intended Use / Applications
  • Industrial Airless coating systems
  • UV-curable coatings
  • Water-based & solvent-based materials
  • Material supply in continuous production processes

Product Flyer & Resources

For detailed information on functions, technical data and accessories, please refer to the official Graco Bellows Pumps brochure.

Application: supply
Compatible material: Water Based, Solvent Based, High Solids, Xirallic, CARC, Metal, Top Coats, Stains, Lacquer, UV Coating
Convertible: Not convertible
Frame configuration: Wall
Includes: Pump and air gun control, G40 gun, fluid hose, gun fluid hose, gun air hose, suction hose and pipe
Material inlet thread type: NPT
Material outlet size (cm): 9,525
Material outlet size (mm): 9,525
Material outlet thread type: NPT
Maximum hose length (m): 7.6
Maximum operating pressure (MPa): 15.9
Maximum operating pressure (kPa): 15900
Maximum operating pressure (psi): 2300
Model: Mercury
Motor type: Pneumatic
Number of guns: 1
Outlet colour screen: 60 mesh stainless steel sieve
Permissible operating pressure (bar): 159
Pump type: Pistons
Series: Bellows
Size of the material inlet opening (cm): 1,905
Size of the material inlet opening (inches): 3/4
Size of the material inlet opening (mm): 19.05
Size of the material outlet opening (inches): 3/8
Supply voltage: Air
Type: Air Assisted Airless Sprayers
Weight (kg): 39.9
Wetted material: PEEK, PTFE, stainless steel, tungsten carbide, UHMWPE
