Manufacturer no.: 24V903

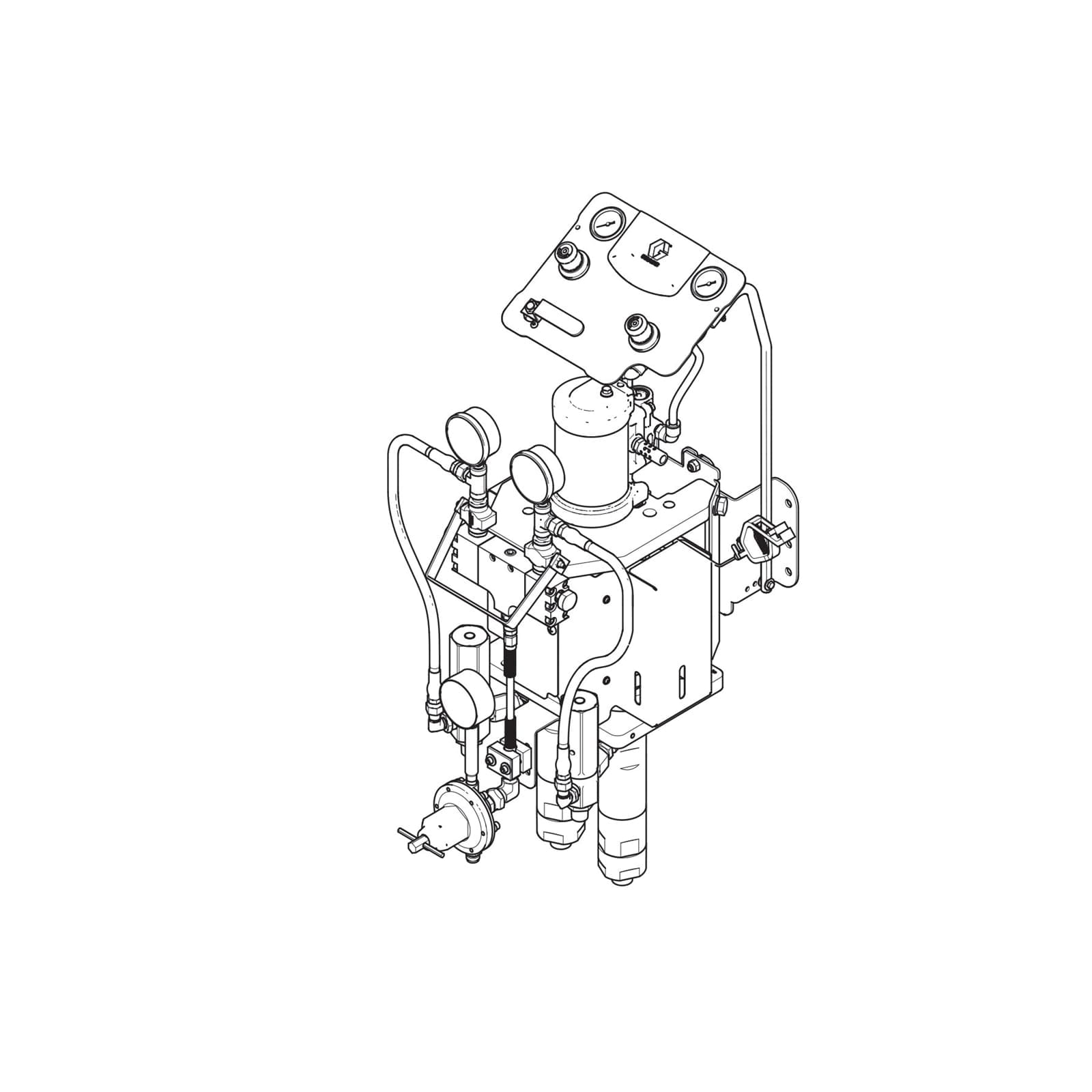

Mechanical airless metering unit 5:1 M2K, wall-mounted and standard mixing block

€10,220.59*

% €14,695.31* (30.45% saved)

Prices include VAT plus shipping costs

€8,588.73*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Experience the benefits of switching from manual mixing to mechanical M2K spraying technology. This entry-level device for fixed mixing ratios keeps your mixing ratio constant and minimises the rinsing times, material losses and cleaning steps associated with manual mixing. M2K airless technology is ideal for quickly applying large quantities of material to large surfaces.

Improve the accuracy of material mixes compared to hand mixing to improve coating quality and reduce material waste
Compact size makes it easier and faster to flush, saving you time and disposal costs
Ideal for low volume two-component epoxies and polyurethane and polyester materials

Drive:	Mechanisch
Item type:	Dosiergerät
Method of assembly:	Wandmontage

More information

Product number: 1030304
Manufacturer: Graco
EAN: 00755652005575
Weight: 75.5 kg
Length: 1070 mm
Width: 600 mm
Height: 730 mm

Technical details

Specifications

Operating specifications

UPC product	755652005575
Division	IPD
Price Block	2 14
Country of Origin	US
Unit	EA
Height	73 CM
Length	107 CM
Width	60 cm
Volume	. 469 m³
Shipping weight	75.5 KG

Technical

Component Type	Two Component
Includes	Standard Mix Manifold
Material Type	Two Component
Maximum flow rate (L/min)	3
Maximum Number of Colours	1
Maximum working pressure (bar)	1 97
Maximum working pressure (kPa)	1 9 700
Maximum working pressure (MPa)	19. 7
Maximum working pressure (psi)	2 900
Mix Ratio	5: 1
Number of colour valves	N/A
Proportioner type	Mechanical
Weight (kg)	68
Model	M 2K
Pump Lower A Size (cc)	125
Fluid to air ratio	24: 1
Pump Lower B Size (cc)	25
