Manufacturer no.: 17H895

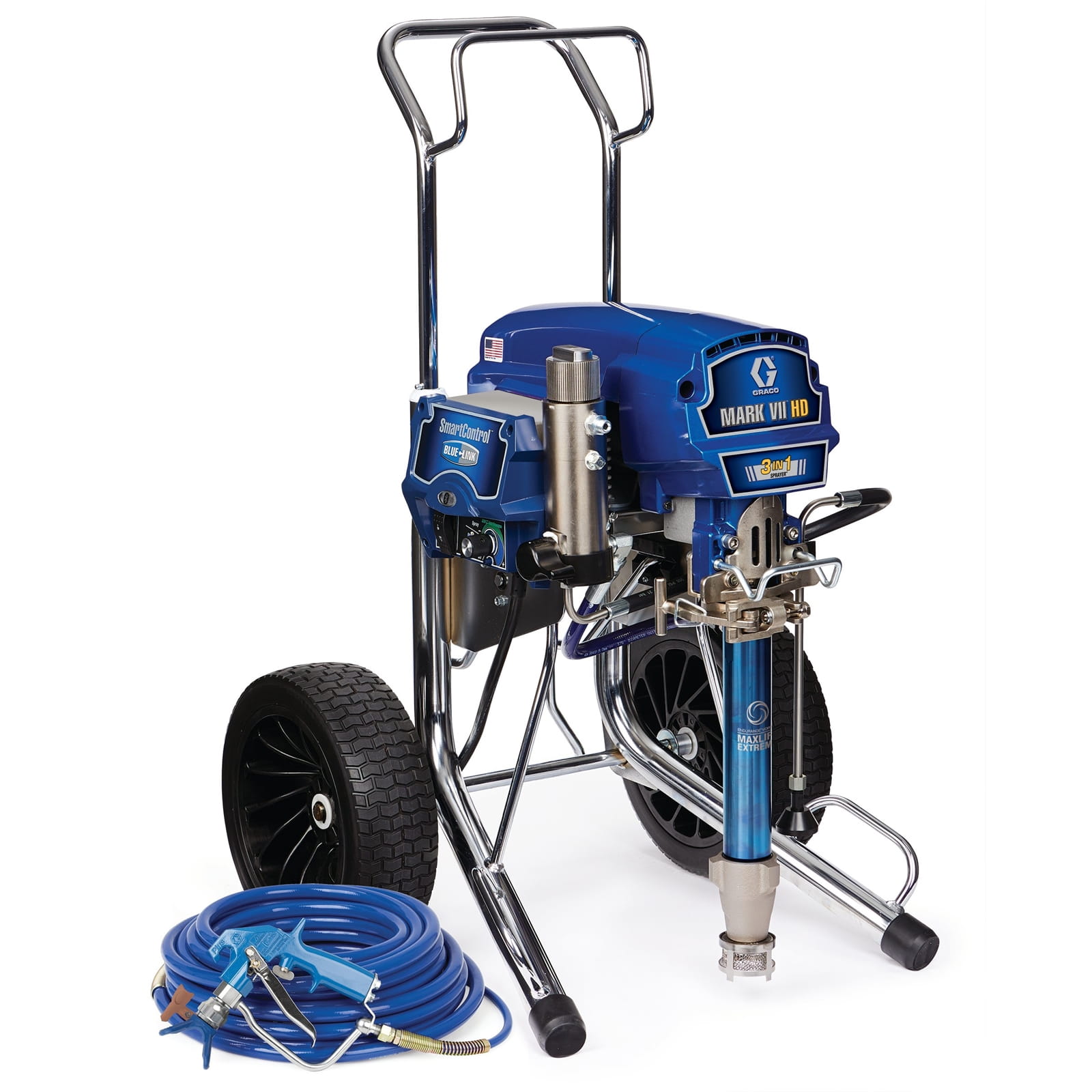

Mark VII HD Standard Series Electric airless sprayer, 230V, EU

€11,067.00*

% €14,756.00* (25% saved)

Prices include VAT plus shipping costs

€9,300.00*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

Also interesting

Product information

The Mark VII HD offers a higher flow rate - so jobs can be completed faster. This unit offers 40% higher productivity compared to the Mark V and features an improved high performance plastering gun that can accommodate a larger nozzle size to handle all textured finishes as well as the wide range of primers and paints.

Ideal for demanding job sites The Mark HD IronMan range of electric airless texture sprayers meet the tough demands of large commercial and industrial jobs - day in, day out.

Endurance Vortex MaxLife Extreme piston pump
- Maximum durability and service life
- Pioneering Vortex rotary lobe technology
- Seals and piston rod with maximum service life 3x longer pump rod service life
- Maximum versatility, no matter what you are spraying Long Life ceramic and stainless steel balls ensure maximum versatility
ProConnect 2 pump replacement system
- No more costly downtime
- Pump replacement within minutes
- No tools, pins or parts to lose
Fully rubberised tyres
- Never get a flat tyre again
- Tyres cannot be damaged by nails, screws or other sharp-edged parts
SmartControl 4.0 with ProGuard protection system
- Precision pressure control
- The lowest dead zone at any pressure provides a uniform spray pattern without pressure fluctuations
- ProGuard prevents electrical damage caused by extreme power supply conditions at the point of use
- WatchDog pump protection system automatically prevents pump damage when material supply is too low
BlueLink application and sprayer management system
- Optimise your operation
- Track every sprayer: accurate location and hourly productivity
- Keep an eye on work progress: on-demand productivity data and reporting from anywhere
- Maximise uptime Set maintenance schedules, alerts and job site notes
MaxFlo 2 with flocculation protection
- Lower flocculation, higher productivity
- Uninterrupted spraying with effective flocculation protection for increased productivity
- Optimised passages for the thickest coatings
Pressure-resistant inlet screen
- Durable filtration
- Withstands harsh conditions and maintains flow through the filter
FastFlush 2 system
- Now fast cleaning is even FASTER
- Clean the pump up to six times faster with half the amount of water
- Material flow at high speed thanks to 60% higher motor speed
MaxPower motor and Precision Advantage Drive
- Proven performance for all painting applications
- Brushless design with high torque and lifetime warranty
- The drive with the longest service life
- The hardened steel gears run particularly quietly and offer a lifetime guarantee.
Additional features
- Easy Out filter distributor
- High-performance suction valve
- Durable chassis with robust construction

Compatible material:	Stains, glass, oil, varnishes, primers, fillers, acrylic paints, interior emulsion paints, exterior emulsion paints, latex, fillers, anti-corrosion paints, fireproofing paints, foam forming materials
Compatible replacement pump:	17H836
Convertible:	Not convertible
Double strokes per gallon:	97
Filter mesh size:	60
Frame configuration:	Hi boy
Frequency (Hz):	50
Hose inlet diameter (cm):	1.27
Hose inlet diameter (inch):	1/2
Hose inlet diameter (mm):	12.7
Hose reel type:	Hose holder
Inlet colour screen:	Heavy duty stone catcher
Inner diameter of material hose (inch):	1/2
Material outlet size (mm):	12.7
Material outlet thread type:	NPSM
Maximum delivery rate (L/min):	6
Maximum hose length (m):	45
Maximum nozzle size (inch):	47
Maximum nozzle size 1 gun (inch):	47
Maximum operating pressure (MPa):	22.7
Maximum operating pressure (kPa):	22700
Maximum operating pressure (kg/cm²):	22.7
Maximum operating pressure (psi):	3300
Maximum sound pressure level (dB(A)):	82
Minimum generator output (W):	5000
Minimum generator output (kW):	0
Model:	Mark HD
Motor size (kW):	1.9
Motor type:	Brushless, DC
Number of guns:	1
Outlet colour screen:	60 mesh stainless steel sieve
Permissible operating overpressure (psi):	3300
Permissible operating pressure (bar):	227
Phases:	1
Pressure control type:	SmartControl 4.0
Product series:	IronMan
Pump mounting type:	ProConnect 2
Pump rod type:	MaxLife
Pump sleeve material:	MaxLife Extreme
Pump type:	Endurance Vortex
Rated power (kW):	1.9
Series:	VII
Size of the material outlet opening (inches):	1/2
Spray gun type:	HD plastering gun, blue
Spraying technology:	Airless
Supply voltage:	Electric
Total height (cm):	74.9
Total height (mm):	7,493,000
Total length (cm):	66
Total length (mm):	660.4
Total width (cm):	61
Total width (mm):	6,096,000
Type:	Airless sprayer
Voltage (V):	230
Volume per cycle (cycles/gal):	97
Weight (kg):	62
Wetted material:	Galvanized Carbon Steel, Nickel Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass

More information

Product number: 1033206
Manufacturer: Graco
EAN: 00755652858201
Weight: 82.1 kg
Length: 800 mm
Width: 680 mm
Height: 1100 mm
