Manufacturer no.:
562682

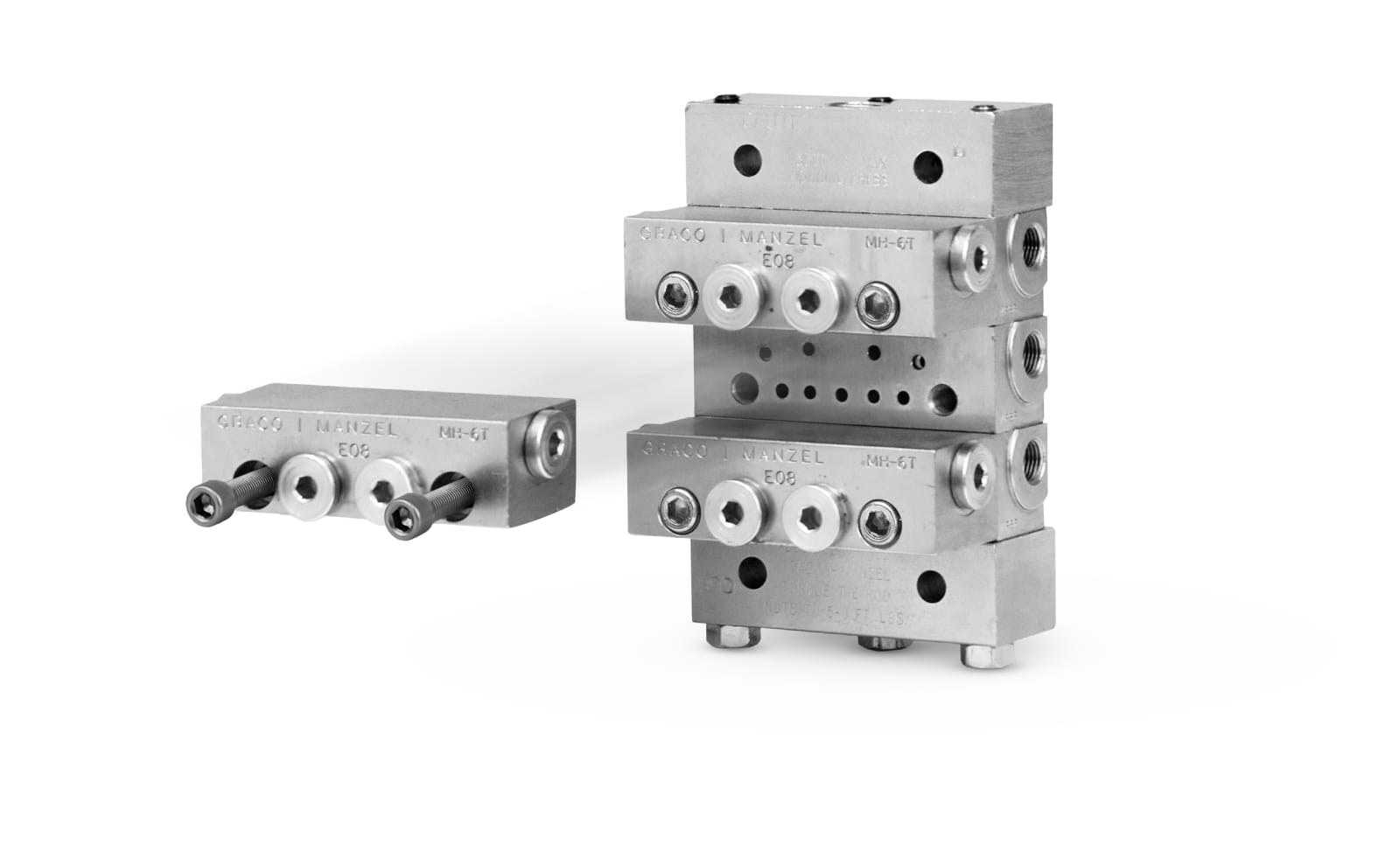

Manzel® MHH Modular manifold valve 018 Single
€104.72*
Prices include VAT plus shipping costs
€88.00*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
The same high-performance design as the Trabon MSP series with even tighter and more precise tolerances.
The Manzel MMH series offers precise lubricant supply for demanding high-pressure grease and oil applications.
- The quick-change valve segments can be removed from the base unit without dismantling the lubrication lines. This minimises labour costs and increases machine uptime.
- Can easily be fitted with cycle indicators with magnetic and electronic proximity switches to confirm successful lubrication.
- As an option, outlets can be fitted with indicator pin for easier troubleshooting - taking the guesswork out of troubleshooting
- Built-in outlet check valves ensure precise lubricant delivery every time
| Application: | Machines in manufacturing plants, compressor devices |
|---|---|
| Compatible material: | oil, fat |
| Cycle display: | Cycle indicator pin |
| Distributor valve series: | MHH |
| Gender of the inlet thread: | Internal thread |
| Gender of the outlet thread: | Internal thread |
| Inlet thread type: | Air hose, SAE |
| Material: | Steel |
| Maximum NLGI grade: | No. 2 |
| Maximum operating pressure (kPa): | 51700 |
| Maximum operating pressure (psi): | 7500 |
| Model: | Manzel |
| Number of outlets: | 1 |
| Outlet size (inch): | 1/8 - 27, 7/16 - 20 |
| Outlet thread type: | Air hose, SAE |
| Permissible operating pressure (bar): | 517 |
| Series: | MHH |
| Type: | distributor |
More information
- Product number: 1036724
- Manufacturer: Graco
- EAN: 00633955329560
- Weight: 0.394 kg
- Length: 130 mm
- Width: 80 mm
- Height: 35 mm
Technical details
Operating specifications
| UPC product | 633955329560 |
|---|---|
| Division | LED |
| Price Block | 126 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 3 .5 CM |
| Length | 13 cm |
| Width | 8 cm |
| Volume | 0 m³ |
| Shipping weight | . 39 KG |
Technical
| Maximum working pressure (psi) | 7500 |
|---|---|
| Number of outlets | 1 |
| Maximum working pressure (bar) | 5 17 |
| Inlet thread gender | Female |
| Outlet thread gender | Female |
| Outlet size (in) | 1/8 - 27, 7/16 - 20 |
| Maximum Working Pressure (kPa) | 5 1 700 |
| Maximum NLGI Grade | #2 |
| Divider Valve Series | M HH |
| Model | Manz el |
| Series | M HH |
| Discharge per piston stroke (in³) | 0. 018 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 312497ZAB - Trabon Divider Valves, Instructions. English (English)
- 312497ZAB - Trabon Divider Valves, Instructions. English (日本語)
Verkaufsliteratur
- 340821ENEU-AG Automatic Lubrication Equipment Buyer's Guide (English (UK))
- 340821ENEU-AG Automatic Lubrication Equipment Buyer's Guide (русский)
- 340821ENEU-AG Automatic Lubrication Equipment Buyer's Guide (Español)
- 340821ENEU-AG Automatic Lubrication Equipment Buyer's Guide (Suomi)
- 340821ENEU-AG Automatic Lubrication Equipment Buyer's Guide (Français)
- 340821ENEU-AG Automatic Lubrication Equipment Buyer's Guide (Italiano)
- 340821ENEU-AG Automatic Lubrication Equipment Buyer's Guide (Polski)
- 340821ENEU-AG Automatic Lubrication Equipment Buyer's Guide (Svenska)
- 340821ENEU-AG Automatic Lubrication Equipment Buyer's Guide (Türkçe)
- 339427DE Autmatische Schmiersysteme von Graco (Deutsch)
- 339427DE Autmatische Schmiersysteme von Graco (русский)
- 339427DE Autmatische Schmiersysteme von Graco (English (UK))
- 339427DE Autmatische Schmiersysteme von Graco (Español)
- 339427DE Autmatische Schmiersysteme von Graco (Suomi)
- 339427DE Autmatische Schmiersysteme von Graco (Français)
- 339427DE Autmatische Schmiersysteme von Graco (Italiano)
- 339427DE Autmatische Schmiersysteme von Graco (Polski)
- 339427DE Autmatische Schmiersysteme von Graco (Svenska)
- 339427DE Autmatische Schmiersysteme von Graco (Türkçe)
