Manufacturer no.: 24W635

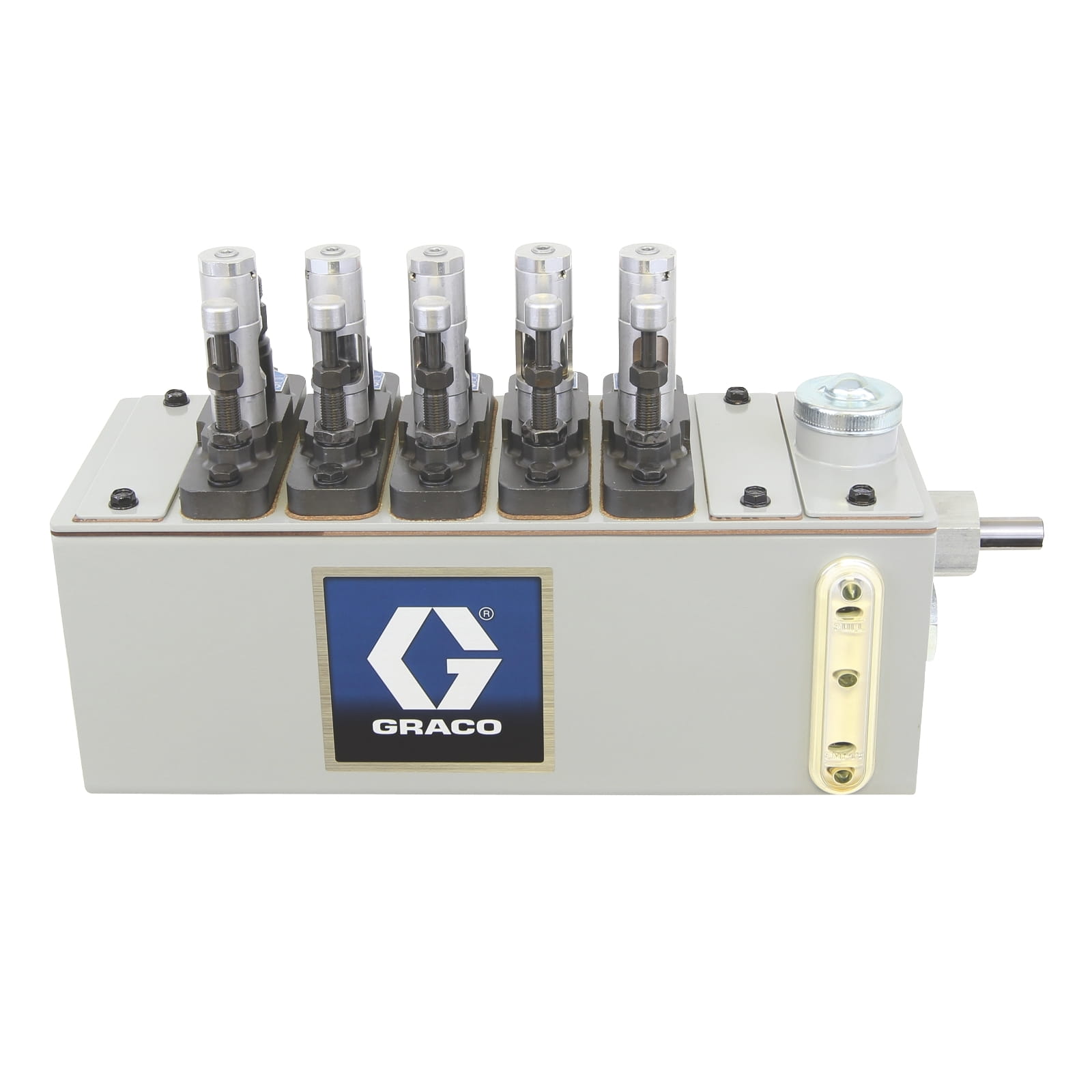

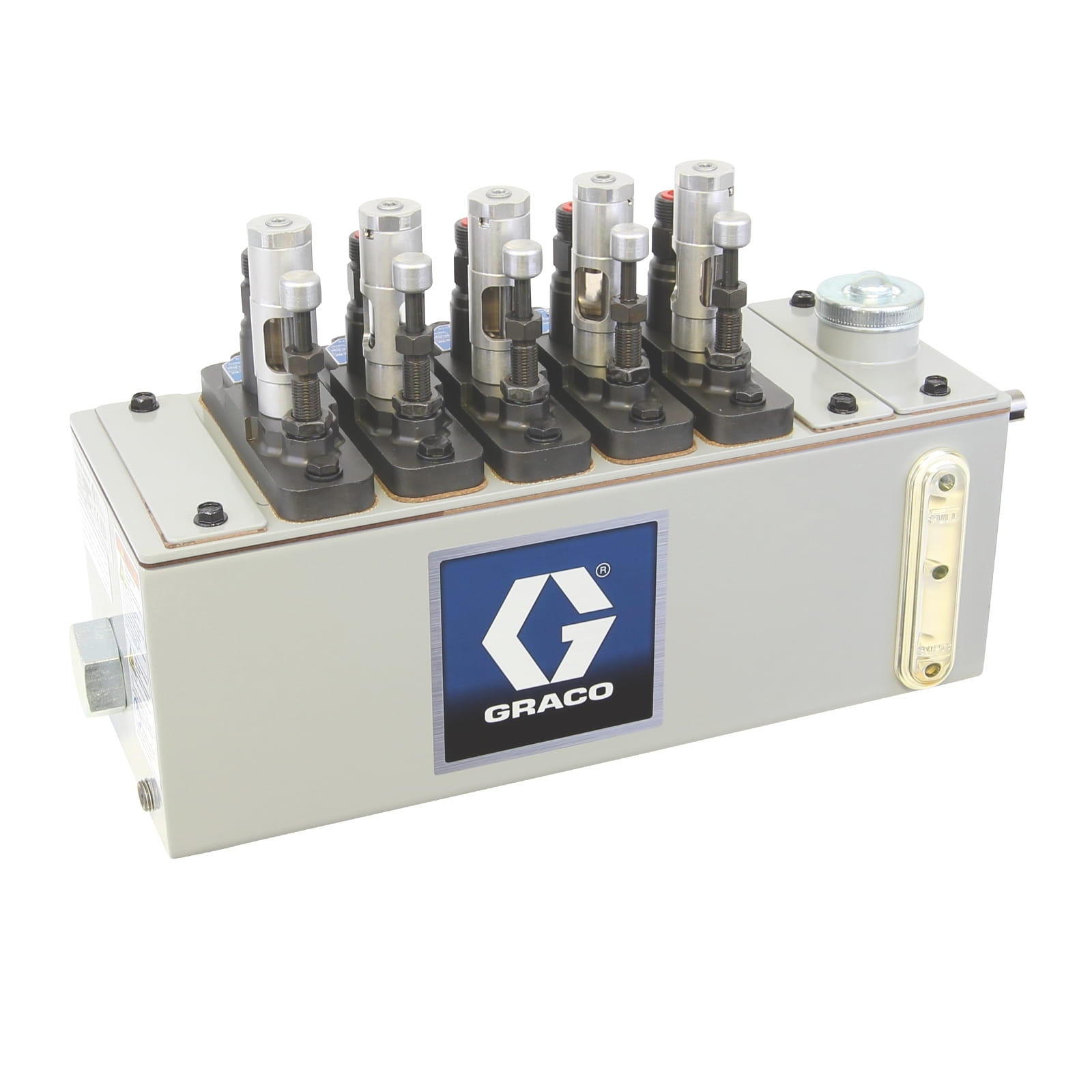

Manzel® MB series lubricator 3.79 litre container (8 pints) (max. 6 pump stations), 1/4" GBL 7500 pump (5 pcs.), 118:1

€5,297.88*

Prices include VAT plus shipping costs

€4,452.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Worldwide Shipping

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco Manzel Box Oiler - when quality and output count! The Manzel MB118 is manufactured to Graco quality for long life and durability and is the right size and durability for triplex and quintuplex slurry pump applications.

A proven, cost-effective way to assemble customised oil systems with standard modular components for specific requirements
An opportunity to standardise lubrication system components and reduce maintenance costs
3.79 litre (8 pint) reservoir (max. 6 pump stations), 1/4" GBL 7500 pump (5 pcs.), 118:1

Cam type:	Single cam
Compatible material:	oil
Drive option:	Internal gear reduction
Drive position:	Right bracket
Gear ratio Lubricant:	118:1
Gender of the outlet thread:	Internal thread
Lubricant supply type:	Suction feed, injection
Maximum dosing output (rpm):	1800s
Maximum material viscosity (SUS):	5000
Maximum number of drops per stroke (drops/stroke):	12
Maximum number of pumping stations:	6
Maximum number of strokes (strokes/min):	50
Maximum operating pressure (kPa):	41369
Maximum operating pressure (psi):	6000
Maximum operating temperature (°C):	60
Maximum outlet pressure (psi):	6000
Maximum output displacement (drop/stroke):	12
Maximum reservoir capacity (L):	2.8
Minimum drive speed (rpm):	354
Minimum material viscosity (SUS):	80
Minimum number of strokes (strokes/min):	3
Minimum operating temperature (°C):	-29
Model:	Manzel
Number of pumps:	5
Outlet size (inch):	1/8
Outlet thread type:	NPT, NPT (I)
Permissible operating pressure (bar):	414
Piston size (cm):	0.64
Piston size (mm):	6.35
Pump size (cm):	635
Pump size (mm):	6.35
Reservoir material:	Steel
Series:	MB
Total depth (cm):	40.3
Total depth (mm):	403.4
Total height (cm):	24.6
Total height (mm):	245
Total width (cm):	13.97
Total width (mm):	139.7
Type:	Box lubrication
Wetted material:	Mild steel, nylon, fluoroelastomer, cork, brass, aluminum

More information

Product number: 1035044
Manufacturer: Graco
EAN: 00755652280002
Weight: 19.504 kg

Technical details

Specifications

Operating specifications

UPC product	755652280002
Division	LED
Price Block	126
Country of origin	US
Unit of measurement	EA
Height	0 CM
Length	0 CM
Width	0 CM
Volume	0 M3
Shipping weight	19.5 KG

Technical

Cam type	Single lobe
Drive Option	Internal Gear Reduction
Includes	24J392 GBL 7500 1/4" suction pumps (qty 5 )
Lubricator Gear Ratio	118: 1
Maximum Drive Speed (RPM)	1 8 00
Maximum fluid viscosity (SUS)	5 0 00
Maximum number of drops per stroke (drops/stroke)	12
Maximum number of pump stations	6
Maximum number of strokes (SPM)	50
Maximum operating temperature (°C)	60
Maximum operating temperature (°F)	1 4 0
Maximum outlet pressure (psi)	6000
Maximum output displacement (drops/stroke)	12
Maximum output volume (in³)	0. 024
Maximum reservoir capacity (gal)	0. 75
Maximum reservoir capacity (L)	2. 8
Maximum reservoir capacity (pt)	6
Maximum reservoir capacity (qt)	3
Maximum working pressure (bar)	4 14
Maximum working pressure (kPa)	4 1 369
Maximum working pressure (psi)	6000
Minimum Drive Speed (RPM)	354
Minimum fluid viscosity (SUS)	80
Minimum number of strokes (SPM)	3
Minimum operating temperature (°C)	-29
Minimum operating temperature (°F)	-20
Number of pumps	5
Outlet Size (in)	1/8
Outlet Thread Gender	Female
Overall Depth (cm)	40. 3
Overall Depth (in)	15. 88
Overall Depth (mm)	403. 4
Overall height (cm)	24. 6
Overall height (in)	9. 67
Overall height (mm)	2 45
Overall width (cm)	13. 97
Overall width (in)	5. 5
Overall width (mm)	139. 7
Piston size (cm)	0. 64
Piston size (in)	0. 25
Piston size (mm)	6. 35
Pump size (cm)	0. 635
Pump size (in)	1/4
Pump size (mm)	6. 35
Reservoir material	Ste el
Series	MB
Model	Manz el
