Manufacturer no.:
17H224
Magnum A60 ProPlus electric airless sprayers
Price on request
Ready for shipping in 5-8 days
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number:
1037061
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Our payment methods:
Custom image 1
Question about this product?
We are here for you. Mon-Fri, 9am - 4pm
Also interesting
Product information

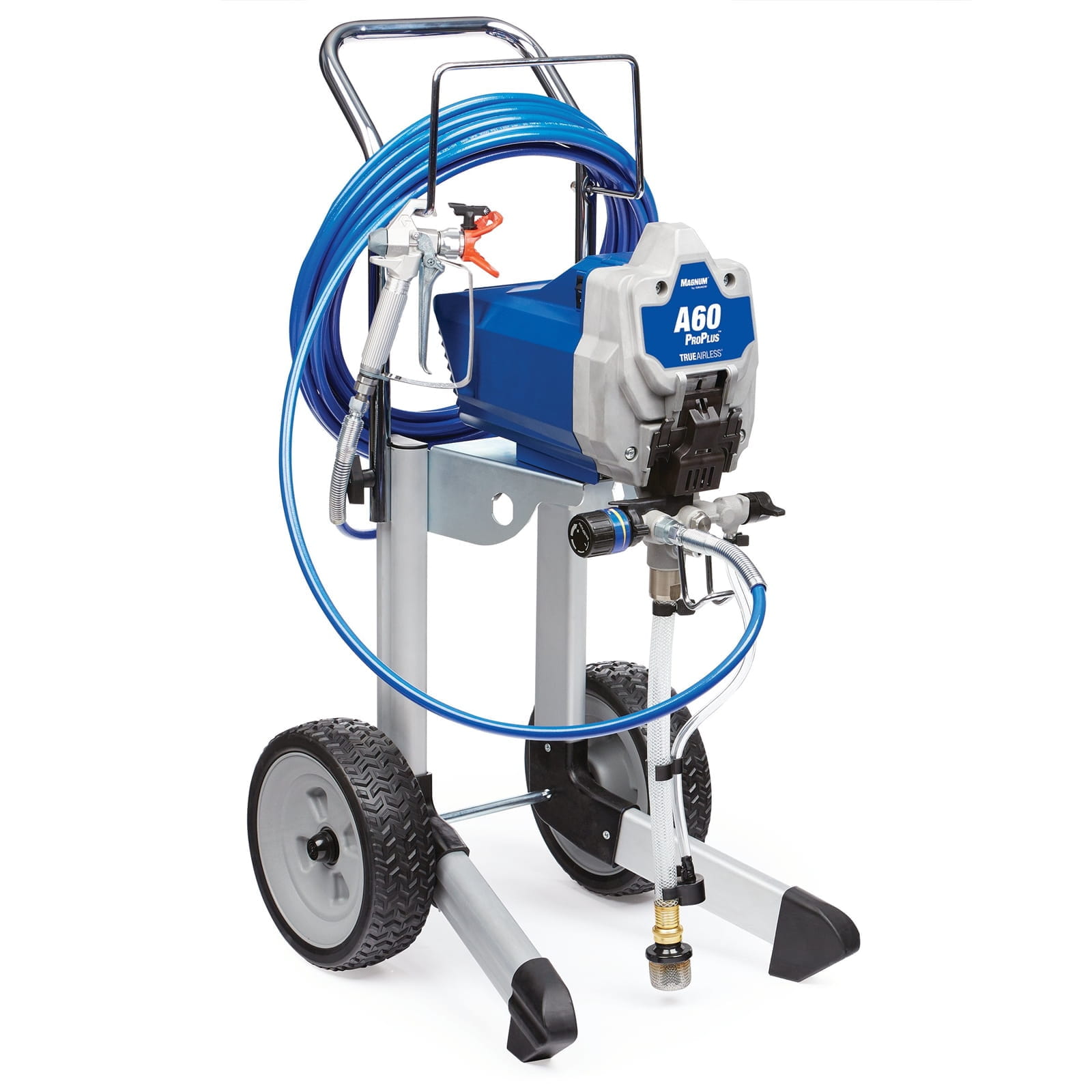

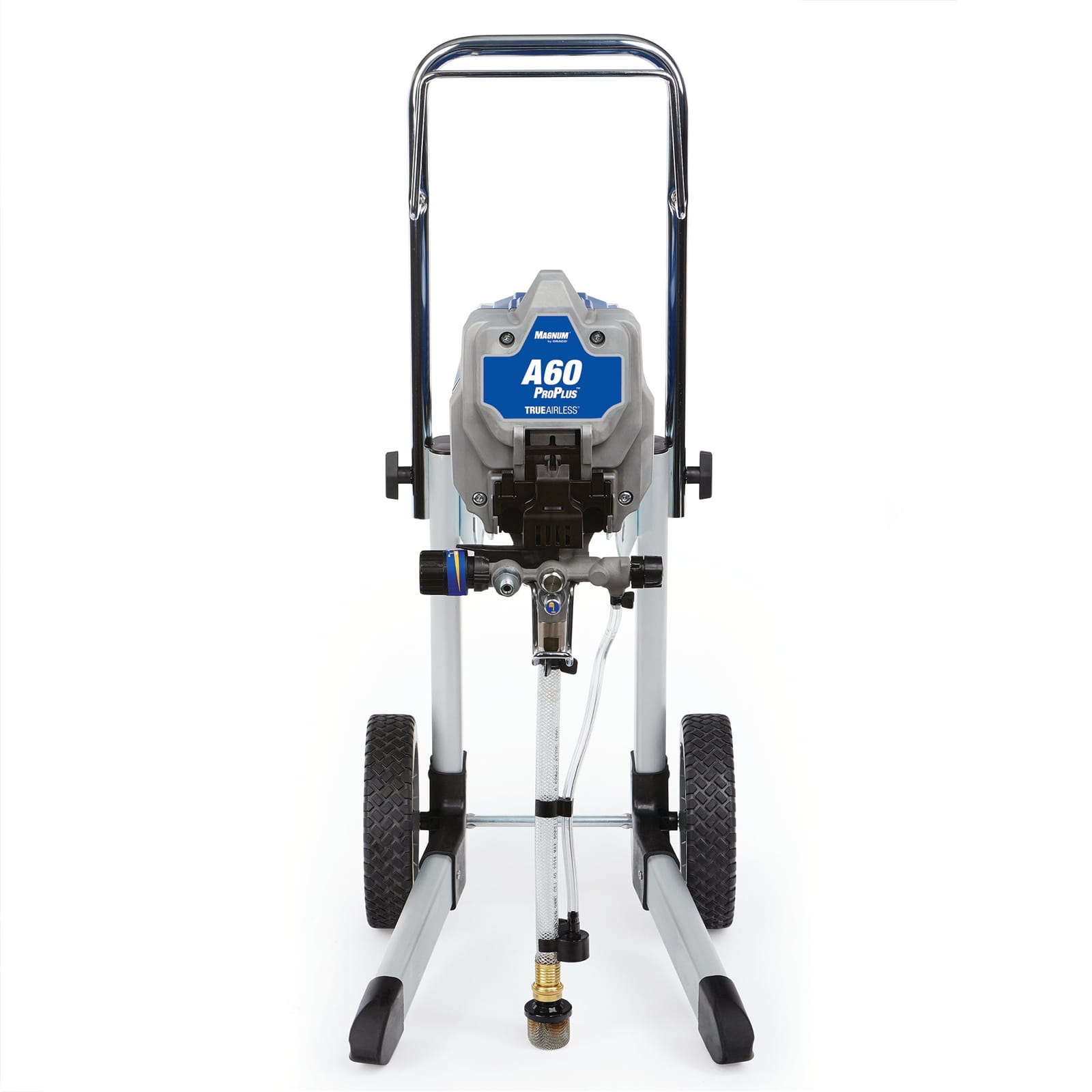

The Magnum A60 ProPlus system is designed for a wide range of painting and finishing jobs, both indoors and out. It is suitable for large and small projects and is even used on large construction sites. Choose the Magnum A60 ProPlus with integrated trolley and you'll complete your painting and coating jobs even faster and more efficiently. This workhorse saves you both time and money, as it can spray viscous coating materials and eliminates downtime with its quick on-site pump change capability.
- ProX stainless steel piston pump – for more reliability and a longer service life
- ProXChange pump system – eliminates downtime with the ability to quickly change pumps on-site without tools
- DC motor – particularly durable and suitable for airless hoses up to 45 m in length
- PushPrime – for quick and easy start-up
- SG3 metal spray gun – the premium spray gun with swivel joint prevents twisting, even with long hoses
- TrueAirless spray tip with SoftSpray technology – for more control and less overspray across a wide range of coatings
- Practical trolley – for mobile use of the sprayer at any location
- Pressure adjustment – easily control the paint flow
- InstaClean pump filter – the additional filter effect prevents nozzle blockages caused by particles in the paint
- Power-Flush adapter – can be connected to any garden hose for quick and easy cleaning
| Item type: | Airless Spritzgerät |
|---|
More information
- Product number: 1037061
- Manufacturer: Graco
- EAN: 00755652294931
- Weight: 24.2 kg
- Length: 450 mm
- Width: 550 mm
- Height: 790 mm
Technical details
Operating specifications
| UPC product | 755652294931 |
|---|---|
| Division | CED |
| Price Block | 061 |
| Country of Origin | US |
| Unit | EA |
| Height | 79 CM |
| Length | 45 CM |
| Width | 55 cm |
| Volume | . 196 m³ |
| Shipping weight | 24 KG |
Technical
| Convertible | Non - convertible |
|---|---|
| Engine size (HP) | 0. 875 |
| Engine size (kW) | 0. 65 |
| Fluid inlet size (in) | 1-1/4 |
| Fluid inlet size (mm) | 31. 75 |
| Fluid outlet size (mm) | 6. 35 |
| Frame Configuration | Cart |
| Hose inlet diameter (cm) | 0. 635 |
| Hose inlet diameter (in) | 1/4 |
| Hose inlet diameter (mm) | 6. 35 |
| Includes | SG3 Spray Gun, TrueAirless 515 Spray Tip, RAC5 Spray Tip Guard, 1/4 in x 15 m DuraFlex Hose, Pump Armor Storage Fluid (235 ml), Garden Hose Connector, Quick Start-Up Guide and Operational Manual |
| Maximum flow rate (L/min) | 1. 44 |
| Maximum hose length (ft) | 1 5 0 |
| Maximum hose length (m) | 45 |
| Maximum tip size (in) | 0. 019 |
| Maximum working pressure (psi) | 3000 |
| Maximum working pressure (kPa) | 2 0 700 |
| Power Rating (HP) | 0. 875 |
| Power rating (kW) | 0. 65 |
| Power rating (W) | 653 |
| Maximum working pressure (MPa) | 20. 7 |
| Power cord length (cm) | 180 |
| Pressure control type | Adjustable |
| Power cord length (in) | 70. 9200 |
| Power cord length (mm) | 1801. 3680 |
| Overall Width (mm) | 523. 2400 |
| Model | Magnum |
| Maximum working pressure (bar) | 2 07 |
| Overall Height (cm) | 93 |
| Overall height (in) | 36. 7 |
| Weight (kg) | 17. 1 |
| Overall height (mm) | 932. 1800 |
| Overall length (cm) | 51. 3 |
| Overall width (in) | 20. 6 |
| Overall Length (in) | 20. 2 |
| Series | A60 ProPlus |
| Overall Length (mm) | 513. 08 |
| Overall width (cm) | 43. 7 |
| Compatible tip size (in) | 0.009, 0.011, 0.013, 0.015, 0.017, 0. 019 |
| Maximum working pressure (kg/cm²) | 20. 7 |
| Hose diameter (in) | 1/4 |
| Fluid hose inside diameter (in) | 1/4 |
| Outlet paint filter | InstaClean |
| Frequency (Hz) | 50 |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Hardened stainless steel |
| Minimum generator power (W) | 2 500 |
| Number of Guns | 1 |
| Filter mesh size | 60 |
| Amperage (A) | 9 |
| Recommended annual usage | 1500 L |
| Mounting type | ProXchange |
| Maximum operating temperature (°C) | 46 |
| Maximum operating temperature (°F) | 115 |
| Minimum operating temperature (°C) | 4 |
| Minimum operating temperature (°F) | 40 |
| Product Series | Pro Series |
| region_plug_type | EU region (Type C, E & F plug ) |
