Manufacturer no.:
25C759

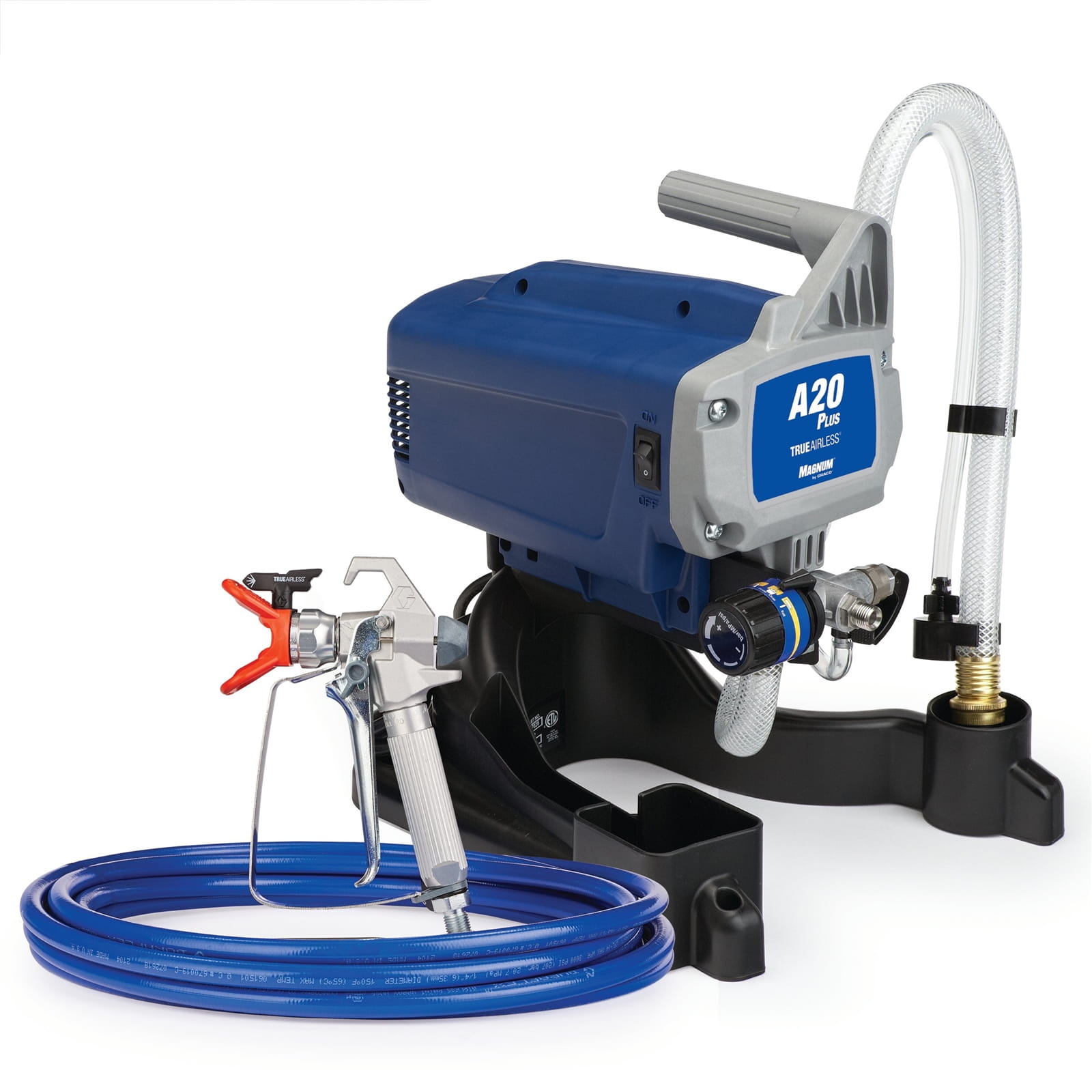

Magnum A20 Plus electric airless sprayers, Switzerland
€1,029.35*
Prices include VAT plus shipping costs
€865.00*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
With our Magnum A20 Plus, all painting jobs in your home can be completed quickly and efficiently – it is also suitable for DIYers who are not yet familiar with paint sprayers. This sprayer is suitable for a wide range of DIY jobs around the home, both inside and outside, and draws the material directly from the paint bucket.
- Stainless steel piston pump – high pressure function for applying undiluted paint and coating materials
- Adjustable pressure control – easily control the flow of paint
Flexible suction tube – draws material directly from the paint bucket; suitable for small to medium-sized projects
- TrueAirless spray tip with SoftSpray technology – for more control and less overspray across a wide range of coatings
- Power Flush adapter – connects to any garden hose for quick and easy clean-out
- Compact design – robust and space-saving units with integrated paint bucket suspension, so that everything can be carried in one
- Additional storage compartments – plenty of space for neatly stowing spray guns, replacement nozzles and power cables
| Compatible nozzle size (inch): | 0.009, 0.011, 0.013, 0.015 |
|---|---|
| Frame configuration: | carrying frame |
| Frequency (Hz): | 50 |
| Hose diameter (inch): | 1/4 |
| Hose inlet diameter (inch): | 1/4 |
| Hose inlet diameter (mm): | 6.35 |
| Includes: | SG2 spray gun, TrueAirless 515 spray tip, RAC5 tip guard, DuraFlex 1/4" x 7.5m hose, Pump Armor storage fluid (235ml), garden hose connector, quick start guide and user manual |
| Inlet colour screen: | 35 mesh stainless steel strainer |
| Inner diameter of material hose (inch): | 1/4 |
| Length of mains cable (cm): | 180 |
| Material inlet thread type: | NPSM |
| Material outlet size (mm): | 6.35 |
| Material outlet thread type: | NPSM |
| Maximum delivery rate (L/min): | 0.91 |
| Maximum hose length (m): | 15 |
| Maximum nozzle size (cm): | 381 |
| Maximum nozzle size (inch): | 15 |
| Maximum operating pressure (psi): | 3000 |
| Maximum operating temperature (°C): | 46 |
| Minimum generator output (W): | 1500 |
| Minimum operating temperature (°C): | 4 |
| Model: | Magnum |
| Number of guns: | 1 |
| Permissible operating overpressure (psi): | 3000 |
| Permissible operating pressure (bar): | 207 |
| Pressure control type: | Adjustable |
| Product series: | Appliances for the home |
| Pump rod type: | Hardened stainless steel |
| Pump sleeve material: | stainless steel |
| Recommended annual consumption: | 150 L |
| Region Plug type: | CH region (plug type J) |
| Series: | A20 Plus |
| Size of the material inlet opening (inches): | 1-1/4 |
| Size of the material inlet opening (mm): | 31.75 |
| Size of the material outlet opening (inches): | 1/4 |
| Spray gun type: | SG2 spray gun |
| Spraying technology: | Airless |
| Supply voltage: | Electric |
| Total height (cm): | 45.5 |
| Total length (cm): | 36.8 |
| Total width (cm): | 31.5 |
| Type: | Airless sprayer |
| Voltage (V): | 230 |
| Weight (kg): | 6 |
| Wetted material: | Stainless Steel, Brass, Carbide, Nylon, PVC, Polypropylene, Fluoroelastomer, UHMWPE, Galvanized Carbon Steel, Aluminum |
More information
- Product number: 1031158
- Manufacturer: Graco
- EAN: 00755652630494
- Weight: 7.6 kg
- Length: 370 mm
- Width: 320 mm
- Height: 370 mm
Technical details
Operating specifications
| UPC product | 755652630494 |
|---|---|
| Division | CED |
| Price Block | 061 |
| Country of Origin | US |
| Unit | EA |
| Height | 37 CM |
| Length | 37 cm |
| Width | 32 cm |
| Volume | . 044 m³ |
| Shipping weight | 7 .6 KG |
Engine
| Engine size (HP) | 0. 375 |
|---|---|
| Fluid inlet size (in) | 1-1/4 |
| Fluid inlet size (mm) | 31. 75 |
| Fluid outlet size (mm) | 6. 35 |
| Frame Configuration | Stand |
| Hose inlet diameter (in) | 1/4 |
| Hose inlet diameter (mm) | 6. 35 |
| Includes | SG2 Spray Gun, TrueAirless 515 Spray Tip, RAC5 Spray Tip Guard, 1/4 in x 7.5 m DuraFlex Hose, Pump Armor Storage Fluid (235 ml), Garden Hose Connector, Quick Start-Up Guide and Operational Manual |
| Maximum flow rate (L/min) | 0. 91 |
| Maximum hose length (ft) | 50 |
| Maximum hose length (m) | 15 |
| Maximum tip size (in) | 0. 015 |
| Maximum working pressure (psi) | 3000 |
| Power Rating (HP) | 0. 375 |
| Power cord length (cm) | 180 |
| Pressure control type | Adjustable |
| Model | Magnum |
| Maximum working pressure (bar) | 2 07 |
| Overall Height (cm) | 45. 5 |
| Overall height (in) | 17. 9 |
| Weight (kg) | 6 |
| Overall Length (cm) | 36. 8 |
| Overall width (in) | 12. 4 |
| Overall Length (in) | 14. 5 |
| Series | A20 Plus |
| Overall Width (cm) | 31. 5 |
| Compatible tip size (in) | 0.009, 0.011, 0.013, 0. 015 |
| Hose diameter (in) | 1/4 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Frequency (Hz) | 50 |
| Pump rod type | Hardened stainless steel |
| Minimum generator power (W) | 150 |
| Number of Guns | 1 |
| Amperage (A) | 9 |
| Recommended annual usage | 150 L |
| Maximum operating temperature (°C) | 46 |
| Maximum operating temperature (°F) | 115 |
| Minimum operating temperature (°C) | 4 |
| Minimum operating temperature (°F) | 40 |
| Product Series | Household Range |
| region_plug_type | CH region (Type J plug ) |
