Manufacturer no.:
24H663

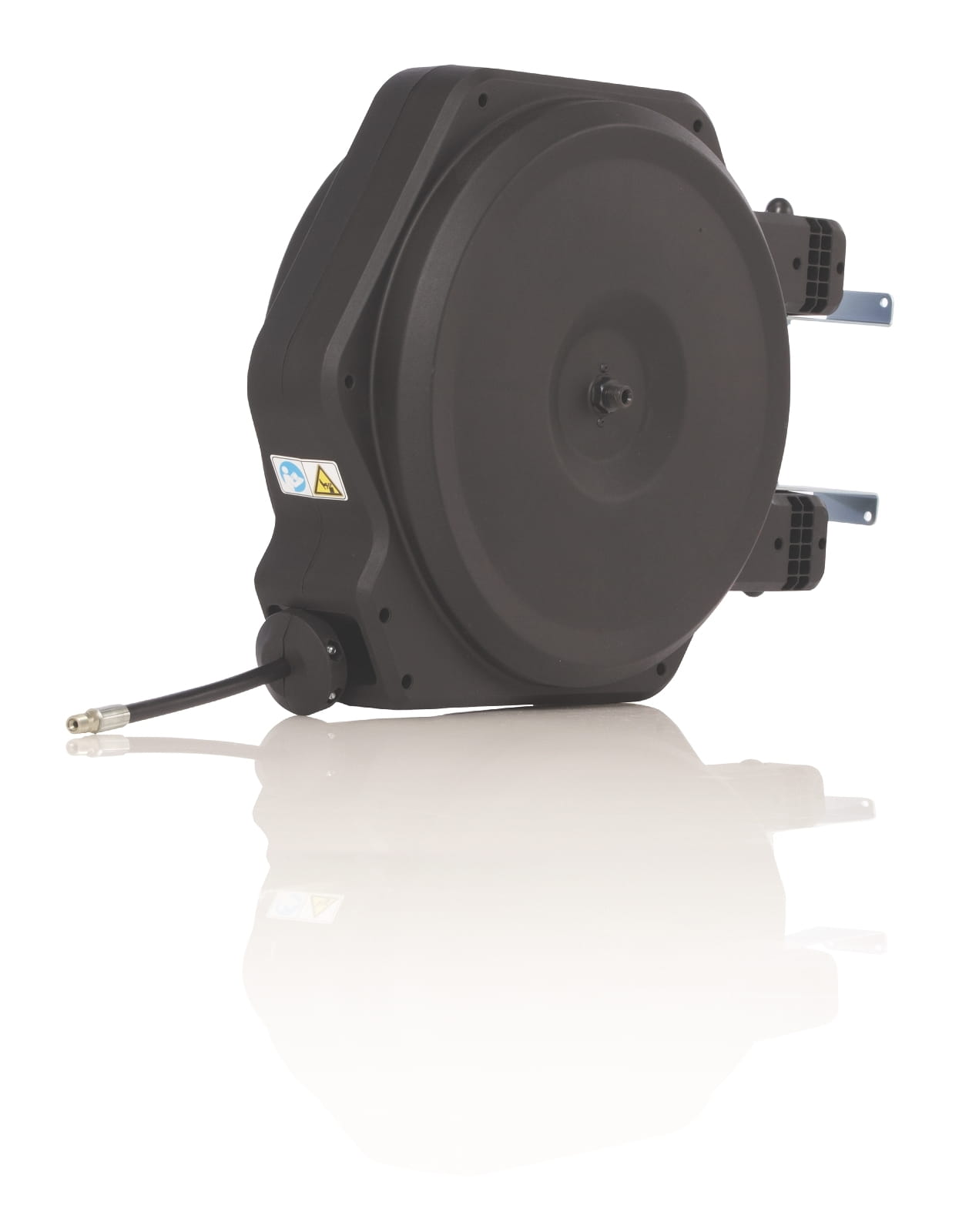

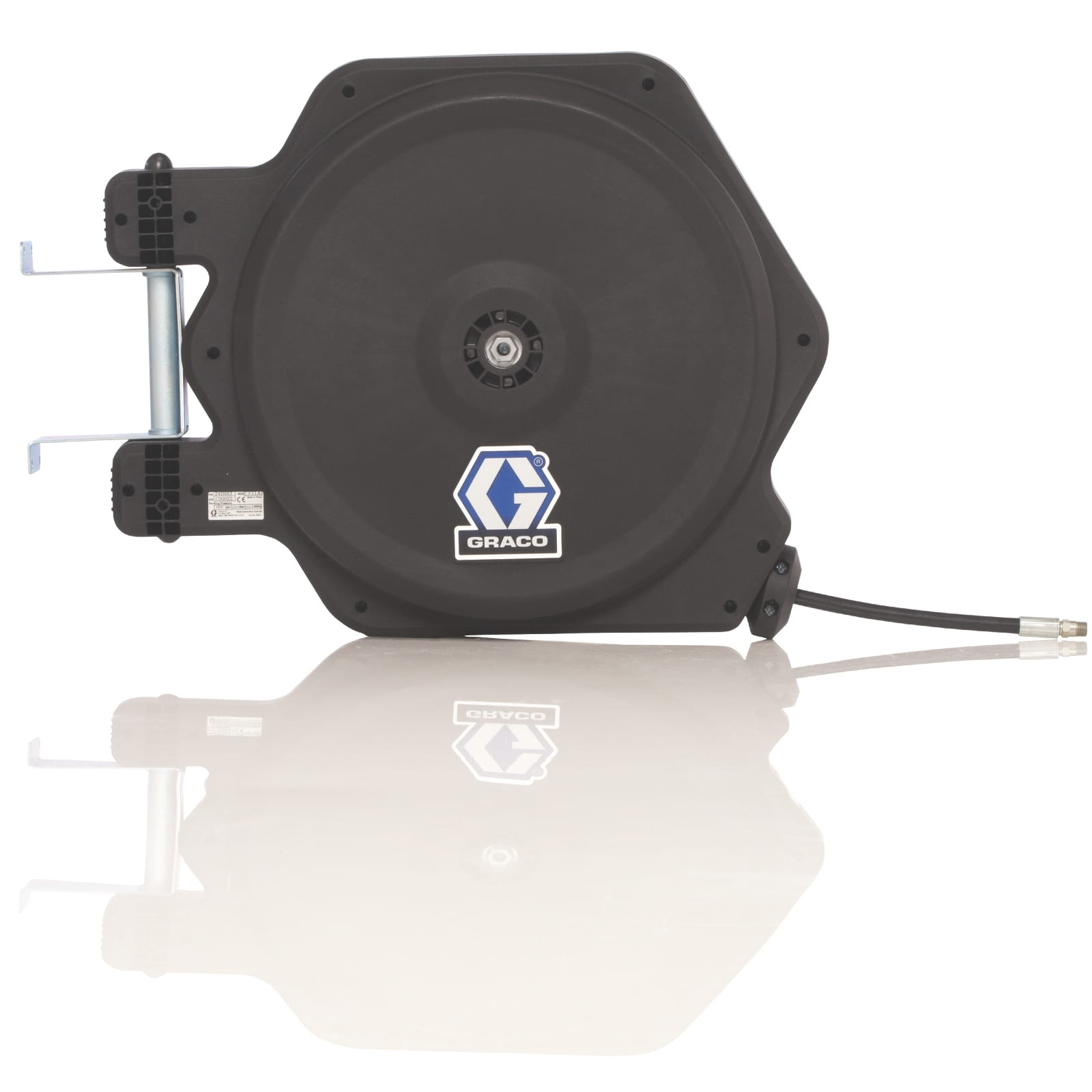

LD™ series, grease, 10 mm (3/8") inlet, 6 mm x 11 m (1/4" x 35 ft) hose, NPT, without mounting kit, without inlet kit, black
€647.36*
Prices include VAT plus shipping costs
€544.00*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
Graco's one-piece enclosed hose reels keep the workplace organised and safe.
Designed for light-duty applications in sales offices, service and body shops and industrial manufacturing facilities.
- Large material connection - Maximises material flow with minimal pressure drop
- Easy spring tension adjustment - Spring tension can be easily increased or decreased when the retractor is pressurised.
- Complete housing - Robust, dent-proof, corrosion-resistant housing
| Application: | Fat |
|---|---|
| Colour: | Black |
| Frame type: | Housing |
| Hose length (m): | 11 |
| Hose reel type: | Reel with hose |
| Inlet size (inch): | 3/8 |
| Inlet size (mm): | 9,525 |
| Inlet thread type: | NPT |
| Inner diameter hose (inch): | 1/4 |
| Inner diameter hose (mm): | 6.35 |
| Maximum operating pressure (psi): | 5000 |
| Maximum temperature (°C): | 60 |
| Model: | LD |
| Outlet size (inch): | 1/4 |
| Outlet size (mm): | 6.35 |
| Recommended environment: | Interior |
| Recommended material type: | Fat |
| Reel thread type: | NPT |
| Type: | Spring reel |
| Wetted parts: | mild steel, Buna-N |
More information
- Product number: 1039738
- Manufacturer: Graco
- EAN: 00633955617094
- Weight: 15 kg
- Length: 595 mm
- Width: 210 mm
- Height: 510 mm
Technical details
Operating specifications
| UPC product | 633955617094 |
|---|---|
| Division | LED |
| Price Block | 148 |
| Country of Origin | CN |
| Unit | EA |
| Height | 51 CM |
| Length | 59.5 CM |
| Width | 21 cm |
| Volume | 0 . 064 m³ |
| Shipping weight | 15 KG |
| HTS code (GB) | 4 0 09220090 |
| HTS code (EU) | 4 0 09220090 |
Technical
| Dry weight (lb) | 29. 1 |
|---|---|
| Hose inside diameter (mm) | 6. 35 |
| Inlet size (in) | 3/8 |
| Inlet size (mm) | 9. 525 |
| Maximum Temperature (°C) | 60 |
| Maximum temperature (°F) | 1 4 0 |
| Maximum working pressure (psi) | 5 0 00 |
| Outlet Size (in) | 1/4 |
| Outlet Size (mm) | 6. 35 |
| Frame Type | Enclosed |
| Reel thread type | NPT |
| Recommended fluid type | Gre ase |
| Hose reel type | Reel with hose |
| Model | LD |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (Deutsch)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (Suomi)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (한국어)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (日本語)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (中文)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (Italiano)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (English)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (Français)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (русский)
- 3A0017U - Eingeschlossene Schlauchaufroller der LD-Serie, Anweisungen (Español)
