Manufacturer no.:
24Y407
Hydraulic Dyna-Star® 10:1 41 kg (90 lb). Pump set - Discharge manifold, mechanical AFSO
€12,750.66*
% €14,783.37* (13.75% saved)Prices include VAT plus shipping costs
€10,714.84*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
Heavy-duty machinery and equipment in mining require fresh lubricant to protect critical pivot points from contamination. An automatic lubrication system from Graco keeps critical components lubricated and operational.
For use with Dyna-Star® 10:1 mobile lubrication systems for off-highway vehicles.

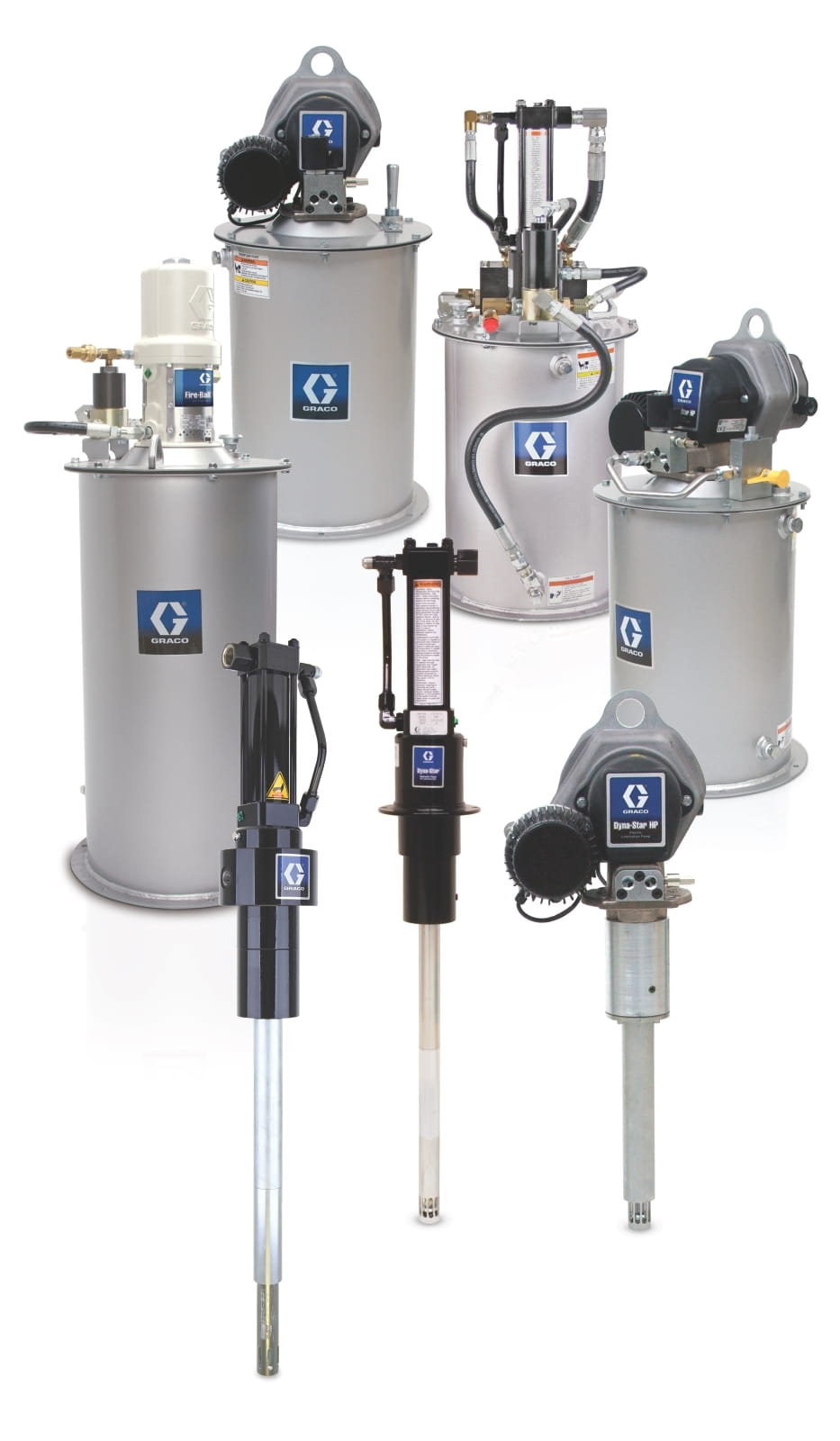

- Available in a variety of pump lengths (27kg, 54kg and 181kg) and reservoir sizes (27kg and 41kg) for all your off-road equipment.
- Pre-configured pump kits for spray nozzles or manifold valve systems give you maximum flexibility.
- With options such as Graco control, level indicator, pressure switch, follower plates and drum lids, you always have your system completely under control.
- Integrated monitoring of pressure and flow volume
- Hydraulic control module - easy setup and maintenance as the entire control system is integrated in one device
- Dyna-Star 10:1, pump set 41 kg (90 lb) - inlet manifold - automatic filling stop
| Air inlet size (inches): | 1/4 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | off-road vehicles |
| Compatible material: | Fat |
| Energy type: | Hydraulic |
| IP dimensioning: | IP69K |
| Material outlet size (mm): | 12,7000 |
| Material outlet thread type: | NPT |
| Maximum NLGI grade: | No. 2 |
| Maximum filling inlet pressure (bar): | 4.14 |
| Maximum filling inlet pressure (kPa): | 4140 |
| Maximum filling inlet pressure (psi): | 600 |
| Maximum operating pressure (MPa): | 24 |
| Maximum operating pressure (kPa): | 24000 |
| Maximum operating pressure (psi): | 3500 |
| Minimum cST degree (cST): | 40 |
| Permissible operating pressure (bar): | 240 |
| Size of the air inlet (mm): | 6.35 |
| Size of the material outlet opening (inches): | 0.5 |
| Total height (cm): | 86.1 |
| Total height (mm): | 861 |
| Type: | Hydraulic piston pump |
More information
- Product number: 1037223
- Manufacturer: Graco
- EAN: 00755652357292
Technical details
Operating specifications
| UPC product | 755652357292 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of Origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 0 KG |
Technical
| Air inlet size (in) | 1/4 |
|---|---|
| Air inlet size (mm) | 6. 35 |
| Fluid outlet size (mm) | 12. 7000 |
| Maximum NLGI Grade | #2 |
| Maximum working pressure (bar) | 2 4 0 |
| Maximum working pressure (kPa) | 2 4 000 |
| Maximum working pressure (psi) | 3 5 00 |
| IP Rating | IP 6 9K |
| Maximum fill inlet pressure (bar) | 4. 14 |
| Maximum fill inlet pressure (kPa) | 4140 |
| Maximum fill inlet pressure (psi) | 600 |
| Minimum cST Grade (cST) | 40 |
| Overall Height (cm) | 86. 1 |
| Overall height (in) | 33. 9 |
| Overall height (mm) | 861 |
| Maximum working pressure (MPa) | 2 4 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A3429D, Manual, 10:1 Dyna-star Pump Module with Auto-Fill Shutoff, Instructions, Repair, English (Deutsch)
- 3A3429D, Manual, 10:1 Dyna-star Pump Module with Auto-Fill Shutoff, Instructions, Repair, English (русский)
- 312350L Dyna-Star Hydraulic Reciprocator and Pump, Instructions-Repair-Parts (English)
- 312350L Dyna-Star Hydraulic Reciprocator and Pump, Instructions-Repair-Parts (русский)
