Manufacturer no.:
241906

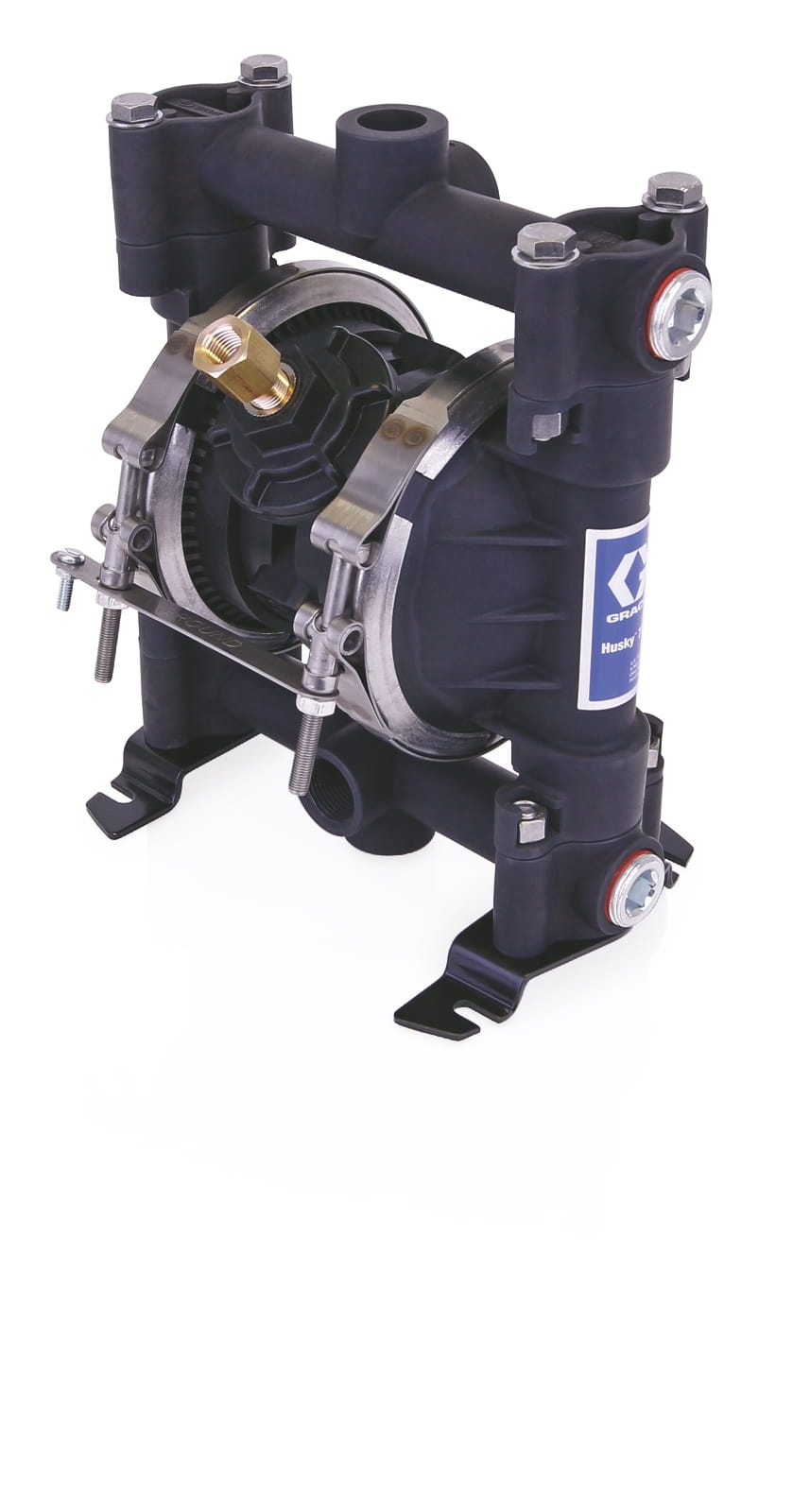

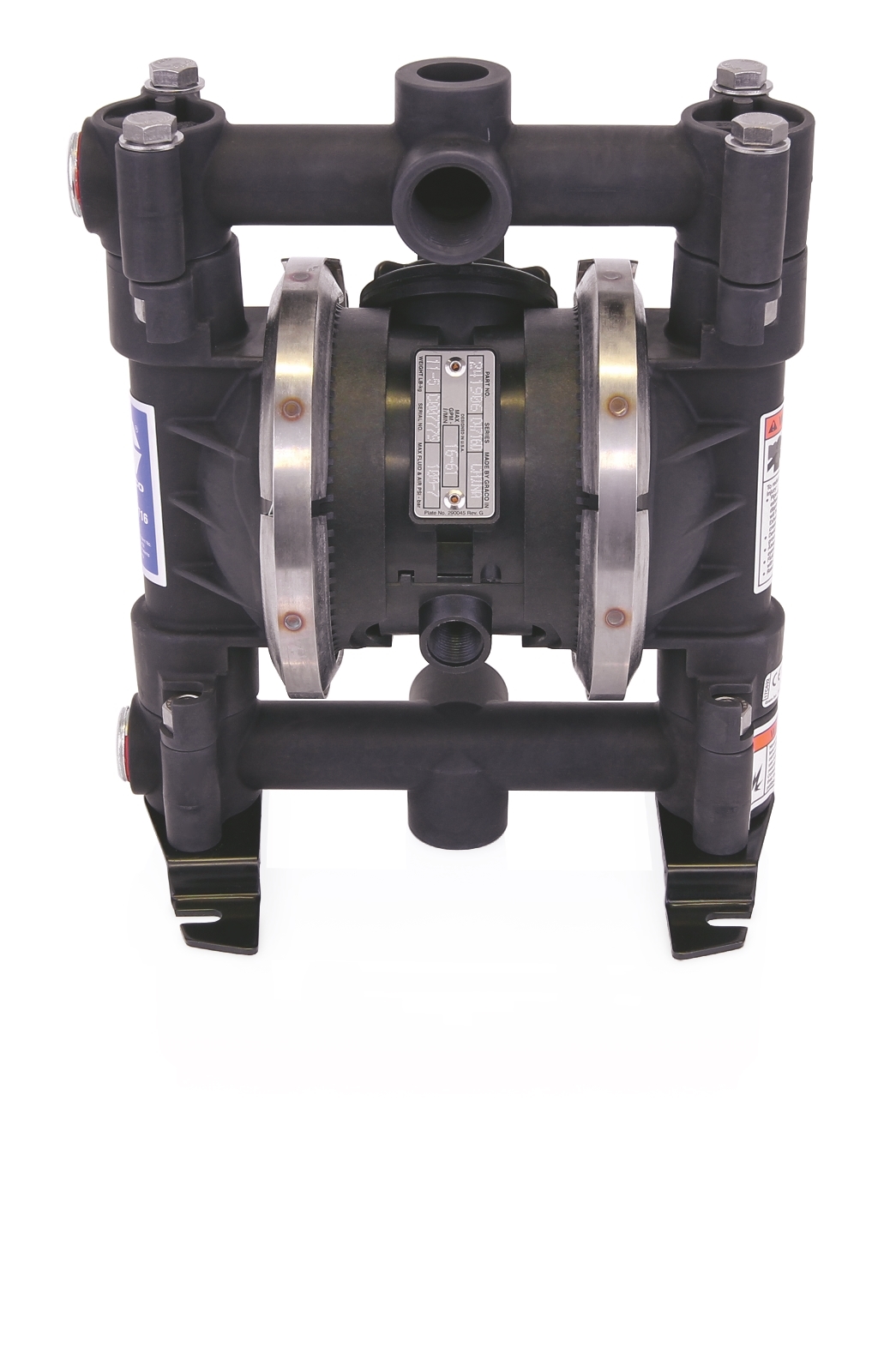

Husky 716 series air-operated double diaphragm feed pump for oil suction/delivery, water, antifreeze, windscreen washer fluid
Price on request
Ready for shipping in 5-8 days
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number:
1037647
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Our payment methods:
Custom image 1
Question about this product?
We are here for you. Mon-Fri, 9am - 4pm
Also interesting
Product information
The Husky 716 air-operated diaphragm pump delivers up to 60.6 l/min (16 g/min) of material and has centre and end opening options.
Ideal for pumping antifreeze and windscreen solvent in large quantities.
- Centre housing and end opening
- No mechanical seals to cause material leakage or failure
- Quiet running at less than 85 dB(A) with user-friendly remote silencer for even lower noise levels
- Easy to maintain air and ball check valves
- 19.05 mm (3/4'') centre and end opening
- No seals that can cause leaks or fail
- Quiet operation; less than 85 dB(A) with user-friendly remote silencer for even lower noise levels
- Easy to maintain air and ball check valves
| Item type: | Komplettgerät |
|---|---|
| Pumps: | Doppelmembran-Pumpe |
More information
- Product number: 1037647
- Manufacturer: Graco
- EAN: 00633955906143
- Weight: 3.875 kg
- Length: 300 mm
- Width: 270 mm
- Height: 210 mm
Technical details
Operating specifications
| UPC product | 6 3 3955906143 |
|---|---|
| Division | LED |
| Price Block | 003 |
| Country of Origin | US |
| Unit | EA |
| Height | 21 CM |
| Length | 30 cm |
| Width | 27 cm |
| Volume | . 017 m³ |
| Shipping weight | 4 .88 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/ |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/4 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 1. 905 |
| Fluid inlet size (in) | 3/4 |
| Fluid inlet size (mm) | 19. 05 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 1. 905 |
| Fluid outlet size (mm) | 19. 05 |
| Fluid outlet thread gender | Female |
| For use with | Oil, water, antifreeze, washer fluid, used oil |
| Maximum Air Consumption (SCFM) | 2 8 |
| Maximum Air Pressure (bar) | 7 |
| Maximum air pressure (kPa) | 700 |
| Maximum air pressure (psi) | 100 |
| Maximum cycle rate (CPM) | 400 |
| Maximum flow rate (L/min) | 60. 6 |
| Maximum fluid pressure (bar) | 7 |
| Maximum fluid pressure (kPa) | 700 |
| Maximum fluid pressure (psi) | 100 |
| Maximum operating temperature (°C) | 82 |
| Maximum operating temperature (°F) | 180 |
| Maximum solid size (cm) | 0. 2383 |
| Maximum solid size (in) | 0. 09375 |
| Maximum solid size (mm) | 2. 4 |
| Model | H usky |
| Overall height (in) | 10. 43 |
| Series | 716 |
| Maximum fluid pressure (MPa) | 0. 7 |
| Maximum air pressure (MPa) | 0. 7 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 308573ZAE, Manual, Husky 716 Air-Operated Diaphragm Pump, Instructions, Parts List, English (English)
- 308573ZAE, Manual, Husky 716 Air-Operated Diaphragm Pump, Instructions, Parts List, English (Čeština)
- 308573ZAE, Manual, Husky 716 Air-Operated Diaphragm Pump, Instructions, Parts List, English (Svenska)
- 308573ZAE, Manual, Husky 716 Air-Operated Diaphragm Pump, Instructions, Parts List, English (русский)
- 308589A 238084 Air Restrictor Kit (Deutsch)
- 308589A 238084 Air Restrictor Kit (Čeština)
- 308589A 238084 Air Restrictor Kit (Svenska)
- 308589A 238084 Air Restrictor Kit (русский)
CAD Drawings
