Manufacturer no.:
246485

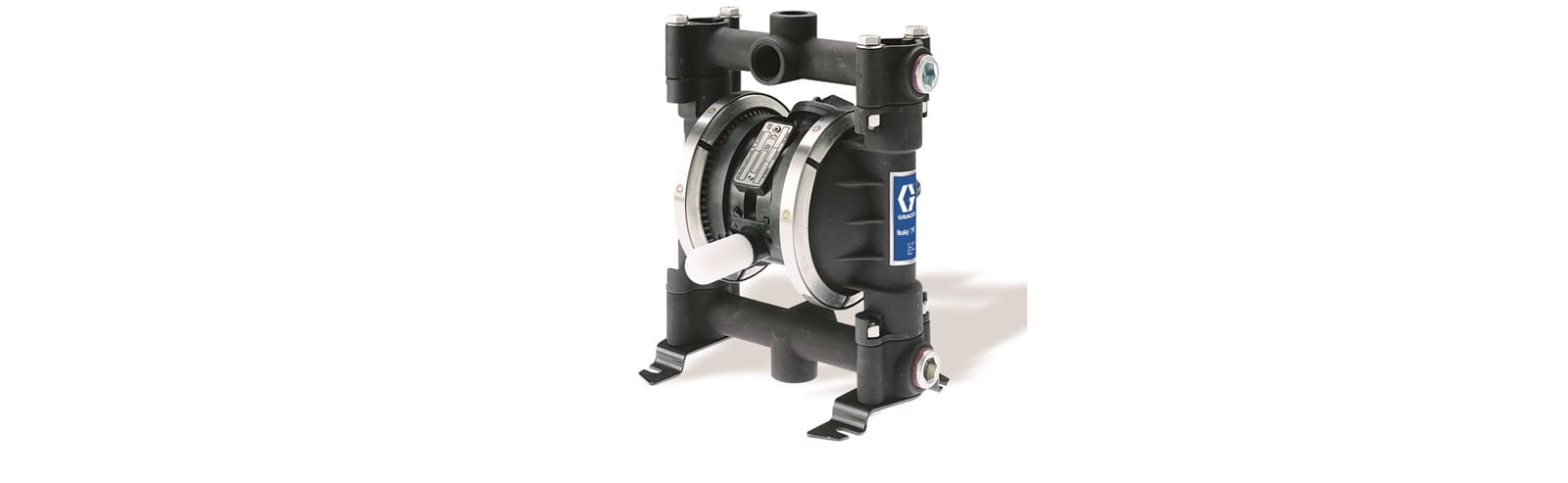

Husky 716 diaphragm pump
Price on request
Ready for shipping in 5-8 days
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number:
1039804
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Our payment methods:
Custom image 1
Question about this product?
We are here for you. Mon-Fri, 9am - 4pm
Also interesting
Product information
| Item type: | Komplettgerät |
|---|---|
| Pumps: | Membranpumpe |
More information
- Product number: 1039804
- Manufacturer: Graco
- EAN: 00633955016804
- Weight: 3 kg
- Length: 270 mm
- Width: 210 mm
- Height: 330 mm
Technical details
Operating specifications
| UPC product | 6 3 3955016804 |
|---|---|
| Division | CED |
| Price Block | 026 |
| Country of origin | US |
| Unit | EA |
| Height | 33 CM |
| Length | 27 cm |
| Width | 21 cm |
| Volume | . 019 m³ |
| Shipping weight | 5 .08 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/ |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/4 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 1. 905 |
| Fluid inlet size (in) | 3/4 |
| Fluid inlet size (mm) | 19. 05 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 1. 905 |
| Fluid outlet size (mm) | 19. 05 |
| Fluid outlet thread gender | Female |
| Maximum air consumption (SCFM) | 2 8 |
| Maximum air pressure (bar) | 7 |
| Maximum air pressure (kPa) | 700 |
| Maximum air pressure (psi) | 100 |
| Maximum cycle rate (CPM) | 400 |
| Maximum flow rate (L/min) | 60. 6 |
| Maximum fluid pressure (bar) | 7 |
| Maximum fluid pressure (kPa) | 700 |
| Maximum fluid pressure (psi) | 100 |
| Maximum solid size (cm) | 0. 2383 |
| Maximum solid size (in) | 0. 09375 |
| Maximum solid size (mm) | 2. 4 |
| Model | H usky |
| Overall height (in) | 10. 43 |
| Series | 716 |
| Maximum fluid pressure (MPa) | 0. 7 |
| Maximum air pressure (MPa) | 0. 7 |
| Maximum working pressure (psi) | 100 |
| Maximum working pressure (MPa) | 0. 7 |
| Maximum working pressure (kPa) | 70 |
| Maximum working pressure (bar) | 7 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (Deutsch)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (Dansk)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (Nederlands)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (Suomi)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (Italiano)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (Norsk)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (русский)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (Svenska)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (Türkçe)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (Français)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (Español)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (中文)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (English)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (Polski)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (Português)
- 3A1951ZBB, Handbuch, Druckluftbetriebene Membranpumpen, Anleitunge (日本語)
Verkaufsliteratur
- 300435DE ProzessgeräteKatalog (Deutsch)
- 300435DE ProzessgeräteKatalog (English (UK))
- 300435DE ProzessgeräteKatalog (Español)
- 300435DE ProzessgeräteKatalog (Italiano)
- 300435DE ProzessgeräteKatalog (Français)
- 300435DE ProzessgeräteKatalog (Nederlands)
- 300435DE ProzessgeräteKatalog (русский)
- 300435DE ProzessgeräteKatalog (Türkçe)
Zertifizierungen
