Manufacturer no.:
244682

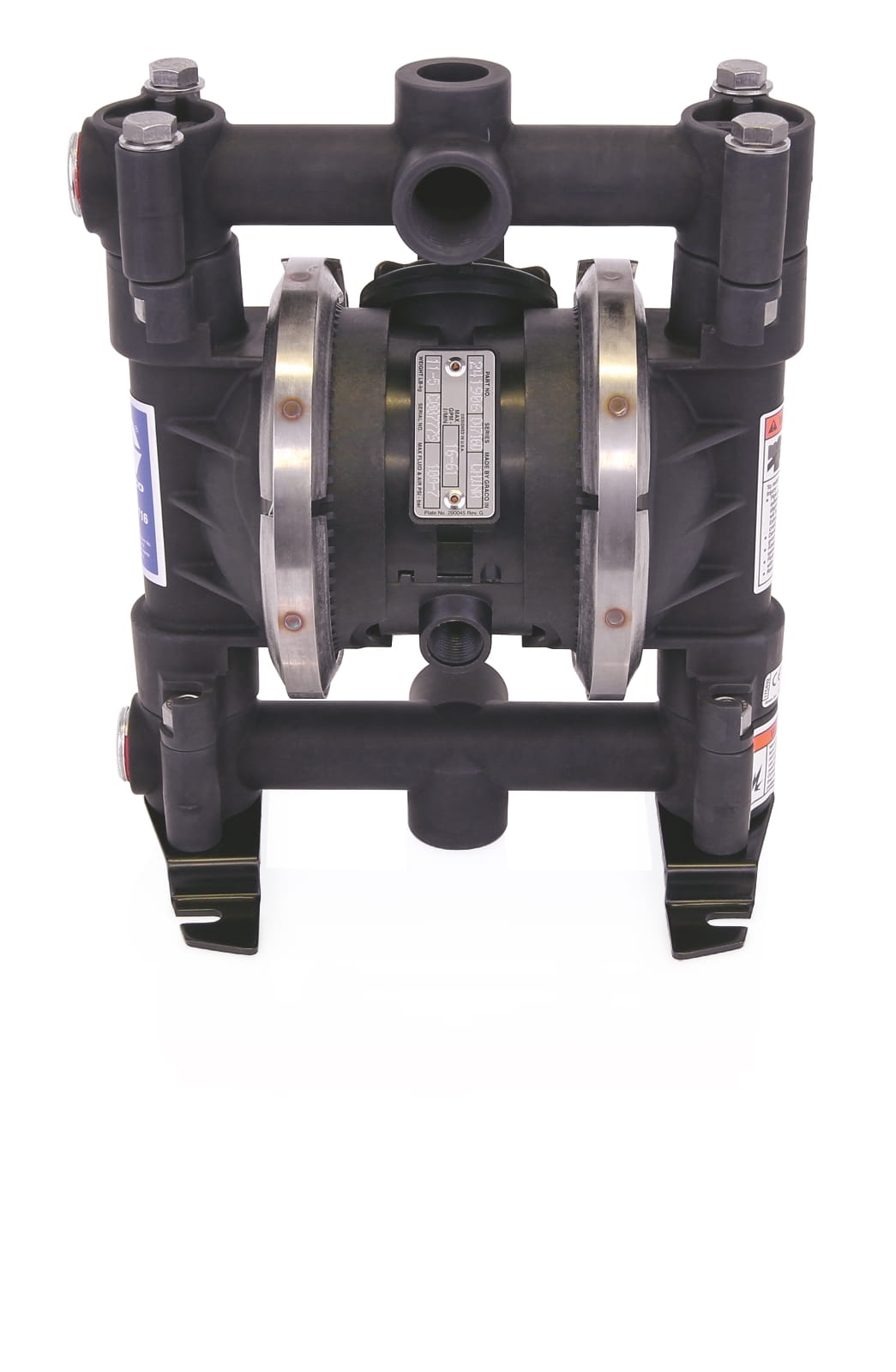

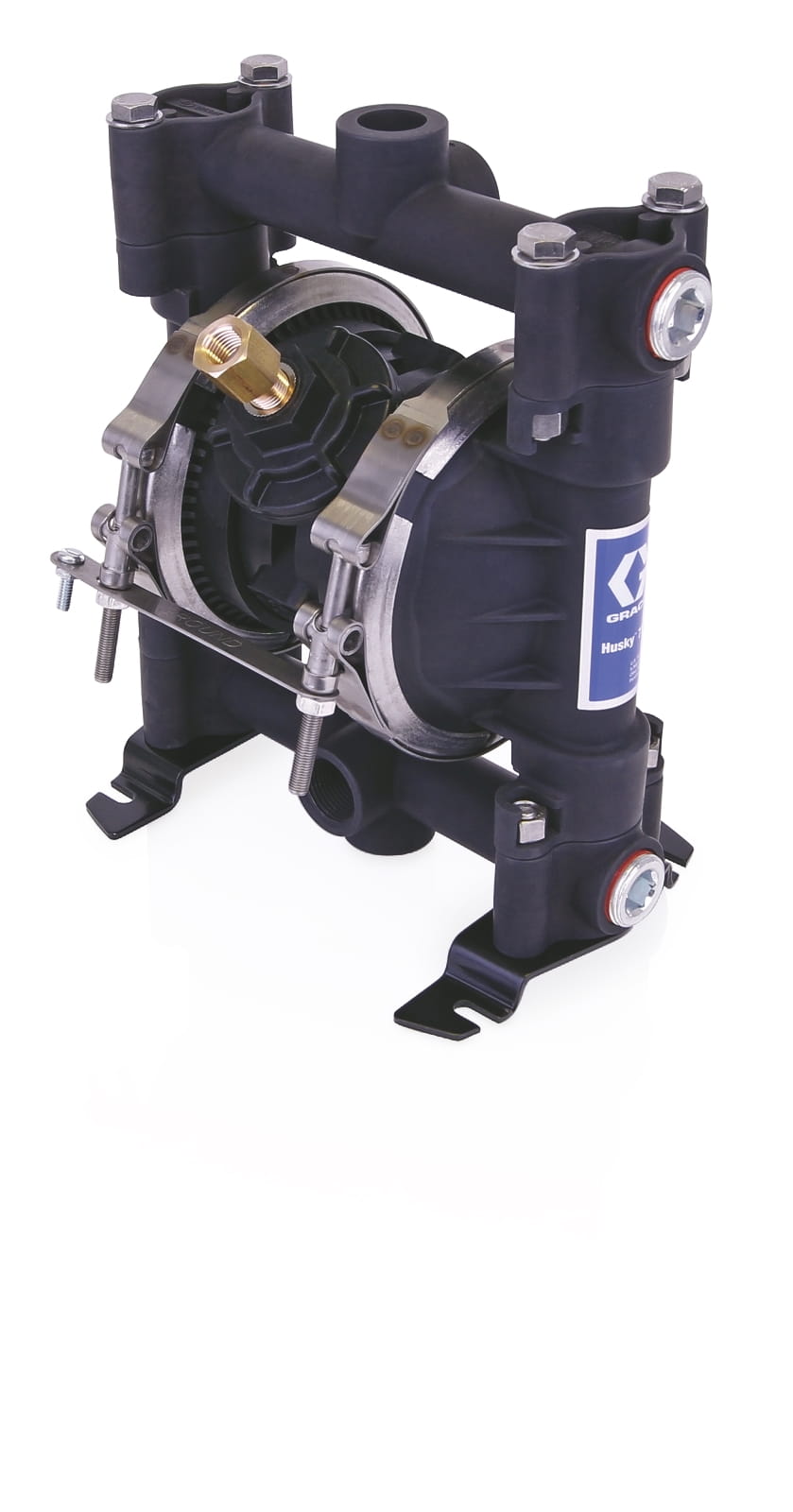

Husky 716 - Antifreeze and windscreen solvent delivery kits with one inlet
€1,620.42*
% €1,800.47* (10% saved)Prices include VAT plus shipping costs
€1,361.70*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
The Husky 716 air-operated diaphragm pump delivers up to 60.6 l/min (16 g/min) of material and has centre and end opening options.
Ideal for pumping antifreeze and windscreen solvent in large quantities.
- Centre housing and end opening
- No mechanical seals to cause material leakage or failure
- Quiet running at less than 85 dB(A) with user-friendly remote silencer for even lower noise levels
- Easy to maintain air and ball check valves
- 19.05 mm (3/4'') centre and end opening
- No seals that can cause leaks or fail
- Quiet operation; less than 85 dB(A) with user-friendly remote silencer for even lower noise levels
- Easy to maintain air and ball check valves
| Application: | industry |
|---|---|
| Compatible material: | Antifreeze, windshield washer fluid |
| For use with: | Antifreeze, windshield solvent |
| Gender of the inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Includes: | 716 Air operated double diaphragm pump, compressed air regulator, material connection hose, compressed air connection hose, compressed air shut-off valve, wall mounting bracket, suction kit, thermal relief kit |
| Inlet thread type: | NPT |
| Material: | Aluminum, Buna-N |
| Material inlet thread type: | NPT |
| Material outlet size (cm): | 1,905 |
| Material outlet size (mm): | 19.05 |
| Material outlet thread type: | NPT |
| Maximum air pressure (bar): | 7 |
| Maximum air pressure (kPa): | 70 |
| Maximum air pressure (psi): | 100 |
| Maximum material pressure (MPa): | 0.7 |
| Maximum material pressure (bar): | 7 |
| Maximum material pressure (kPa): | 70 |
| Maximum material pressure (psi): | 100 |
| Maximum number of cycles (DH/min): | 400 |
| Maximum solids size (cm): | 2,381 |
| Maximum solids size (mm): | 2.3813 |
| Series: | 716 |
| Size of the material inlet opening (cm): | 1.9050 |
| Size of the material inlet opening (inches): | 3/4 |
| Size of the material inlet opening (mm): | 19.05 |
| Size of the material outlet opening (inches): | 3/4 |
| Type: | Diaphragm pump system |
More information
- Product number: 1037404
- Manufacturer: Graco
- EAN: 00633955648074
- Weight: 16.351 kg
Technical details
Operating specifications
| UPC product | 6 3 3955648074 |
|---|---|
| Division | LED |
| Price Block | 003 |
| Country of Origin | US |
| Unit | EA |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Fluid inlet size (cm) | 1. 9050 |
|---|---|
| Fluid inlet size (in) | 3/4 |
| Fluid inlet size (mm) | 19. 05 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 1. 905 |
| Fluid outlet size (mm) | 19. 05 |
| Fluid outlet thread gender | Female |
| For Use With | Anti-freeze, windscreen solvent |
| Includes | 716 AODD pump, air regulator, fluid connect hose, air connect hose, air shut-off valve, wall mount bracket, suction kit, thermal relief kit |
| Inlet Thread Gender | Female |
| Maximum air pressure (bar) | 7 |
| Maximum air pressure (kPa) | 70 |
| Maximum air pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum fluid pressure (bar) | 7 |
| Maximum fluid pressure (kPa) | 70 |
| Maximum fluid pressure (psi) | 100 |
| Maximum solid size (cm) | 0. 2381 |
| Maximum solid size (in) | 0. 09375 |
| Maximum solid size (mm) | 2. 3813 |
| Series | 716 |
| Maximum fluid pressure (MPa) | 0. 7 |
| Model | H usky |
