Manufacturer no.: D5B311

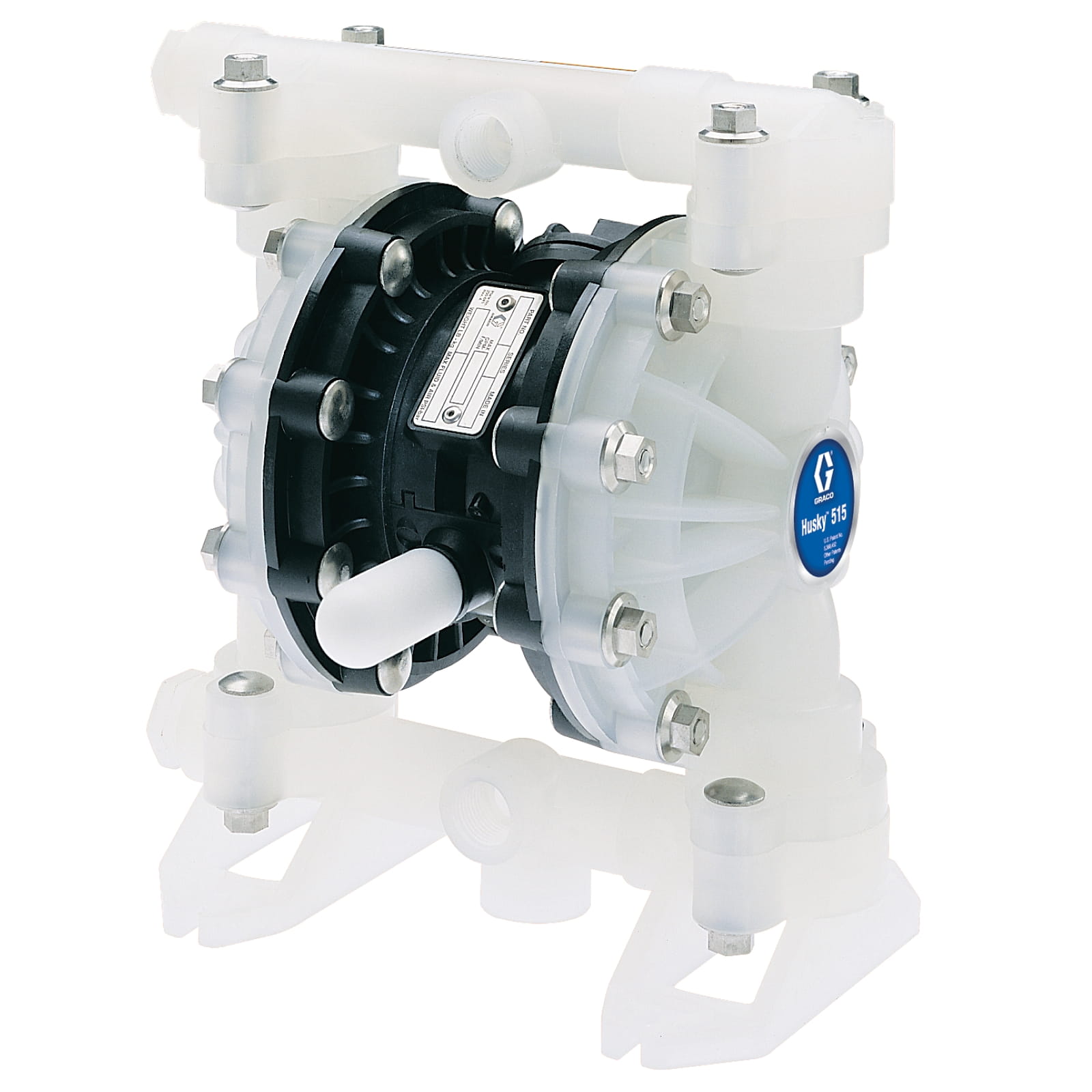

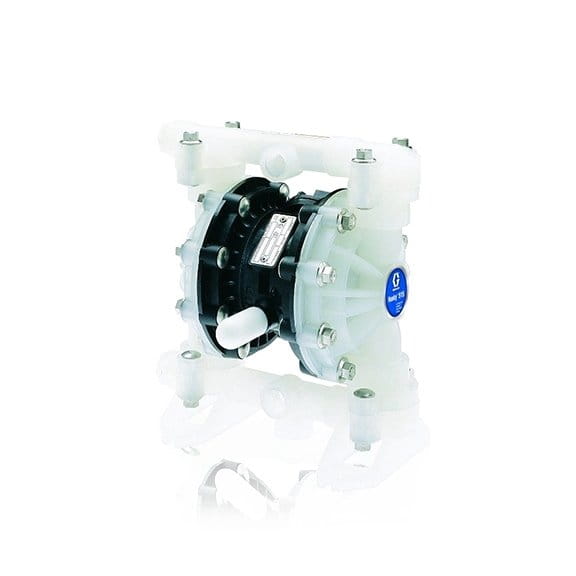

Husky 515 PP 13 mm (1/2") BSP standard pump, PP centre housing, SS seats, PTFE balls and PTFE diaphragm

€1,492.74*

% €2,132.48* (30% saved)

Prices include VAT plus shipping costs

€1,254.40*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

Also interesting

Product information

The Husky 515 air-operated double diaphragm pump is equipped with a non-blocking and low-pulsation air valve that enables a smooth and fast stroke change.

The through-bore material cover prevents material leakage and ensures greater safety with optimised reliability.

Centre section and end opening optionally available.
No mechanical seals to cause material leakage or failures
Quiet operation at less than 85 dB(A) with user-friendly remote silencer for even lower noise levels
Easy to maintain air and ball check valves
Requires only 0.14 MPa (1.4 bar, 20 psi)
Split manifold option to allow multiple materials to be pumped without mixing
Flow rate up to 15 lpm (56.7 l/min)
Easy to maintain air and ball check valves
Reliable air valves for years of continuous operation

Air inlet size (inches):	1/4
Air inlet thread type:	NPT
Application:	industry
Ball material:	PTFE
Compatible material:	Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Gear Oil, Cutting Oil, Water - Wastewater Treatment, Ink
Connection type:	With thread
Distributor O-ring material:	PTFE
Distributor configuration:	Connection in the centre:
Gender of the air inlet thread:	Internal thread
Material:	Polypropylene
Material inlet thread type:	NPT
Material in the liquid housing:	Polypropylene
Material of the centre housing:	Polypropylene
Material outlet size (cm):	1.27
Material outlet size (mm):	12.7
Material outlet thread type:	NPT
Maximum air pressure (MPa):	0.7
Maximum air pressure (bar):	7
Maximum air pressure (kPa):	700
Maximum air pressure (psi):	100
Maximum delivery rate (L/min):	56.8
Maximum material pressure (MPa):	0.7
Maximum material pressure (bar):	7
Maximum material pressure (kPa):	700
Maximum material pressure (psi):	100
Maximum number of cycles (DH/min):	400
Maximum operating temperature (°C):	104
Maximum solids size (cm):	2,383
Maximum solids size (mm):	2.4
Membrane, compatible material:	PTFE
Membrane material:	PTFE/EPDM 2-part
Minimum operating temperature (°C):	4
Model:	Husky
Seat material:	stainless steel
Series:	515
Size of the exhaust air opening (inches):	3/8
Size of the material inlet opening (cm):	1.27
Size of the material inlet opening (inches):	1/2
Size of the material inlet opening (mm):	12.7
Size of the material outlet opening (inches):	1/2
Standards met::	ATEX, CE
Supply voltage:	Air
Thread of the exhaust air opening (inside/outside):	Internal thread
Thread of the exhaust air opening (type):	NPT
Type:	Pneumatic diaphragm pump
Wetted material:	Polypropylene, stainless steel, PTFE / EPDM
