Manufacturer no.:
D3B966

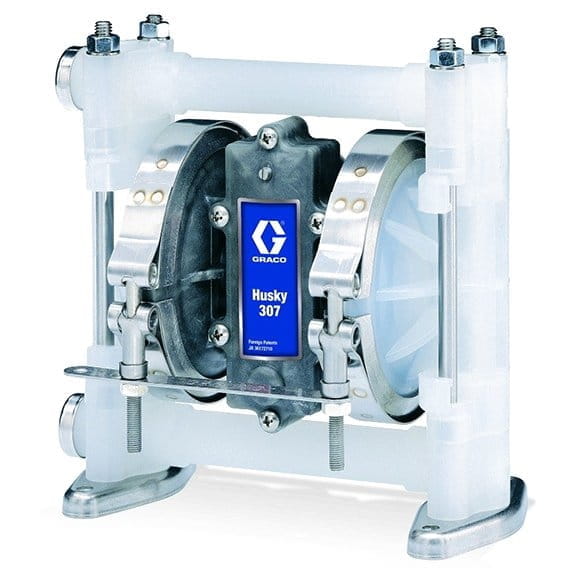

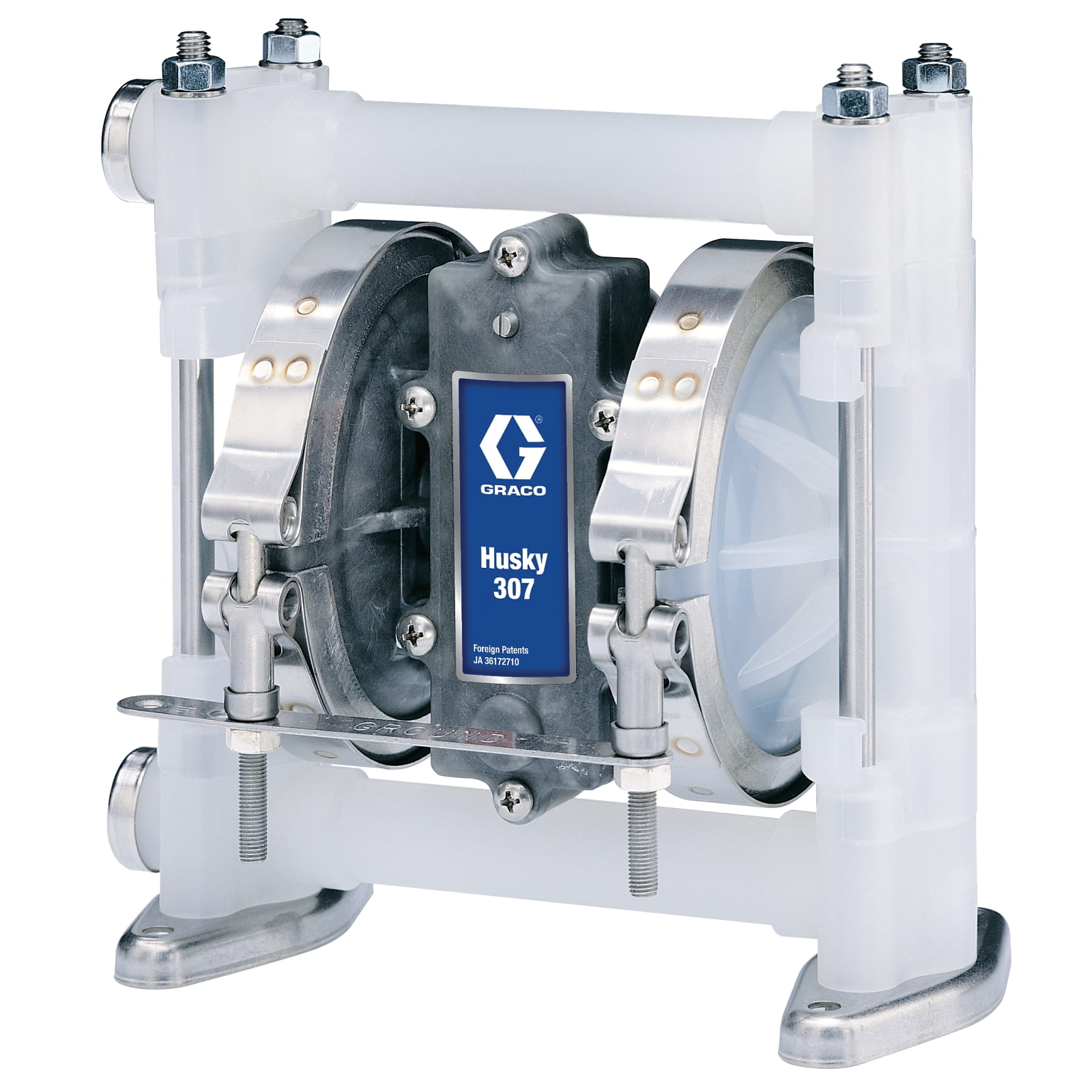

Husky 307 PP (3/8" BSP) standard pump, PP centre housing, PP seats, SP balls and SP diaphragm
€550.26*
% €687.82* (20% saved)Prices include VAT plus shipping costs
€462.40*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
The Husky 307 air-operated diaphragm pump features a no-fail air valve with low pulsation for smooth, fast changes.
Typical applications include transferring and draining oil, dispensing and pumping fuel, dispensing windscreen washer solution, and dispensing water and antifreeze. Some models are UL-approved for use in pumping petrol and petrol/alcohol mixtures up to 10% ethanol, diesel fuel, heating oil and lubricating oil.
- Design optimised for quick and easy assembly and disassembly
- Easy to maintain air and ball check valves
- Requires only 0.14 MPa (1.4 bar, 20 psi)
- Split manifold option allows multiple fluids to be pumped without mixing
- Each pump is tested before shipment
- 9.52 mm (3/8'') end opening
- Delivers up to 26.5 L/min
- Easy-to-service air and ball check valves
| Air inlet size (inches): | 1/4 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | Santoprene |
| Compatible material: | Antifreeze, cleaning agents, engine oil, hydraulic fluid, cutting oil, water - wastewater treatment, water, ink |
| Connection type: | With thread |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | End opening |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material: | Polypropylene |
| Material inlet thread type: | NPT |
| Material in the liquid housing: | Polypropylene |
| Material of the centre housing: | Polypropylene |
| Material outlet size (cm): | 9,525 |
| Material outlet size (mm): | 9,525 |
| Material outlet thread type: | NPT |
| Maximum air pressure (MPa): | 0.69 |
| Maximum air pressure (bar): | 6.9 |
| Maximum air pressure (kPa): | 690 |
| Maximum air pressure (psi): | 100 |
| Maximum delivery rate (L/min): | 24.6 |
| Maximum material pressure (MPa): | 0.69 |
| Maximum material pressure (bar): | 6.9 |
| Maximum material pressure (kPa): | 690 |
| Maximum material pressure (psi): | 100 |
| Maximum number of cycles (DH/min): | 330 |
| Maximum operating temperature (°C): | 66 |
| Maximum solids size (cm): | 1,588 |
| Maximum solids size (mm): | 1.5875 |
| Membrane, compatible material: | Santoprene |
| Membrane material: | Santoprene |
| Minimum operating temperature (°C): | 4 |
| Model: | Husky |
| Seat material: | Polypropylene |
| Series: | 307 |
| Size of the exhaust air opening (inches): | 3/8 |
| Size of the material inlet opening (cm): | 9,525 |
| Size of the material inlet opening (inches): | 3/8 |
| Size of the material inlet opening (mm): | 9,525 |
| Size of the material outlet opening (inches): | 3/8 |
| Standards met:: | CE |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Type: | Pneumatic diaphragm pump |
| Wetted material: | Polypropylene, Santoprene, PTFE |
More information
- Product number: 1036182
- Manufacturer: Graco
- EAN: 00633955867840
- Weight: 2.05 kg
- Length: 220 mm
- Width: 140 mm
- Height: 230 mm
Technical details
Operating specifications
| UPC product | 633955867840 |
|---|---|
| Division | PRO |
| Price Block | 2 59 |
| Country of origin | US |
| Unit | EA |
| Height | 23 CM |
| Length | 22 cm |
| Width | 14 cm |
| Volume | . 007 m³ |
| Shipping weight | 2 .46 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/8 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/4 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 0. 9525 |
| Fluid inlet size (in) | 3/8 |
| Fluid inlet size (mm) | 9. 525 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 0. 9525 |
| Fluid outlet size (mm) | 9. 525 |
| Fluid outlet thread gender | Female |
| Maximum air consumption (SCFM) | 5. 5 |
| Maximum air pressure (bar) | 6. 9 |
| Maximum air pressure (kPa) | 690 |
| Maximum air pressure (psi) | 100 |
| Maximum cycle rate (CPM) | 330 |
| Maximum flow rate (L/min) | 24. 6 |
| Maximum fluid pressure (bar) | 6. 9 |
| Maximum fluid pressure (kPa) | 690 |
| Maximum fluid pressure (psi) | 100 |
| Maximum operating temperature (°C) | 66 |
| Maximum operating temperature (°F) | 1 5 0 |
| Maximum solid size (cm) | 0. 1588 |
| Maximum solid size (in) | 0. 0625 |
| Maximum solid size (mm) | 1. 5875 |
| Minimum operating temperature (°C) | 4 |
| Minimum operating temperature (°F) | 40 |
| Model | H usky |
| Overall Height (in) | 8. 13 |
| Series | 307 |
| Maximum fluid pressure (MPa) | 0. 69 |
| Maximum air pressure (MPa) | 0. 69 |
| Diaphragm compatible material | Sant op rene |
