Manufacturer no.:
24B782

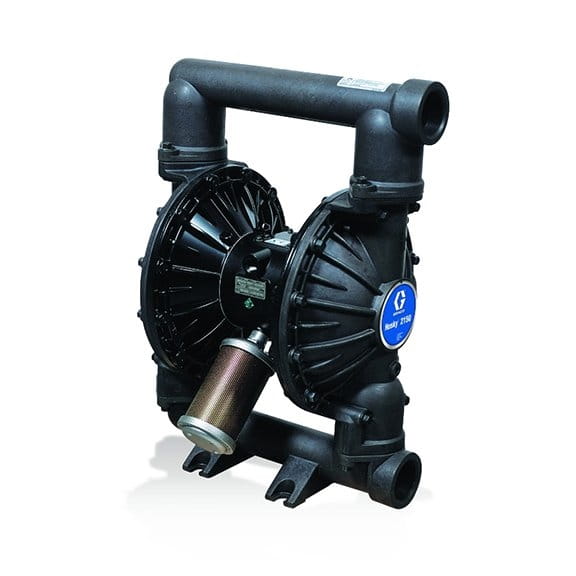

Husky 2150 AL air operated metal double diaphragm pump, SS/PT/PO
€3,706.85*
% €4,236.40* (12.5% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Husky 2150 air-operated diaphragm pump with a failure-free, low pulsation air valve that provides a smooth and fast stroke change.
- Improved overall efficiency (up to 40% more efficient)
- Highest material flow in its class
- Up to five times longer diaphragm life compared to other air-operated diaphragm pumps
- Expanded range of materials for use in a variety of applications
- The pump consists of fewer parts than many competing products and the complete air valve is accessible from the outside. This makes it quick and easy to service without having to remove the diaphragm pump.
- 51 cm (2") ANSI end opening
- Flow rate up to 568 l/min
- Material pressure up to 0.84 MPa (8.4 bar, 120 psi)
- Lubricant-free operation
- Epoxy-coated air section for harsh working conditions
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | PTFE |
| Compatible material: | Antifreeze, cleaning agents, engine oil, hydraulic fluid, water - wastewater transfer |
| Connection type: | With thread |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | End opening |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material: | aluminum |
| Material inlet thread type: | NPT |
| Material in the liquid housing: | aluminum |
| Material of the centre housing: | aluminum |
| Material outlet size (cm): | 05.08 |
| Material outlet size (mm): | 50.8 |
| Material outlet thread type: | NPT |
| Maximum air pressure (MPa): | 0.8 |
| Maximum air pressure (bar): | 8 |
| Maximum air pressure (kPa): | 800 |
| Maximum air pressure (psi): | 120 |
| Maximum delivery rate (L/min): | 568 |
| Maximum material pressure (MPa): | 0.8 |
| Maximum material pressure (bar): | 8 |
| Maximum material pressure (kPa): | 800 |
| Maximum material pressure (psi): | 120 |
| Maximum number of cycles (DH/min): | 145 |
| Maximum operating temperature (°C): | 93 |
| Maximum solids size (cm): | 635 |
| Maximum solids size (mm): | 6.35 |
| Membrane, compatible material: | PTFE |
| Membrane material: | PTFE coated |
| Model: | Husky |
| Seat material: | stainless steel |
| Series: | 2150 |
| Size of the exhaust air opening (inches): | 3/4 |
| Size of the material inlet opening (cm): | 05.08 |
| Size of the material inlet opening (inches): | 2 |
| Size of the material inlet opening (mm): | 50.8 |
| Size of the material outlet opening (inches): | 2 |
| Standards met:: | ATEX, CE |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Type: | Pneumatic diaphragm pump |
More information
- Product number: 1039488
- Manufacturer: Graco
- EAN: 00633955326835
- Weight: 22.65 kg
- Length: 700 mm
- Width: 520 mm
- Height: 350 mm
Technical details
Operating specifications
| UPC product | 633955326835 |
|---|---|
| Division | PRO |
| Price Block | 265 |
| Country of origin | US |
| Unit | EA |
| Height | 35 CM |
| Length | 70 cm |
| Width | 52 cm |
| Volume | . 127 m³ |
| Shipping weight | 29 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/4 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 5. 08 |
| Fluid inlet size (in) | 2 |
| Fluid inlet size (mm) | 50. 8 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 5. 08 |
| Fluid outlet size (mm) | 50. 8 |
| Fluid outlet thread gender | Female |
| Maximum air consumption (SCFM) | 1 75 |
| Maximum air pressure (bar) | 8 |
| Maximum air pressure (kPa) | 800 |
| Maximum air pressure (psi) | 120 |
| Maximum cycle rate (CPM) | 1 45 |
| Maximum flow rate (L/min) | 568 |
| Maximum fluid pressure (bar) | 8 |
| Maximum fluid pressure (kPa) | 800 |
| Maximum fluid pressure (psi) | 120 |
| Maximum operating temperature (°C) | 93 |
| Maximum operating temperature (°F) | 2 00 |
| Maximum solid size (cm) | 0. 635 |
| Maximum solid size (in) | 0. 25 |
| Maximum solid size (mm) | 6. 35 |
| Model | H usky |
| Series | 2 150 |
| Maximum fluid pressure (MPa) | 0. 8 |
| Maximum air pressure (MPa) | 0. 8 |
| Diaphragm compatible material | PTFE |
