Manufacturer no.:
D12091

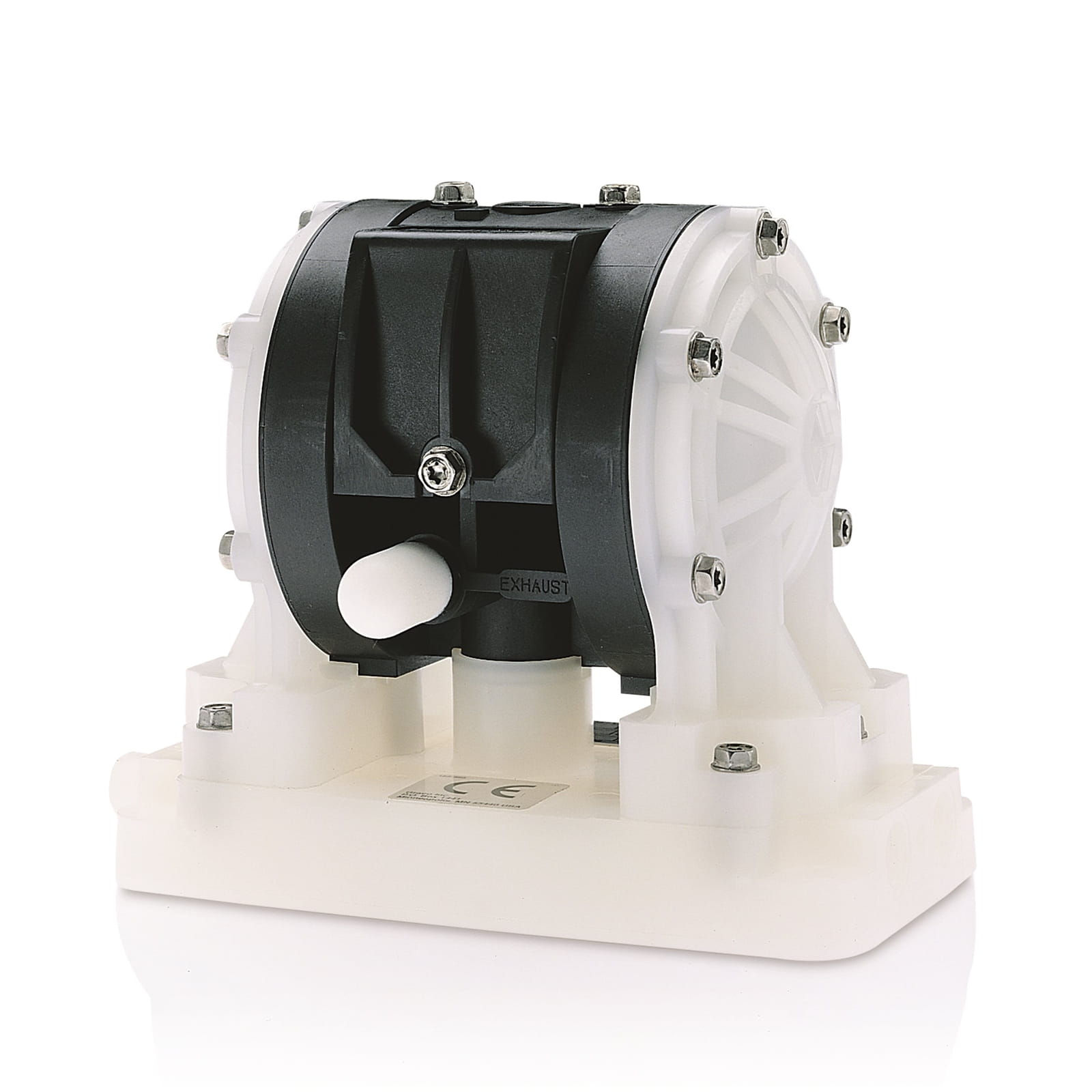

Husky 205 PP air-operated double diaphragm pump made of plastic, PP/PT/PT-FKM
€535.65*
% €659.26* (18.75% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Our Husky air operated double diaphragm pumps are packed with useful features to help you get the job done right every time, and they're designed to save you money.
The Husky 205 air operated diaphragm pump features spring check valves for reliable priming in all mounting configurations
- Properly moulded PTFE and Santoprene diaphragms for improved performance
- Spring-loaded check valves ensure the pump can be used in any orientation
- Inlet and outlet are interchangeable
- Remote control option with an external controller
- 1/4 inch (6.35 mm) double diaphragm pump with end porting
| Air inlet size (inches): | 1/4 |
|---|---|
| Air inlet thread type: | NPT, BSP |
| Application: | industry |
| Ball material: | Polypropylene |
| Compatible material: | Antifreeze, cleaning agents, engine oil, hydraulic fluid, water - wastewater treatment, water, ink |
| Connection type: | With thread |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | End opening |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material: | Polypropylene |
| Material inlet thread type: | NPT, NPT |
| Material in the liquid housing: | Polypropylene |
| Material of the centre housing: | Polypropylene |
| Material outlet size (cm): | 635 |
| Material outlet size (mm): | 6.35 |
| Material outlet thread type: | NPT, NPT |
| Maximum air pressure (MPa): | 0.69 |
| Maximum air pressure (bar): | 6.9 |
| Maximum air pressure (kPa): | 690 |
| Maximum air pressure (psi): | 100 |
| Maximum delivery rate (L/min): | 18.9 |
| Maximum material pressure (MPa): | 0.69 |
| Maximum material pressure (bar): | 6.9 |
| Maximum material pressure (kPa): | 690 |
| Maximum material pressure (psi): | 100 |
| Maximum number of cycles (DH/min): | 320 |
| Maximum operating temperature (°C): | 66 |
| Maximum solids size (cm): | 0.15 |
| Maximum solids size (mm): | 1.5 |
| Membrane, compatible material: | PTFE |
| Membrane material: | PTFE/EPDM 2-part |
| Model: | Husky |
| Seat material: | Polypropylene |
| Series: | 205 |
| Size of the exhaust air opening (inches): | 1/4 |
| Size of the material inlet opening (cm): | 635 |
| Size of the material inlet opening (inches): | 1/4 |
| Size of the material inlet opening (mm): | 6.35 |
| Size of the material outlet opening (inches): | 1/4 |
| Standards met:: | CE |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT, BSP |
| Type: | Pneumatic diaphragm pump |
| Wetted material: | Polypropylene, PTFE / EPDM |
More information
- Product number: 1031992
- Manufacturer: Graco
- EAN: 00633955813700
- Weight: 1.5 kg
- Length: 180 mm
- Width: 122 mm
- Height: 160 mm
Technical details
Operating specifications
| UPC product | 633955813700 |
|---|---|
| Division | PRO |
| Price Block | 258 |
| Country of Origin | US |
| Unit | EA |
| Height | 16 CM |
| Length | 18 cm |
| Width | 12.2 cm |
| Volume | . 004 M3 |
| Shipping weight | 1 .6 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 1/4 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/4 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 0. 635 |
| Fluid inlet size (in) | 1/4 |
| Fluid inlet size (mm) | 6. 35 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 0. 635 |
| Fluid outlet size (mm) | 6. 35 |
| Fluid outlet thread gender | Female |
| Maximum air consumption (SCFM) | 9 |
| Maximum air pressure (bar) | 7 |
| Maximum air pressure (kPa) | 700 |
| Maximum air pressure (psi) | 100 |
| Maximum cycle rate (CPM) | 2 50 |
| Maximum flow rate (L/min) | 18. 9 |
| Maximum fluid pressure (bar) | 7 |
| Maximum fluid pressure (kPa) | 700 |
| Maximum fluid pressure (psi) | 100 |
| Maximum operating temperature (°C) | 66 |
| Maximum operating temperature (°F) | 1 5 0 |
| Maximum solid size (cm) | 0. 15 |
| Maximum solid size (in) | 0. 06 |
| Maximum solid size (mm) | 1. 5 |
| Model | H usky |
| Overall height (in) | 6 |
| Series | 2 05 |
| Maximum fluid pressure (MPa) | 0. 7 |
| Maximum air pressure (MPa) | 0. 7 |
| Diaphragm compatible material | PTFE |
| compressor required | Yes |
