Manufacturer no.:
DB2777

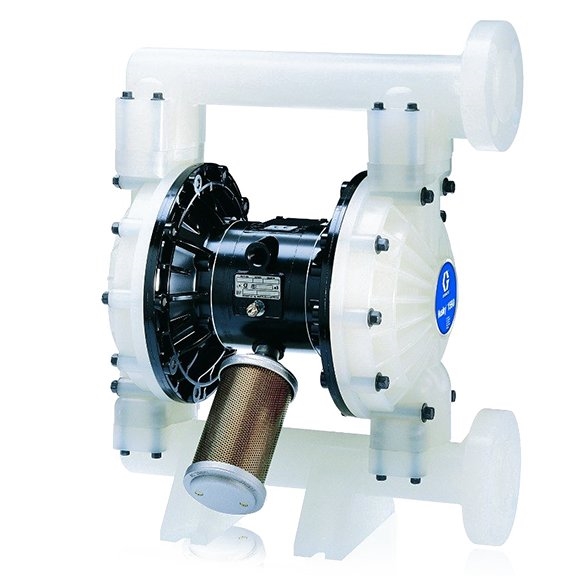

Husky 1590 PP 38.1 mm (1-1/2") NPT Standard Pump, AL Centre Body, BN Seats, BN Balls and BN Diaphragm
€4,143.06*
% €5,099.15* (18.75% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Husky 1590 air-operated diaphragm pump features a patented air valve with a closed centre section for high reliability, which can be serviced online, and an epoxy-coated air section for harsh environmental conditions.
- Diaphragm life up to 5 times longer than other air-operated diaphragm pumps in this class
- Extended range of materials for use in a variety of applications
- The pump has fewer parts than many competitive pumps and the complete air valve is externally accessible, making it quick and easy to service without removing the diaphragm pump.
- Available in an ATEX configuration.
- 38.1 mm (1-1/2") ANSI end opening
- High flow - 378 l/min in a compact, portable size
- Fluid pressure up to 0.84 MPa (8.4 bar, 120 psi)
- Lubricant-free operation
- Available in polypropylene, aluminium and stainless steel
- Epoxy-coated air section for harsh working conditions
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | Buna-N |
| Compatible material: | Antifreeze, detergent, engine oil, hydraulic fluid, cutting oil, water - wastewater transfer |
| Connection type: | With thread |
| Distributor configuration: | End opening |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material: | Polypropylene |
| Material inlet thread type: | NPT |
| Material in the liquid housing: | Polypropylene |
| Material of the centre housing: | aluminum |
| Material outlet size (cm): | 3.81 |
| Material outlet size (mm): | 38.1 |
| Material outlet thread type: | NPT |
| Maximum air pressure (MPa): | 0.84 |
| Maximum air pressure (bar): | 8.4 |
| Maximum air pressure (kPa): | 840 |
| Maximum air pressure (psi): | 120 |
| Maximum delivery rate (L/min): | 379 |
| Maximum material pressure (MPa): | 0.84 |
| Maximum material pressure (bar): | 8.4 |
| Maximum material pressure (kPa): | 840 |
| Maximum material pressure (psi): | 120 |
| Maximum number of cycles (DH/min): | 200 |
| Maximum operating temperature (°C): | 66 |
| Maximum solids size (cm): | 4,763 |
| Maximum solids size (mm): | 4,763 |
| Membrane, compatible material: | Buna |
| Membrane material: | Buna-N |
| Model: | Husky |
| Seat material: | Buna-N |
| Series: | 1590 |
| Size of the exhaust air opening (inches): | 3/4 |
| Size of the material inlet opening (cm): | 3.81 |
| Size of the material inlet opening (inches): | 1-1/2 |
| Size of the material inlet opening (mm): | 38.1 |
| Size of the material outlet opening (inches): | 1-1/2 |
| Standards met:: | CE |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Type: | Pneumatic diaphragm pump |
More information
- Product number: 1031552
- Manufacturer: Graco
- EAN: 00633955933095
- Weight: 17.758 kg
- Length: 488 mm
- Width: 305 mm
- Height: 610 mm
Technical details
Operating specifications
| UPC product | 633955933095 |
|---|---|
| Division | PRO |
| Price Block | 263 |
| Country of origin | US |
| Unit | EA |
| Height | 61 CM |
| Length | 48.8 cm |
| Width | 30.5 cm |
| Volume | 0 . 091 m³ |
| Shipping weight | 17.76 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/4 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 3. 81 |
| Fluid inlet size (in) | 1-1/2 |
| Fluid inlet size (mm) | 38. 1 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 3. 81 |
| Fluid outlet size (mm) | 38. 1 |
| Fluid outlet thread gender | Female |
| Maximum air consumption (SCFM) | 125 |
| Maximum air pressure (bar) | 8. 4 |
| Maximum air pressure (kPa) | 840 |
| Maximum air pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 2 00 |
| Maximum flow rate (L/min) | 379 |
| Maximum fluid pressure (bar) | 8. 4 |
| Maximum fluid pressure (kPa) | 840 |
| Maximum fluid pressure (psi) | 120 |
| Maximum operating temperature (°C) | 66 |
| Maximum operating temperature (°F) | 150 |
| Maximum solid size (cm) | 0. 4763 |
| Maximum solid size (in) | 0. 1875 |
| Maximum solid size (mm) | 4. 763 |
| Model | H usky |
| Series | 1590 |
| Maximum fluid pressure (MPa) | 0. 84 |
| Maximum Air Pressure (MPa) | 0. 84 |
| Diaphragm compatible material | Buna |
