Manufacturer no.: 24W757

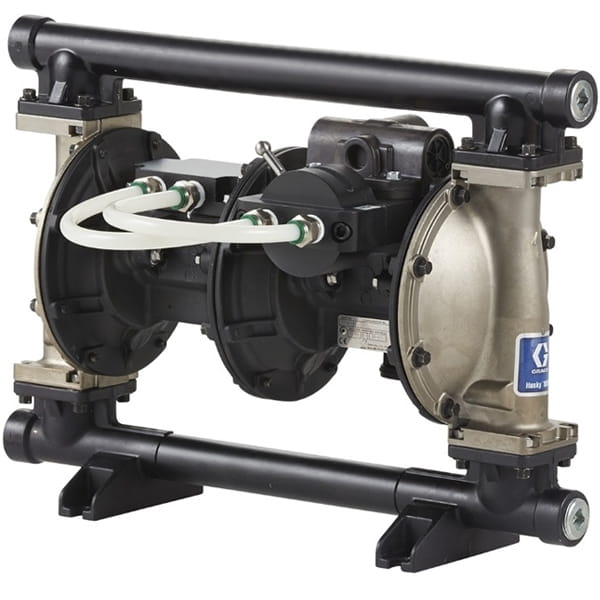

Husky 1050HP 25.4 mm (1") BSPT AL pump, AL centre housing, SS seats, SP balls & SP diaphragm

€4,268.02*

% €5,886.93* (27.5% saved)

Prices include VAT plus shipping costs

€3,586.57*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Husky 1050HP air-operated diaphragm pump is the first commercially available pump that allows the user to choose between high-pressure and low-pressure operation with Graco's pressure switch valve. High pressure operation is not always necessary. Low pressure operation reduces air consumption by up to 50 %. These features, combined with the quality and reliability of Husky's standard diaphragm pump, make this high-pressure diaphragm pump one of the most unique products on the market.

Advantages of the Husky 1050HP double diaphragm pump
- Increased fluid pressure without compromising flow
- With the low-high pressure mode valve, you can operate the pump as a standard air-operated double diaphragm pump or as a high-pressure air-operated double diaphragm pump
- Reduce air consumption by up to 50 % with the low-pressure mode
- Same repair parts as the Husky 1050 diaphragm pump
External control valves
- Easy maintenance
- Reduced downtime (quick changeover time)
- Spring-loaded for faster changeover
Modular air valve
- Easy maintenance
- Standstill-free and lubrication-free
Material distributor
- Stainless steel or aluminium
Additional diaphragm
- For high pressure operation
Low/high pressure service valve
- Selectable operating setting
- Reduces air consumption
- High pressure is only used when required
Wetted components
- Requires the same parts as the Husky 1050, reducing inventory

Anschluss Gewinde Größe:	1"
Artikel Art:	Komplettgerät
Material Art:	Aluminium, SP
Pumpen:	Membranpumpe

More information

Product number: 1039479
Manufacturer: Graco
EAN: 00633955697188
Weight: 28.086 kg
Length: 580 mm
Width: 490 mm
Height: 440 mm

Technical details

Specifications

Operating specifications

UPC product	633955697188
Division	PRO
Price Block	2 62
Country of Origin	US
Unit	EA
Height	44 CM
Length	58 cm
Width	49 cm
Volume	. 125 m³
Shipping weight	28.09 kg
HTS code (GB)	8413508090
HTS code (EU)	8413508090

Technical

Air exhaust port size (in)	3/4
Air exhaust port thread gender	Female
Air inlet size (in)	3/4
Air inlet thread gender	Female
Fluid inlet size (cm)	2. 54
Fluid inlet size (in)	1
Fluid inlet size (mm)	25. 4
Fluid outlet size (cm)	2. 54
Fluid outlet size (mm)	25. 4
Maximum air consumption (SCFM)	95
Maximum air pressure (bar)	8. 62
Maximum air pressure (kPa)	862
Maximum air pressure (psi)	125
Maximum cycle rate (CPM)	1 4 0
Maximum flow rate (L/min)	1 89
Maximum fluid pressure (bar)	17. 2
Maximum fluid pressure (kPa)	1720
Maximum fluid pressure (psi)	2 50
Maximum solid size (cm)	0. 3175
Maximum solid size (in)	0. 125
Maximum solid size (mm)	3. 175
Model	H usky
Series	1 0 50HP
Maximum fluid pressure (MPa)	1. 72
Maximum Air Pressure (MPa)	0. 862
Diaphragm compatible material	Sant op rene
